Numerical simulation of beam coupling impedance of ceramic chamber in dynamic magnetic field

Huang Liangsheng; Wu Bin; Huang Mingyang; Liu Renhong; Tan Biao; Wang Pengcheng; Li Xiao

doi:10.11884/HPLPB202638.250137

Volume 38 Issue 1

Dec. 2025

Turn off MathJax

Article Contents

Article Navigation > High Power Laser and Particle Beams > 2026 > 38(1): 014002

Huang Liangsheng, Wu Bin, Huang Mingyang, et al. Numerical simulation of beam coupling impedance of ceramic chamber in dynamic magnetic field[J]. High Power Laser and Particle Beams, 2026, 38: 014002. doi: 10.11884/HPLPB202638.250137

Citation:

Huang Liangsheng, Wu Bin, Huang Mingyang, et al. Numerical simulation of beam coupling impedance of ceramic chamber in dynamic magnetic field[J]. High Power Laser and Particle Beams, 2026, 38: 014002. doi: 10.11884/HPLPB202638.250137

Citation:

PDF( 3106 KB)

Numerical simulation of beam coupling impedance of ceramic chamber in dynamic magnetic field

doi: 10.11884/HPLPB202638.250137

Huang Liangsheng^{1, 2
,},
Wu Bin^{1, 2},
Huang Mingyang^{1, 2},
Liu Renhong^{1, 2},
Tan Biao^{1, 2},
Wang Pengcheng^{1, 2},
Li Xiao^{1, 2}

1.
Institute of High Energy Physics, Chinese Academy of Sciences, Beijing 100049, China
2.
Spallation Neutron Source Science Center, Dongguan 523803, China

Received Date: 2025-05-16
Accepted Date: 2025-12-18
Rev Recd Date: 2025-12-12

Available Online: 2025-12-15

Publish Date: 2025-12-18

Abstract

Abstract

Background

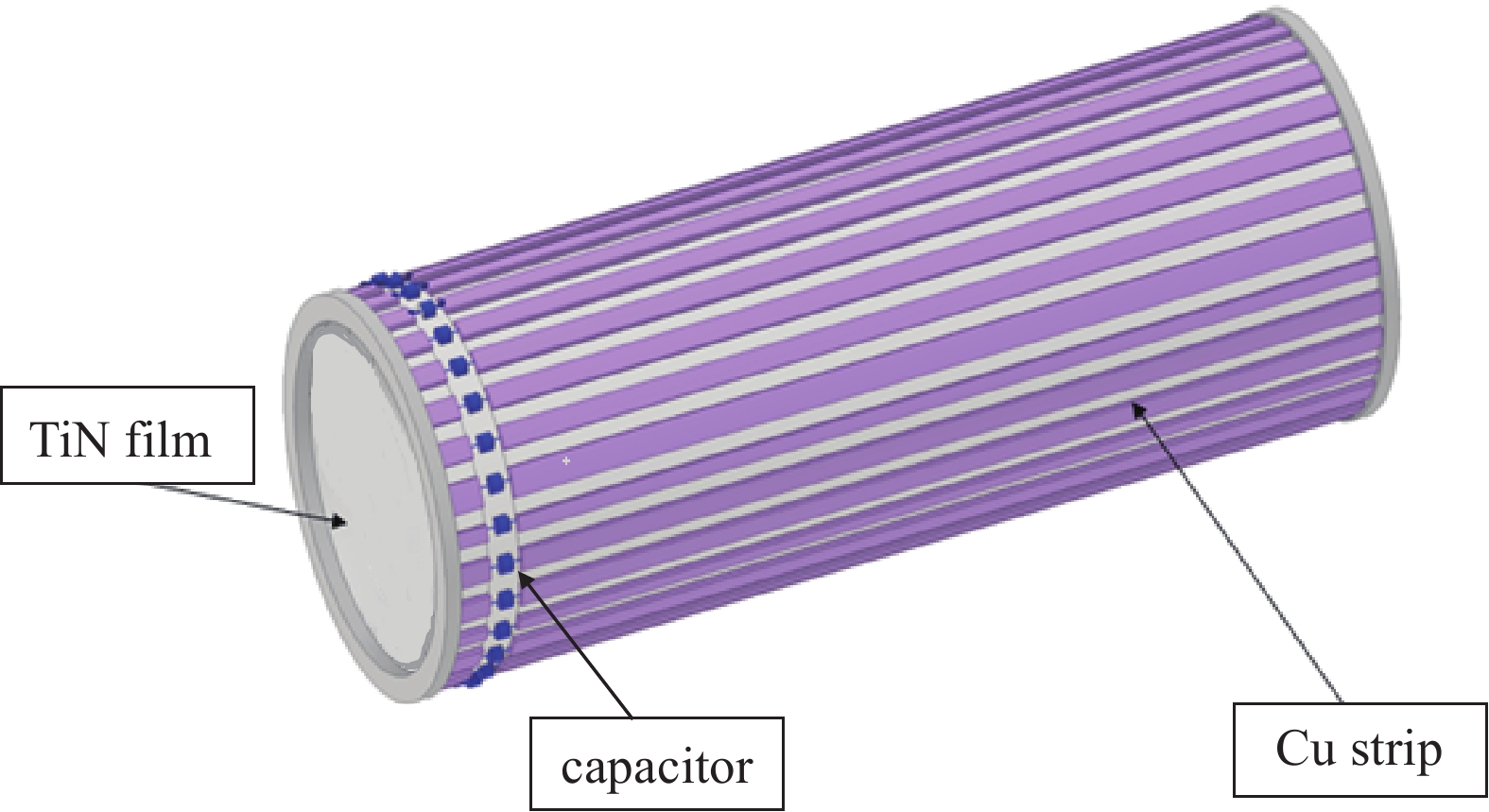

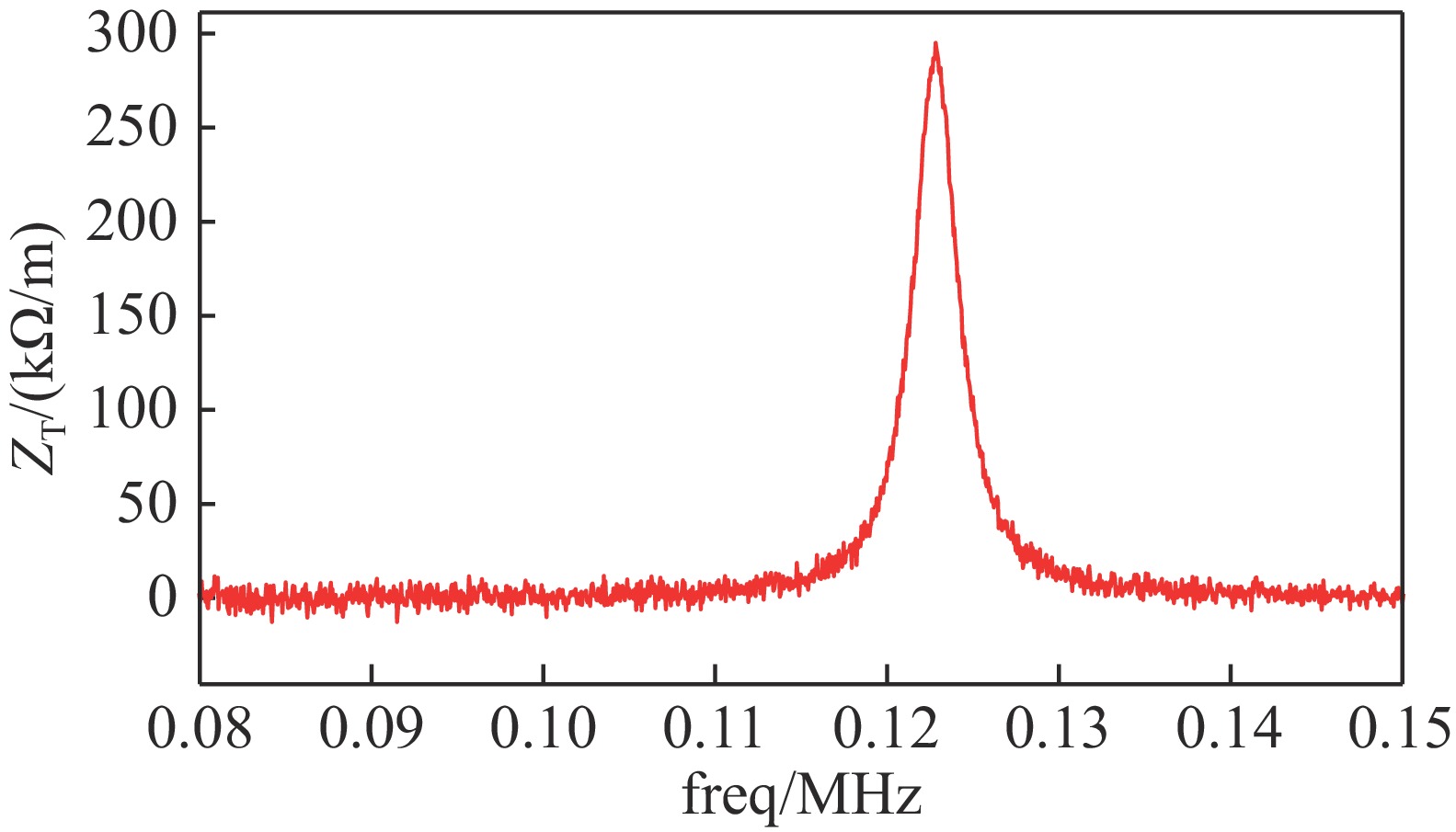

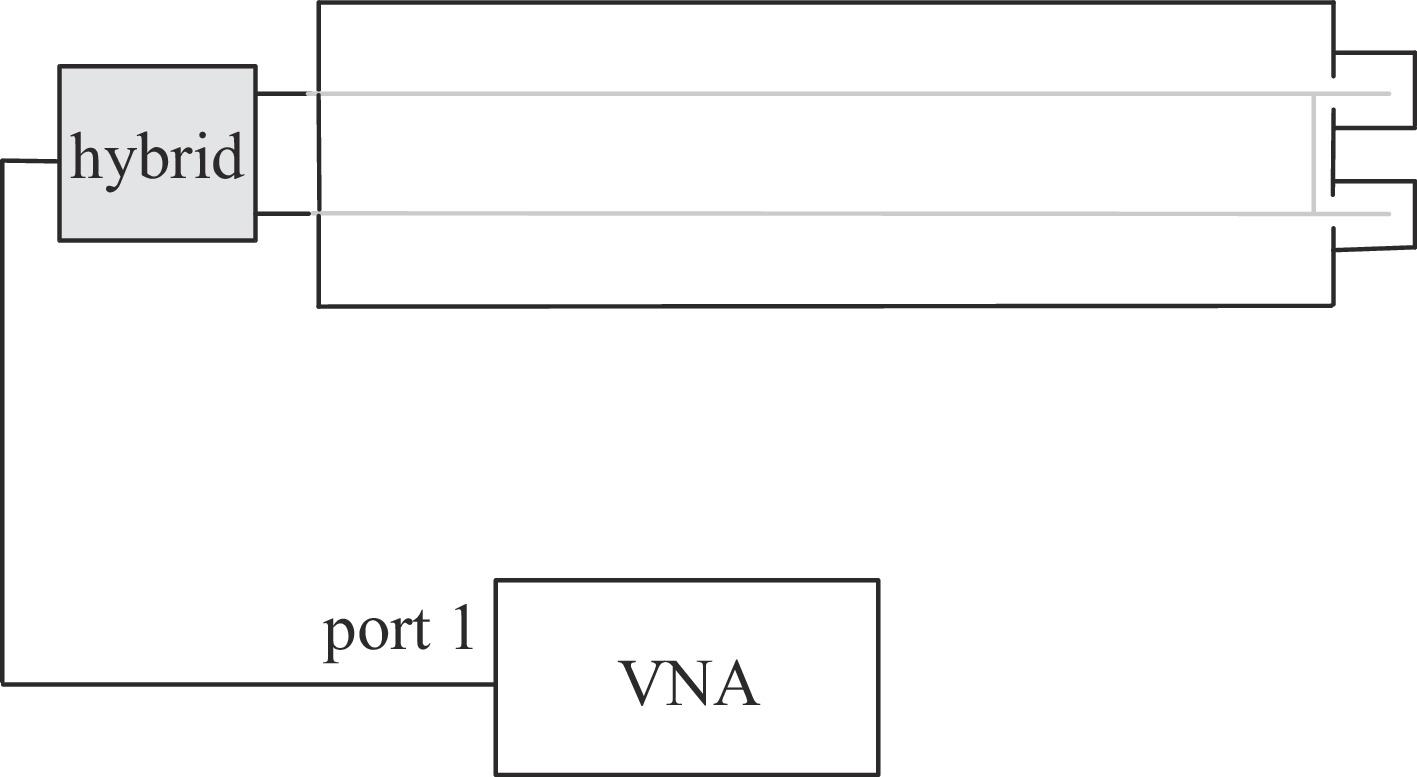

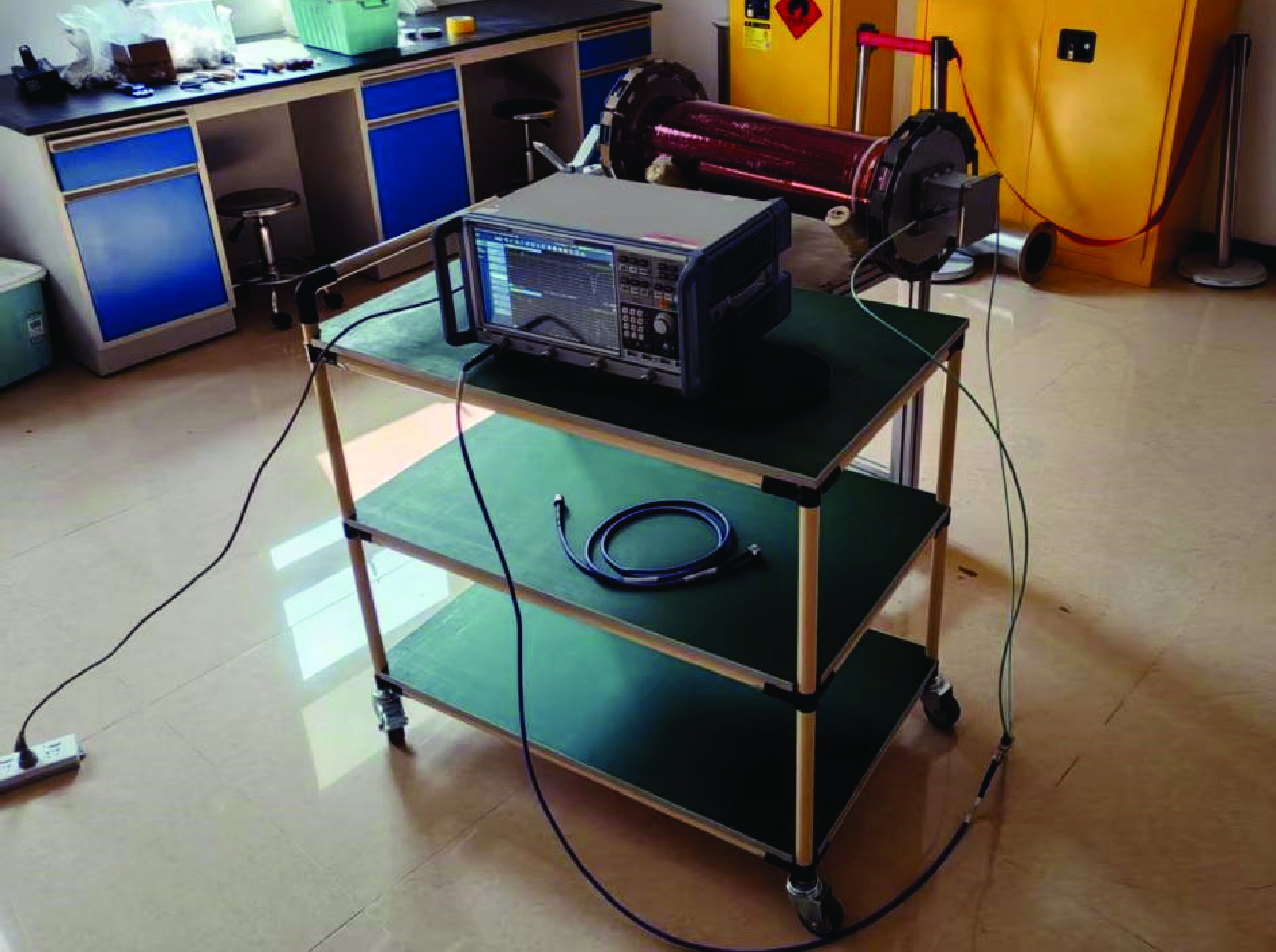

The rapid cycling synchrotron (RCS) requires the magnetic field to track the energy ramp, producing a strongly time-dependent magnetic environment. To control beam coupling impedance and suppress field leakage, an RCS typically uses ceramic vacuum chambers covered in an RF shielding layer. The shield consists of parallel metal strips aligned with the beam and terminated by capacitors at either end, which preserves a low beam impedance while suppressing eddy currents induced by the time-dependent magnetic field. Previous theoretical studies suggest that the impedance of such a structure has a negligible impact on the beam. However, impedance measurements of the China Spallation Neutron Source RCS ceramic chamber have revealed the presence of a transverse resonant impedance.
Purpose
As this observation has not been verified by independent methods.
Methods
The CST electromagnetic simulations are used to test its presence.
Results

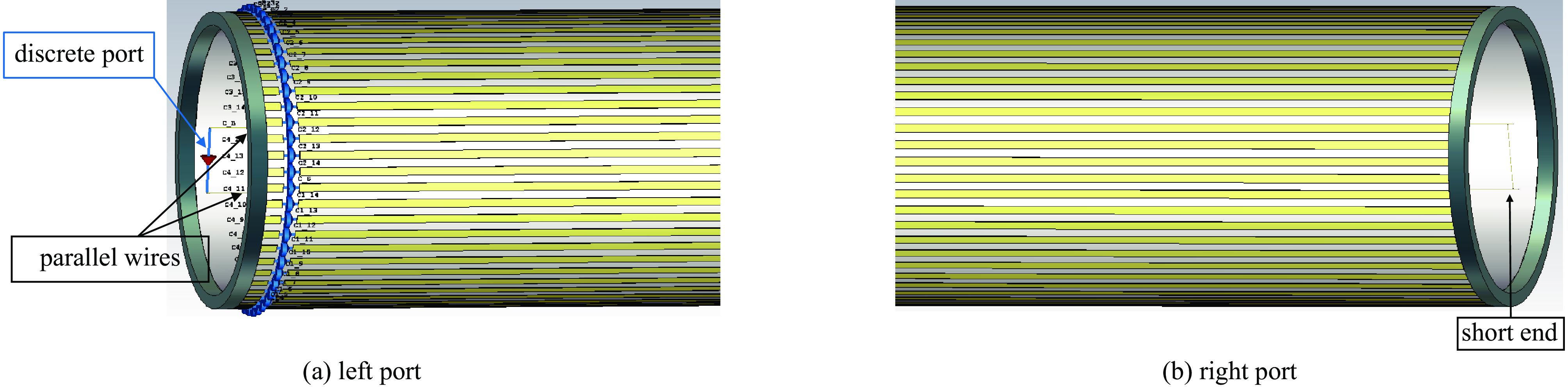

A high-fidelity simulation model has been developed and benchmarked against measurements, showing close agreement with the measured impedance.
Conclusions

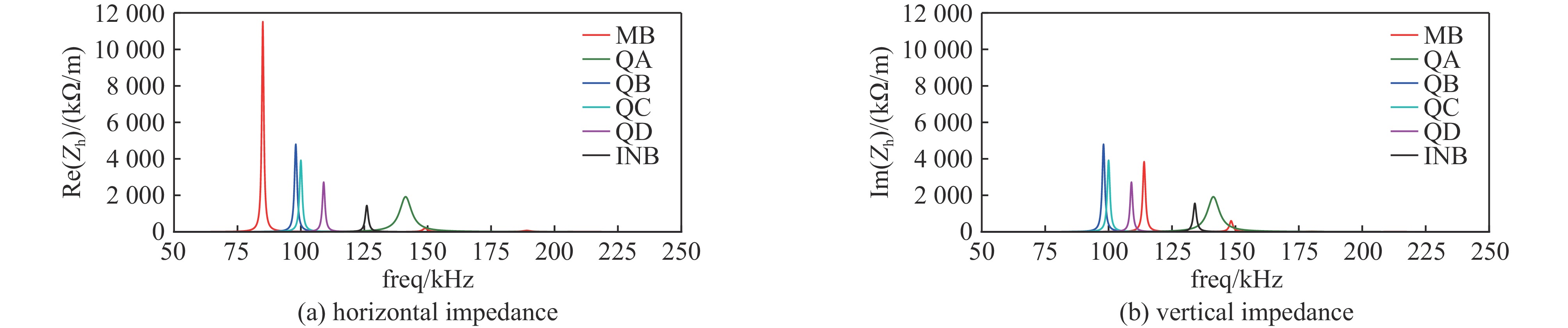

The comparison confirms the validity of the impedance characterization. Simulations spanning six ceramic-chamber geometries are then used to construct a comprehensive impedance model for the RCS, which provides a foundation for subsequent studies of beam dynamics and collective effects.
- beam coupling impedance,
- ceramic chamber,
- RF shield,
- resonance,
- high dynamic magnetic environment

FullText(HTML)

References(18)

References

[1]	Zotter B. Longitudinal instabilities of charged particle beams inside cylindrical walls of finite thickness[J]. Particle Accelerators, 1970, 1: 311-326.
[2]	Danilov V V, Henderson S, Burov A, et al. An improved impedance model of metallic coatings[C]//Proceedings of the 8th European Particle Accelerator Conference. 2002: 1464-1466.
[3]	Roncarolo F, Caspers F, Kroyer T, et al. Comparison between laboratory measurements, simulations, and analytical predictions of the transverse wall impedance at low frequencies[J]. Physical Review Accelerators and Beams, 2009, 12: 084401. doi: 10.1103/PhysRevSTAB.12.084401
[4]	Wang N, Qin Q. Resistive-wall impedance of two-layer tube[J]. Physical Review Accelerators and Beams, 2007, 10: 111003. doi: 10.1103/PhysRevSTAB.10.111003
[5]	CST Studio Suite[EB/OL]. [2024-08-06]. http://www.cst.com.
[6]	Wei Jie, Chen Hesheng, Chen Yanwei, et al. China spallation neutron source: design, R&D, and outlook[J]. Nuclear Instruments and Methods in Physics Research Section A: Accelerators, Spectrometers, Detectors and Associated Equipment, 2009, 600(1): 10-13.
[7]	Wang Sheng, Fang Shouxian, Fu Shinian, et al. Introduction to the overall physics design of CSNS accelerators[J]. Chinese Physics C, 2019, 33(s2): 1-3.
[8]	李青, 康文, 孙献静, 等. CSNS/RCS交流二极磁铁研制关键技术[J]. 强激光与粒子束, 2017, 29: 085105 doi: 10.11884/HPLPB201729.160498 Li Qing, Kang Wen, Sun Xianjing, et al. Key technology of the development of the CSNS/RCS AC dipole magnet[J]. High Power Laser and Particle Beams, 2017, 29: 085105 doi: 10.11884/HPLPB201729.160498
[9]	齐欣, 张旌, 郝祖岳, 等. 中国散裂中子源磁铁电源系统[J]. 电力电子技术, 2014, 48(12): 8-10,24 Qi Xin, Zhang Jing, Hao Zuyue, et al. Magnet power supply system for China spallation neutron source[J]. Power Electronics, 2014, 48(12): 8-10,24
[10]	许守彦. 中国散裂中子源快循环同步加速器中的空间电荷效应研究[D]. 北京: 中国科学院研究生院, 2011: 91-107 Xu Shouyan. The study on the space charge effects of CSNS/RCS[D]. Beijing: University of Chinese Academy of Sciences, 2011: 91-107
[11]	Dong Haiyi, Song Hong, Li Qi, et al. The vacuum system of the China spallation neutron source[J]. Vacuum, 2018, 154: 75-81. doi: 10.1016/j.vacuum.2018.04.046
[12]	Huang Liangsheng, Xu Shouyan, Wang Sheng. The characteristic of the beam position growth in CSNS/RCS[C]//Proceedings of the 12th International Particle Accelerator Conference. 2021: 2073-2075.
[13]	Huang Liangsheng, Huang Mingyang, Xu Shouyan, et al. Intense beam issues in CSNS accelerator beam commissioning[C]//Proceedings of the 68th Adv. Beam Dyn. Workshop High-Intensity High-Brightness Hadron Beams. 2023: 16-22.
[14]	Huang Liangsheng. Source of instability in the RCS of CSNS[C]//Proceedings of the 6th ICFA Mini-Workshop on Space Charge. 2024: 9-11.
[15]	Huang Liangsheng, Wang Sheng, Xu Shouyan, et al. Source of instability in the rapid cycling synchrotron of the China spallation neutron source[J]. The European Physical Journal Plus, 2025, 140: 71. doi: 10.1140/epjp/s13360-025-05997-8
[16]	Chao A W, Tigner M. Handbook of accelerator physics and engineering[M]. Singapore: World Scientific, 1999: 196-215.
[17]	Caspers F. Bench methods for beam-coupling impedance measurement[R]. CERN report, CERN PS/88-59, 1988.
[18]	Mostacci A, Caspers F, Iriso U. Bench measurements of low frequency transverse impedance[C]//Proceedings of the 2003 Particle Accelerator Conference. 2003: 1801-1803.
