Measurement of correlated neutron distributions from an alpha-associated DT neutron generator

Xu Fu; Tang Jian; Li Jiansheng; Liu Xiaobo

doi:10.11884/HPLPB202638.250239

Article Contents

Article Navigation > High Power Laser and Particle Beams > 2026 > Accepted Manuscript

Xu Fu, Tang Jian, Li Jiansheng, et al. Measurement of correlated neutron distributions from an alpha-associated DT neutron generator[J]. High Power Laser and Particle Beams. doi: 10.11884/HPLPB202638.250239

Citation:

Xu Fu, Tang Jian, Li Jiansheng, et al. Measurement of correlated neutron distributions from an alpha-associated DT neutron generator[J]. High Power Laser and Particle Beams. doi: 10.11884/HPLPB202638.250239

Citation:

PDF( 4851 KB)

Measurement of correlated neutron distributions from an alpha-associated DT neutron generator

doi: 10.11884/HPLPB202638.250239

Institute of Nuclear Physics and Chemistry , CAEP, Mianyang 621900, China

Received Date: 2025-07-26
Accepted Date: 2025-12-25
Rev Recd Date: 2026-01-04

Available Online: 2026-01-16

Abstract

Abstract

Background
Portable alpha-associated deuterium-tritium (DT) neutron generators have extensive application potential in fields such as nuclear physics experiments, homeland security, and nuclear safeguards and assay.
Purpose
To evaluate the correlated neutron distribution characteristics of a domestically developed compact portable alpha-associated DT neutron generator, providing critical technical support for its design validation, manufacturing quality control, and engineering applications.
Methods

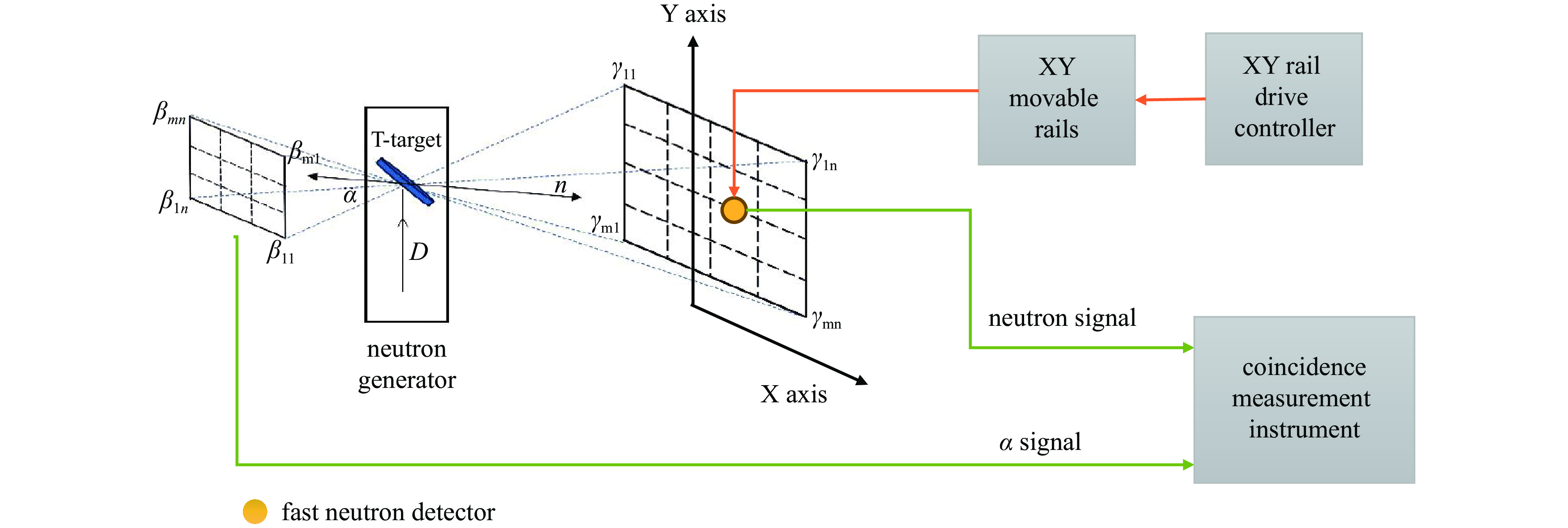

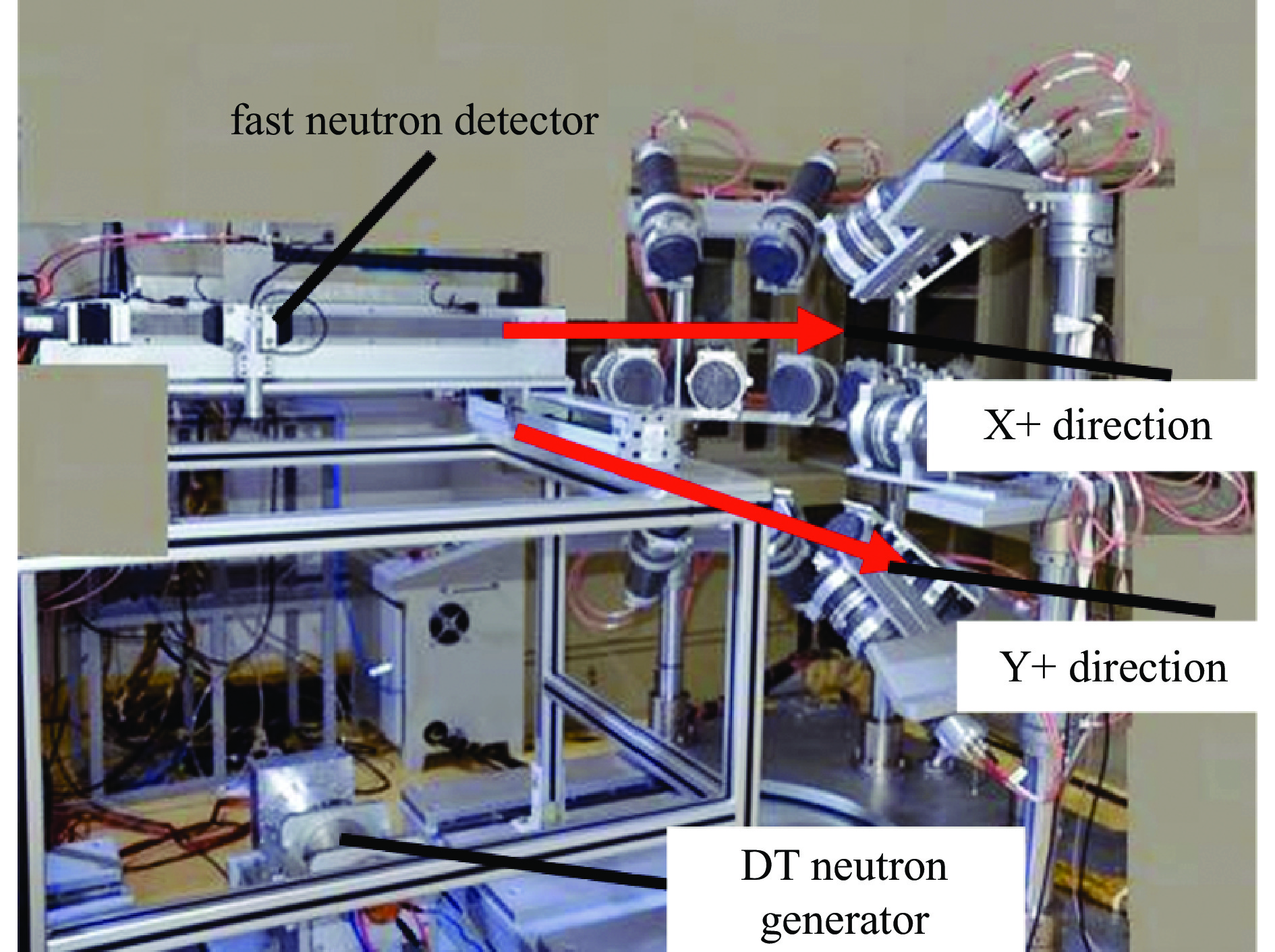

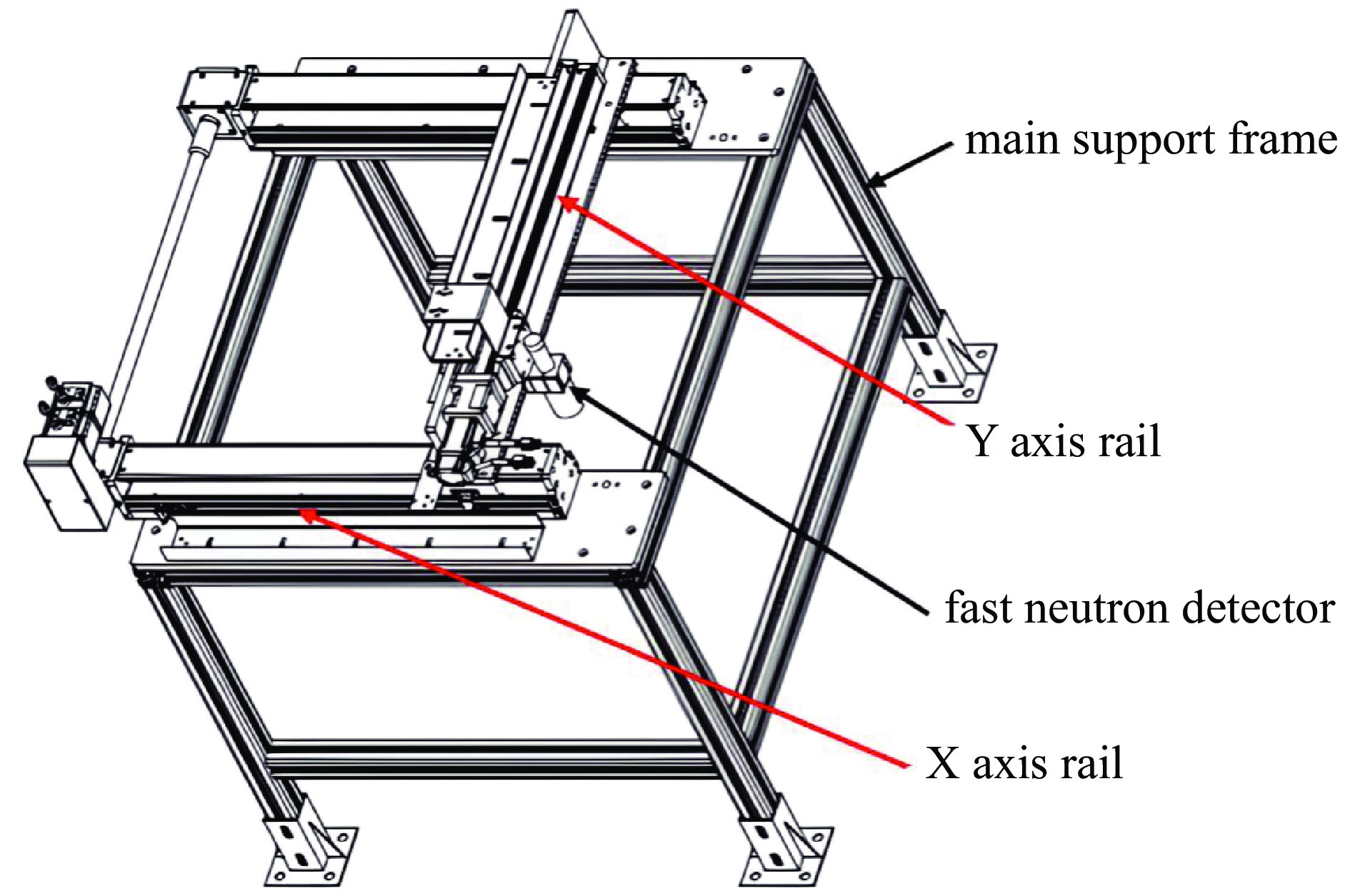

A specialized measurement system was established, comprised of a liquid scintillator detector, a high precision displacement mechanics, and a coincidence measurement digitizer. This system was used to quantify the spatial extent of the correlated neutron emission region and the corresponding solid angle coefficients.
Results

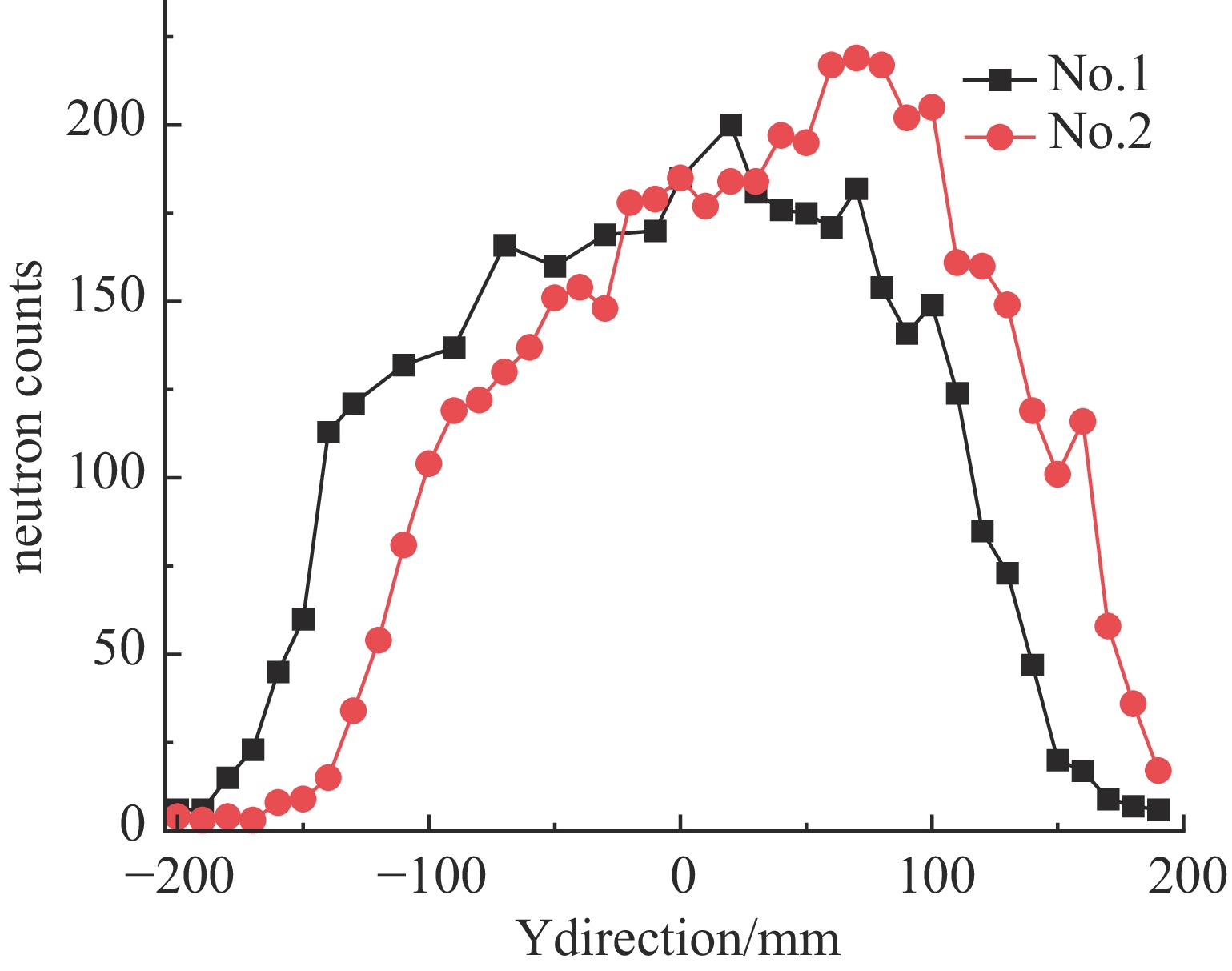

Experimental measurements on two neutron generators revealed a measurable difference in their correlated neutron distribution areas, with an approximate 15% variation in the effective correlation region.
Conclusions
This study provides essential technical support for both the design validation and quality control testing in the manufacturing of this type of compact portable neutron generator. It also offers valuable reference data for engineering applications by end-users.
- DT neutron generator,
- associated neutron distribution,
- liquid scintillation detector,
- coincidence measurement,
- alpha associated detector

FullText(HTML)

References(25)

References

[1]	Pesente S, Nebbia G, Viesti G, et al. Progress in tagged neutron beams for cargo inspections[J]. Nuclear Instruments and Methods in Physics Research Section B: Beam Interactions with Materials and Atoms, 2007, 261(1/2): 268-271. doi: 10.1016/j.nimb.2007.03.095
[2]	Bucher B, Seabury E H, Hix J, et al. Assessment of the associated particle technique with high-resolution gamma-ray spectroscopy for in-field identification of chemical warfare agents and explosives[J]. Nuclear Instruments and Methods in Physics Research Section A: Accelerators, Spectrometers, Detectors and Associated Equipment, 2022, 1032: 166651. doi: 10.1016/j.nima.2022.166651
[3]	Alexakhin V Y, Akhunova A I, Razinkov E A, et al. Application of the tagged neutrons method for the analysis of material on a conveyor[J]. Physics of Atomic Nuclei, 2022, 85(11): 1866-1871. doi: 10.1134/S1063778822100039
[4]	Perot B, Carasco C, Deyglun C, et al. Detection of special nuclear materials with tagged neutrons[C]//Proceedings of the IEEE Nuclear Science Symposium, Medical Imaging Conference and Room-Temperature Semiconductor Detector Workshop. 2016: 1-4.
[5]	徐四大, 朱维彬. 检测爆炸物和毒品的伴随粒子成像方法[J]. 原子能科学技术, 1998, 32(6): 482-486 Xu Sida, Zhu Weibin. An explosive and drug detecting method based on associated particle imaging[J]. Atomic Energy Science and Technology, 1998, 32(6): 482-486
[6]	徐四大, 朱维彬. 伴随粒子成像技术及其研究进展[J]. 原子核物理评论, 1999, 16(1): 66-68 Xu Sida, Zhu Weibin. Associated particle imaging and its progress[J]. Nuclear Physics Review, 1999, 16(1): 66-68
[7]	叶龙建, 张东东, 杨振, 等. 伴随粒子中子检测系统发展及应用[J]. 核技术, 2024, 47: 020001 doi: 10.11889/j.0253-3219.2024.hjs.47.020001 Ye Longjian, Zhang Donggong, Yang Zhen, et al. Development and application of a spatial associated particle neutron detection system[J]. Nuclear Techniques, 2024, 47: 020001 doi: 10.11889/j.0253-3219.2024.hjs.47.020001
[8]	安力, 何铁, 郭海萍, 等. 伴随粒子法瞬发γ能谱测量技术研究[J]. 原子能科学技术, 2010, 44(s1): 15-18 An Li, He Tie, Guo Haiping, et al. Prompt γ energy spectrum by associated particle technique[J]. Atomic Energy Science and Technology, 2010, 44(s1): 15-18
[9]	王新华, 杨杰, 郑普, 等. 基于API-TOF的化学战剂无损检测[J]. 核技术, 2013, 36: 100501 Wang Xinhua, Yang Jie, Zheng Pu, et al. Nondestructive inspection of chemical warfare based on API-TOF[J]. Nuclear Techniques, 2013, 36: 100501
[10]	景士伟, 郭勇, 郑玉来, 等. 标记中子法检测包裹内爆炸物[J]. 核电子学与探测技术, 2015, 35(7): 721-725 Jing Shiwei, Guo Yong, Zheng Yulai, et al. Detection of explosives hidden in package by using tagged neutron method[J]. Nuclear Electronics & Detection Technology, 2015, 35(7): 721-725
[11]	何铁, 郑普, 安力, 等. 一种基于快中子的化学战剂无损检测技术[J]. 强激光与粒子束, 2016, 28: 054002 doi: 10.11884/HPLPB201628.054002 He Tie, Zheng Pu, An Li, et al. Nondestructive chemical weapon detection technology based on fast neutron[J]. High Power Laser and Particle Beams, 2016, 28: 054002 doi: 10.11884/HPLPB201628.054002
[12]	王新华, 郑普, 安力, 等. 伴随粒子法检测隐藏爆炸物安检仪研发[J]. 强激光与粒子束, 2014, 26: 059002 doi: 10.11884/HPLPB201426.059002 Wang Xinhua, Zheng Pu, An Li, et al. Development of a hidden explosives security check instrument based on associated particles technique[J]. High Power Laser and Particle Beams, 2014, 26: 059002 doi: 10.11884/HPLPB201426.059002
[13]	Mikerov V, Barmakov Y N, Bogolubov E, et al. Portable neutron generators of vniia and their applications[J]. International Workshop on Fast Neutron Detectors and Applications, 2007, 25: 23. (查阅网上资料, 未找到本条文献页码, 请确认).
[14]	Chichester D L, Lemchak M, Simpson J D. The API 120: a portable neutron generator for the associated particle technique[J]. Nuclear Instruments and Methods in Physics Research Section B: Beam Interactions with Materials and Atoms, 2005, 241(1/4): 753-758. doi: 10.1016/j.nimb.2005.07.128
[15]	肖坤祥, 金大志, 向伟, 等. 带伴随粒子中子发生器研制[J]. 核技术, 2011, 34(1): 27-30 Xiao Kunxiang, Jin Dazhi, Xiang Wei, et al. The design of neutron generator with concomitant particle[J]. Nuclear Techniques, 2011, 34(1): 27-30
[16]	唐建, 郑普, 张钦龙. 带位置分辨率的伴随α粒子标记中子管技术研究[R]. GF-A9062219G, 中国工程物理研究院核物理与化学研究所, 四川绵阳. 2021 Tang Jian, Zheng Pu, Zhang Qinlong. Research on tagged neutron tube technology with position-resolved associated alpha particles[R]. GF-A9062219G, Institute of Nuclear Physics and Chemistry, CAEP, Mianyang Sichuan, China, 2021) (查阅网上资料, 未找到本条文献信息, 请确认)
[17]	Cooper C J, Koltick D S, Mihalczo J T, et al. Evaluation of ZnO(Ga) coatings as alpha particle transducers within a neutron generator[J]. Nuclear Instruments and Methods in Physics Research Section A: Accelerators, Spectrometers, Detectors and Associated Equipment, 2003, 505(1/2): 498-501. doi: 10.1016/s0168-9002(03)01132-x
[18]	Nebbia G, Pesente S, Lunardon M, et al. Performance of a tagged neutron inspection system (TNIS) based on portable sealed generators[J]. Nuclear Instruments and Methods in Physics Research Section A: Accelerators, Spectrometers, Detectors and Associated Equipment, 2004, 533(3): 475-480. doi: 10.1016/s0168-9002(04)01441-x
[19]	Pesente S, Nebbia G, Lunardon M, et al. Tagged neutron inspection system (TNIS) based on portable sealed generators[J]. Nuclear Instruments and Methods in Physics Research Section B: Beam Interactions with Materials and Atoms, 2005, 241(1/4): 743-747. doi: 10.1016/j.nimb.2005.07.127
[20]	唐军杰, 王拓, 张强, 等. 用于位置灵敏型中子探测器的⁶LiF/ZnS(Ag)闪烁体性能研究[J]. 发光学报, 2013, 34(1): 78-81 doi: 10.3788/fgxb20133401.0078 Tang Junjie, Wang Tuo, Zhang Qiang, et al. Characteristics of ⁶LiF/ZnS(Ag) scintillator used in position-sensitive neutron detectors[J]. Chinese Journal of Luminescence, 2013, 34(1): 78-81 doi: 10.3788/fgxb20133401.0078
[21]	Koltick D S, Kane S Z, Lvovsky M, et al. Characterization of an associated particle neutron generator With ZnO: Ga alpha-detector and active focusing[J]. IEEE Transactions on Nuclear Science, 2009, 56(3): 1301-1305. doi: 10.1109/TNS.2008.2009536
[22]	张凯, 栾广源, 陈红涛, 等. 关联α粒子探测器设计和性能研究[J]. 原子能科学技术, 2020, 54(2): 354-359 doi: 10.7538∕yzk.2019.youxian.0145 Zhang Kai, Luan Guangyuan, Chen Hongtao, et al. Design and performance study of associated alpha particle detector[J]. Atomic Energy Science and Technology, 2020, 54(2): 354-359 doi: 10.7538∕yzk.2019.youxian.0145
[23]	Chen Jiaxuan, Hao Shutong, Sun Zhixiang, et al. Development of the ZnO: Ga nanorod arrays as an alpha particle scintillation screen for the associated particle neutron generator[J]. Applied Physics Letters, 2022, 120: 193502. doi: 10.1063/5.0086133
[24]	Tang Jian, Zheng Pu, Liu Meng, et al. The design and sealed operation of a portable alpha-tagging neutron generator[J]. Journal of Instrumentation, 2025, 20: P07018. doi: 10.1088/1748-0221/20/07/P07018
[25]	中国工程物理研究院核物理与化学研究所. 一种中子发生器的中子区域参数的测量装置及方法: CN202411414186.5[P]. 2025-01-10 Institute of Nuclear Physics and Chemistry, CAEP. Device and method for measuring neutron region parameters of neutron generator: CN202411414186.5[P]. 2025-01-10
