Design of a New Integrated RF Protection System for Heavy-Ion Superconducting Linear Accelerators

Ding Pengcheng; Gao Zheng; Liang Xiying; Han Zicheng; Xue Zongheng; Zhu Zhenglong; Jiang Tiancai; Zeng Rihua

doi:10.11884/HPLPB202638.250307

Article Contents

Article Navigation > High Power Laser and Particle Beams > 2026 > Accepted Manuscript

Ding Pengcheng, Gao Zheng, Liang Xiying, et al. Design of a New Integrated RF Protection System for Heavy-Ion Superconducting Linear Accelerators[J]. High Power Laser and Particle Beams. doi: 10.11884/HPLPB202638.250307

Citation:

Ding Pengcheng, Gao Zheng, Liang Xiying, et al. Design of a New Integrated RF Protection System for Heavy-Ion Superconducting Linear Accelerators[J]. High Power Laser and Particle Beams. doi: 10.11884/HPLPB202638.250307

Citation:

PDF( 4779 KB)

Design of a New Integrated RF Protection System for Heavy-Ion Superconducting Linear Accelerators

doi: 10.11884/HPLPB202638.250307

1.
School of Physics and Electronic Engineering, Northwest Normal University, Lanzhou 730070, China
2.
Institute of Modern Physics, Chinese Academy of Sciences, Lanzhou 730000, China
3.
Guangdong Provincial Laboratory of Advanced Energy Science and Technology, Huizhou 5l6001, China

Received Date: 2025-09-19
Accepted Date: 2026-01-09
Rev Recd Date: 2026-02-19

Available Online: 2026-03-27

Abstract

Abstract

Background

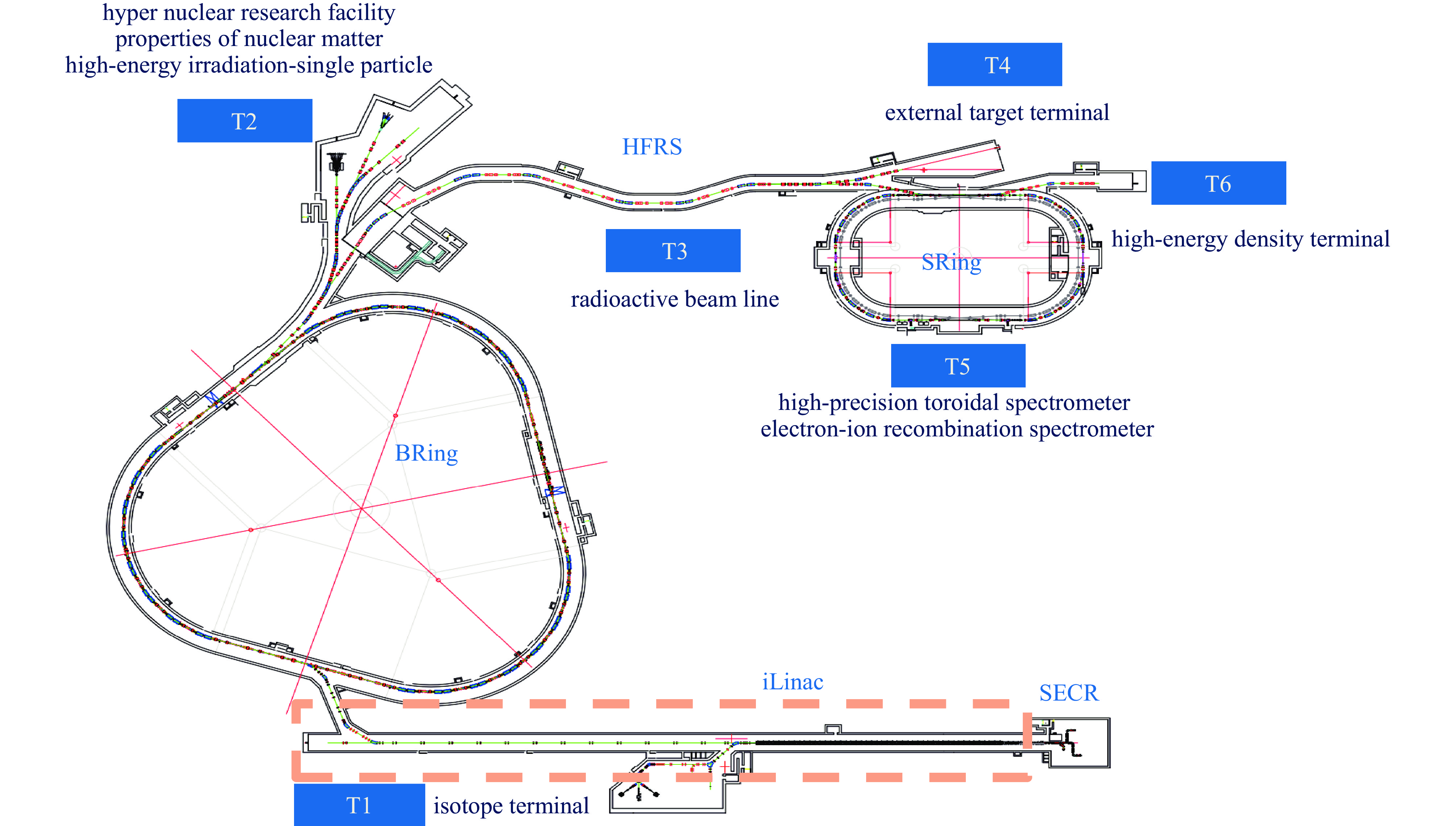

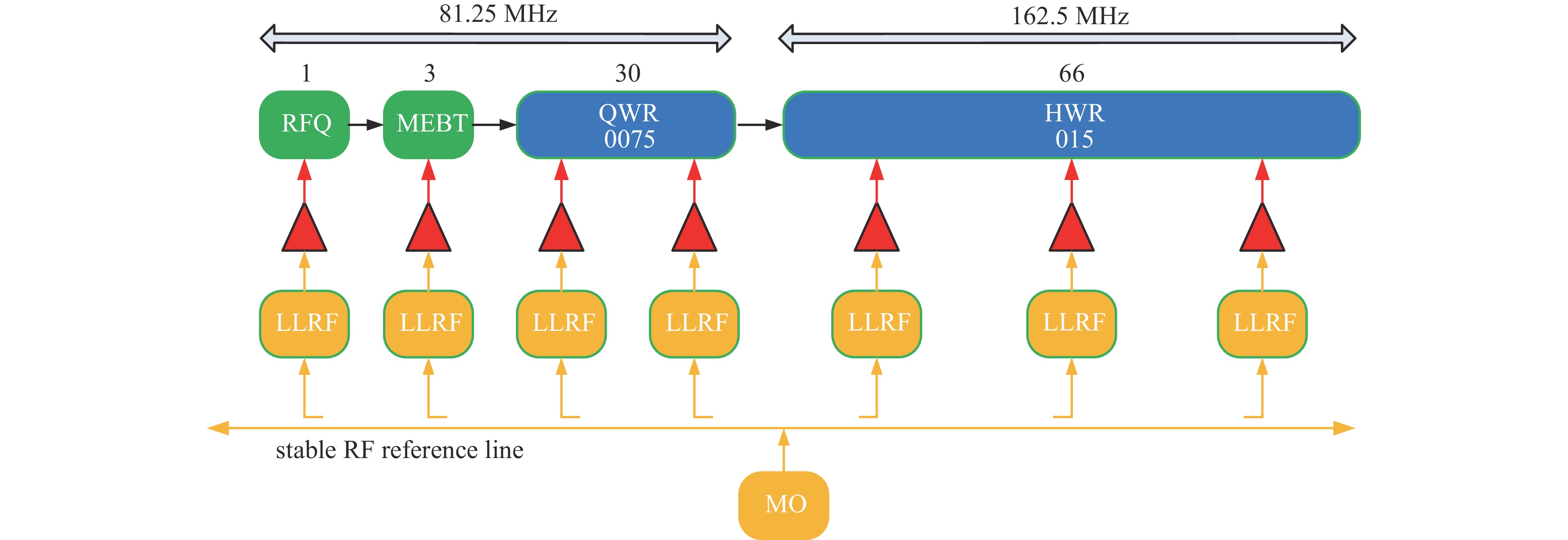

The iLinac superconducting linear accelerator in the Heavy Ion Accelerator Facility (HIAF) must operate stably for extended periods in a cryogenic vacuum environment, facing risks such as cavity quenches and helium pressure anomalies. Traditional FPGA or PLC-based protection schemes suffer from poor coordination or millisecond-level delays, resulting in inadequate performance for meeting microsecond-level protection requirements.
Purpose
Design of a radio frequency integrated protection system to address issues such as low coordination efficiency, insufficient resource utilization, and high latency, thereby achieving microsecond-level reliable protection.
Methods

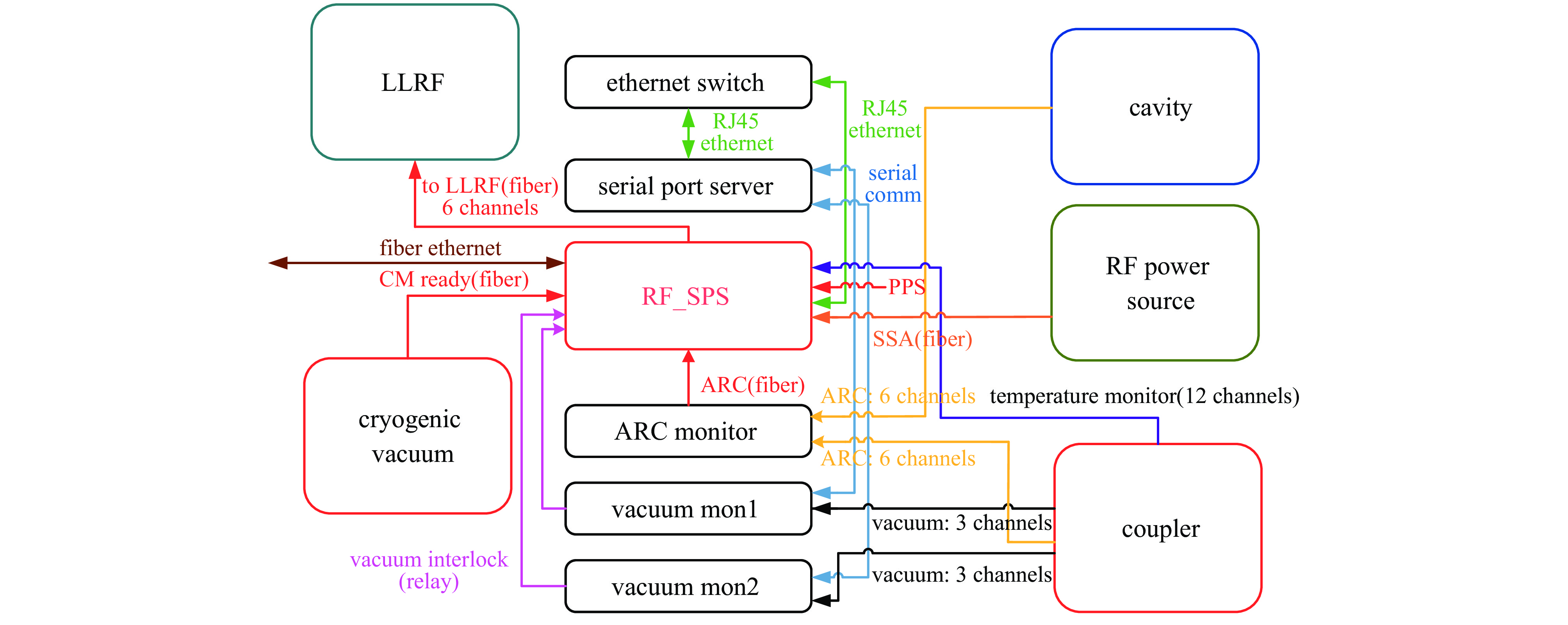

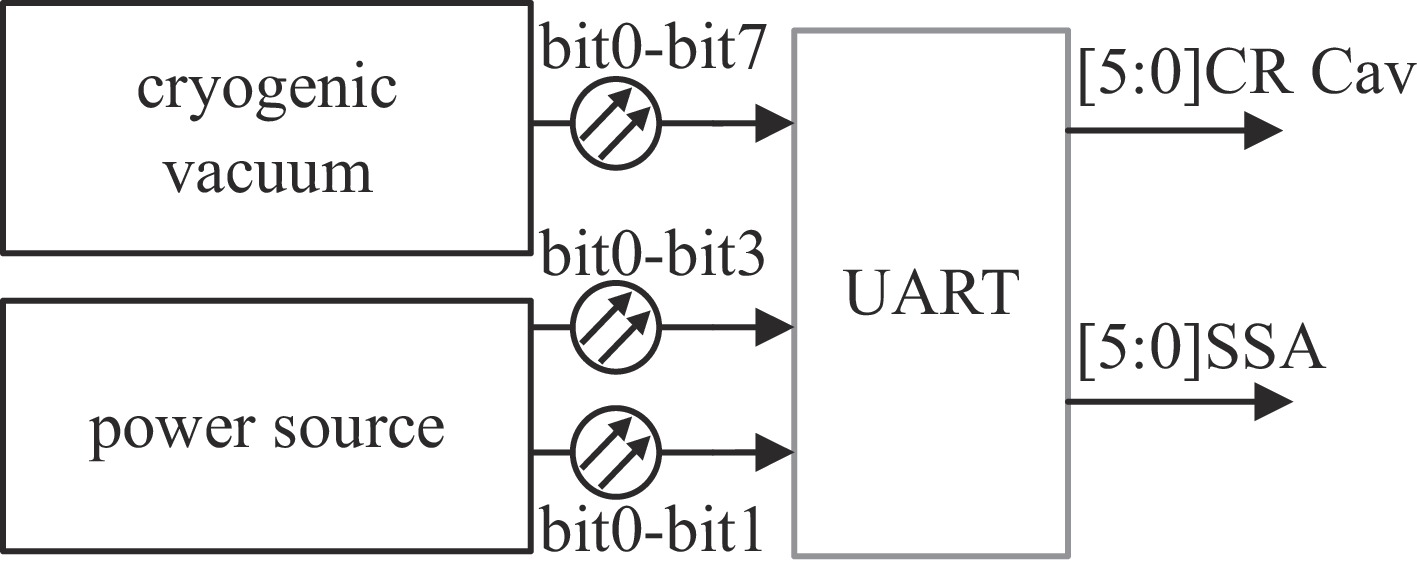

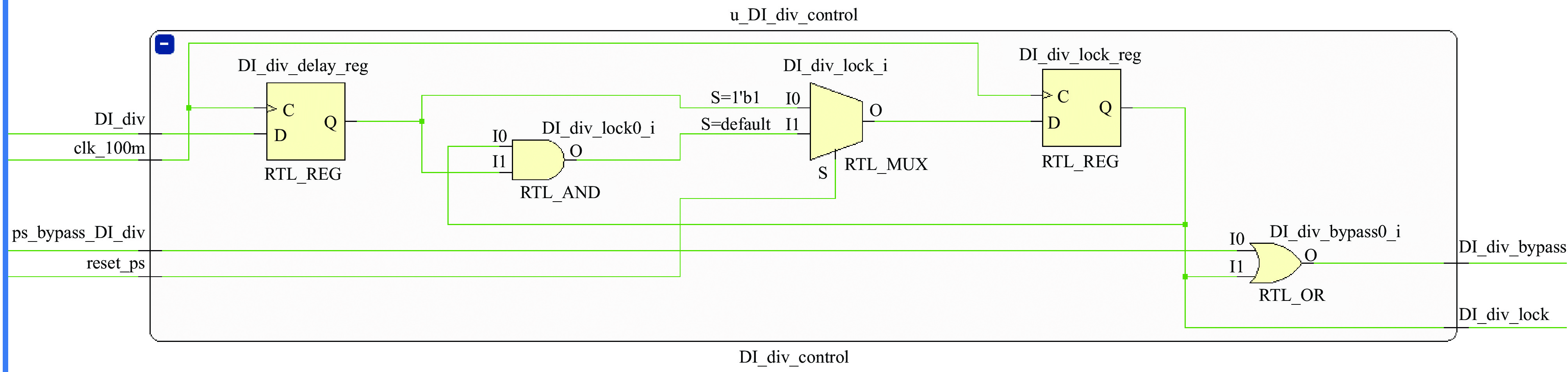

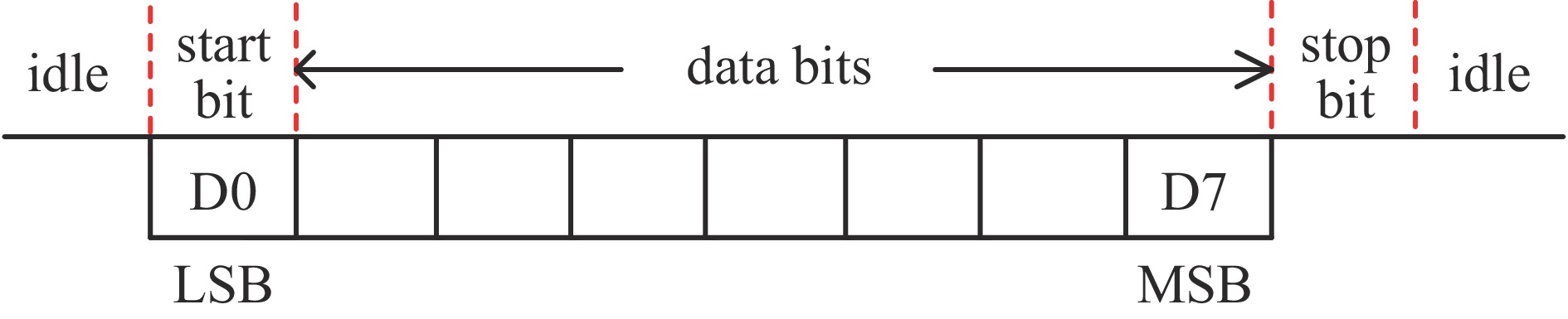

A ZYNQ SoC-based architecture combines FPGA parallel processing (for interlocks) and ARM management. Fiber-optic I/O multiplexes multi-source signals, reducing interface count by 75%. Reliability is assessed via MTBF/MTTR analysis.
Results

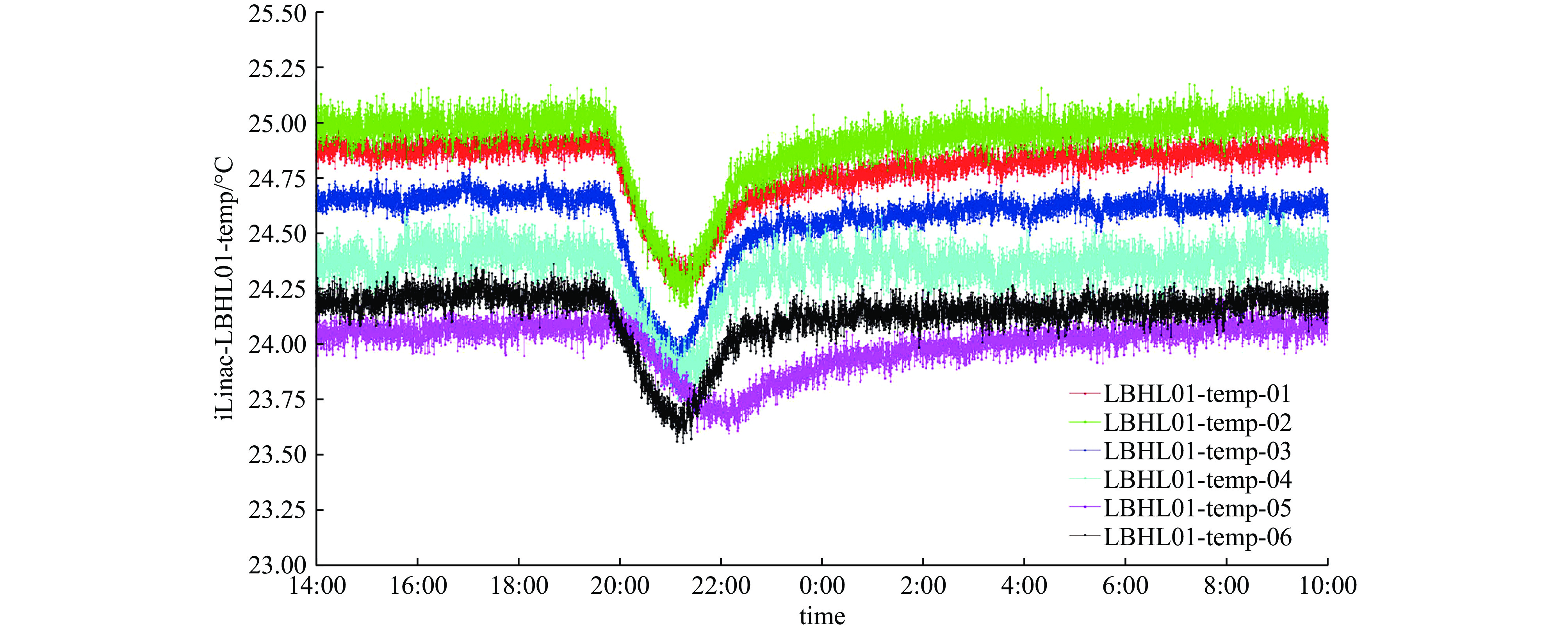

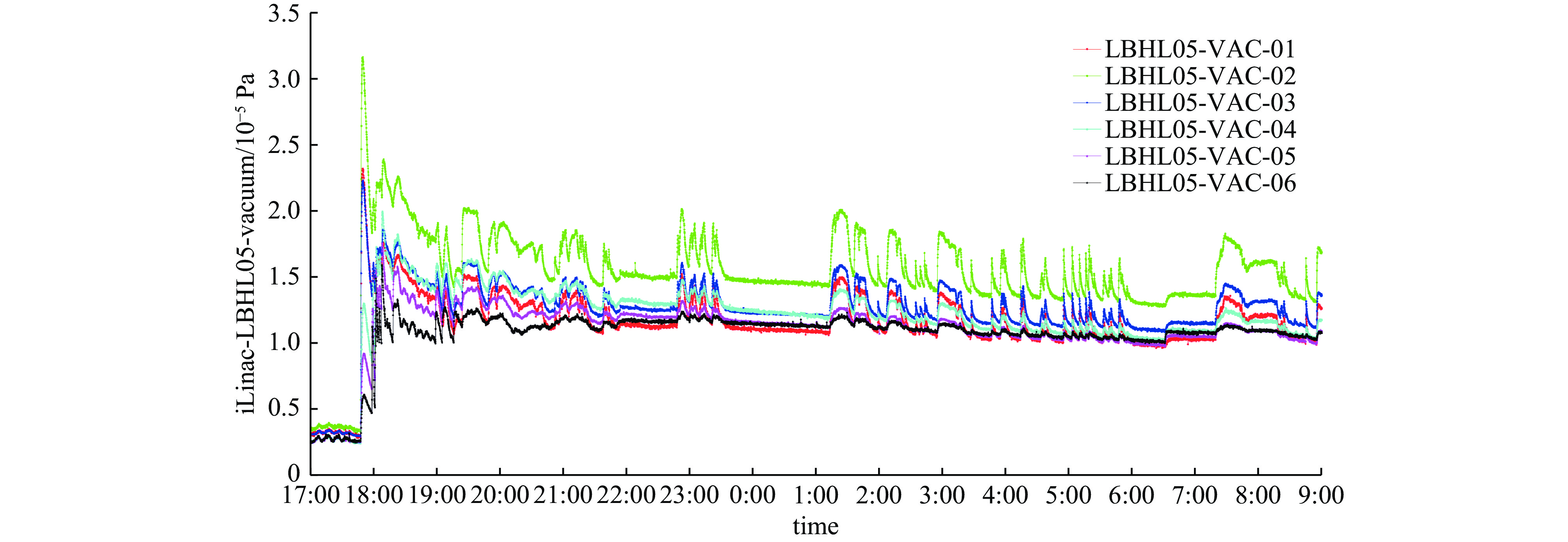

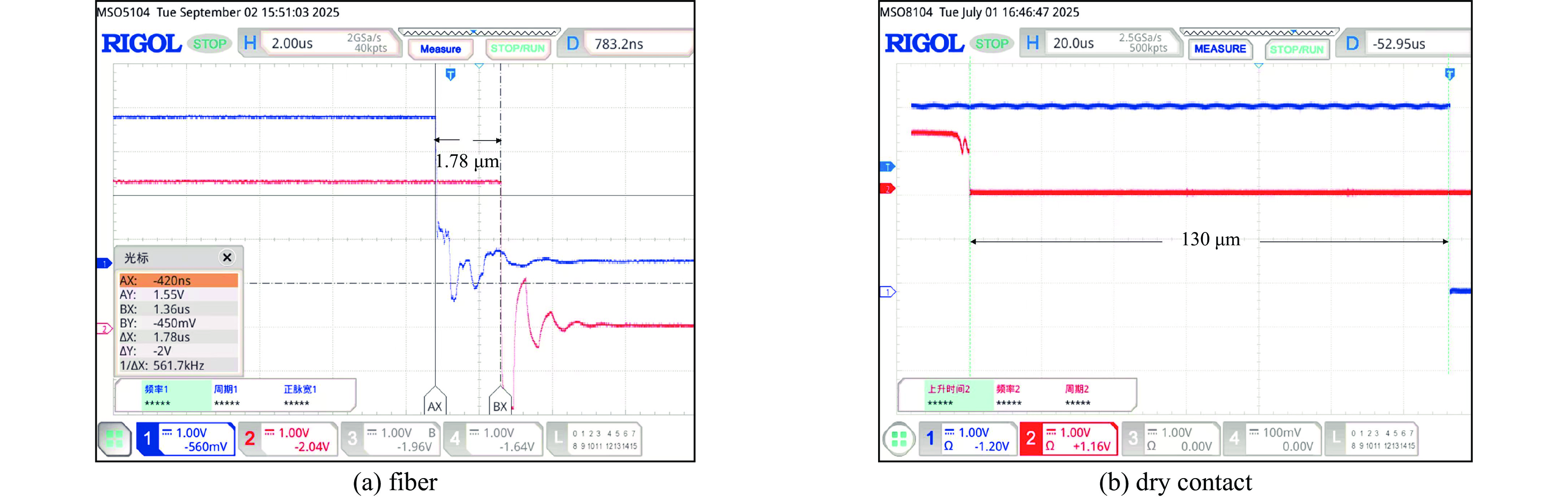

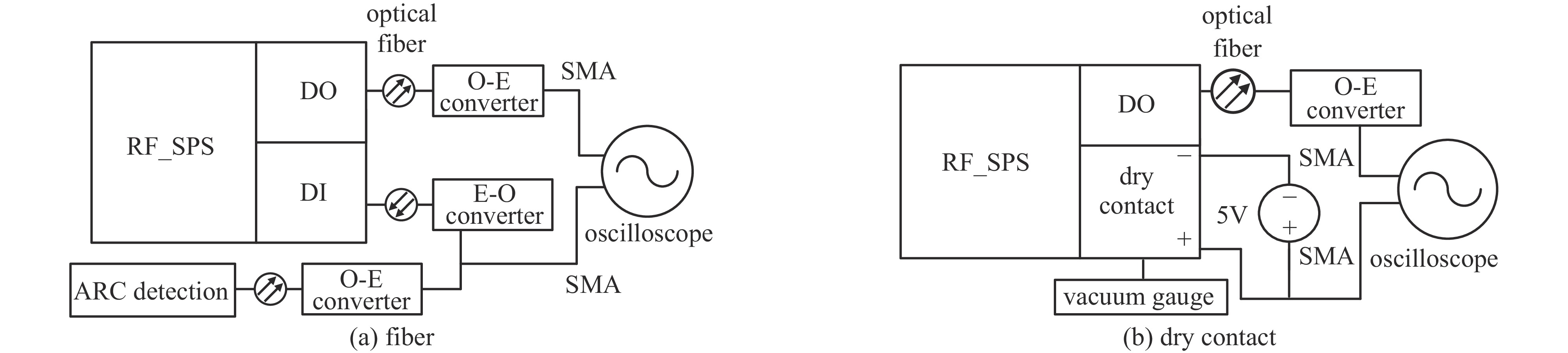

Experiments indicate that the response time of the fiber-optic interface is less than 1.78 μs, and that of dry-contact signals is below 130 μs. The system enables real-time monitoring of the full-link status of critical signals and provides visual control based on the CS-Studio platform. It has been successfully deployed in the HIAF iLinac superconducting segment and is operating stably.
Conclusions
The system provides microsecond response, high reliability, and centralized monitoring, offering a reusable solution for superconducting accelerator protection.
- superconducting cavity,
- RF system,
- ZYNQ SoC,
- interlock protection,
- real-time monitoring.

FullText(HTML)

References(17)

References

[1]	ZHOU X, YANG J, HIAF Project Team, et al. Status of the high-intensity heavy-ion accelerator facility in China[J]. AAPPS Bulletin, 2022, 32: 35. doi: 10.1007/s43673-022-00064-1
[2]	赵红卫, 徐瑚珊, 肖国青, 等. 惠州加速器集群装置及其未来发展[J]. 中国科学: 物理学力学天文学, 2020, 50: 112006 Zhao Hongwei, Xu Hushan, Xiao Guoqing, et al. Huizhou accelerator cluster and its future development[J]. Scientia Sinica Physica, Mechanica & Astronomica, 2020, 50: 112006
[3]	LI C, SUN L, HE Y, et al. Conceptual design of LEBT and RFQ for the HIAF linac[J]. Nuclear Instruments and Methods in Physics Research Section A, 2013, 729: 426-433. doi: 10.1016/j.nima.2013.06.019
[4]	范永山, 杜畅通, 张化一, 等. XiPAF重离子同步加速器超高真空系统设计[J]. 工程科学与技术, 2025, 57(1): 339-346 doi: 10.15961/j.jsuese.202300277 Fan Yongshan, Du Changtong, Zhang Huayi, et al. Design of ultra-high vacuum system for XiPAF heavy ion synchrotron[J]. Advanced Engineering Sciences, 2025, 57(1): 339-346) doi: 10.15961/j.jsuese.202300277
[5]	徐波, 李中泉, 沙鹏, 等. 325 MHz spoke腔的二次电子倍增效应[J]. 强激光与粒子束, 2012, 24: 2723-2726 doi: 10.3788/HPLPB20122411.272 XU Bo, LI Zhongquan, SHA Peng, et al. Secondary electron multiplication effect in 325 MHz spoke cavity[J]. High Power Laser and Particle Beams, 2012, 24: 2723-2726) doi: 10.3788/HPLPB20122411.272
[6]	徐乐, 唐娟, 李子先, 等. 热变形对射频同轴开关性能的影响分析[J]. 低压电器, 2015(13): 52-56 Xu Le, Tang Juan, Li Zixian, et al. Effect of thermal deformation on performance of RF coaxial switch[J]. Low Voltage Apparatus, 2015(13): 52-56
[7]	熊敏. 广义预测控制在超导腔低温系统中的应用研究[D]. 黑龙江: 哈尔滨工业大学, 2005 Xiong Min. Application of generalized predictive control in cryogenic system for superconducting cavity[D]. Heilongjiang: Harbin Institute of Technology, 2005) DOI: 10.7666/d.Y798870
[8]	CHOROBA S, et al. The high power RF system for the European XFEL[C]//Proceedings of LINAC2018. Beijing, China, 2018: WEI1A04. DOI: 10.18429/JACoW-LINAC2018-WEI1A04.
[9]	仇文君, 周大勇, 陈建锋, 等. 基于PLC的直线加速器联锁保护系统[J]. 核技术, 2008(07): 506-510 doi: 10.3321/j.issn:0253-3219.2008.07.007 Qiu Wenjun, Zhou Dayong, Chen Jianfeng, et al. PLC-based interlock protection system for linear accelerator[J]. Nuclear Techniques, 2008(07): 506-510 doi: 10.3321/j.issn:0253-3219.2008.07.007
[10]	于春蕾, 赵欢, 丁建国. 上海软X射线自由电子激光装置联锁保护系统[J]. 原子能科学技术, 2018, 52(04): 756-761 doi: 10.7538/yzk.2017.youxian.0396 Yu Chunlei, Zhao Huan, Ding Jianguo. Interlock protection system for Shanghai soft X-ray free electron laser facility[J]. Atomic Energy Science and Technology, 2018, 52(04): 756-761 doi: 10.7538/yzk.2017.youxian.0396
[11]	PUCCIO B, et al. The beam interlock system for the LHC[R]. Switzerland: CERN, 2005.
[12]	NORDT A, APOLLONIO A, SCHMIDT R. Overview on the design of the machine protection system for ESS[C]//Proceedings of IPAC2014. Dresden, Germany, 2014: MOPME045.
[13]	谭玉莲, 吴凤军, 王晓俊, 等. HIAF-BRing电源样机模块故障联锁保护系统设计与实现[J]. 强激光与粒子束, 2021, 33(07): 108-116 doi: 10.11884/HPLPB202133.210034 TAN Yulian, WU Fengjun, WANG Xiaojun, et al. Design and implementation of module fault interlock protection system for HIAF-BRing power supply prototype[J]. High Power Laser and Particle Beams, 2021, 33(07): 108-116 doi: 10.11884/HPLPB202133.210034
[14]	刘鑫, 蒋舸扬, 沈立人, 等. 基于FPGA和ARM的控制器设计及在快联锁保护系统中的应用[J]. 核技术, 2010, 33(09): 653-656 Liu Xin, Jiang Geyang, Shen Liren, et al. Design of FPGA and ARM based controller and its application in fast interlock protection system[J]. Nuclear Techniques, 2010, 33(09): 653-656
[15]	邹声奇, 伍家驹, 陈亮亮. 铁磁材料的磁化曲线及磁滞回线[J]. 物理通报, 2021(5): 99-101 doi: 10.3969/j.issn.0509-4038.2021.05.023 Zou Shengqi, Wu Jiaju, Chen Liangliang. Magnetization curve and hysteresis loop of ferromagnetic materials[J]. Physics Bulletin, 2021(5): 99-101 doi: 10.3969/j.issn.0509-4038.2021.05.023
[16]	高鹏辉, 王志军, 孙列鹏, 等. CiADS固态功率源的可用性设计与分析[J]. 原子核物理评论, 2018, 35(3): 287-293 doi: 10.11804/NuclPhysRev.35.03.287 Gao Penghui, Wang Zhijun, Sun Liepeng, et al. Availability designs and analyses of solid-state amplifiers for CiADS[J]. Nuclear Physics Review, 2018, 35(3): 287-293 doi: 10.11804/NuclPhysRev.35.03.287
[17]	尹军茹. 基于FPGA的UART串口技术研究[J]. 电脑知识与技术, 2025, 21(04): 76-84 doi: 10.14004/j.cnki.ckt.2025.0238 Yin Junru. Research on UART serial port technology based on FPGA[J]. Computer Knowledge and Technology, 2025, 21(04): 76-84) doi: 10.14004/j.cnki.ckt.2025.0238
