Study of the Ground-Induced Radioactive Environment Caused by Intense Pulsed Neutrons

Wei Mingyan; Shang Peng; Niu Shengli; Zhuo Jun; Zuo Yinghong

doi:10.11884/HPLPB202638.250344

Article Contents

Article Navigation > High Power Laser and Particle Beams > 2026 > Accepted Manuscript

Wei Mingyan, Shang Peng, Niu Shengli, et al. Study of the Ground-Induced Radioactive Environment Caused by Intense Pulsed Neutrons[J]. High Power Laser and Particle Beams. doi: 10.11884/HPLPB202638.250344

Citation:

Wei Mingyan, Shang Peng, Niu Shengli, et al. Study of the Ground-Induced Radioactive Environment Caused by Intense Pulsed Neutrons[J]. High Power Laser and Particle Beams. doi: 10.11884/HPLPB202638.250344

Citation:

PDF( 1277 KB)

Study of the Ground-Induced Radioactive Environment Caused by Intense Pulsed Neutrons

doi: 10.11884/HPLPB202638.250344

Wei Mingyan^{1, 2
,},
Shang Peng^{1, 2},
Niu Shengli^{1, 2},
Zhuo Jun^{1, 2
,
,},
Zuo Yinghong^{1, 2}

1.
National Key Laboratory of Intense Pulsed Radiation Simulation and Effect, Xi’an 710024, China
2.
Northwest Institute of Nuclear Technology, Xi’an 710024, China

Received Date: 2025-10-13
Accepted Date: 2026-01-09
Rev Recd Date: 2026-02-13

Available Online: 2026-03-28

Abstract

Abstract

Background
The spatial distribution of the neutron-induced gamma radiation field generated within the ground medium by intense pulsed neutrons is critically dependent on the neutron source location and the chemical composition of the soil. These distributional variations give rise to differential radiological hazards for personnel.
Purpose
The objective of this study is to quantitatively assess the environmental levels of neutron-induced gamma radiation across diverse scenarios—specifically incorporating variations in neutron source location and ground medium composition—to facilitate research on intense pulsed neutron radiation environments and to inform evidence-based development of radiation protection protocols for personnel.
Methods

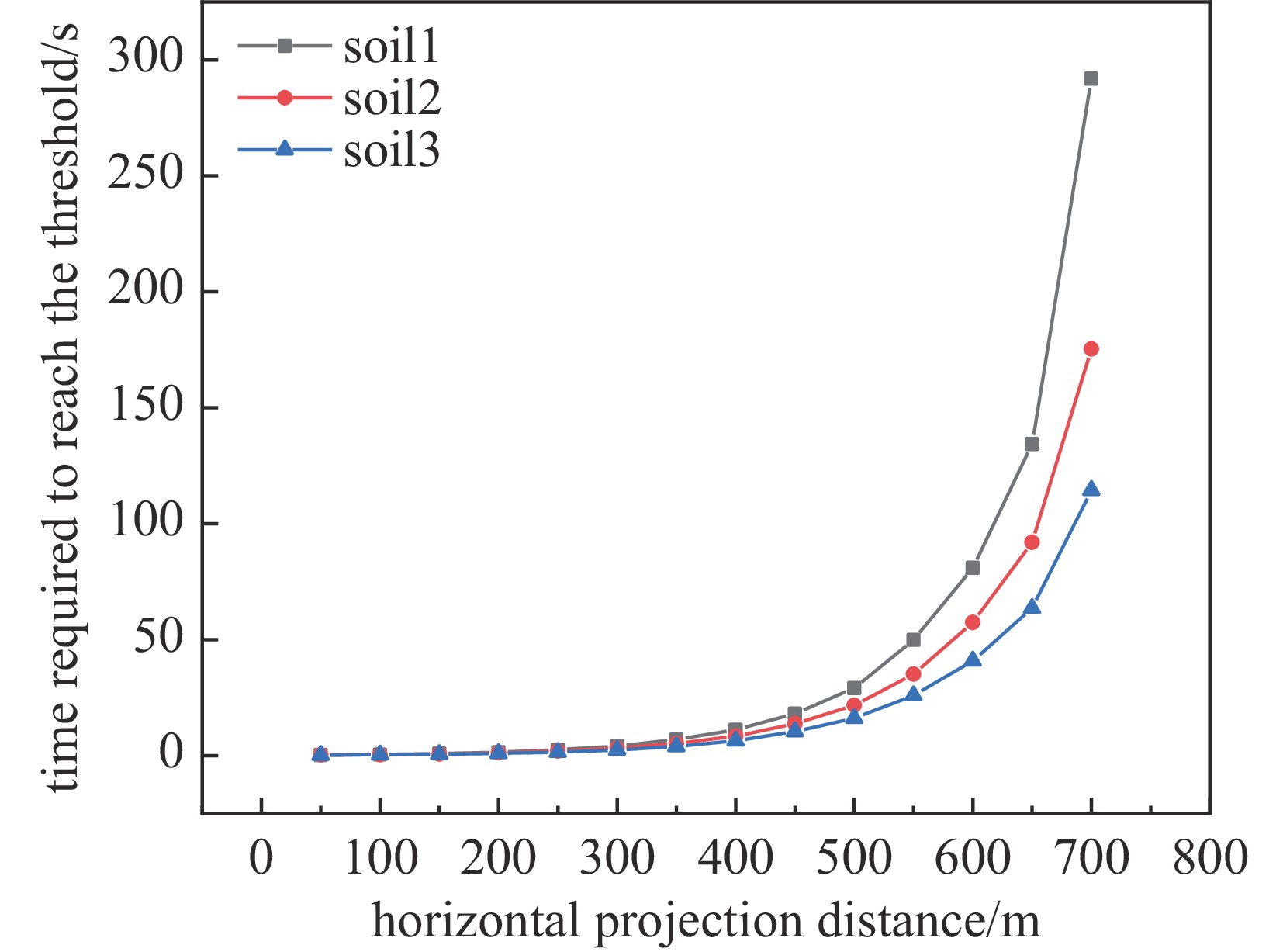

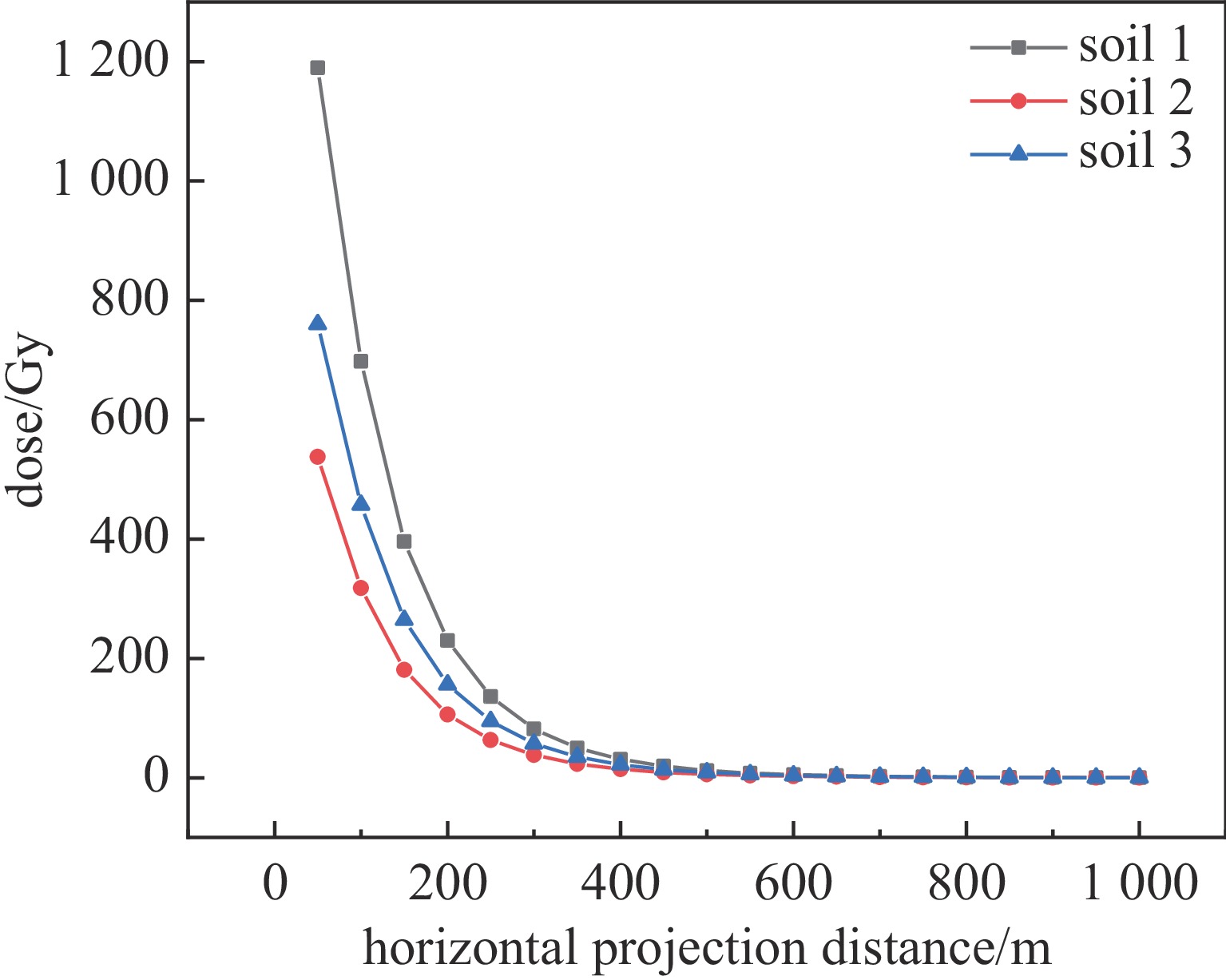

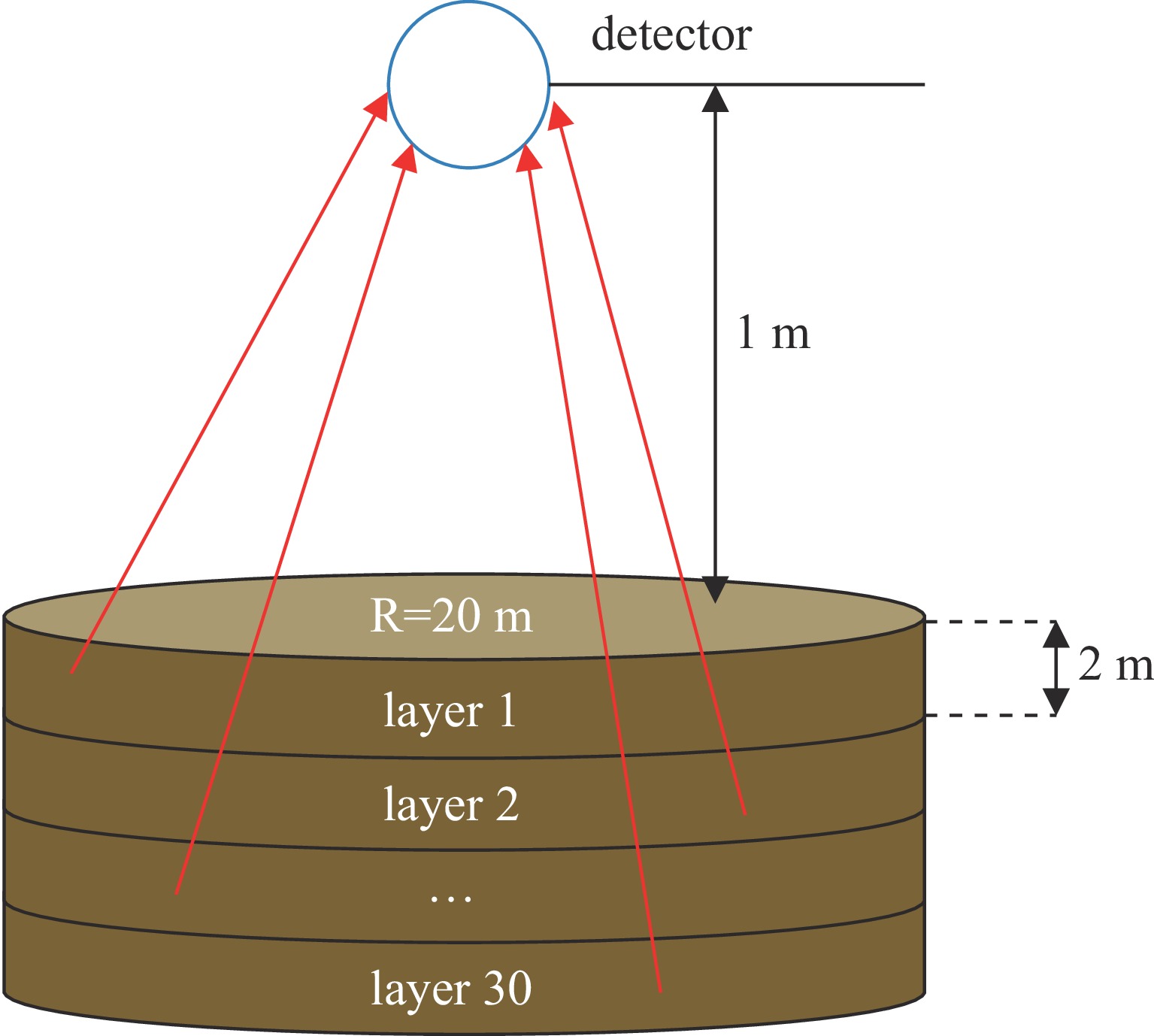

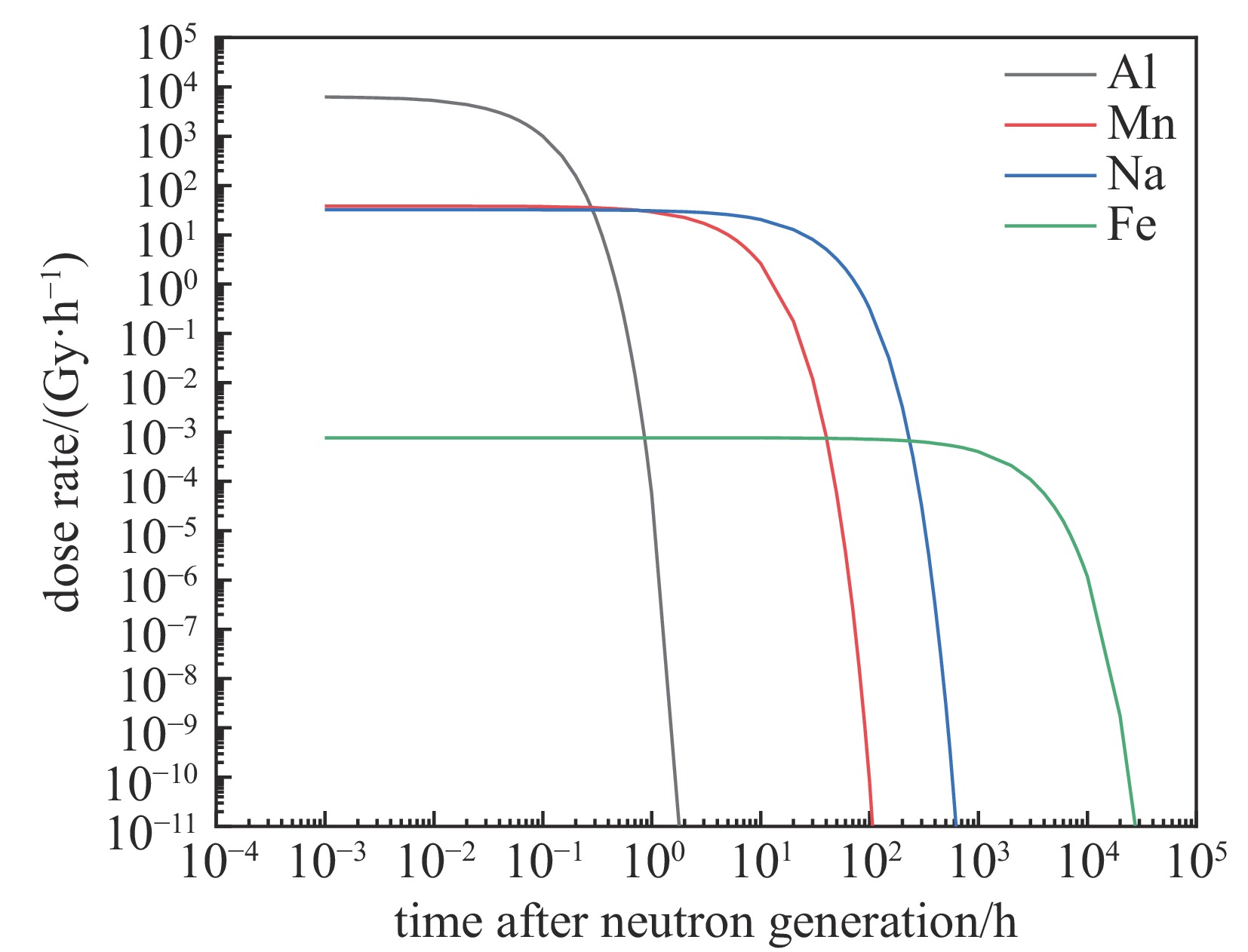

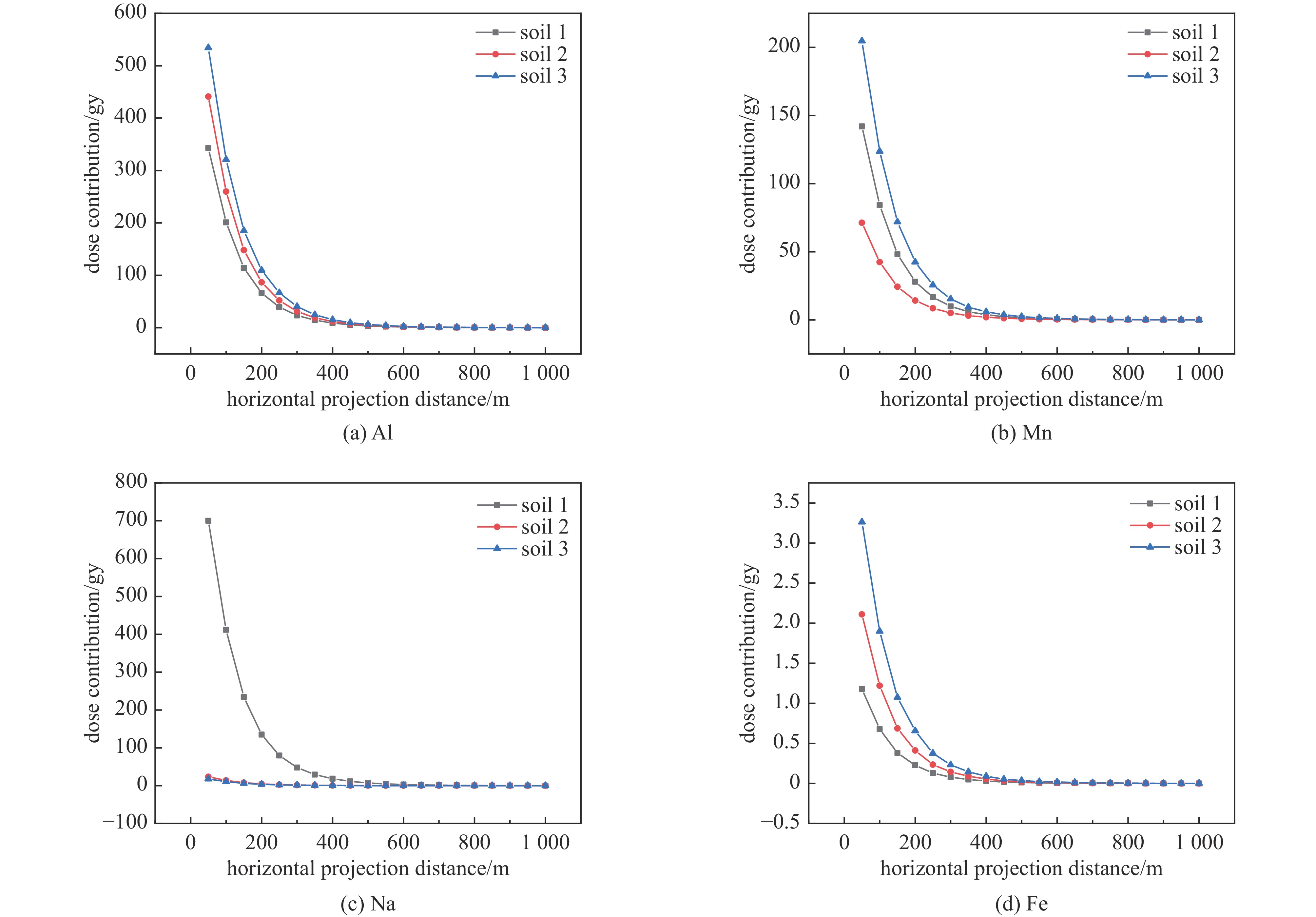

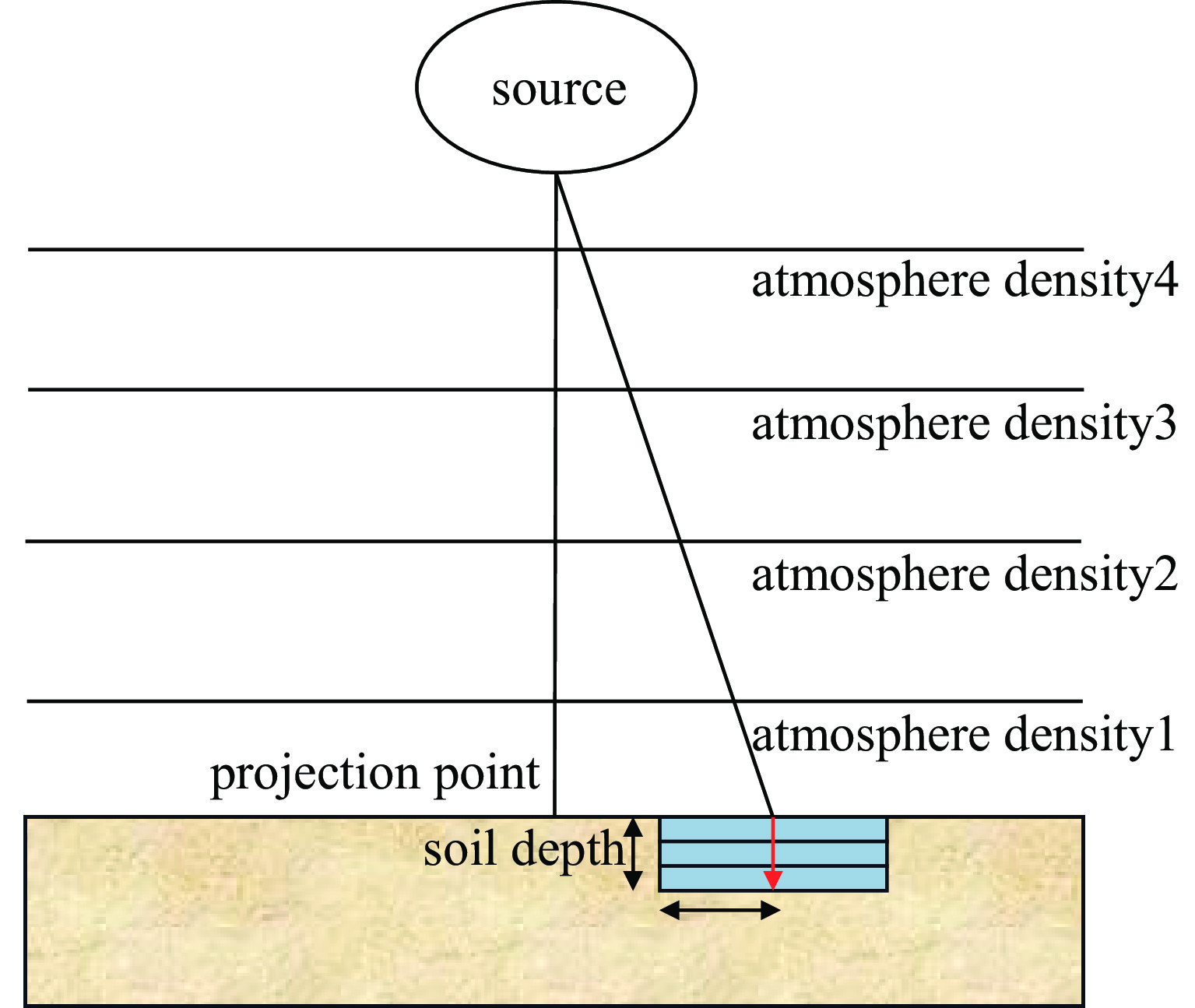

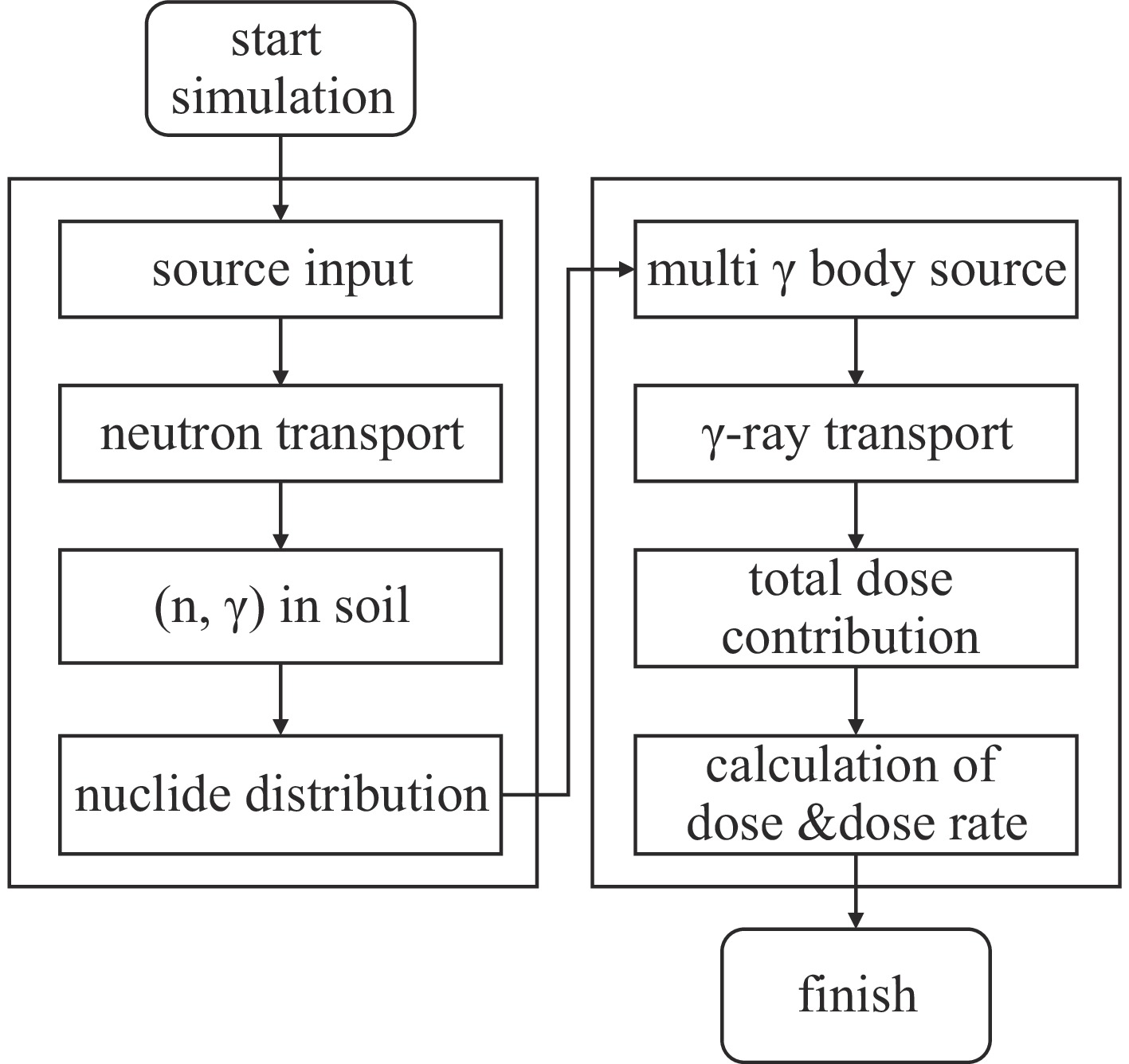

Based on an atmospheric stratification model, a two-step Monte Carlo simulation methodology was implemented to quantify the dose distribution of neutron-induced radioactivity within the ground medium and the temporal evolution of dose rates at representative locations across diverse soil compositions. Subsequently, empirical formulas characterizing the dose contributions of individual radionuclides were derived through curve-fitting analysis. Numerical simulations were performed for three representative soil compositions to derive nuclide-specific activation coefficients, facilitating rapid estimation of activated atom populations within the soil matrix. The average dose contributions of individual radionuclides were quantitatively evaluated based on dose contribution per unit mass. Furthermore, two novel safety metrics—the Soil Safety Residence Index and Safety Residence Distance —were proposed to systematically assess the safety of the induced radioactivity environment caused by intense pulsed neutron under varying soil conditions across multiple temporal scales.
Results

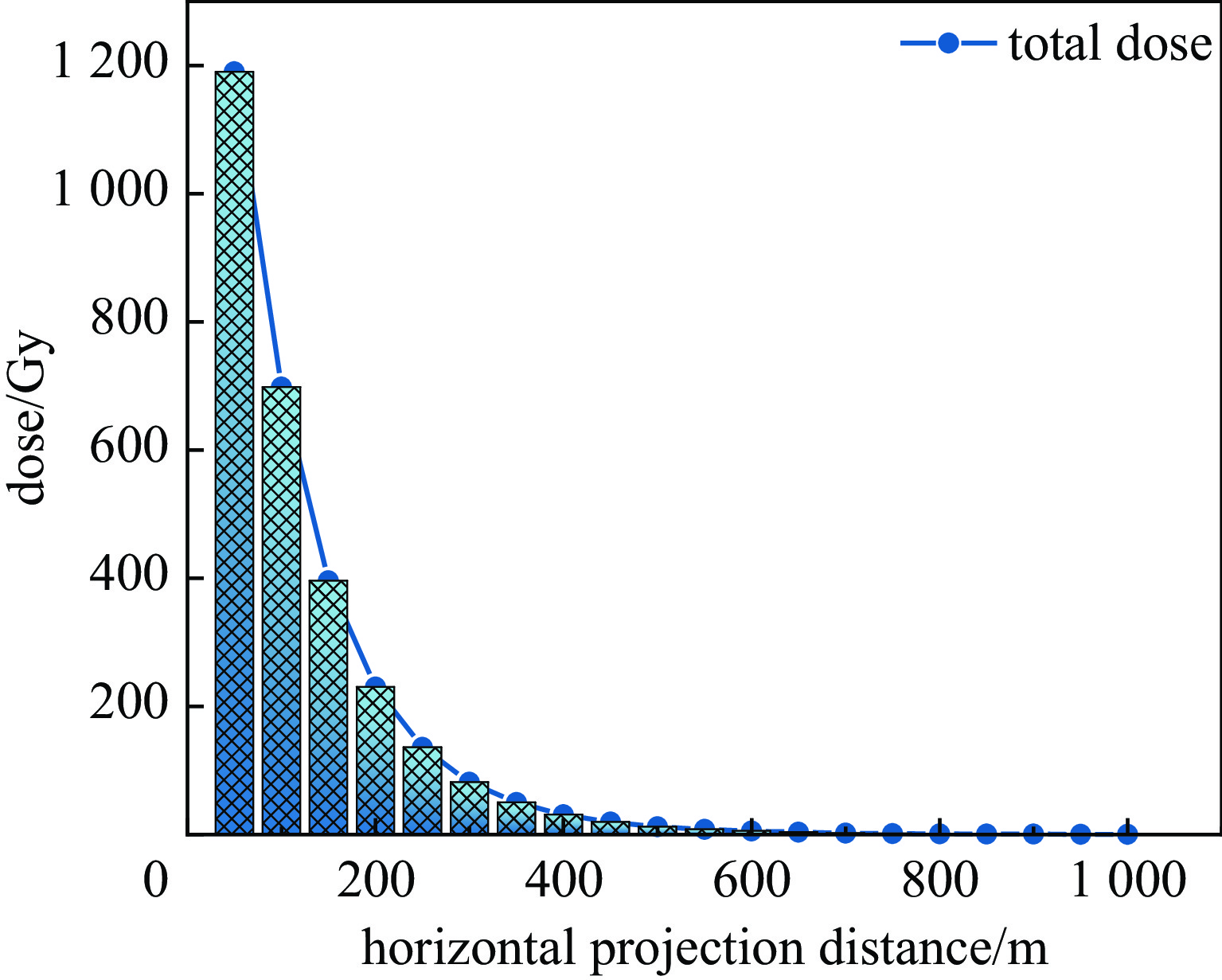

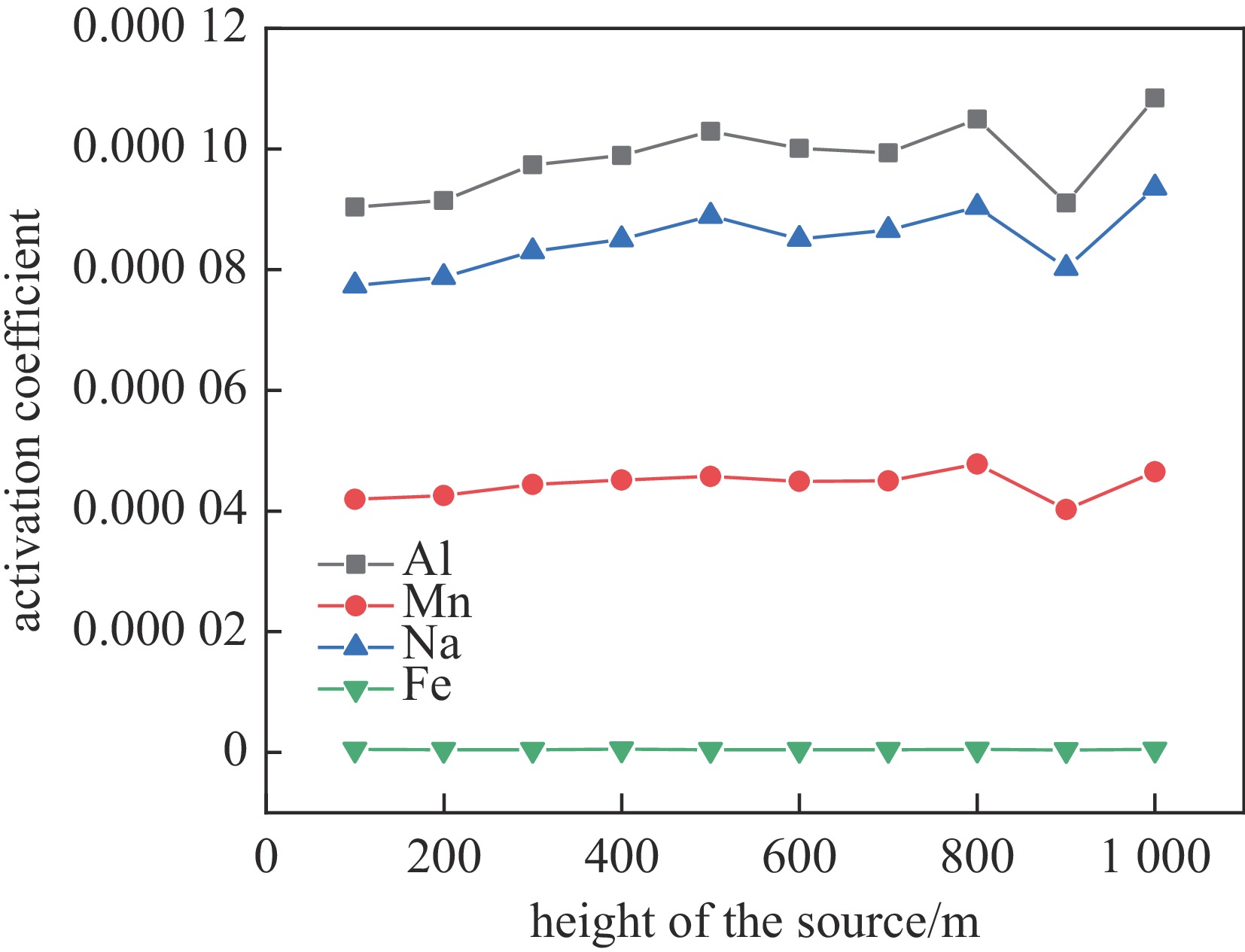

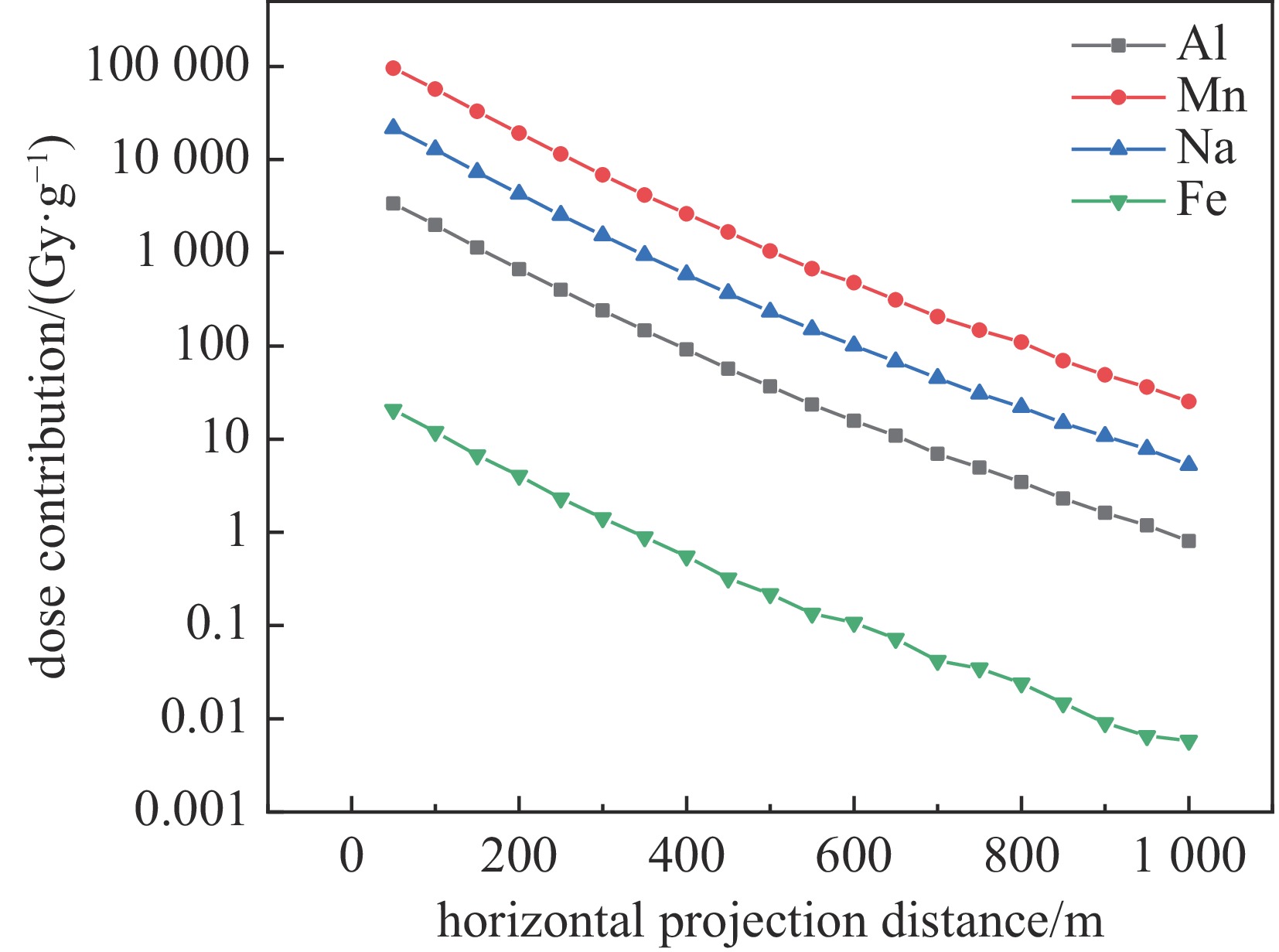

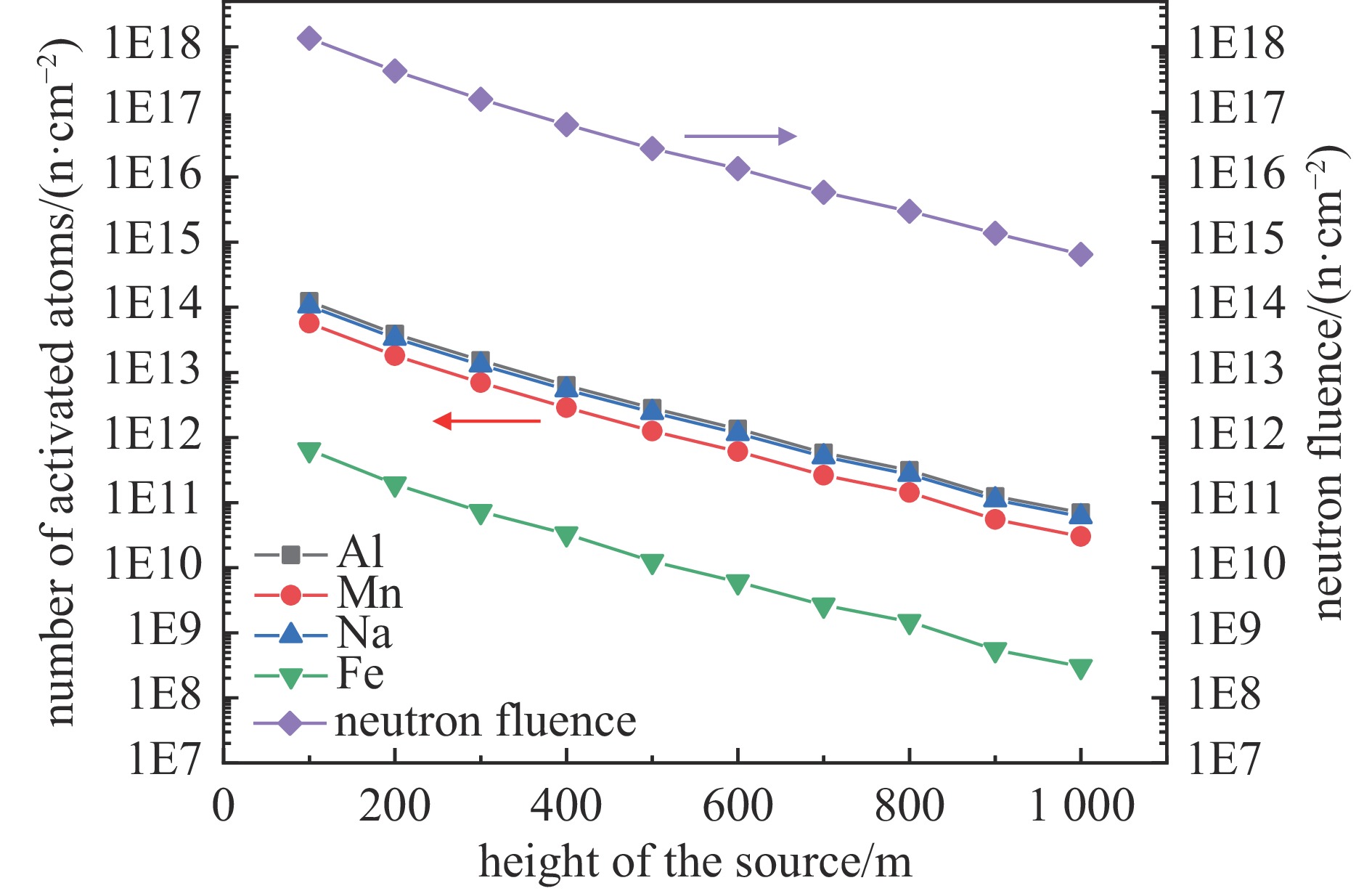

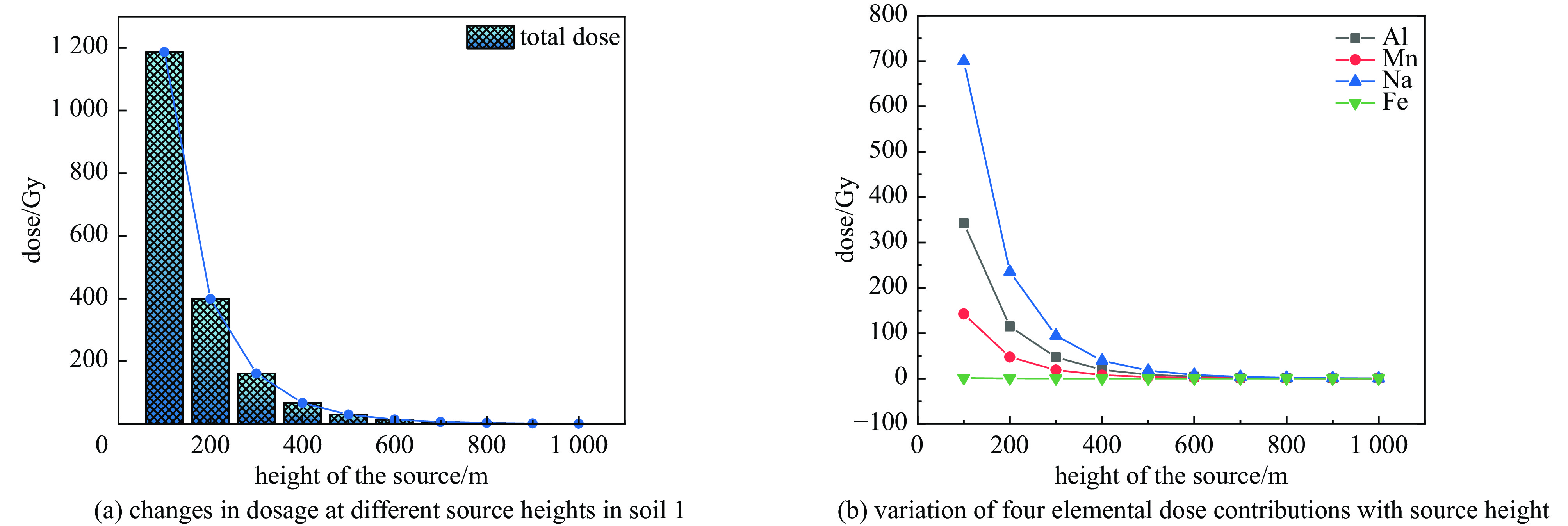

Results demonstrate that, for neutron source heights below 1000 m, the dose exhibits an exponential dependence on source altitude, while the activation coefficient shows pronounced variation with horizontal projection distance. Manganese (Mn) was identified as the element contributing the highest dose per unit mass. Soils with low aluminum (Al) content yielded a higher Soil Safety Residence Index, whereas soils enriched in manganese (Mn) and sodium (Na) exhibited shorter Safety Residence Distances, indicating elevated radiological risk under equivalent exposure conditions.
Conclusions
This study confirms that the spatial distribution and temporal evolution of the gamma radiation field generated by intense pulsed neutrons are governed by source geometry and the chemical composition of the soil medium. Manganese (Mn) is identified as the predominant radionuclide contributing to dose per unit mass, underscoring the imperative for enhanced radiological protection protocols in manganese-enriched soil environments. Moreover, the Soil Safety Residence Index and Residence Distance serve as rapid, quantitative metrics to inform appropriate radiation protection strategies for personnel across diverse soil conditions.
- Monte-Carlo,
- Induced radioactivity,
- Neutron activation,
- Radiation protection

FullText(HTML)

References(15)

References

[1]	武祯, 李君利, 曾志, 等. 电子直线加速器的感生放射性计算方法[J]. 清华大学学报(自然科学版), 2005, 45(6): 813-816 doi: 10.16511/j.cnki.qhdxxb.2005.06.025 Wu Zhen, Li Junli, Zeng Zhi, et al. Calculating method for induced radioactivity in an electron linac[J]. Journal of Tsinghua University (Science and Technology), 2005, 45(6): 813-816 doi: 10.16511/j.cnki.qhdxxb.2005.06.025
[2]	黄孟, 朱剑钰, 伍钧, 等. 基于JMCT软件的中子活化数值模拟程序的开发和检验[J]. 强激光与粒子束, 2022, 34: 026016 doi: 10.11884/HPLPB202234.210356 Huang Meng, Zhu Jianyu, Wu Jun, et al. Development and test of neutron activation simulation program based on JMCT software[J]. High Power Laser and Particle Beams, 2022, 34: 026016 doi: 10.11884/HPLPB202234.210356
[3]	苑旭东, 马辉强, 陈珍平, 等. 基于R2S方法的反应堆结构材料活化剂量计算研究[J]. 核动力工程, 2021, 42(5): 103-109 doi: 10.13832/j.jnpe.2021.05.0103 Yuan Xudong, Ma Huiqiang, Chen Zhenping, et al. Study on activation-induced dose calculation of reactor structural materials[J]. Nuclear Power Engineering, 2021, 42(5): 103-109 doi: 10.13832/j.jnpe.2021.05.0103
[4]	李雷鸣, 江书益, 陈珍平, 等. 核反应堆结构材料网格精细活化分析研究[J]. 核技术, 2022, 45: 080601 Li Leiming, Jiang Shuyi, Chen Zhenping, et al. Mesh-based activation analysis for structural materials in nuclear reactor[J]. Nuclear Techniques, 2022, 45: 080601
[5]	商鹏, 黄流兴, 牛胜利, 等. 核爆炸地面感生放射性辐射环境的蒙特卡罗模拟[J]. 现代应用物理, 2022, 13: 010201 doi: 10.12061/j.issn.2095-6223.2022.010201 Shang Peng, Huang Liuxing, Niu Shengli, et al. Monte Carlo simulation of ground environment of induced radioactivity radiation produced by neutrons of nuclear explosion[J]. Modern Applied Physics, 2022, 13: 010201 doi: 10.12061/j.issn.2095-6223.2022.010201
[6]	王韬, 荆晓兵, 庞建, 等. 低能质子束产生感生放射性的蒙特卡罗模拟[J]. 强激光与粒子束, 2012, 24(12): 2979-2982 doi: 10.3788/HPLPB20122412.2979 Wang Tao, Jing Xiaobing, Pang Jian, et al. Monte Carlo simulation of induced radioactivity for low-energy proton beam[J]. High Power Laser and Particle Beams, 2012, 24(12): 2979-2982 doi: 10.3788/HPLPB20122412.2979
[7]	王韬, 张开志, 荆晓兵. 低能质子回旋加速器内部束流测量探头的感生放射性[J]. 强激光与粒子束, 2011, 23(2): 485-489 doi: 10.3788/HPLPB20112302.0485 Wang Tao, Zhang Kaizhi, Jing Xiaobing. Induced radioactivity in interior beam probe for low-energy proton cyclotron[J]. High Power Laser and Particle Beams, 2011, 23(2): 485-489 doi: 10.3788/HPLPB20112302.0485
[8]	王韬, 庞建, 赵良超, 等. 回旋加速器束测探头感生放射性实验研究[J]. 强激光与粒子束, 2013, 25(7): 1779-1782 doi: 10.3788/HPLPB20132507.1779 Wang Tao, Pang Jian, Zhao Liangchao, et al. Experimental investigation on induced radioactivity in beam probe for compact cyclotron[J]. High Power Laser and Particle Beams, 2013, 25(7): 1779-1782 doi: 10.3788/HPLPB20132507.1779
[9]	宋钢, 朱建国, 陈英民, 等. 质子加速器治疗系统感生放射性辐射场分布[J]. 中国辐射卫生, 2013, 22(3): 305-307 doi: 10.13491/j.cnki.issn.1004-714x.2013.03.005 Song Gang, Zhu Jianguo, Chen Yingmin, et al. Distribution of induced radioactive radiation field in proton accelerator treatment system[J]. Chinese Journal of Radiological Health, 2013, 22(3): 305-307 doi: 10.13491/j.cnki.issn.1004-714x.2013.03.005
[10]	Khasanov S, Yang Bo, Su Youwu, et al. Induced radioactivity at particle accelerators: a short review[J]. Radiation Detection Technology and Methods, 2021, 5(4): 481-492. doi: 10.1007/s41605-021-00292-3
[11]	贺新福, 王传珊, 罗文芸, 等. 利用MONTE CARLO方法分析高能电子加速器中中子引起的感生放射性——微观分析[J]. 上海大学学报(自然科学版), 2007, 13(1): 68-72 doi: 10.3969/j.issn.1007-2861.2007.01.015 He Xinfu, Wang Chuanshan, Luo Wenyun, et al. Analyzing the induced radiation of high energy electron accelerator with the Monte Carlo method—microcosmic analysis[J]. Journal of Shanghai University (Natural Science), 2007, 13(1): 68-72 doi: 10.3969/j.issn.1007-2861.2007.01.015
[12]	杨博. 强流重离子加速器装置(HIAF)感生放射性及其影响研究[D]. 兰州: 中国科学院近代物理研究所, 2023: 158-175 Yang Bo. Study on induced radioactivity and its effects of High Intensity heavy-ion Accelerator Facility[D]. Lanzhou: Institute of Modern Physics, Chinese Academy of Sciences, 2023: 158-175
[13]	乔登江. 核爆炸物理概论(下册)[M]. 北京: 国防工业出版社, 2003 Qiao Dengjiang. General principles to the physics of nuclear burst (Vol. 2)[M]. Beijing: National Defense Industry Press, 2003
[14]	卢希庭. 原子核物理[M]. 2版. 北京: 原子能出版社, 2000 Lu Xiting. Nuclear physics[M]. 2nd ed. Beijing: Atomic Energy Press, 2000
[15]	朱国英, 陈红红. 电离辐射防护基础与应用[M]. 上海: 上海交通大学出版社, 2016 Zhu Guoying, Chen Honghong. Basics and application for protection against lonizing radiation[M]. Shanghai: Shanghai Jiaotong University Press, 2016
