Research on image feature matching under low-light environment based on IEA-DWT preprocessing

Zheng Dong; Feng Peng; Tan Zhou-nan; Tang Zeng; Wu Cheng-jin; Du Wei

doi:10.11884/HPLPB202638.250349

Article Contents

Article Navigation > High Power Laser and Particle Beams > 2026 > Accepted Manuscript

Zheng Dong, Feng Peng, Tan Zhou-nan, et al. Research on image feature matching under low-light environment based on IEA-DWT preprocessing[J]. High Power Laser and Particle Beams. doi: 10.11884/HPLPB202638.250349

Citation:

Zheng Dong, Feng Peng, Tan Zhou-nan, et al. Research on image feature matching under low-light environment based on IEA-DWT preprocessing[J]. High Power Laser and Particle Beams. doi: 10.11884/HPLPB202638.250349

Citation:

PDF( 6349 KB)

Research on image feature matching under low-light environment based on IEA-DWT preprocessing

doi: 10.11884/HPLPB202638.250349

1.
College Information Engineering , Chongqing Electric Power College, Chongqing 400053, China
2.
College of Optoelectronic Engineering, Chongqing University, Chongqing 400044, China

Received Date: 2025-10-15
Accepted Date: 2026-01-22
Rev Recd Date: 2025-02-13

Available Online: 2026-03-28

Abstract

Abstract

Background
Low-light environments directly result in insufficient image brightness, obscured details, and significant noise, which lead to a sharp decline in the performance of traditional feature matching algorithms and a surge in the false matching rate.
Purpose

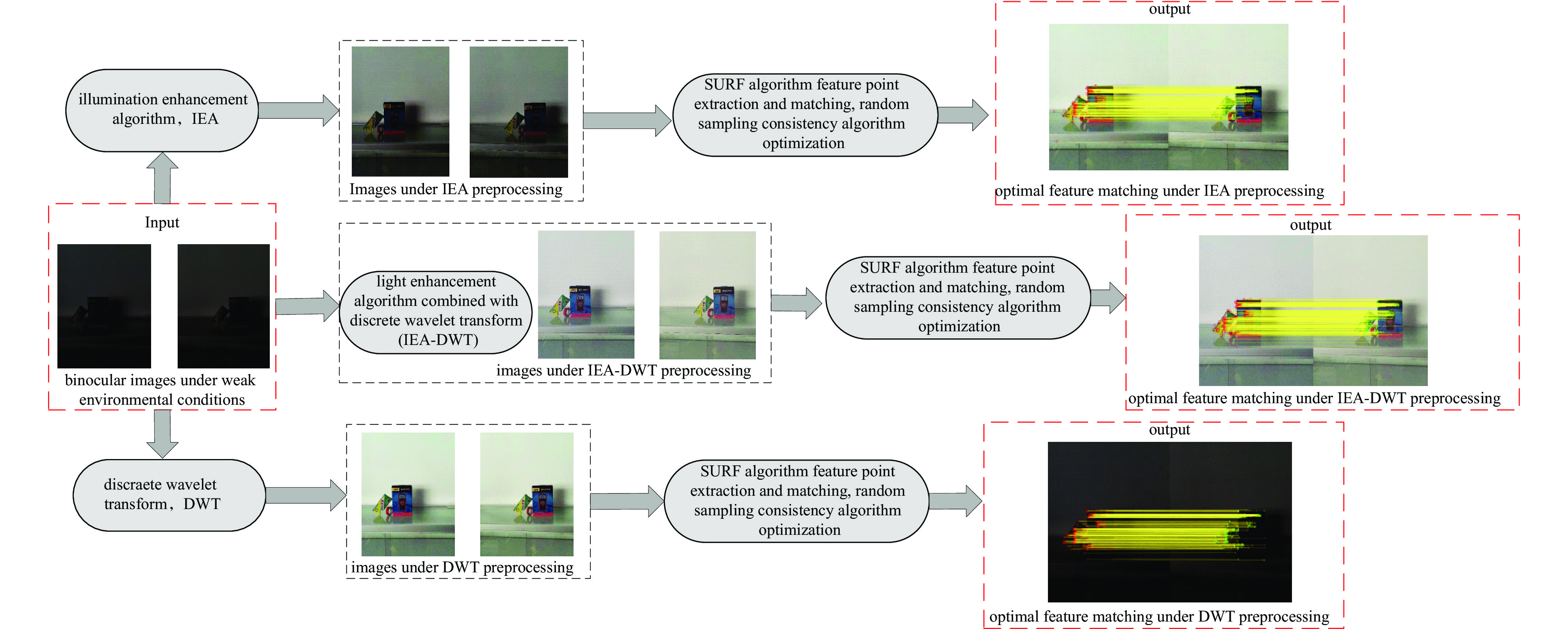

A novel preprocessing algorithm integrating the Illumination Enhancement Algorithm (IEA) and Discrete Wavelet Transform (DWT) is proposed, aiming to provide high-quality input for subsequent feature matching through multi-stage image optimization.
Methods

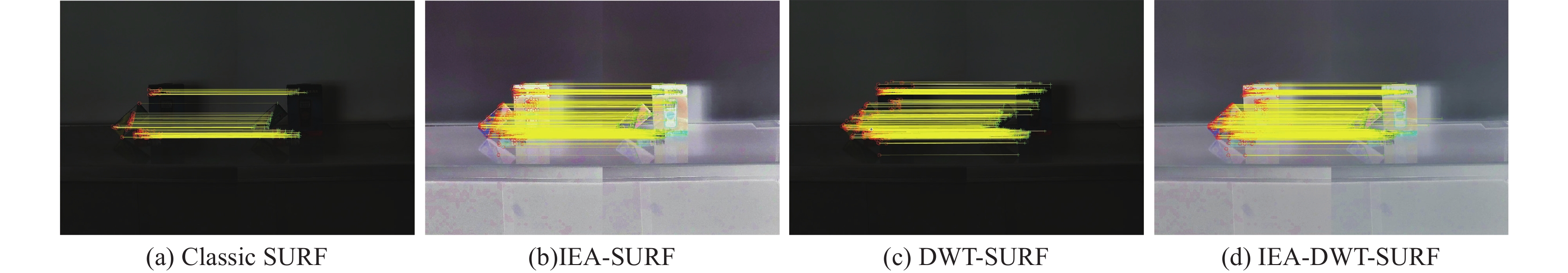

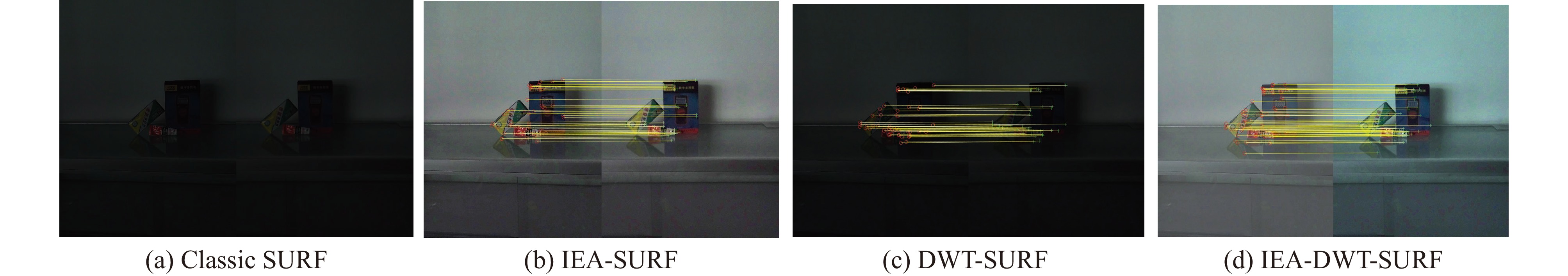

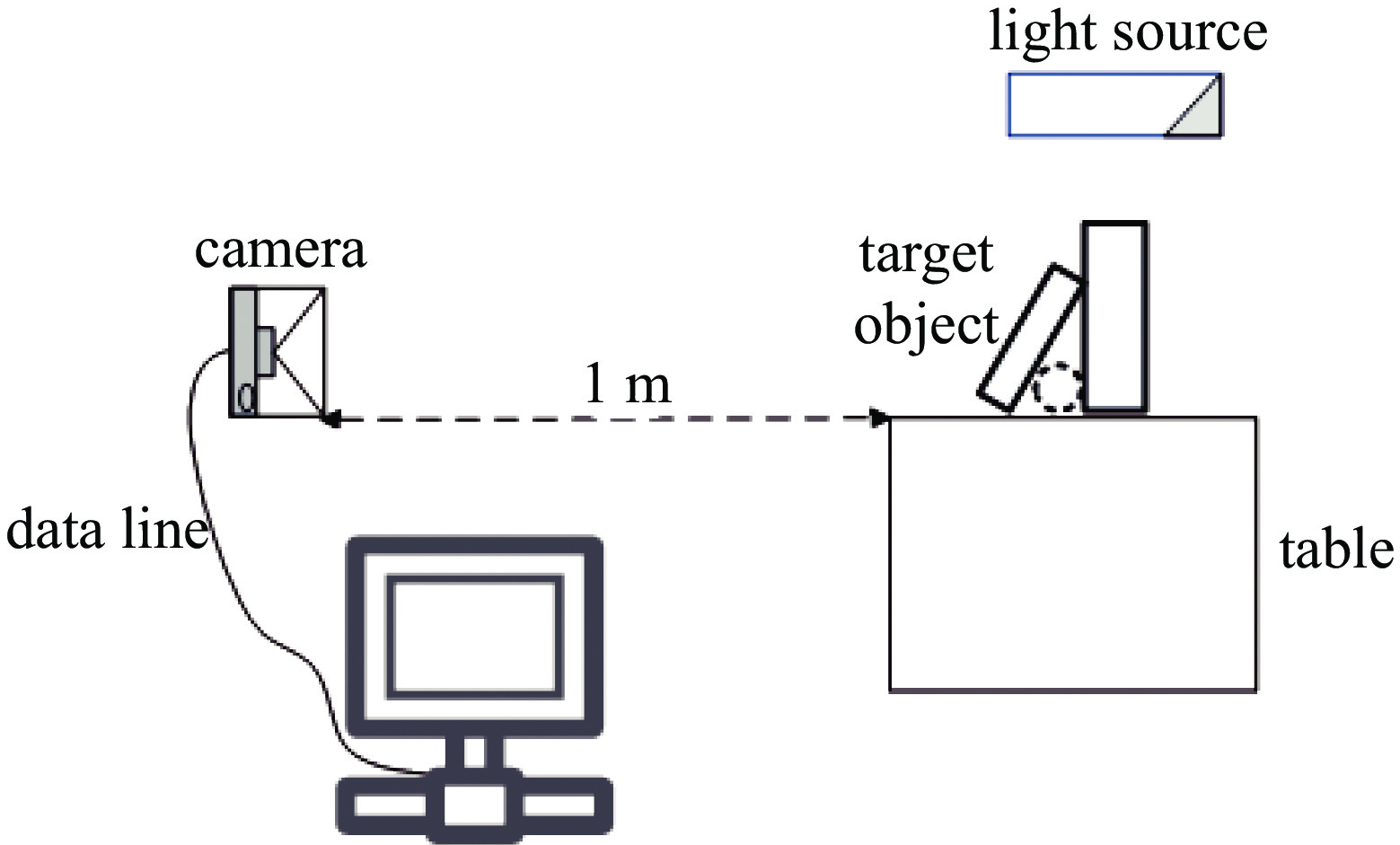

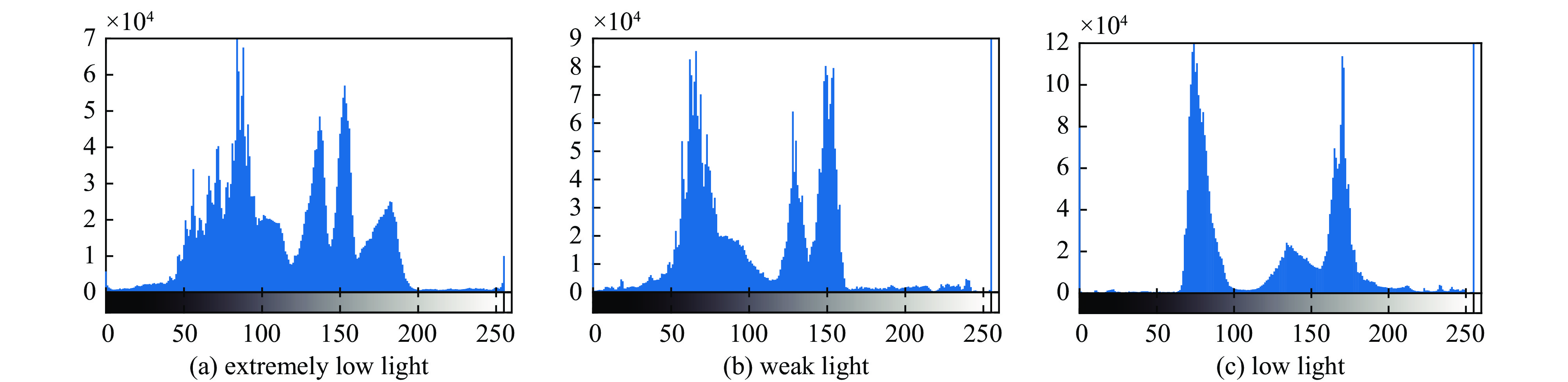

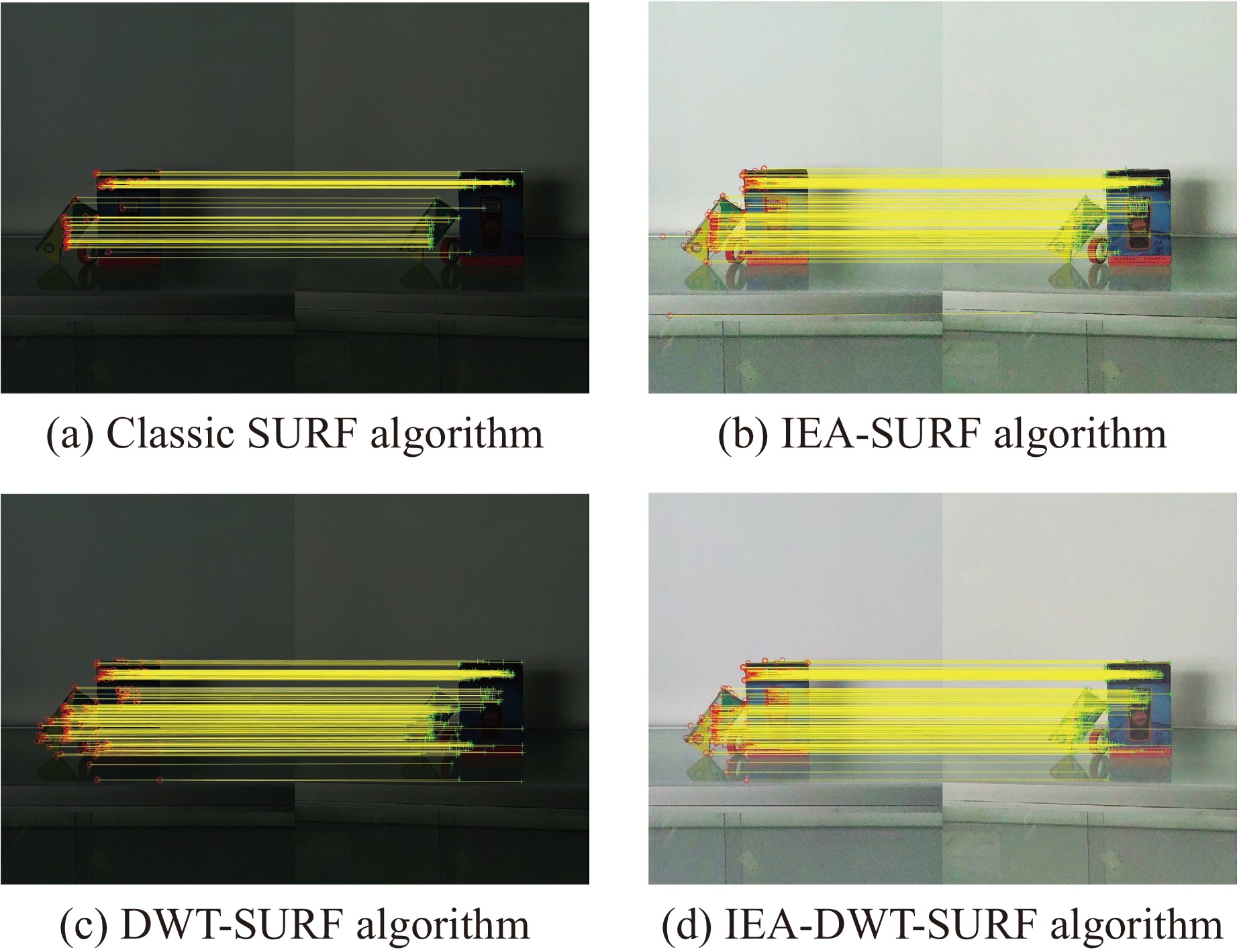

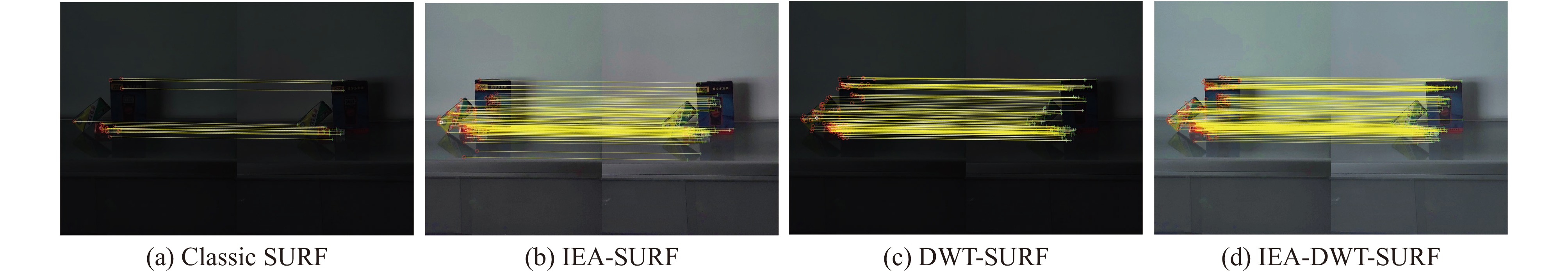

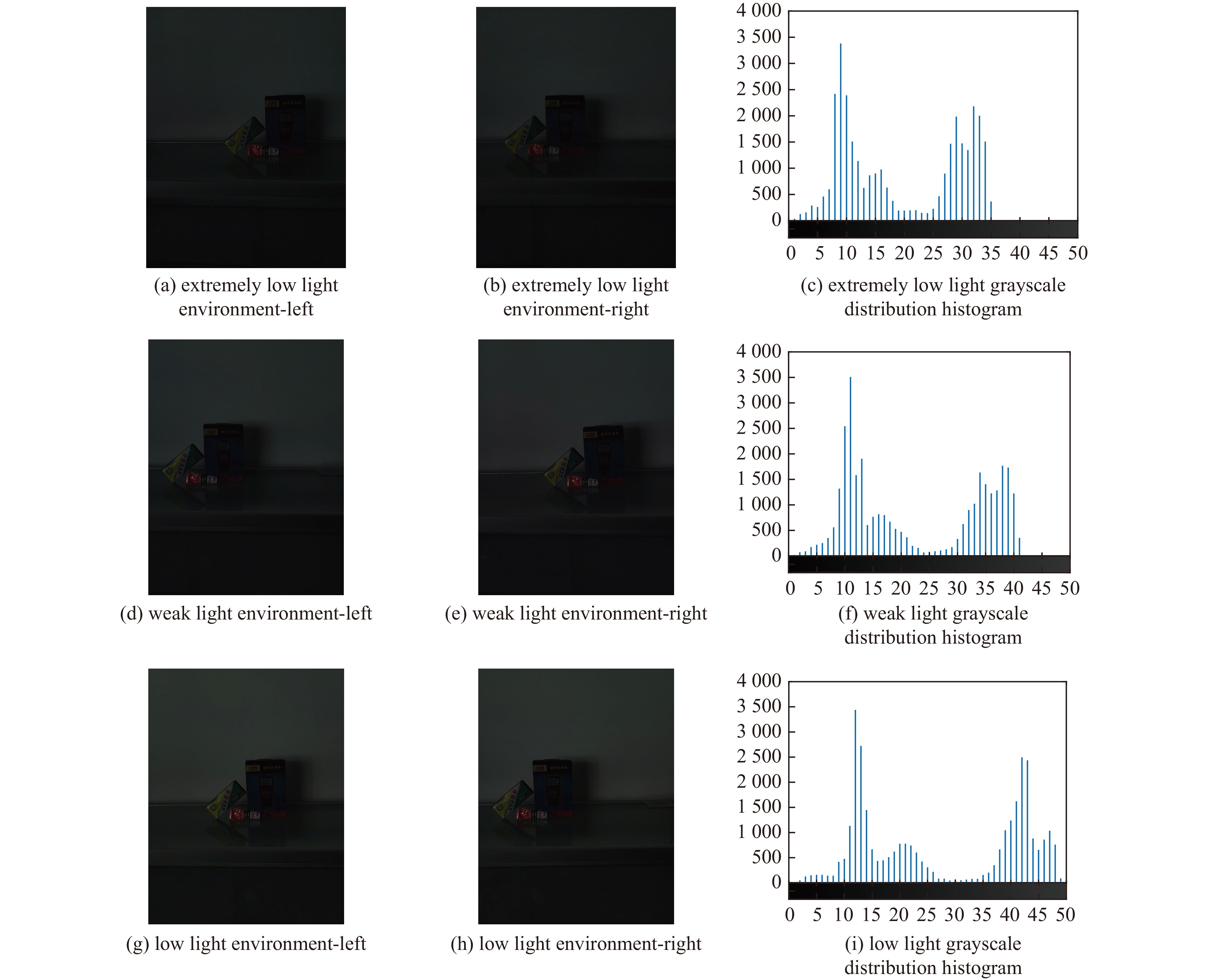

The algorithm utilizes IEA to adaptively enhance the overall brightness and local contrast of the image. Through DWT multi-scale decomposition, it preserves the main structure of the separated low-frequency components and performs threshold processing on high-frequency components in different directions, thereby achieving edge enhancement and noise reduction. Finally, the optimized image is input into the SURF algorithm to complete feature extraction and matching. To verify the effectiveness of the proposed algorithm, image feature matching experiments were conducted under extremely low-light, faintly low-light, and low-light environments.
Results

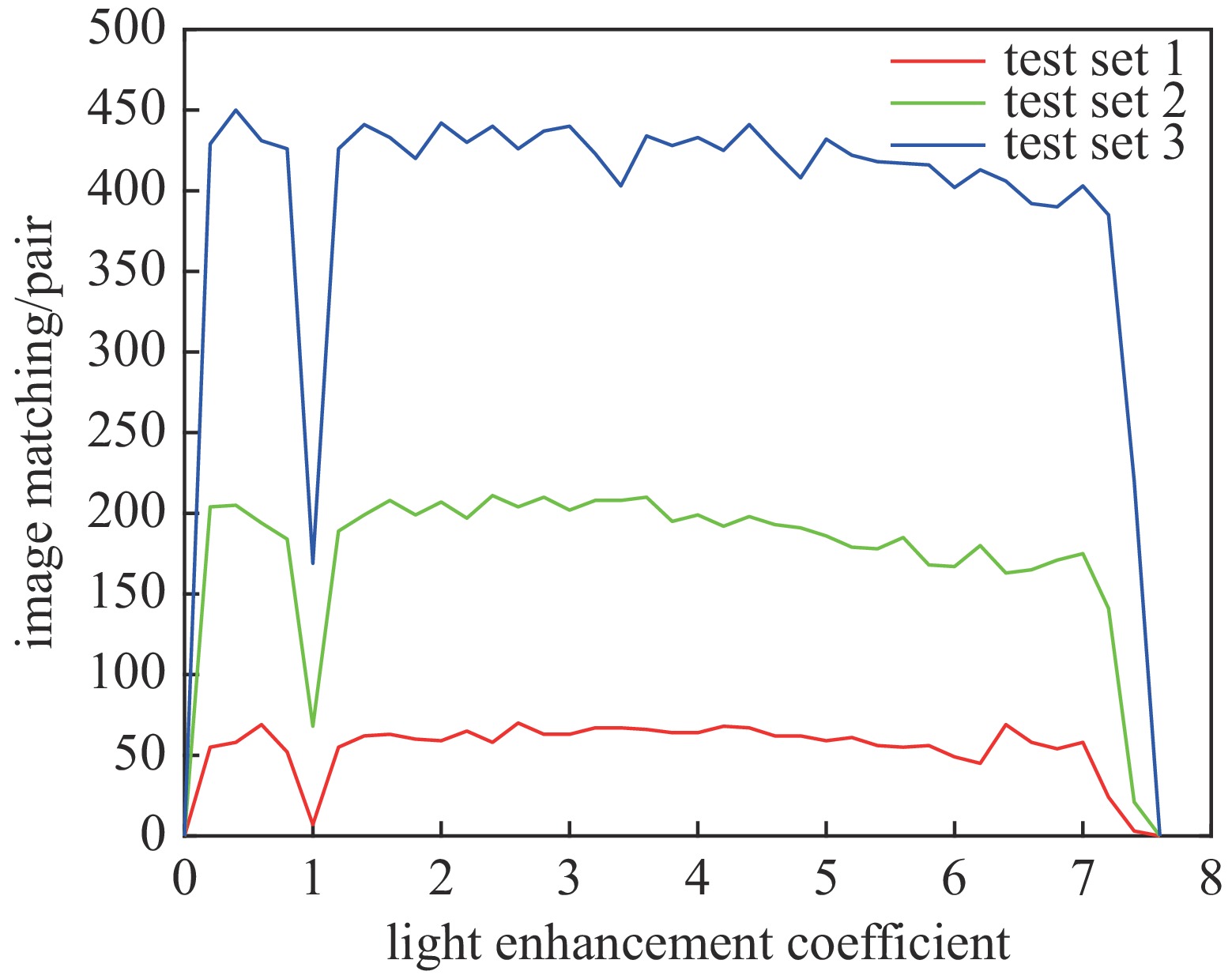

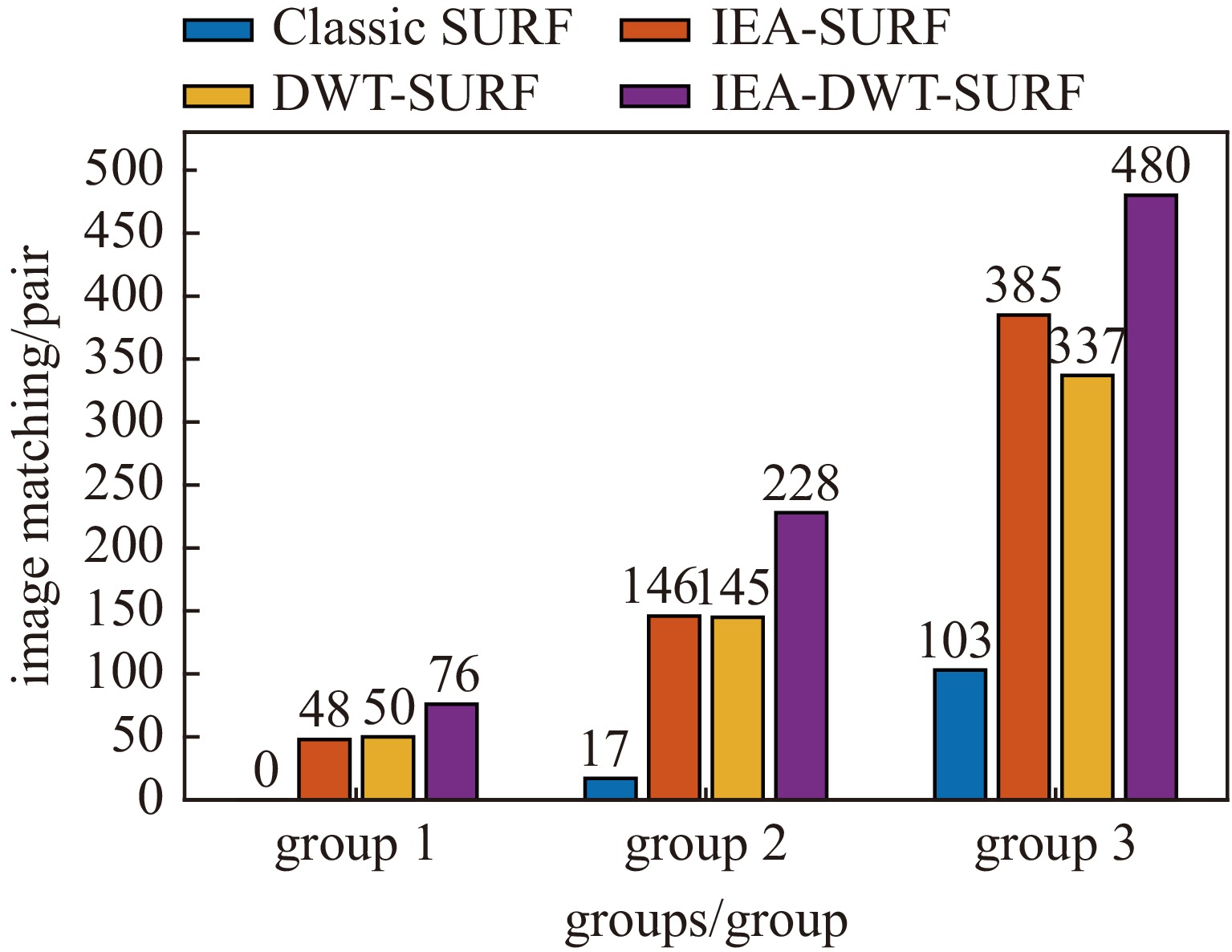

The experimental results show that compared with the single IEA or DWT preprocessing methods, the proposed algorithm achieves the most significant effect, with the average number of correct feature matching pairs reaching 261, which is a 6.53-fold increase.
Conclusions
The new preprocessing algorithm IEA-DWT can effectively solve the core problems of blurred details and noise interference in image feature matching in low-light environments, and provides reliable technical support for feature matching in low-light scenes.
- low-light environment,
- illumination enhancement algorithm,
- discrete wavelet transform,
- preprocessing

FullText(HTML)

References(22)

References

[1]	夏立琼, 陈铭, 王鹏, 等. 基于机器视觉方法的诊断设备自动瞄准技术[J]. 强激光与粒子束, 2023, 35: 112002 doi: 10.11884/HPLPB202335.230317 Xia Liqiong, Chen Ming, Wang Peng, et al. Machine vision aided method for the autonomic diagnostic alignments[J]. High Power Laser and Particle Beams, 2023, 35: 112002 doi: 10.11884/HPLPB202335.230317
[2]	向浩鸣, 夏晓华, 葛兆凯, 等. 仿人眼双目图像特征点提取与匹配方法[J]. 哈尔滨工业大学学报, 2024, 56(4): 92-100 Xiang Haoming, Xia Xiaohua, Ge Zhaokai, et al. Feature point extraction and matching method of humanoid-eye binocular images[J]. Journal of Harbin Institute of Technology, 2024, 56(4): 92-100
[3]	黄盼, 何鹏, 杨兴, 等. 基于自适应融合和显微成像的乳腺肿瘤分级网络[J]. 光电工程, 2023, 50: 220158 doi: 10.12086/oee.2023.220158 Huang Pan, He Peng, Yang Xing, et al. Breast tumor grading network based on adaptive fusion and microscopic imaging[J]. Opto-Electronic Engineering, 2023, 50: 220158 doi: 10.12086/oee.2023.220158
[4]	马文浩, 陈颖, 李铖昊, 等. 融合注意力与频域特征的遥感图像配准[J]. 激光杂志, 2025, 46(9): 71-81 doi: 10.14016/j.cnki.jgzz.2025.09.071 Ma Wenhao, Chen Ying, Li Chenghao, et al. Remote sensing image registration integrating attention and frequency domain feature[J]. Laser Journal, 2025, 46(9): 71-81 doi: 10.14016/j.cnki.jgzz.2025.09.071
[5]	汪建伟, 游疆, 万敏, 等. 复杂背景下的低空无人机检测与跟踪算法[J]. 强激光与粒子束, 2023, 35: 079001 doi: 10.11884/HPLPB202335.230026 Wang Jianwei, You Jiang, Wan Min, et al. Low-altitude UAV detection and tracking algorithms in complex backgrounds[J]. High Power Laser and Particle Beams, 2023, 35: 079001 doi: 10.11884/HPLPB202335.230026
[6]	Tang Guoliang, Liu Zhijing, Xiong Jing. Distinctive image features from illumination and scale invariant keypoints[J]. Multimedia Tools and Applications, 2019, 78(16): 23415-23442. doi: 10.1007/s11042-019-7566-8
[7]	Zhang Jianguang, Li Yongxia, Tai An, et al. Motion video recognition in speeded-up robust features tracking[J]. Electronics, 2022, 11: 2959. doi: 10.3390/electronics11182959
[8]	Zhang Shaojie, Wang Yinghui, Ma Jiaxing, et al. Mults-ORB: multistage oriented FAST and rotated brief[J]. Mathematics, 2025, 13: 2189. doi: 10.3390/math13132189
[9]	Dai Yong, Wu Jiaxin. An improved ORB feature extraction algorithm based on enhanced image and truncated adaptive threshold[J]. IEEE Access, 2023, 11: 32073-32081. doi: 10.1109/ACCESS.2023.3261665
[10]	Tang Qingling, Wang Xuanxi, Zhang Meng, et al. Image matching algorithm based on improved AKAZE and Gaussian mixture model[J]. Journal of Electronic Imaging, 2023, 32: 023020. doi: 10.1117/1.jei.32.2.023020
[11]	Al-Ameen Z. Nighttime image enhancement using a new illumination boost algorithm[J]. IET Image Processing, 2019, 13(8): 1314-1320. doi: 10.1049/iet-ipr.2018.6585
[12]	Latif I H, Abdulredha S H, Hassan S K A. Discrete wavelet transform-based image processing: a review[J]. Al-Nahrain Journal of Science, 2024, 27(3): 109-125. doi: 10.22401/ANJS.27.3.13
[13]	Guo Zijun, Wang Chao. Low light image enhancement algorithm based on retinex and dehazing model[C]//Proceedings of the 6th International Conference on Robotics and Artificial Intelligence. 2020: 84-90.
[14]	李冰, 叶猛, 颉卓凡, 等. 基于自适应光照的输电线路自然暗光图像增强方法[J]. 光学学报, 2025, 45: 2310001 doi: 10.3788/AOS251206 Li Bing, Ye Meng, Xie Zhuofan, et al. Adaptive illumination-based natural low-light image enhancement method for transmission lines[J]. Acta Optica Sinica, 2025, 45: 2310001 doi: 10.3788/AOS251206
[15]	Yang Wei, Wang Shuai, Wu Jiaqi, et al. A low-light image enhancement method for personnel safety monitoring in underground coal mines[J]. Complex & Intelligent Systems, 2024, 10(3): 4019-4032. doi: 10.1007/s40747-024-01387-2
[16]	Jin Haiyan, Li Long, Su Haonan, et al. Learn to enhance the low-light image via a multi-exposure generation and fusion method[J]. Journal of Visual Communication and Image Representation, 2024, 100: 104127. doi: 10.1016/j.jvcir.2024.104127
[17]	黄显辉, 田原嫄, 郭海涛. 基于离散小波分解和改进的AGCWD算法的声呐图像对比度增强[J]. 海南热带海洋学院学报, 2025, 32(5): 76-90 doi: 10.13307/j.issn.2096-3122.2025.05.09 Huang Xianhui, Tian Yuanyuan, Guo Haitao. Contrast enhancement of sonar images based on discrete wavelet decomposition and improved AGCWD algorithm[J]. Journal of Hainan Tropical Ocean University, 2025, 32(5): 76-90 doi: 10.13307/j.issn.2096-3122.2025.05.09
[18]	Yang Ruoxi, Chen Long, Zhang Ling, et al. Image enhancement via special functions and its application for near infrared imaging[J]. Global Challenges, 2023, 7: 2200179. doi: 10.1002/gch2.202200179
[19]	秦蒙, 郑冬, 冯鹏, 等. 一种预处理OWLCM算法下的图像特征匹配研究方法[J]. 重庆理工大学学报(自然科学), 2025, 39(1): 117-124 doi: 10.3969/j.issn.1674-8425(z).2025.01.015 Qin Meng, Zheng Dong, Feng Peng, et al. A pre-processing OWLCM algorithm for image feature matching research[J]. Journal of Chongqing University of Technology (Natural Science), 2025, 39(1): 117-124 doi: 10.3969/j.issn.1674-8425(z).2025.01.015
[20]	郭昕刚, 许连杰, 程超, 等. 加权核范数最小化和改进小波阈值函数的图像去噪算法[J]. 国防科技大学学报, 2024, 46(2): 238-246 doi: 10.11887/j.cn.202402024 Guo Xingang, Xu Lianjie, Cheng Chao, et al. Image denoising algorithm based on weighted kernel norm minimization and improved wavelet threshold function[J]. Journal of National University of Defense Technology, 2024, 46(2): 238-246 doi: 10.11887/j.cn.202402024
[21]	Shwetar Y J, Haendel M A. Multidimensional quantification of macular cone activity in pattern electroretinography using discrete wavelet transform[J]. Translational Vision Science & Technology, 2025, 14: 17. doi: 10.1167/tvst.14.9.17
[22]	张军华, 胡逸甫, 于正军, 等. 基于图像处理的河流相储层边缘特征增强方法研究[J]. CT理论与应用研究, 2023, 32(4): 450-460 doi: 10.15953/j.ctta.2022.174 Zhang Junhua, Hu Yifu, Yu Zhengjun, et al. Research on the edge feature enhancement of fluvial reservoirs based on image processing[J]. CT Theory and Applications, 2023, 32(4): 450-460 doi: 10.15953/j.ctta.2022.174
