Development and modeling analysis of high-voltage solid-state modulator for the Free Electron Laser & High Magnetic Field device

doi: 10.11884/HPLPB202638.250364

Deng Tianbai^{1, 2
,},
Jiang Bo²,
Shen Xianshun^{1
,
,},
Tao Jun^{1, 2},
Li Zhipeng¹

1.
Center of Free Electron Laser & High Magnetic Field, Anhui University, Hefei 230026, China
2.
School of Electrical Engineering and Automation, Anhui University, Hefei 230026, China

Received Date: 2025-10-24
Accepted Date: 2026-02-09
Rev Recd Date: 2026-02-28

Available Online: 2026-03-28

Abstract

Abstract

Background

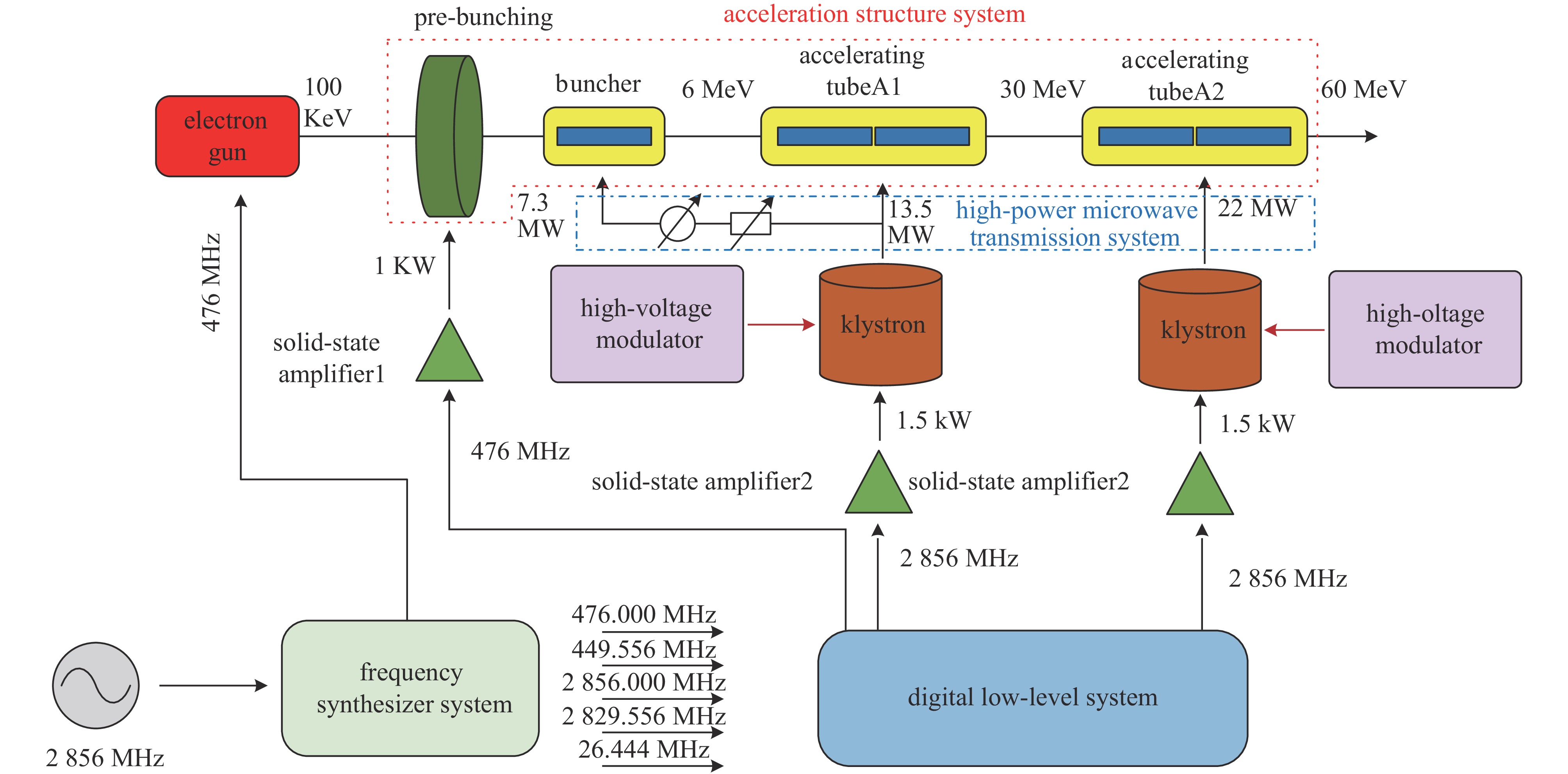

The integration of free-electron laser, strong magnetic field, and ultralow-temperature environments is a core direction of multi-disciplinary frontier research. As the key component of the free-electron laser-microwave power source system, solid-state high-voltage modulators directly determine the performance and operational stability of the Free Electron Laser & High Magnetic Field Device.
Purpose
This study aims to develop a high-voltage solid-state modulator that meets the parameter requirements of the Device, establish a refined circuit-magnetic circuit model for its topology, and verify the model’s accuracy to support subsequent research on the modulator system and klystrons.
Methods

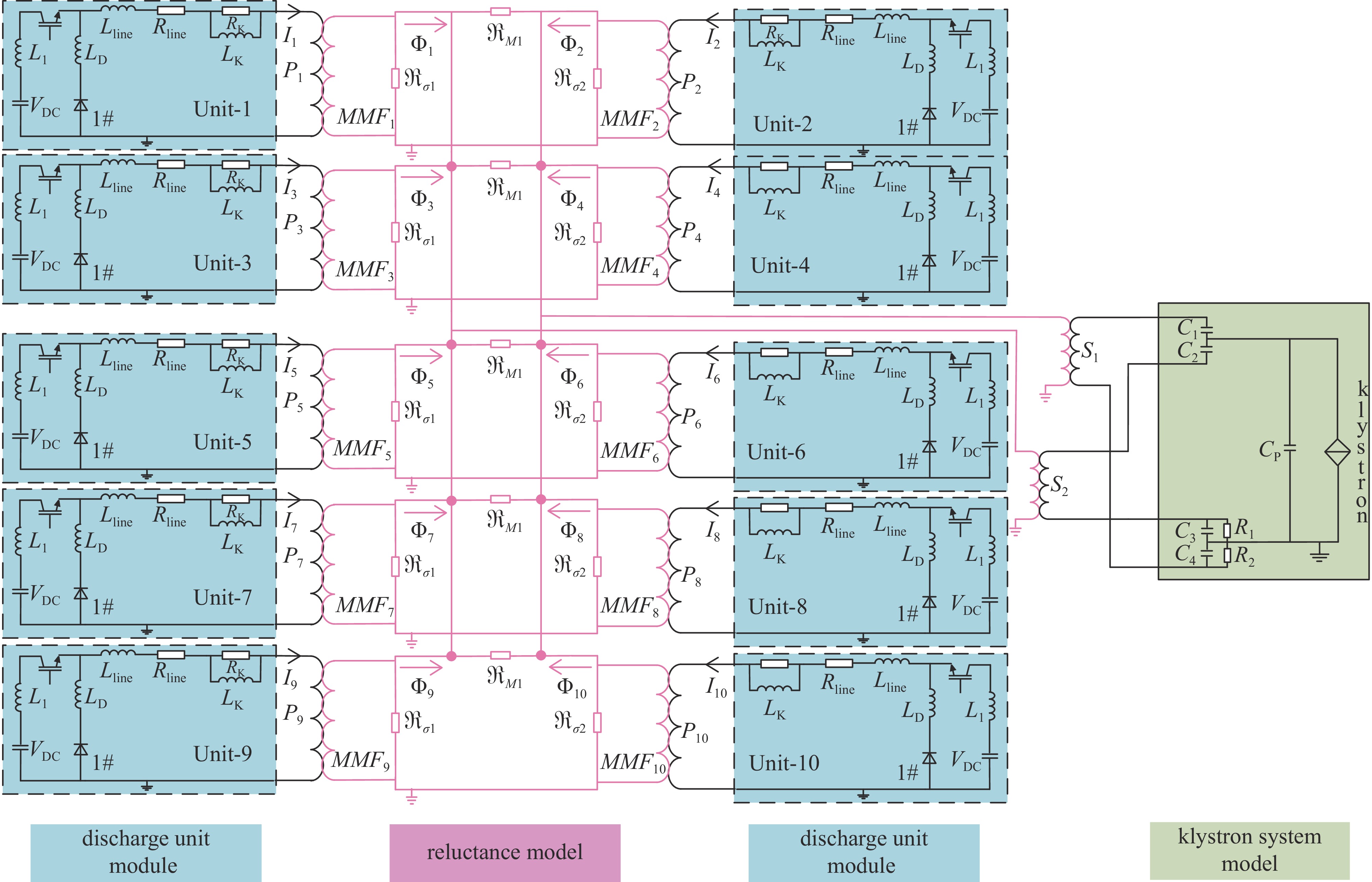

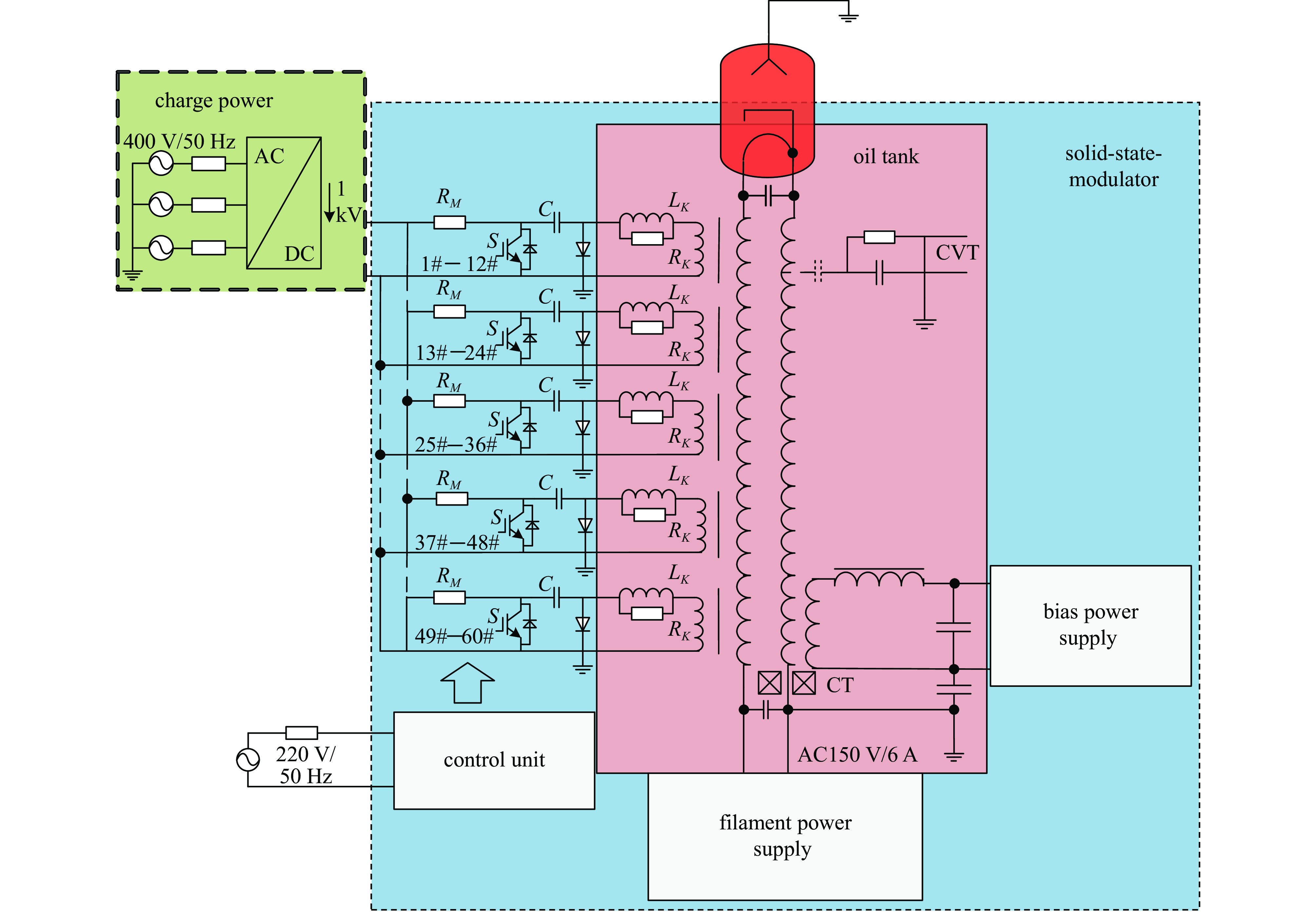

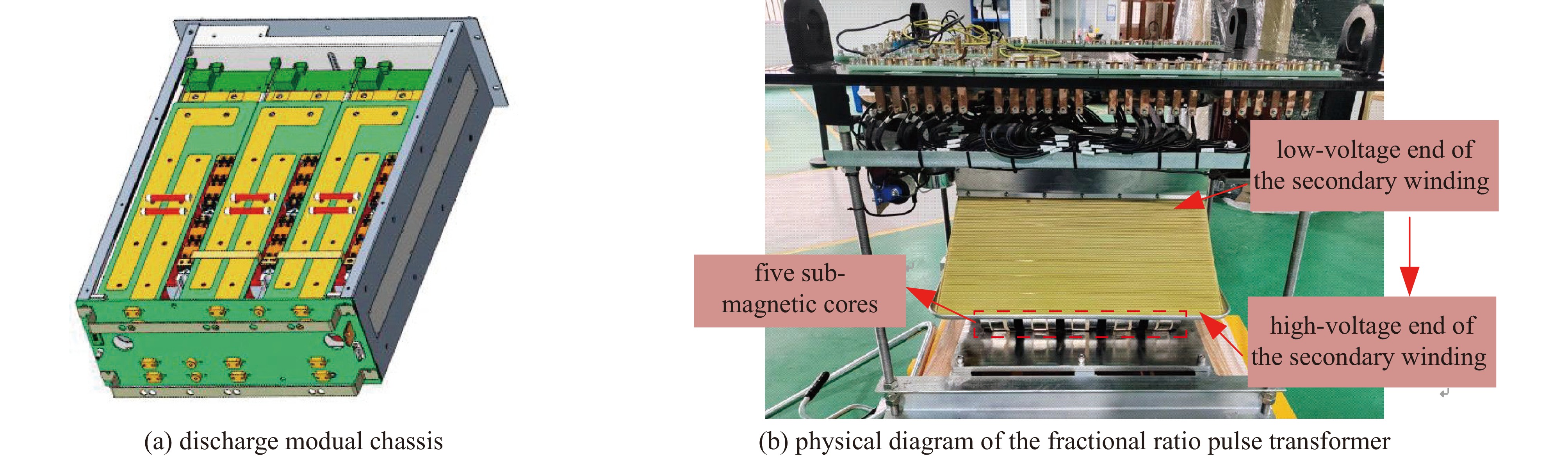

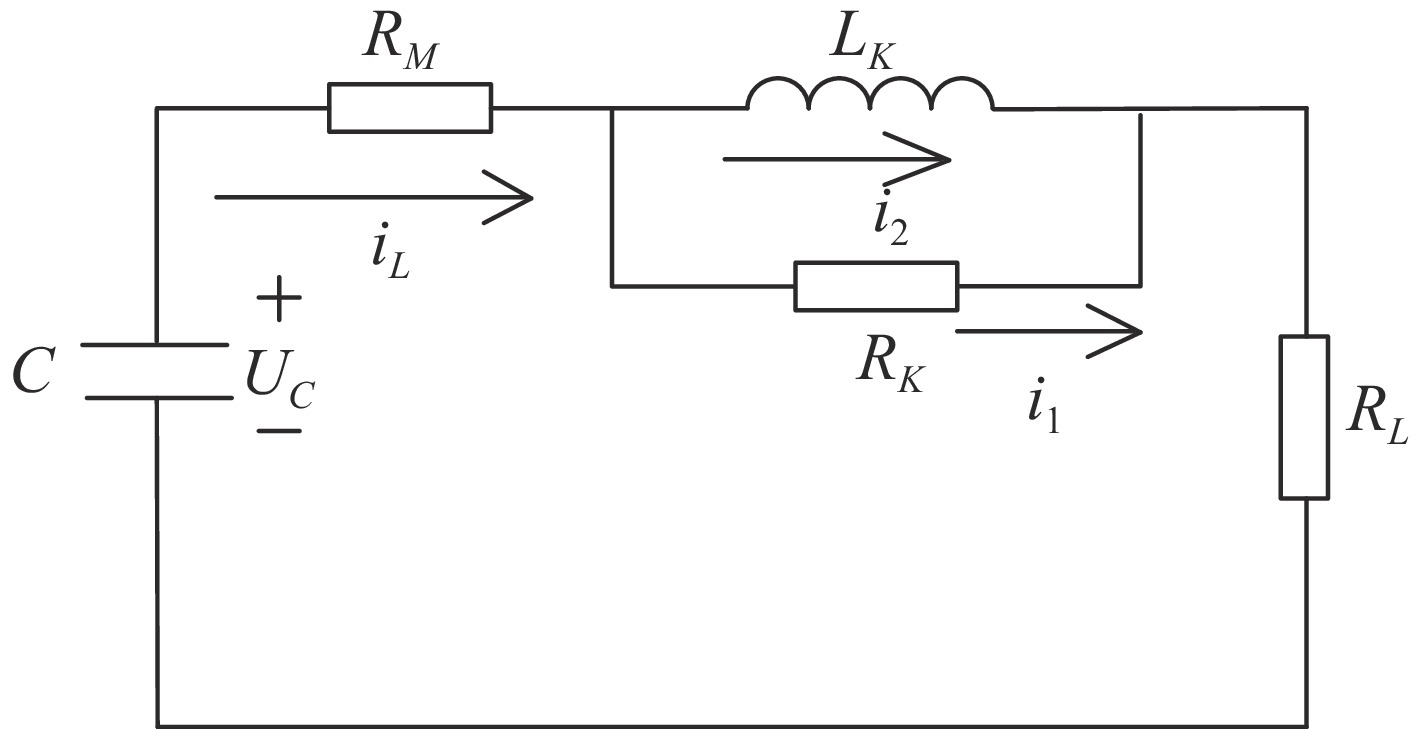

Guided by the Device’s specifications, the modulator topology was determined based on the inductive superposition principle. The discharge unit scheme was designed, and a fractional-ratio pulse transformer was selected to achieve a 1:345 voltage boost ratio. A refined model was constructed, including modular discharge unit modeling, fractional-ratio pulse transformer modeling based on magnetic reluctance theory, and klystron modeling. Dummy load experiments and klystron load tests were conducted to validate the model.
Results

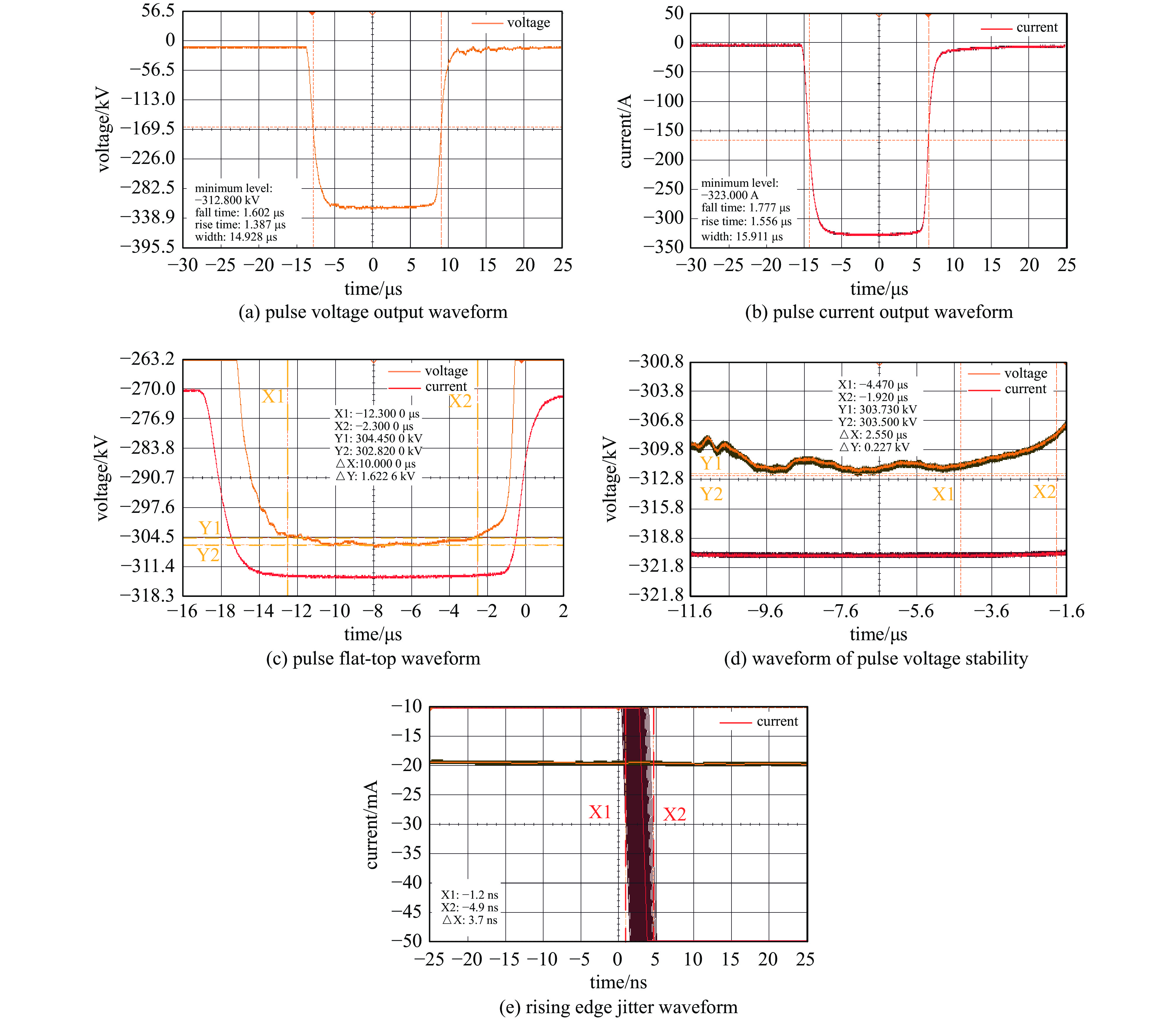

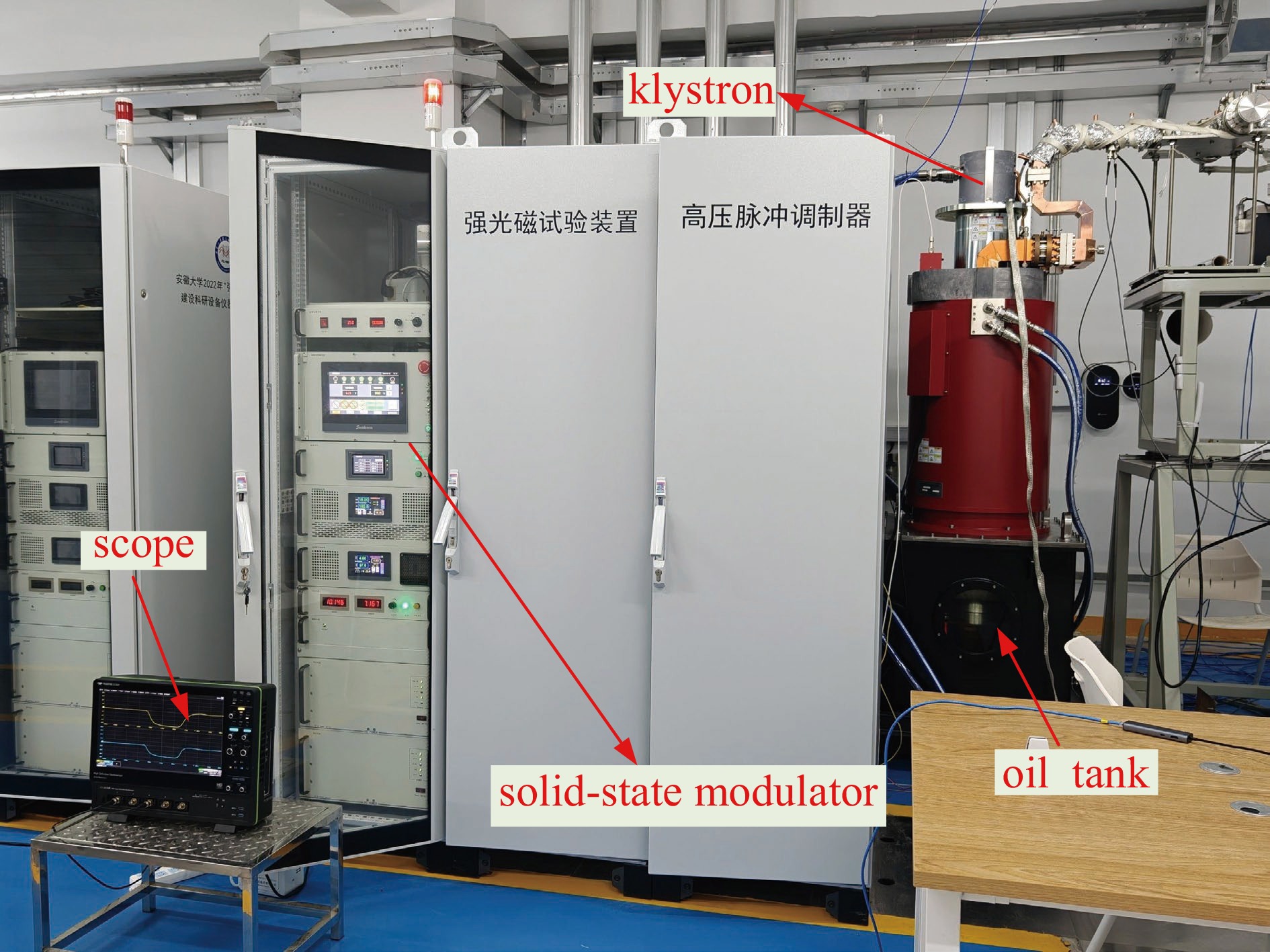

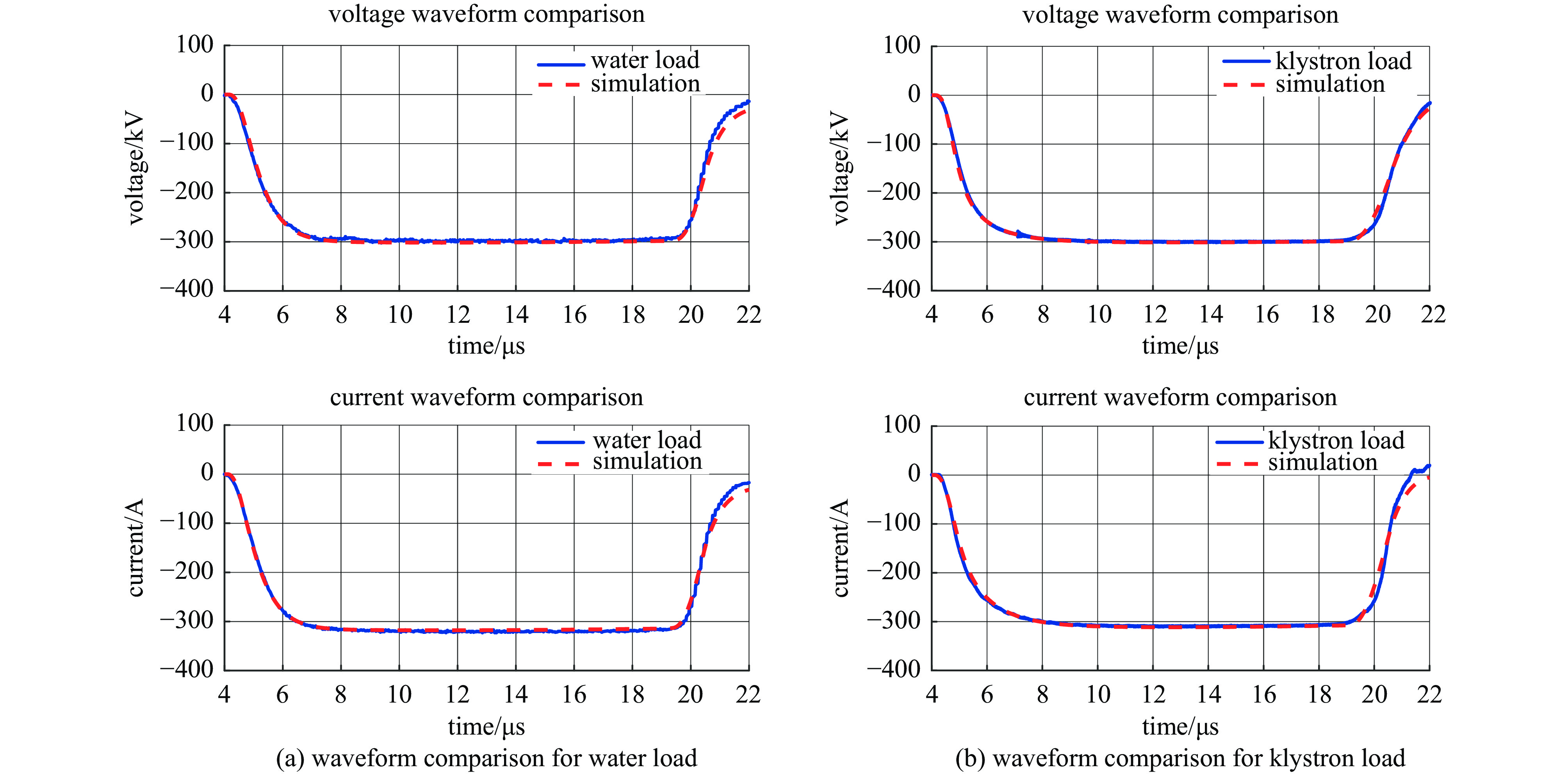

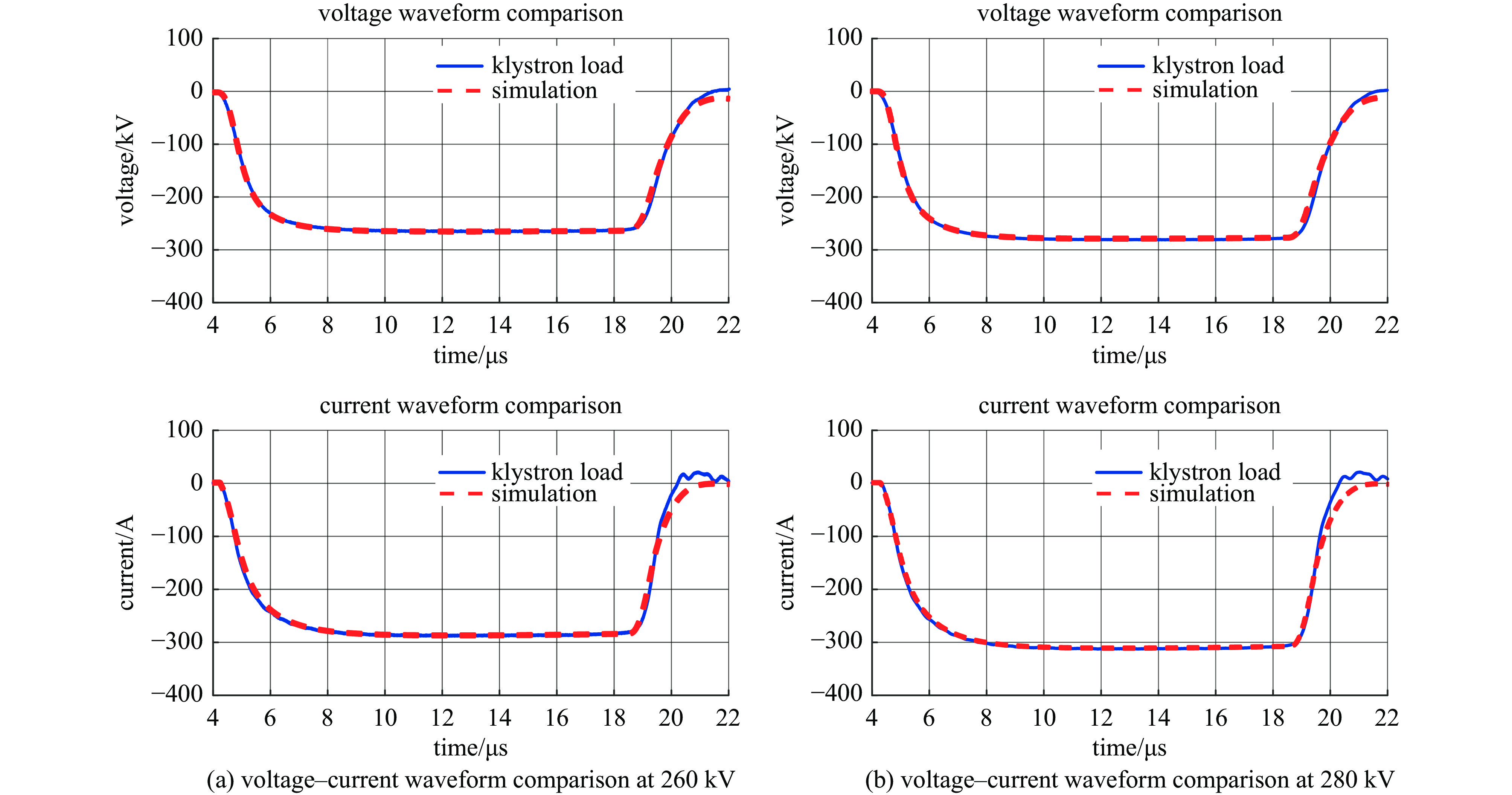

The fabricated modulator achieves the designed parameters of 310 kV, 320 A, 10 μs pulse width, and 10 Hz repetition frequency. Experimental and simulated waveforms show excellent agreement in the pulse leading edge and flat-top regions, with nearly complete overlap, which initially verifies the model’s accuracy.
Conclusions
The developed modulator meets the operational requirements of the Free Electron Laser & High Magnetic Field Device, and the established refined model exhibits high reliability. This work lays a solid foundation for in-depth research on the modulator system and klystrons, and provides essential experimental support for multi-disciplinary frontier studies relying on the Device.
- microwave power source system,
- solid-state modulator,
- klystron,
- fractional-ratio pulse transformer,
- magnetic reluctance model

FullText(HTML)

References(20)

References

[1]	周奎, 李鹏, 胥汉勋, 等. 中国工程物理研究院红外太赫兹自由电子激光装置总体设计[J]. 中国激光, 2023, 50: 1718001 doi: 10.3788/CJL230786 Zhou Kui, Li Peng, Xu Hanxun, et al. General design of infrared terahertz free-electron laser facility of Chinese academy of engineering physics[J]. Chinese Journal of Lasers, 2023, 50: 1718001 doi: 10.3788/CJL230786
[2]	Zhao Z T, Wang Dangliang, Chen Jianhao, et al. First lasing of an echo-enabled harmonic generation free-electron laser[J]. Nature Photonics, 2012, 6(6): 360-363. doi: 10.1038/nphoton.2012.105
[3]	Allaria E, Castronovo D, Cinquegrana P, et al. Two-stage seeded soft-X-ray free-electron laser[J]. Nature Photonics, 2013, 7(11): 913-918. doi: 10.1038/nphoton.2013.277
[4]	杨晶, 何蕙羽, 刘博, 等. X射线自由电子激光器研究进展[J]. 北京工业大学学报, 2025, 51(11): 1470-1484 doi: 10.11936/bjutxb2025030003 Yang Jing, He Huiyu, Liu Bo, et al. Research advances on X-ray free electron lasers[J]. Journal of Beijing University of Technology, 2025, 51(11): 1470-1484 doi: 10.11936/bjutxb2025030003
[5]	周奎, 李鹏, 周征, 等. 中物院太赫兹自由电子激光装置现状及升级计划[J]. 强激光与粒子束, 2022, 34: 104013 doi: 10.11884/HPLPB202234.220091 Zhou Kui, Li Peng, Zhou Zheng, et al. Status and upgrade plan of CAEP THz-FEL facility[J]. High Power Laser and Particle Beams, 2022, 34: 104013 doi: 10.11884/HPLPB202234.220091
[6]	陈帆, 邓天白, 徐忠祥, 等. 安徽大学强光磁试验装置水冷系统研制及其水温高精度控制实现[J]. 强激光与粒子束, 2025, 37: 021005 Chen Fan, Deng Tianbai, Xu Zhongxiang, et al. Water-cooling system development and its high precision water temperature control for Anhui University free electron laser & high magnetic field device[J]. High Power Laser and Particle Beams, 2025, 37: 021005
[7]	Fang Z, Li J, Qian X X, et al. Design of a 42 T resistive magnet at the CHMFL[J]. IEEE Transactions on Applied Superconductivity, 2024, 34: 4300504.
[8]	李和廷, 何志刚, 吴芳芳, 等. 合肥红外自由电子激光装置[J]. 中国激光, 2021, 48: 1700001 doi: 10.3724/j.0253-3219.2025.hjs.48.250027 Li Heting, He Zhigang, Wu Fangfang, et al. Hefei infrared free-electron laser facility[J]. Chinese Journal of Lasers, 2021, 48: 1700001 doi: 10.3724/j.0253-3219.2025.hjs.48.250027
[9]	方文程, 谭建豪, 张俊强, 等. 软X射线自由电子激光试验装置微波系统[J]. 真空电子技术, 2021(1): 32-37,46 doi: 10.16540/j.cnki.cn11-2485/tn.2021.01.06 Fang Wencheng, Tan Jianhao, Zhang Junqiang, et al. Microwave system of soft X-ray free electron laser test facility[J]. Vacuum Electronics, 2021(1): 32-37,46 doi: 10.16540/j.cnki.cn11-2485/tn.2021.01.06
[10]	韩博, 张之永, 徐功潜. 一种新颖的固态高压线性调制器[J]. 电力电子技术, 2003, 37(3): 43-44 doi: 10.3969/j.issn.1000-100X.2003.03.014 Han Bo, Zhang Zhiyong, Xu Gongqian. A novel solid-state high voltage linear modulator[J]. Power Electronics, 2003, 37(3): 43-44 doi: 10.3969/j.issn.1000-100X.2003.03.014
[11]	李运海, 郭翔, 杨荣, 等. 50 MW速调管用分数比脉冲调制器[J]. 强激光与粒子束, 2021, 33: 095002 doi: 10.11884/HPLPB202133.210220 Li Yunhai, Guo Xiang, Yang Rong, et al. Fractional-turn ratio solid-state modulator for 50 MW klystron[J]. High Power Laser and Particle Beams, 2021, 33: 095002 doi: 10.11884/HPLPB202133.210220
[12]	赵明华, 林国强, 钟少鹏, 等. 上海光源150MeV电子直线加速器的设计与调试[J]. 中国物理C, 2008, 32(S1): 244-246 Zhao Minghua, Lin Guoqiang, Zhong Shaopeng, et al. Design and commissioning of a 150MeV linac for SSRF[J]. Chinese Physics C, 2008, 32(S1): 244-246
[13]	Xiao Chengcheng, Zhang Junqiang, Tan Jianhao, et al. Design and preliminary test of the LLRF in C band high-gradient test facility for SXFEL[J]. Nuclear Science and Techniques, 2020, 31: 100. doi: 10.1007/s41365-020-00806-6
[14]	Liu Yongfang, Matsumoto H, Gu Ming, et al. Analysis and optimization of high-power pulse transformer for SXFEL[J]. Nuclear Science and Techniques, 2019, 30: 109. doi: 10.1007/s41365-019-0626-y
[15]	潘卫民, 李京祎, 焦毅. 高能同步辐射光源建设进展[J]. 科学通报, 2025, 70(1): 60-69 doi: 10.1360/TB-2024-0797 Pan Weimin, Li Jingyi, Jiao Yi. Progress of the high energy photon source construction[J]. Chinese Science Bulletin, 2025, 70(1): 60-69 doi: 10.1360/TB-2024-0797
[16]	ANSI/IEEE Std 390-1987, IEEE standard for pulse transformers[S].
[17]	Bortis D, Biela J. Design of an ultraprecise 127-MW/3-μs solid-state modulator with split-core transformer[J]. IEEE Transactions on Plasma Science, 2016, 44(5): 829-838. doi: 10.1109/TPS.2016.2543304
[18]	Bortis D, Biela J, Kolar J W. Transient behavior of solid-state modulators with matrix transformers[J]. IEEE Transactions on Plasma Science, 2010, 38(10): 2785-2792. doi: 10.1109/TPS.2010.2065243
[19]	Bortis D, Ortiz G, Kolar J W, et al. Design procedure for compact pulse transformers with rectangular pulse shape and fast rise times[J]. IEEE Transactions on Dielectrics and Electrical Insulation, 2011, 18(4): 1171-1180. doi: 10.1109/TDEI.2011.5976112
[20]	魏智. 发射机高压脉冲调制器的设计与实践[M]. 北京: 电子工业出版社, 2009: 582, 105-106 Wei Zhi. Design and practice of transmitter high voltage pulse modulator[M]. Beijing: Publishing House of Electronics Industry, 2009: 582, 105-106
