Design and experiment of modular lightning current simulation device

Dong Pengxin; Liu Hongwei; Yuan Jianqiang; Zhu Jianyu; Wang Jie; Yang Jie

doi:10.11884/HPLPB202638.250365

Article Contents

Article Navigation > High Power Laser and Particle Beams > 2026 > Accepted Manuscript

Dong Pengxin, Liu Hongwei, Yuan Jianqiang, et al. Design and experiment of modular lightning current simulation device[J]. High Power Laser and Particle Beams. doi: 10.11884/HPLPB202638.250365

Citation:

Dong Pengxin, Liu Hongwei, Yuan Jianqiang, et al. Design and experiment of modular lightning current simulation device[J]. High Power Laser and Particle Beams. doi: 10.11884/HPLPB202638.250365

Dong Pengxin, Liu Hongwei, Yuan Jianqiang, et al. Design and experiment of modular lightning current simulation device[J]. High Power Laser and Particle Beams. doi: 10.11884/HPLPB202638.250365

Citation:

Dong Pengxin, Liu Hongwei, Yuan Jianqiang, et al. Design and experiment of modular lightning current simulation device[J]. High Power Laser and Particle Beams. doi: 10.11884/HPLPB202638.250365

PDF( 4475 KB)

Design and experiment of modular lightning current simulation device

doi: 10.11884/HPLPB202638.250365

Key Laboratory of Pulsed Power Technology, Institute of Fluid Physicse, CAEP, Mianyang 621900, China

Received Date: 2025-10-24
Accepted Date: 2026-02-09
Rev Recd Date: 2026-02-26

Available Online: 2026-03-27

Abstract

Abstract

Background
Lightning is a transient electrical discharge that occurs during thunderstorms. The current generated by lightning can reach up to 200 kA, causing significant damage to aircraft, overhead power lines, electronic information equipment, and field military equipment. Therefore, the lightning strike test is necessary.
Purpose
To address the requirements of the pulse current generators in the lightning strike test, a modular device for generating the lightning current is designed and developed in this study, which is used to simulate the direct effects and indirect effects of lightning current.
Methods

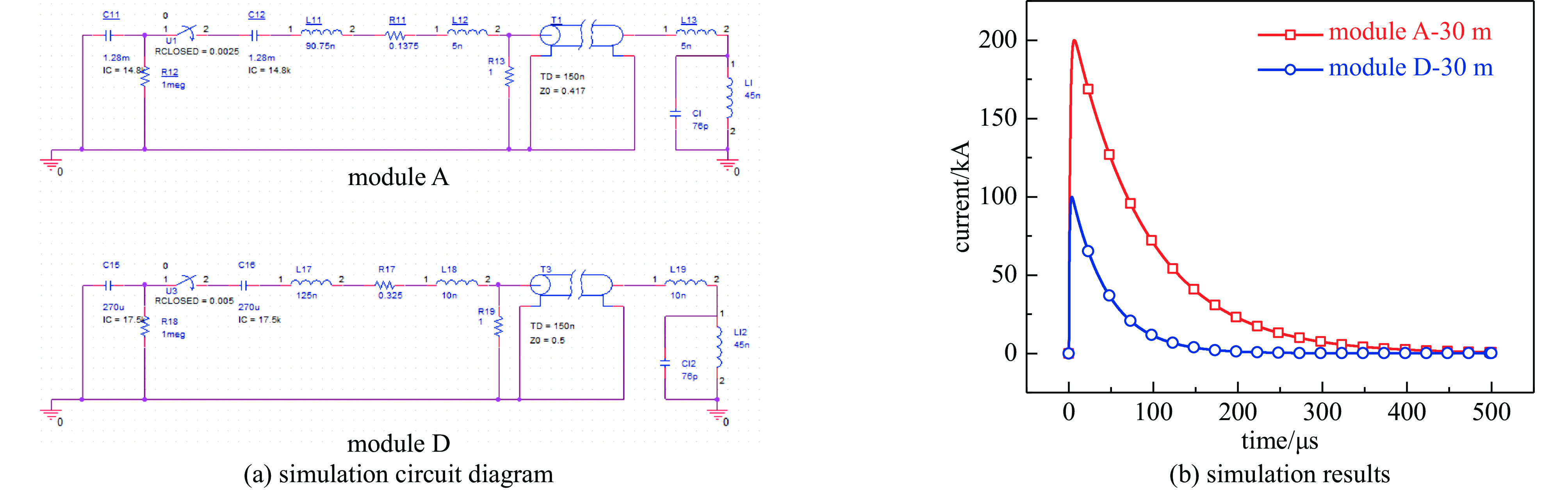

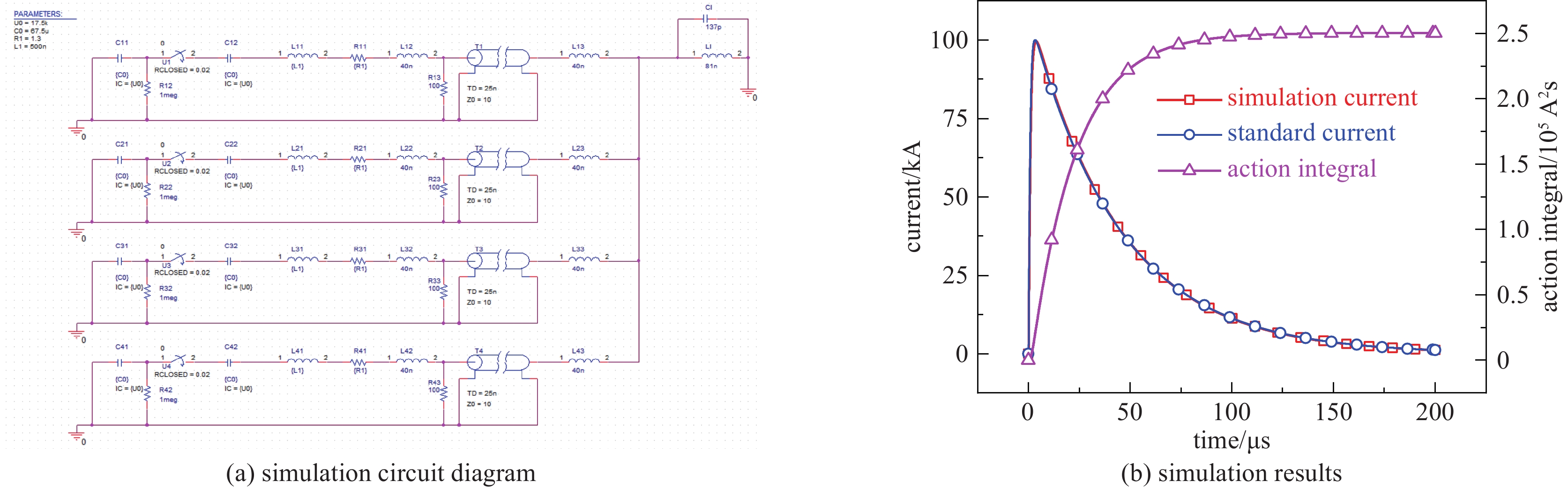

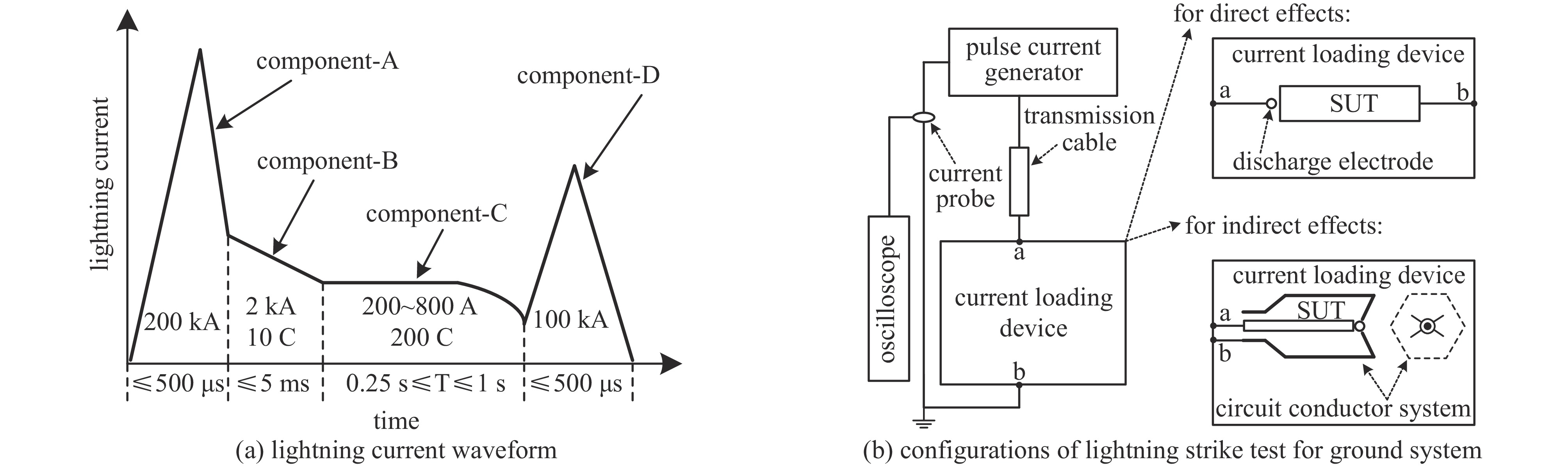

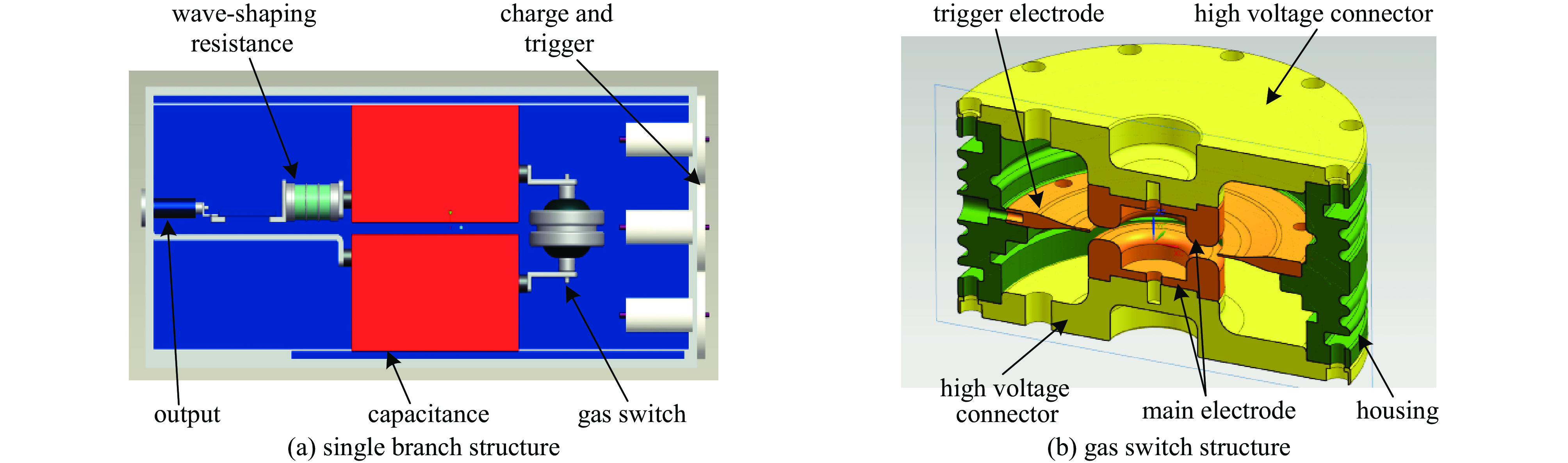

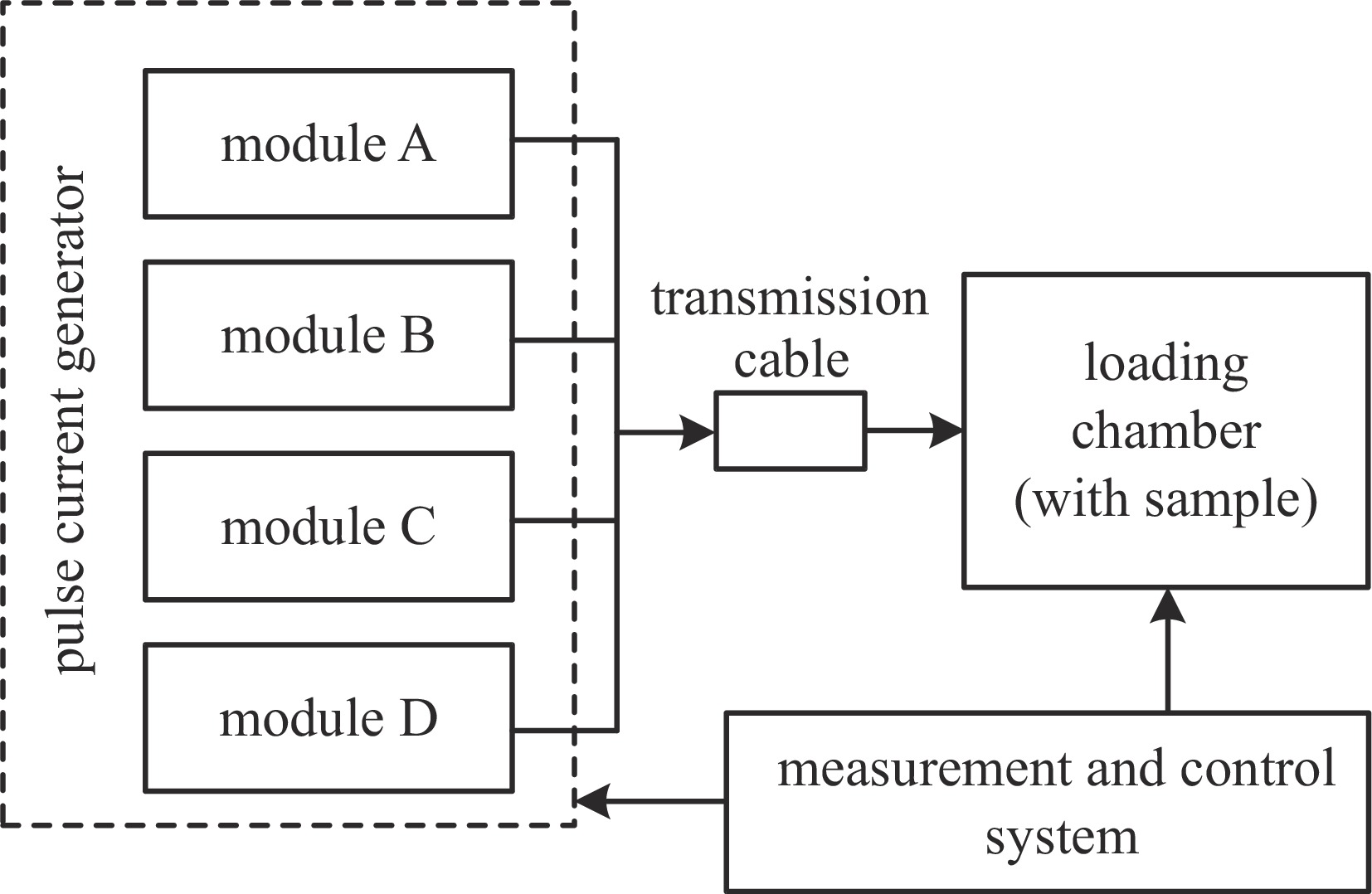

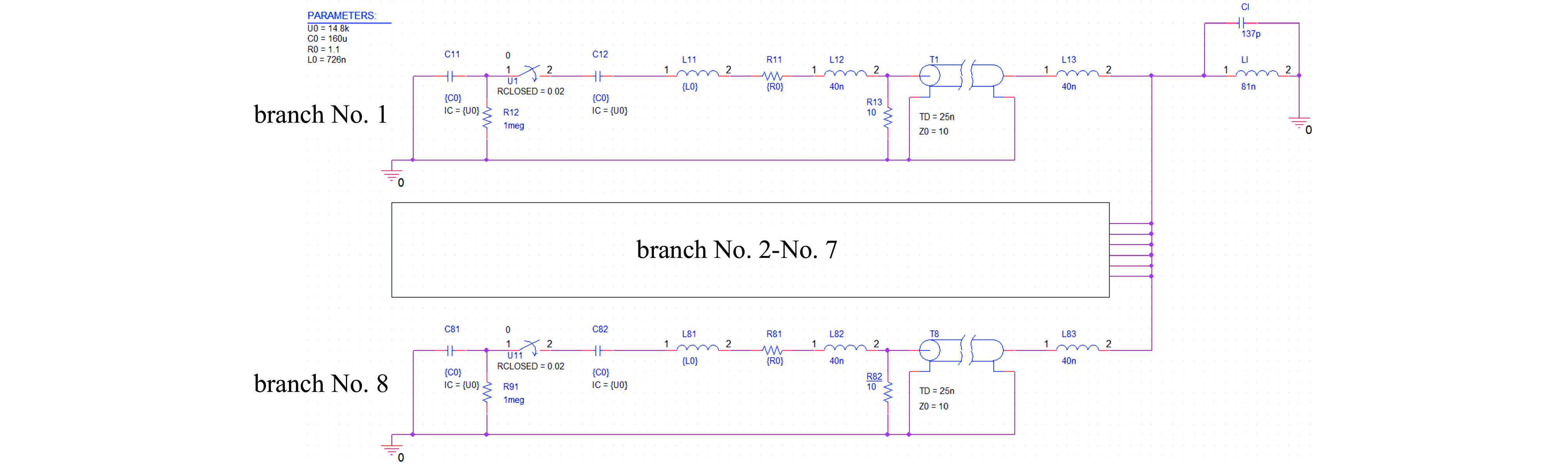

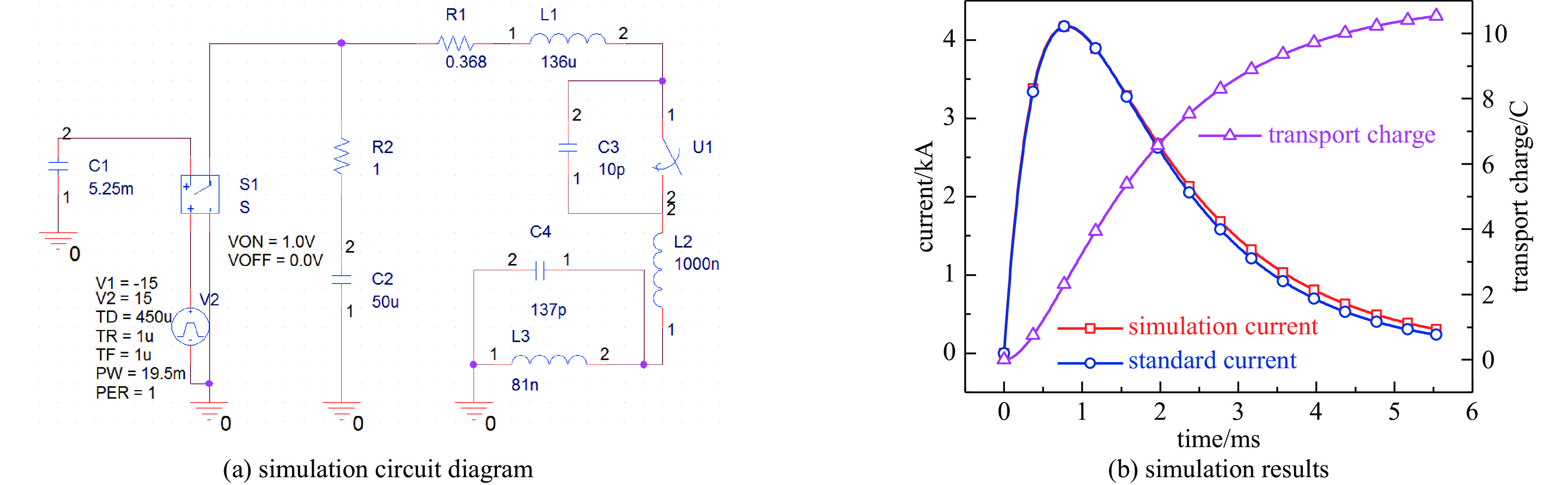

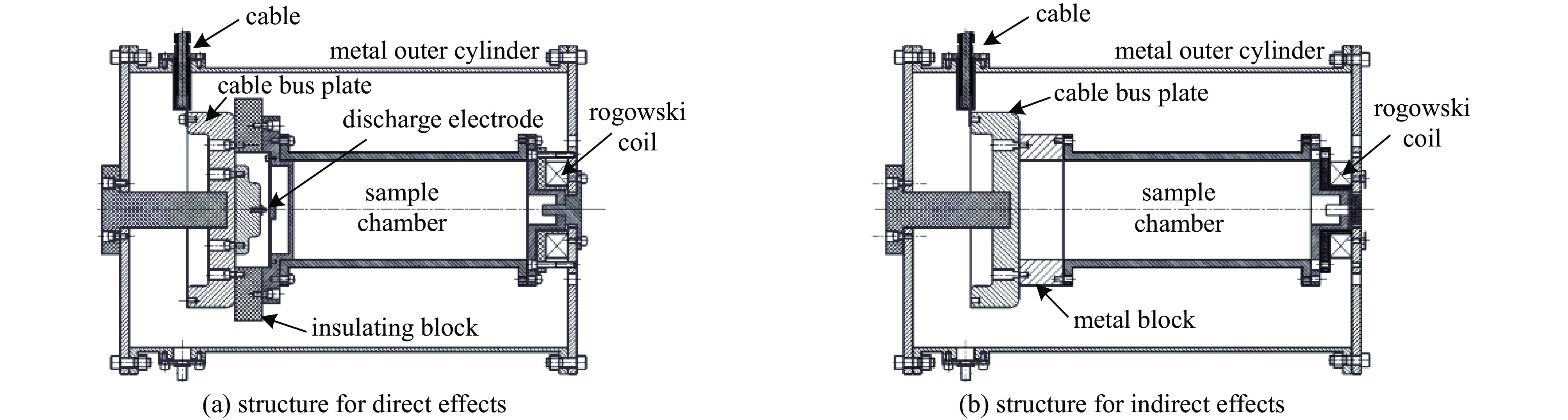

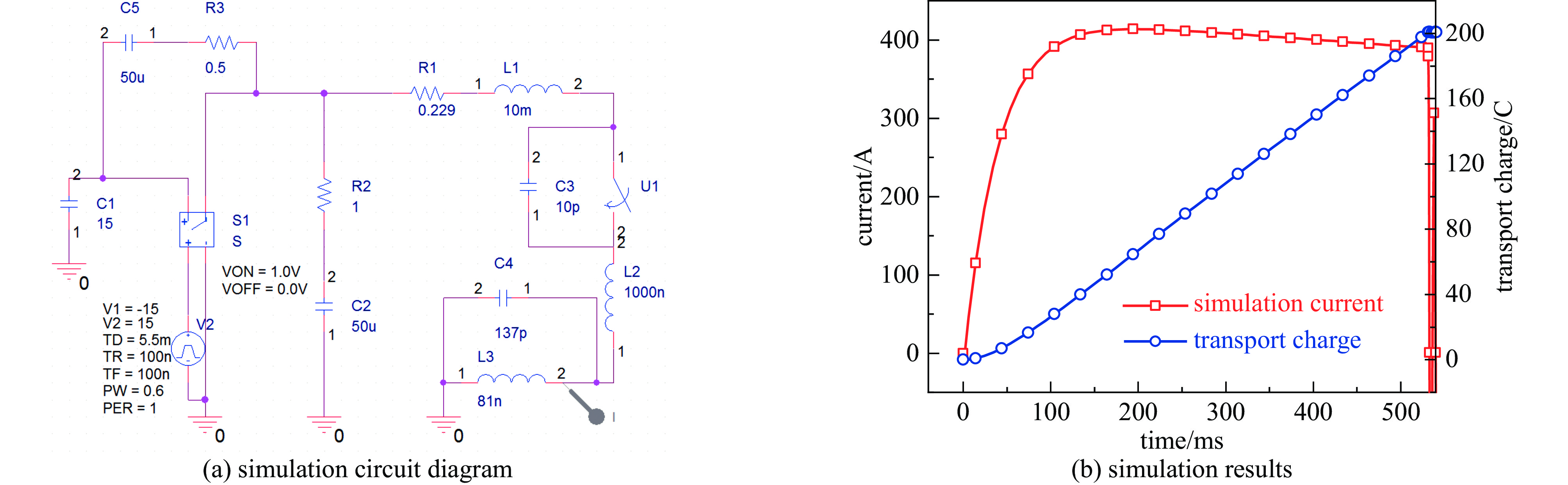

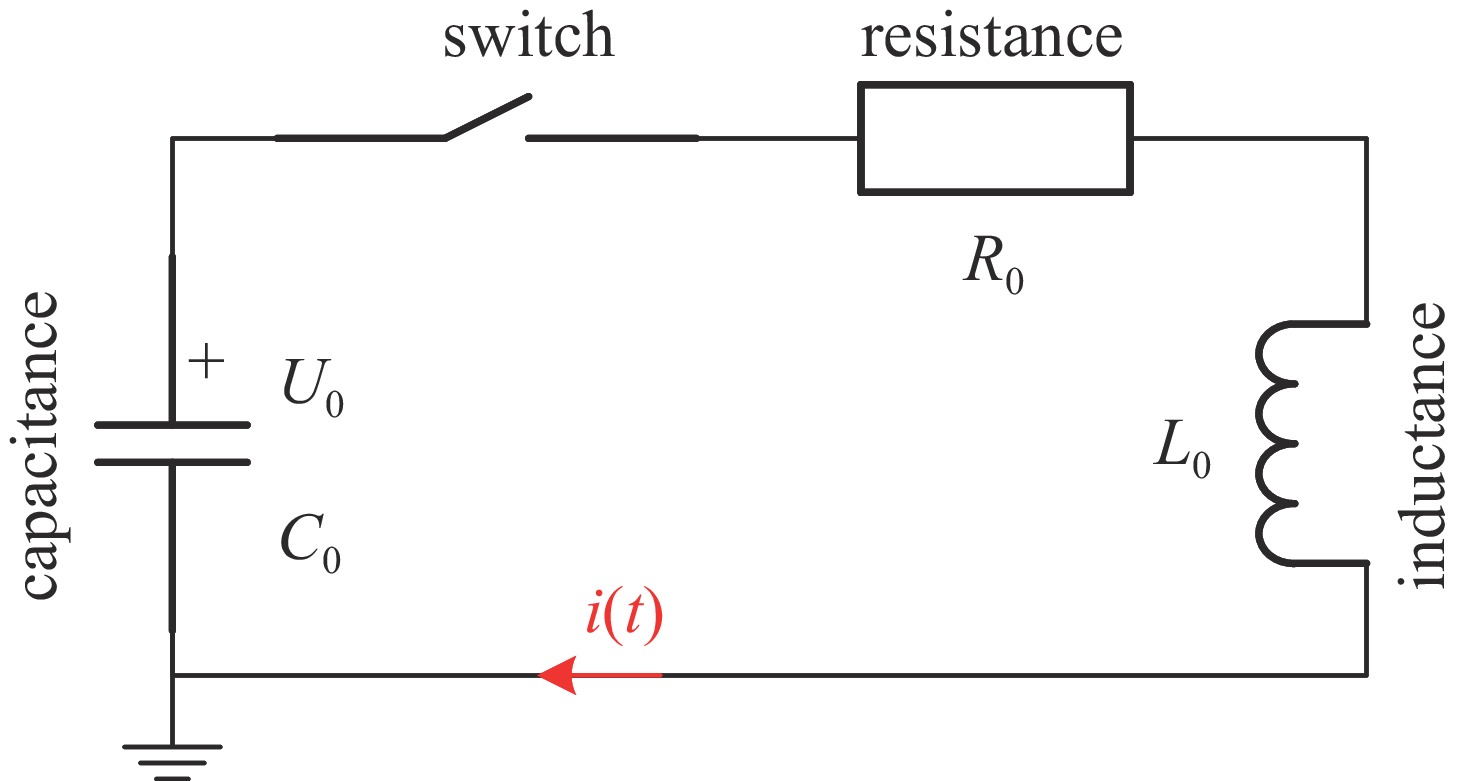

The modular lightning current simulation device is mainly composed of four modules A, B, C, and D, which can respectively generate the component A initial lightning current, component B intermediate current, component C continuous current, and component D restrike current of the lightning current. The electrical parameters of the four modules are designed based on the theoretical analysis and the circuit simulation. Module A and Module D adopt the multi-branch parallel discharge scheme of energy storages capacitor and gas switches. The thyristor is used in module B, and module C adopts the scheme to combine the super capacitor and the solid-state switch to cut off the current directly. Considering the requirements of different scenarios for the loading distance, the loading distance can be adjusted within the range of 5 meters to 30 meters by controlling the cable parameters, wave-shaping resistance and loading chamber.

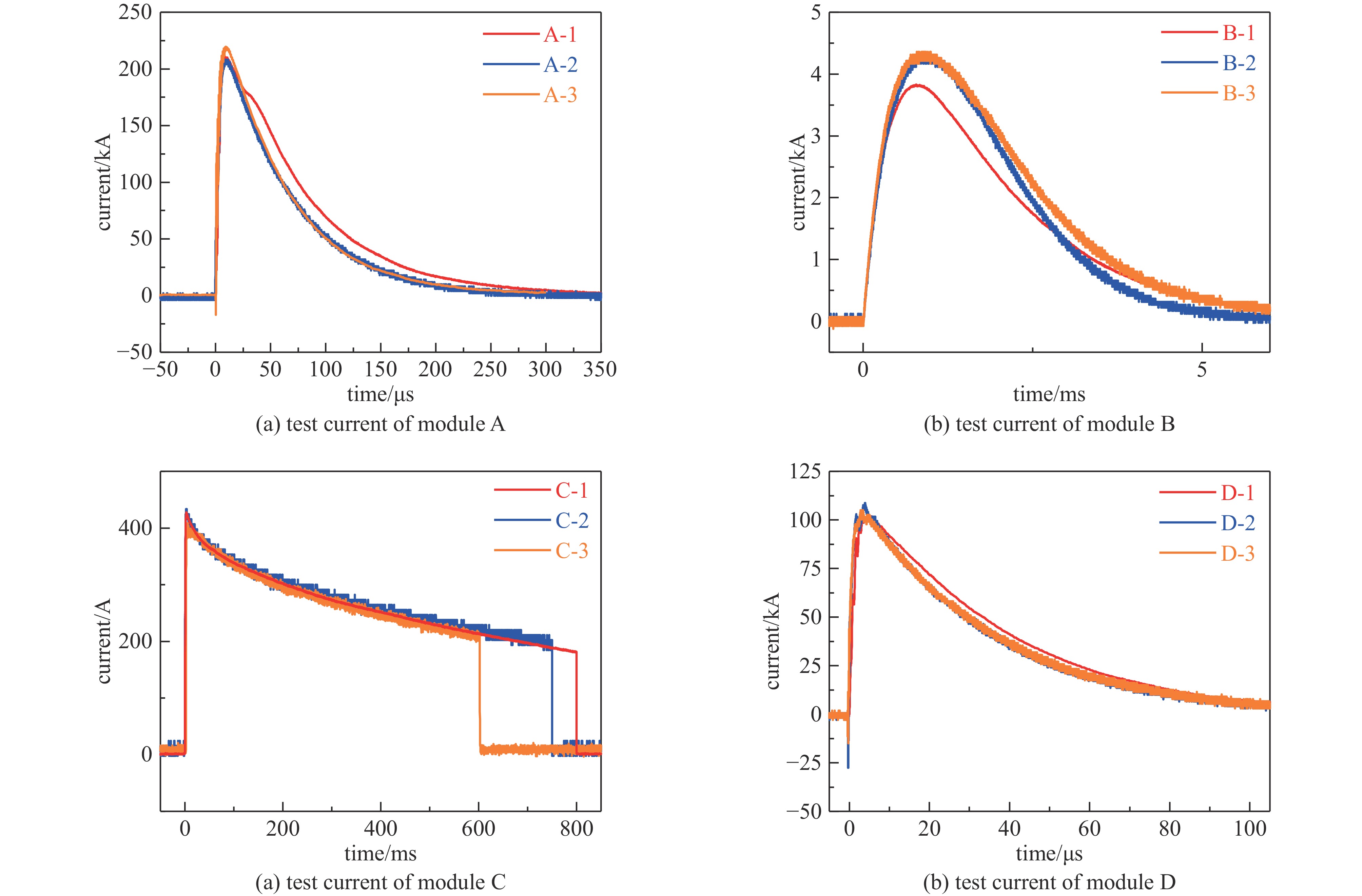

Results

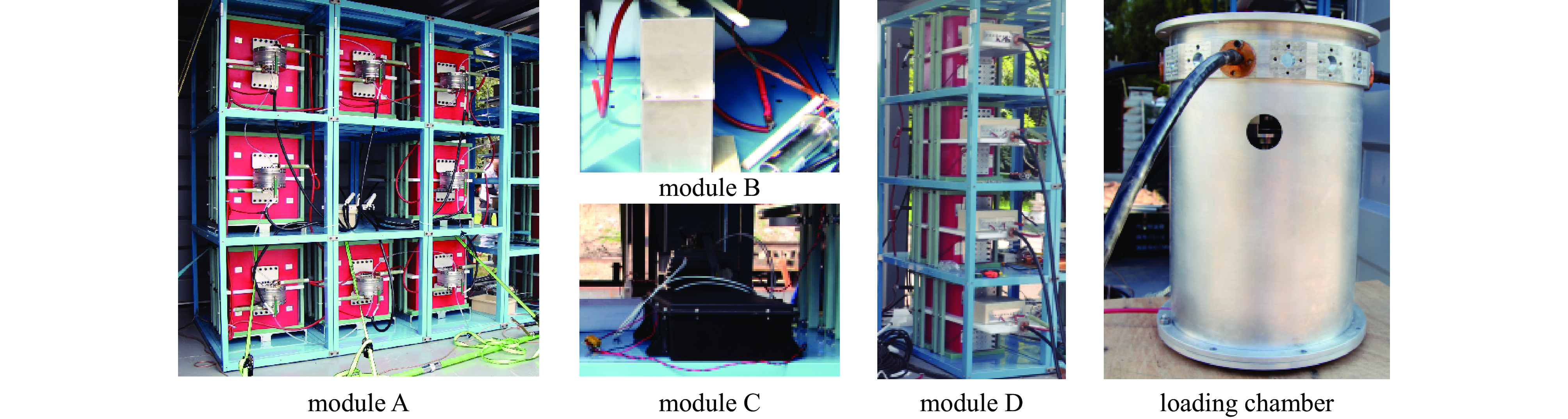

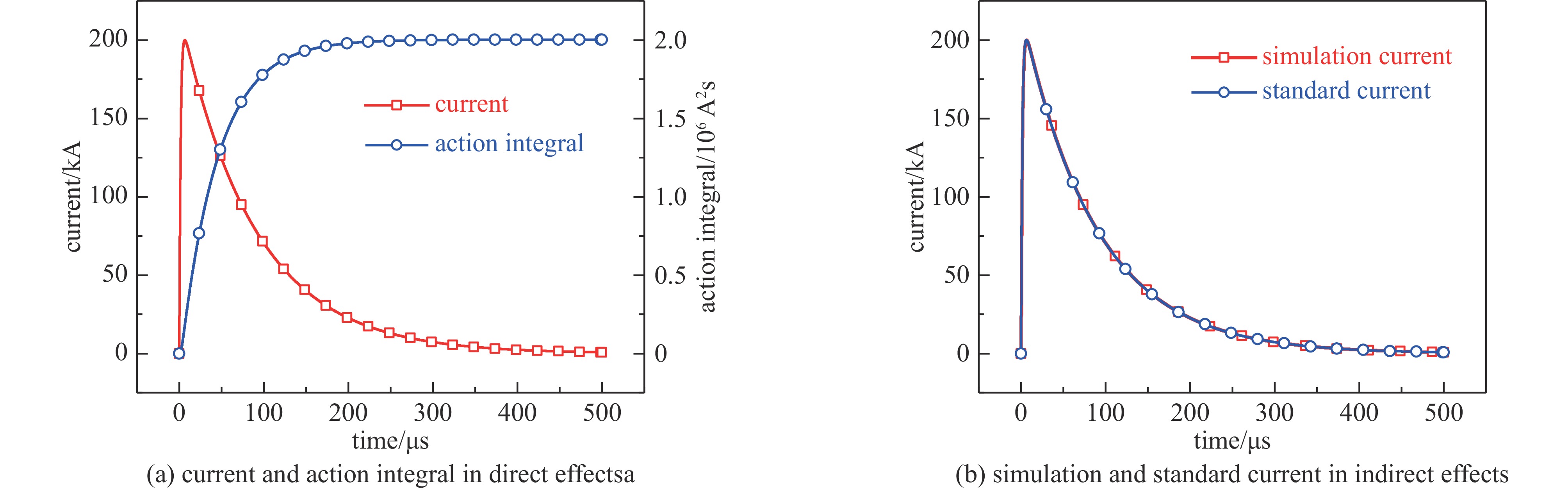

The modular device is developed and the preliminary experimental test is carried out. The current waveform output meets the requirements of the lightning current waveform in GJB 1389A-2005. The modular device is integrated into the standard container, which provides support for the lightning strike test of various equipment in different sites.
Conclusions
This work designs and develops a modular lightning current simulation device through theoretical analysis, circuit simulation, and experimental testing. The device can generate the lightning current waveforms that meet the standard, which provide support for the lightning strike tests.
- lightning current,
- direct effects of lightning,
- indirect effects of lightning,
- pulse current generator,
- modular device

FullText(HTML)

References(15)

References

[1]	刘行伟, 段泽民. 飞机雷电防护浅谈[J]. 空军装备研究, 2009, 3(1): 5-7,13 Liu Xingwei, Duan Zemin. Brief discussion on lightning protection of aircraft[J]. Air Force Equipment Research, 2009, 3(1): 5-7,13
[2]	王巨丰, 毕洁廷. 输电线路雷电防护措施研究综述[J]. 高技术通讯, 2019, 29(10): 1025-1032 Wang Jufeng, Bi Jieting. Research review of lightning protection measures for transmission lines[J]. Chinese High Technology Letters, 2019, 29(10): 1025-1032
[3]	段泽民. 飞机雷电防护概述[J]. 高电压技术, 2017, 43(5): 1393-1399 doi: 10.13336/j.1003-6520.hve.20170428001 Duan Zemin. Review of aircraft lightning protection[J]. High Voltage Engineering, 2017, 43(5): 1393-1399 doi: 10.13336/j.1003-6520.hve.20170428001
[4]	刘贺楠, 郭俊, 伊同强, 等. 飞行器雷电直接效应与间接效应防护综述[J]. 宇航总体技术, 2019, 3(4): 56-62 Liu Henan, Guo Jun, Yi Tongqiang, et al. Protection of direct and indirect effects of lightning on aircraft[J]. Astronautical Systems Engineering Technology, 2019, 3(4): 56-62
[5]	刘宏伟, 栾崇彪, 袁建强, 等. 雷电间接效应多重脉冲组电流产生装置的设计[J]. 强激光与粒子束, 2024, 36: 025001 doi: 10.11884/HPLPB202436.230241 Liu Hongwei, Luan Chongbiao, Yuan Jianqiang, et al. Design of multiple pulse group current generation device for indirect lightning effects[J]. High Power Laser and Particle Beams, 2024, 36: 025001 doi: 10.11884/HPLPB202436.230241
[6]	GJB 1389A-2005, 系统电磁兼容性要求[S] GJB 1389A-2005, Electromagnetic compatibility requirements for systems[S]
[7]	Koutsoubis J M, Gray J W, Kokkinos N D, et al. Development and testing of a 200kA, 10/350μs lightning impulse current generator switch module[C]//Proceedings of the 2017 IEEE 21st International Conference on Pulsed Power. 2017: 1-4.
[8]	孙晓峰. 飞机雷电间接效应A波电流发生器的设计与研究[D]. 合肥: 合肥工业大学, 2017 Sun Xiaofeng. Design and study about lighting indrect effects waveform A current generator[D]. Hefei: Hefei University of Technology, 2017
[9]	段泽民, 孙晓峰, 司晓亮, 等. 雷电流缩比A波发生器电路设计与研究[J]. 电气应用, 2017, 36(23): 36-40 Duan Zemin, Sun Xiaofeng, Si Xiaoliang, et al. Design and research of lightning current scale A wave generator circuit[J]. Electrotechnical Application, 2017, 36(23): 36-40
[10]	Andraud V, Sousa Martins R, Zaepffel C, et al. Design and implementation of DC-to-DC converter topology for current regulated lightning generator[J]. Review of Scientific Instruments, 2021, 92: 104709. doi: 10.1063/5.0060247
[11]	赵锡柱, 刘洪博, 张旭召, 等. 冲击电流输出波形调节方法研究[J]. 安全与电磁兼容, 2022(4): 57-61 Zhao Xizhu, Liu Hongbo, Zhang Xuzhao, et al. Research of impulse current output waveform adjustment methods[J]. Safety & EMC, 2022(4): 57-61
[12]	张英杰. 雷电流A分量冲击长输管道影响研究[J]. 安全、健康和环境, 2021, 21(11): 37-40 doi: 10.3969/j.issn.1672-7932.2021.11.008 Zhang Yingjie. Study on the impact of lightning current A component on long-distance pipeline[J]. Safety Health & Environment, 2021, 21(11): 37-40 doi: 10.3969/j.issn.1672-7932.2021.11.008
[13]	匡成钊, 朱慧鑫, 付昆昆. 雷电流参数对碳纤维复合材料雷击损伤影响研究[J]. 复合材料科学与工程, 2022(12): 101-107 doi: 10.19936/j.cnki.2096-8000.20220528.031 Kuang Chengzhao, Zhu Huixin, Fu Kunkun. Effect of lightning current parameters on damage of carbon fiber composites subjected to lightning strike[J]. Composites Science and Engineering, 2022(12): 101-107 doi: 10.19936/j.cnki.2096-8000.20220528.031
[14]	张万里, 史云雷, 何勇, 等. 雷电电磁脉冲对典型机载GPS模块的损伤效应研究[J]. 强激光与粒子束, 2021, 33: 033001 doi: 10.11884/HPLPB202133.200264 Zhang Wanli, Shi Yunlei, He Yong, et al. Study on damage effects of lightning electromagnetic pulse on typical airborne GPS module[J]. High Power Laser and Particle Beams, 2021, 33: 033001 doi: 10.11884/HPLPB202133.200264
[15]	GJB 8848-2016, 系统电磁环境效应试验方法[S] GJB 8848-2016, Electromagnetic environmental effects test methods for systems[S]
