Reliability analysis of ultra-large-scale LTD power source

doi: 10.11884/HPLPB202638.250374

Key Laboratory of Pulsed Power, Institute of Fluid Physics, CAEP, Mianyang 621999, China

Received Date: 2025-10-30
Accepted Date: 2026-01-26
Rev Recd Date: 2022-02-15

Available Online: 2026-03-28

Abstract

Abstract

Background

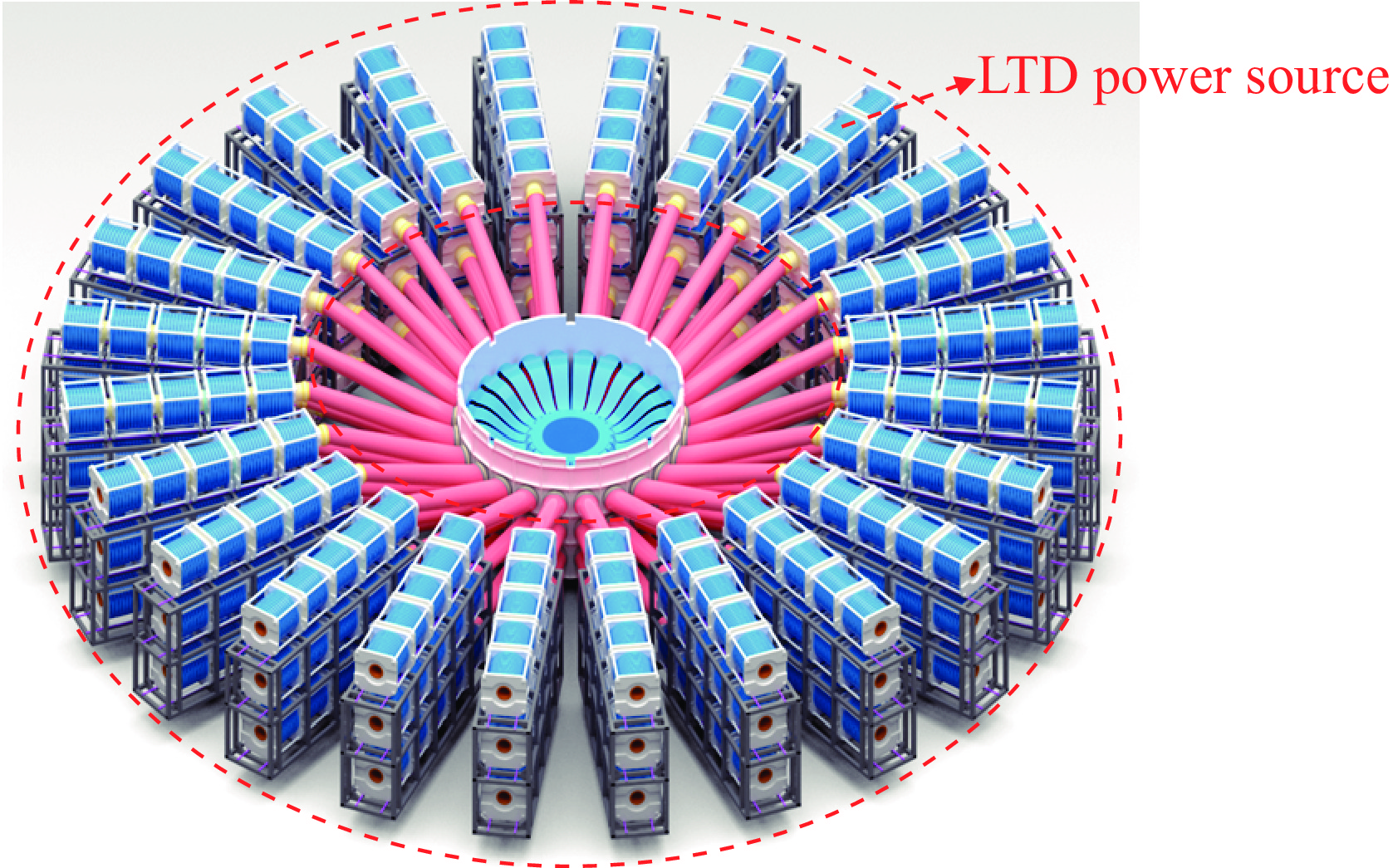

Linear Transformer Driver (LTD) are among the most critical and complex systems in Z-pinch device, and reliability assessment is a central issue in the demonstration of device design schemes.
Purpose
This study aims to establish a probabilistic model for switch self-breakdown and capacitor failure based on the basic components of the power source, and to propose a hierarchical analysis method for system-level reliability quantification.
Methods

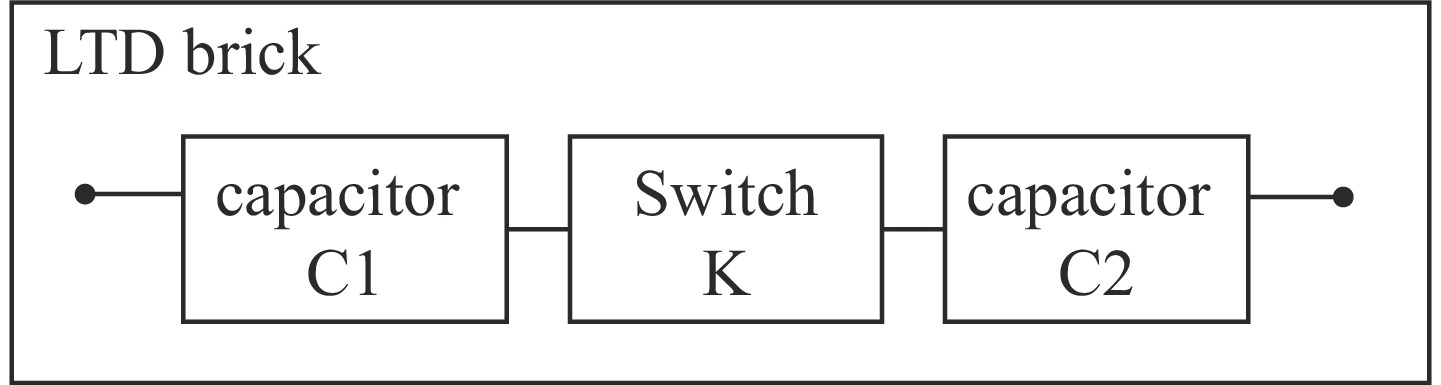

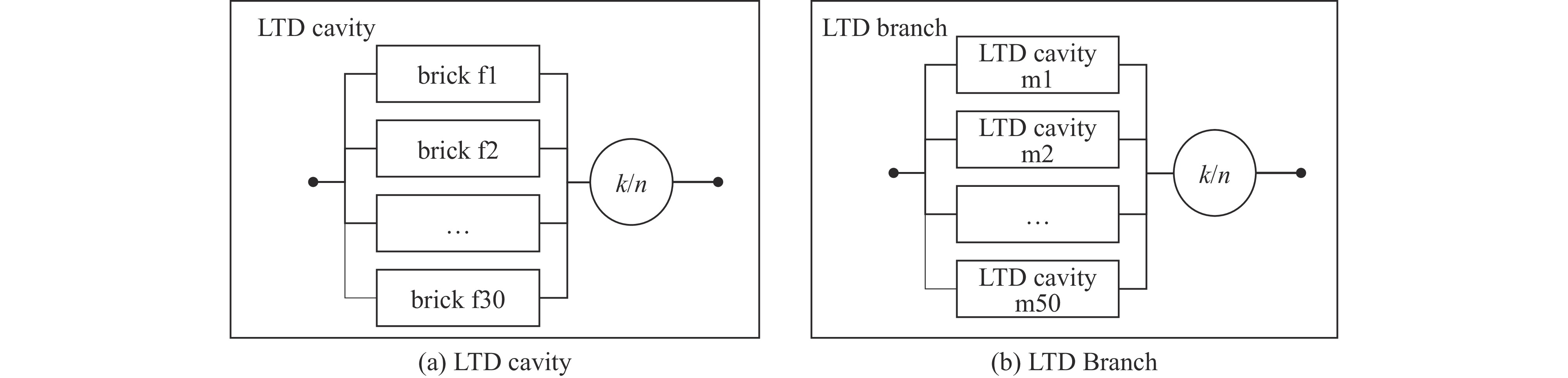

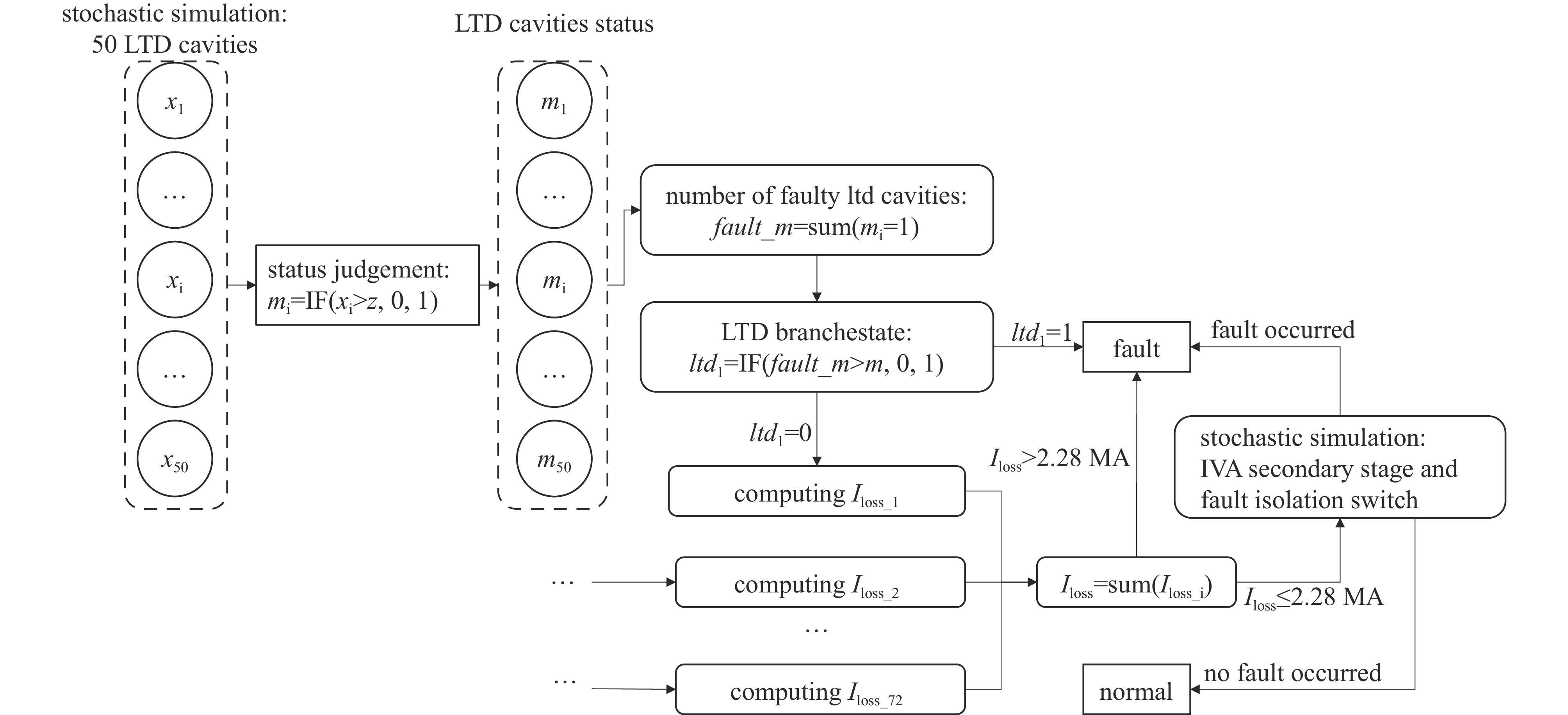

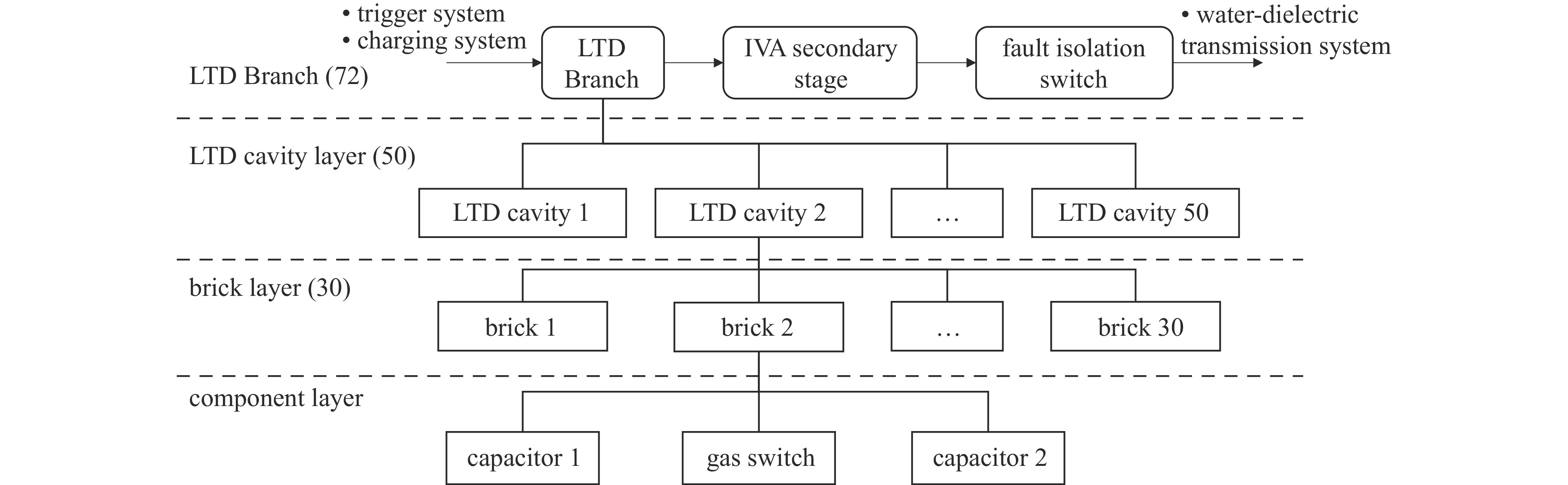

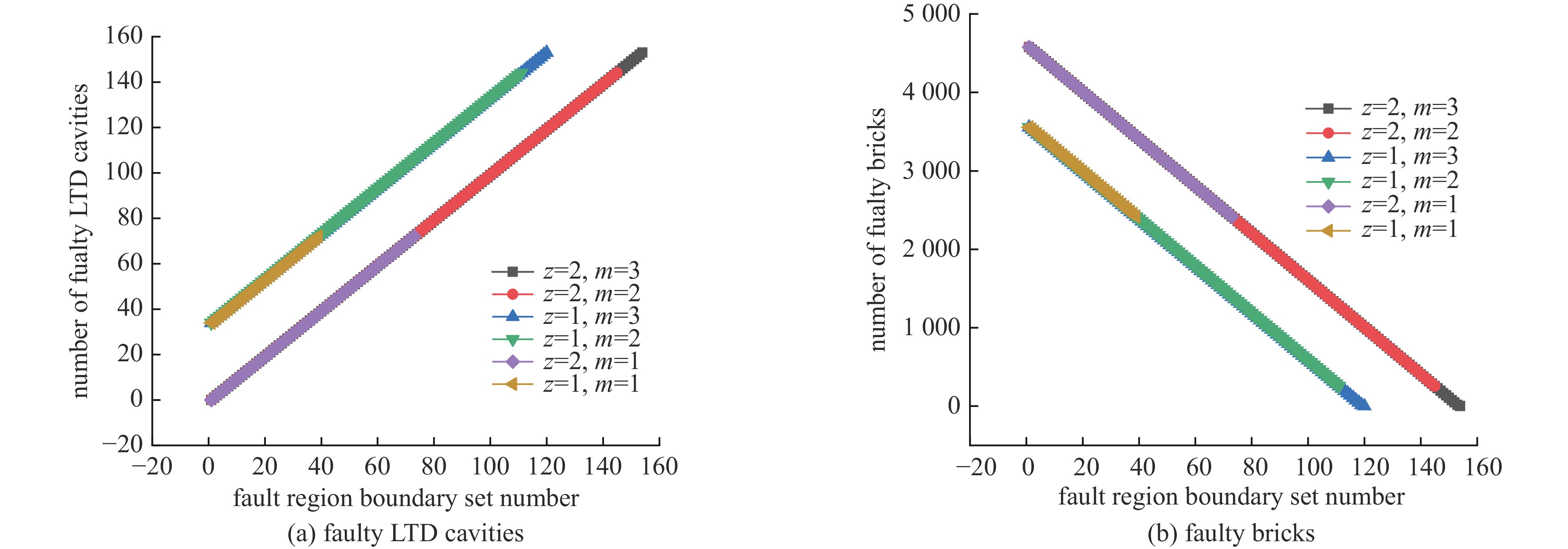

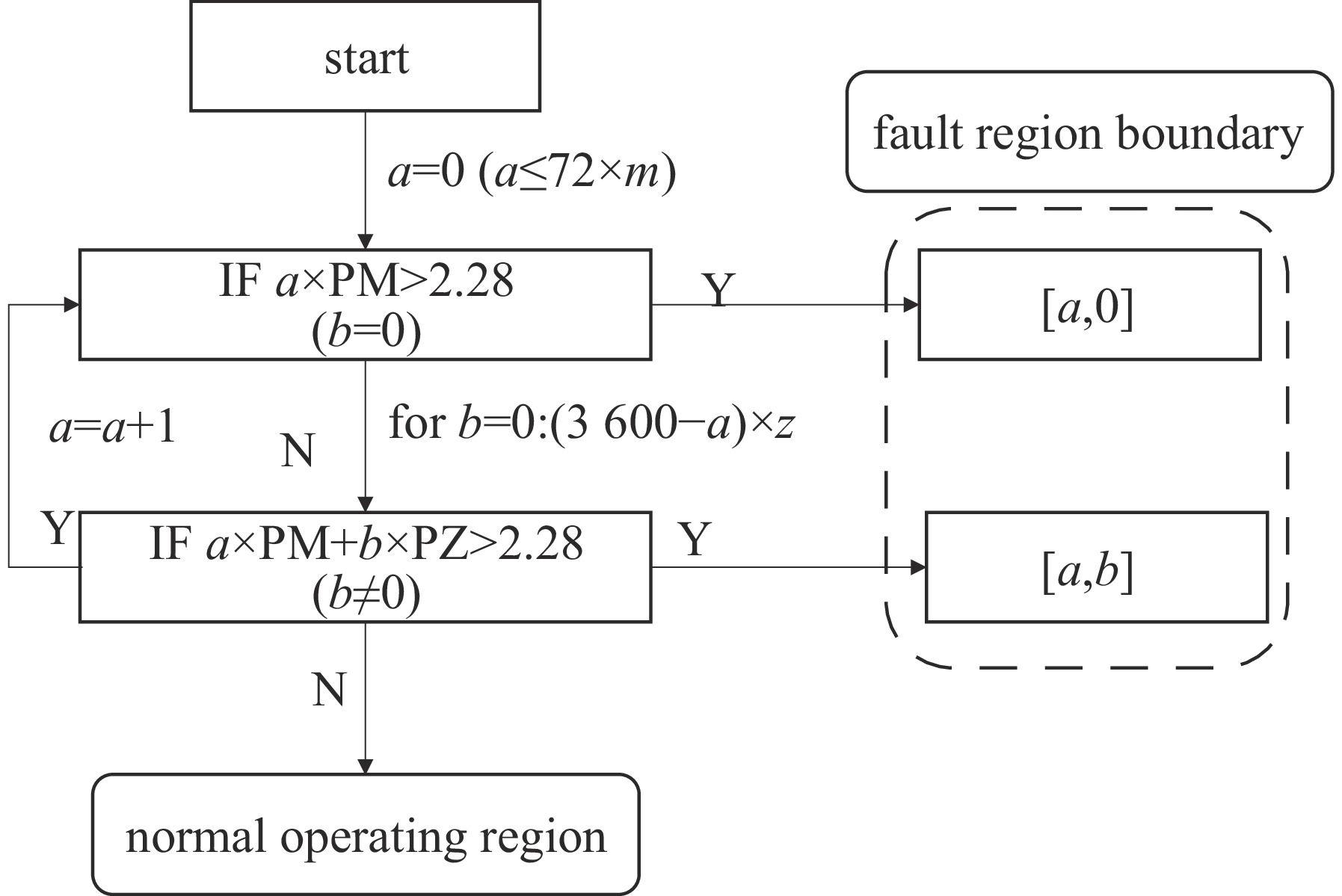

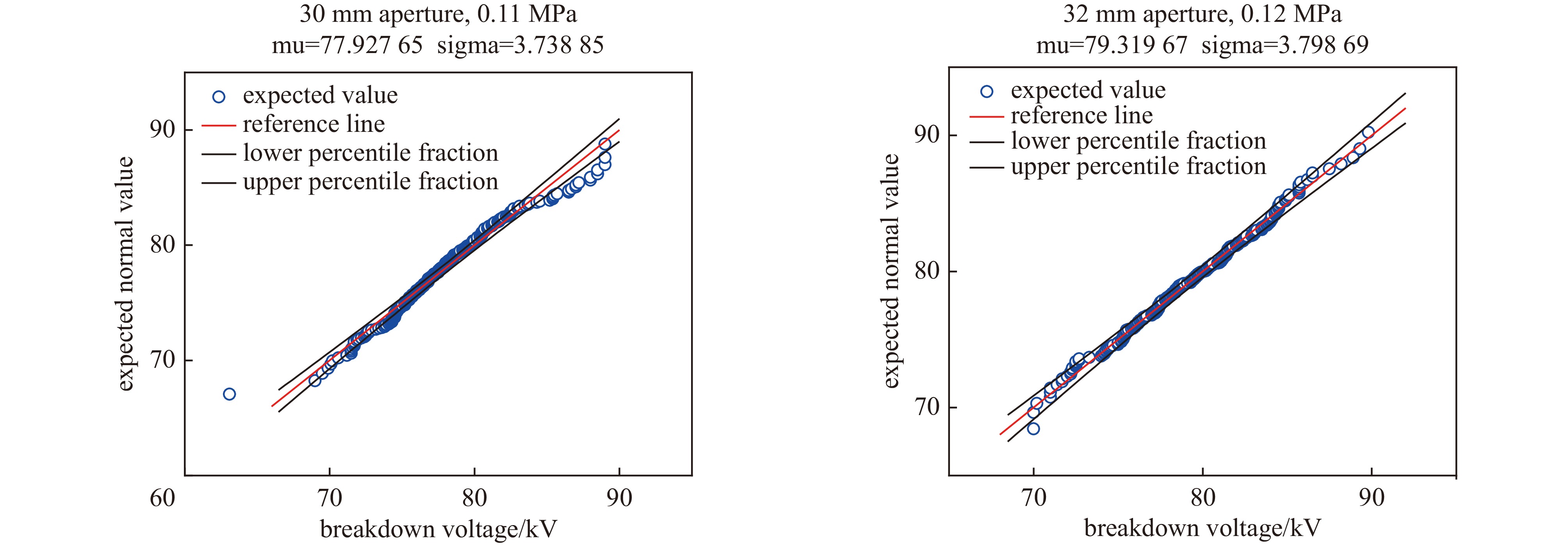

Probability models for switch self-breakdown and capacitor failure were developed based on fundamental components such as switches and capacitors. A top-down hierarchical analysis approach was adopted to construct reliability models for the brick layer, LTD cavity layer, and LTD branch layer, along with a fault-domain boundary calculation method. System-level reliability was quantified using Monte Carlo simulations based on performance-margin reliability theory.
Results

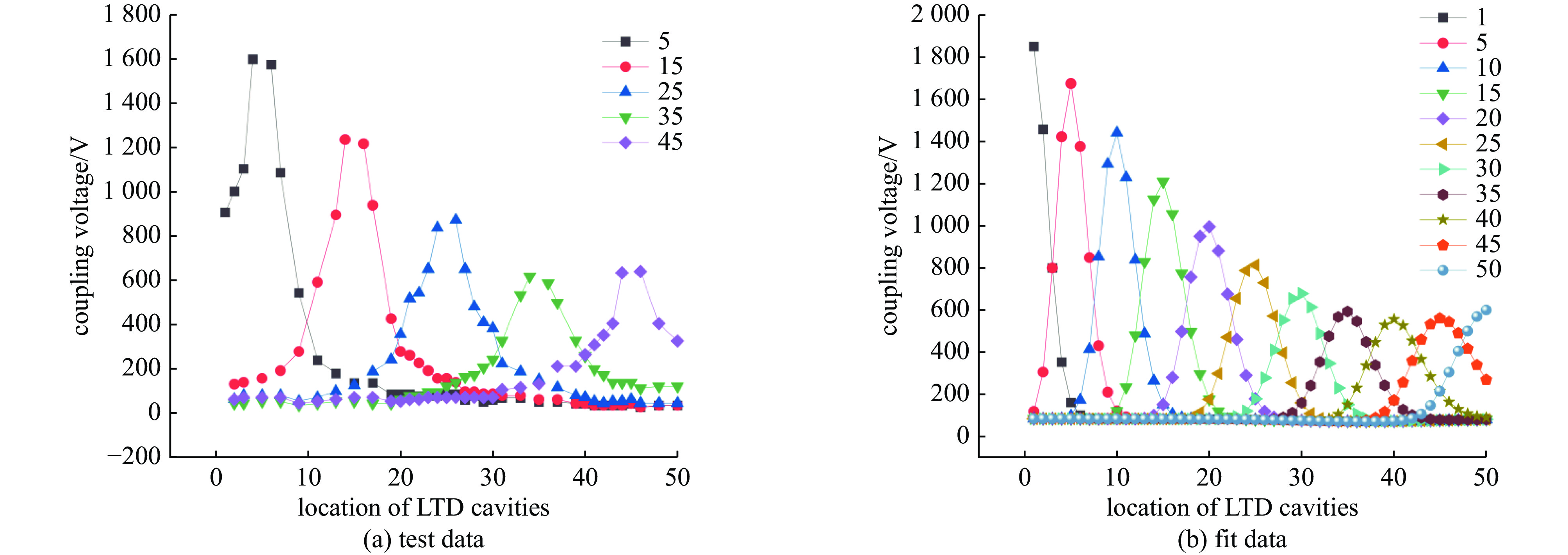

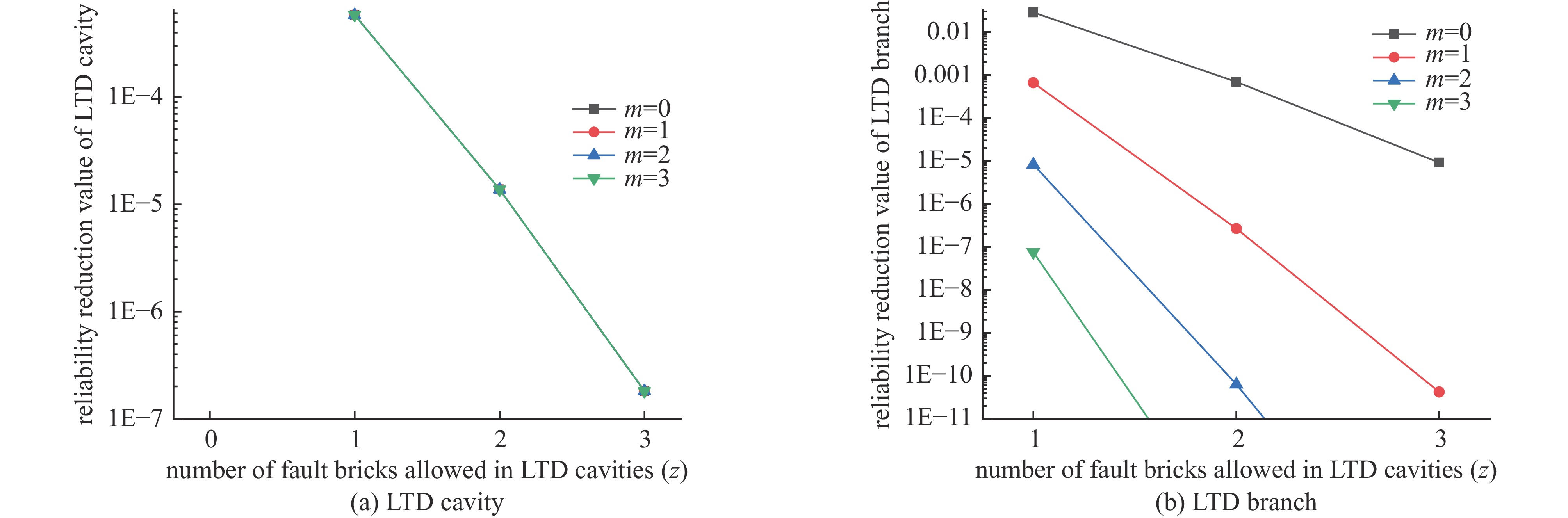

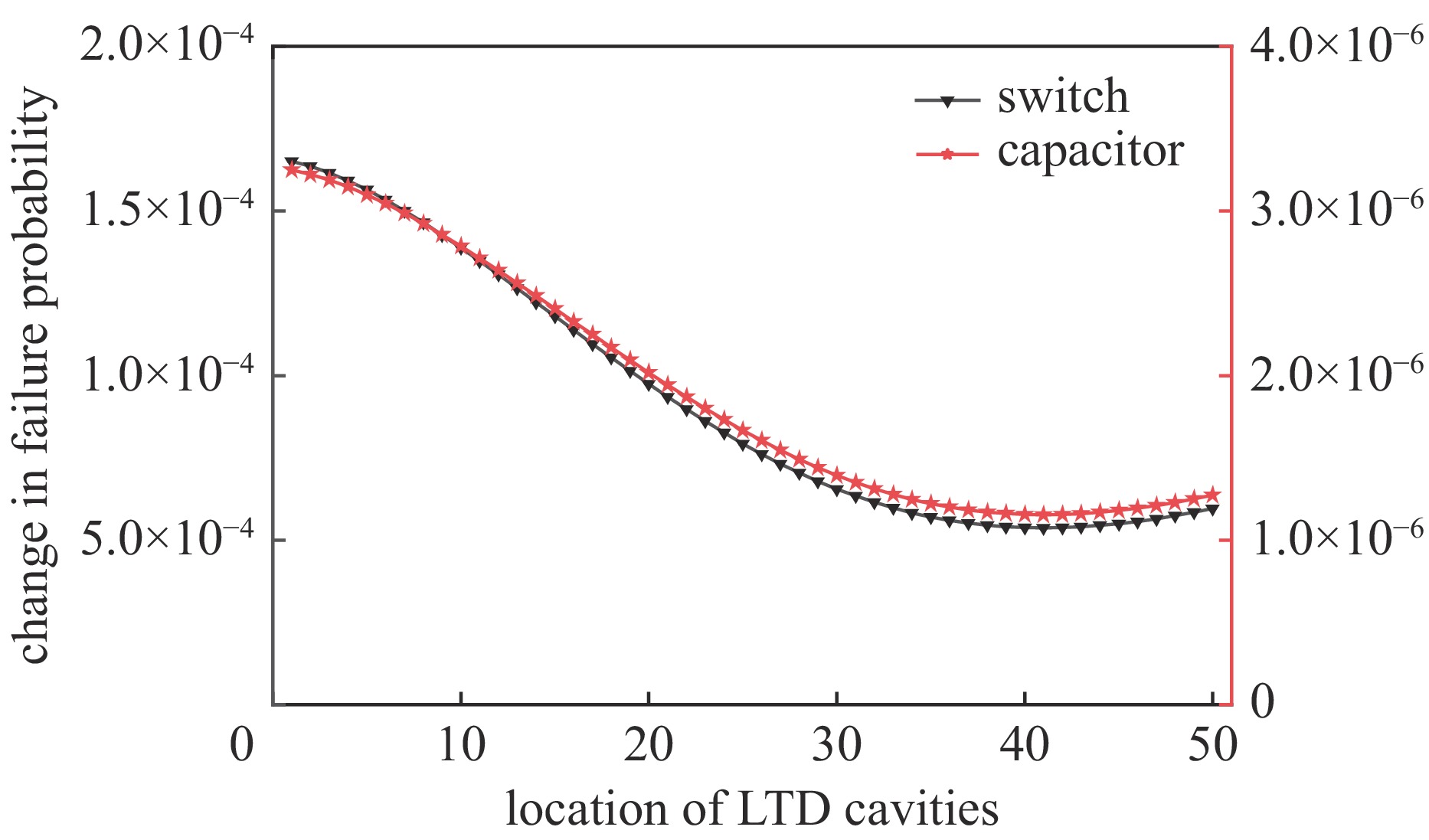

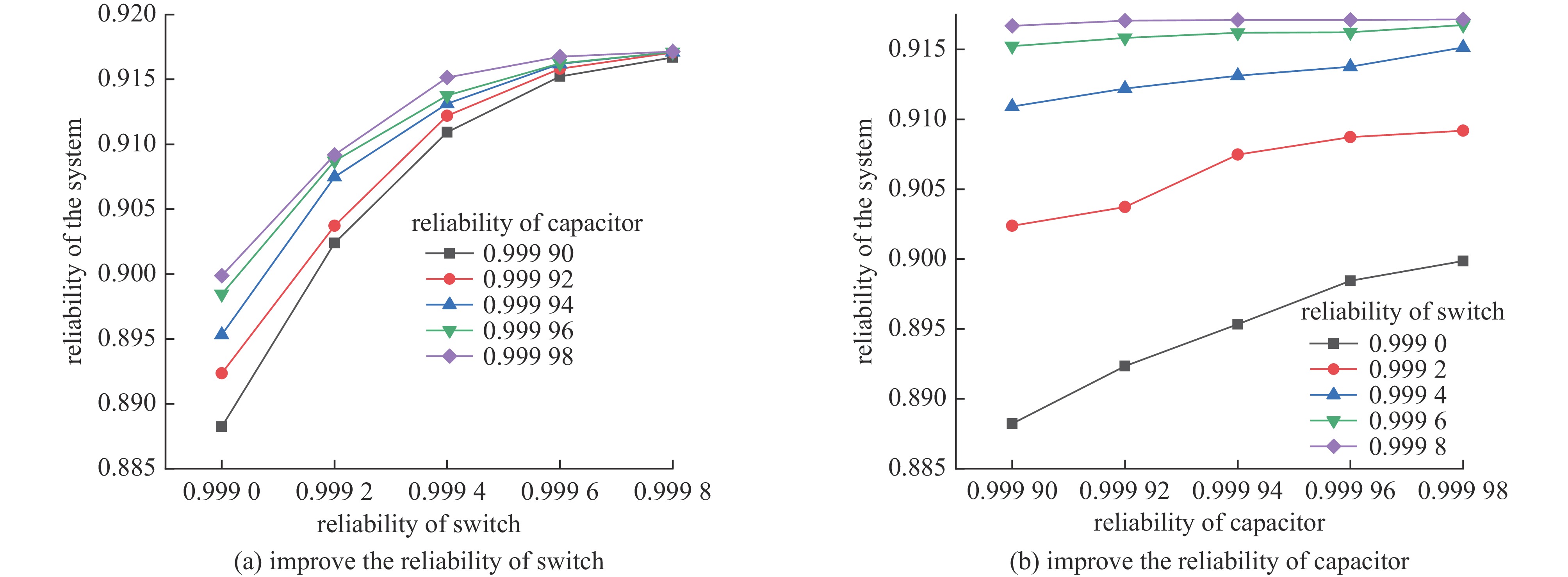

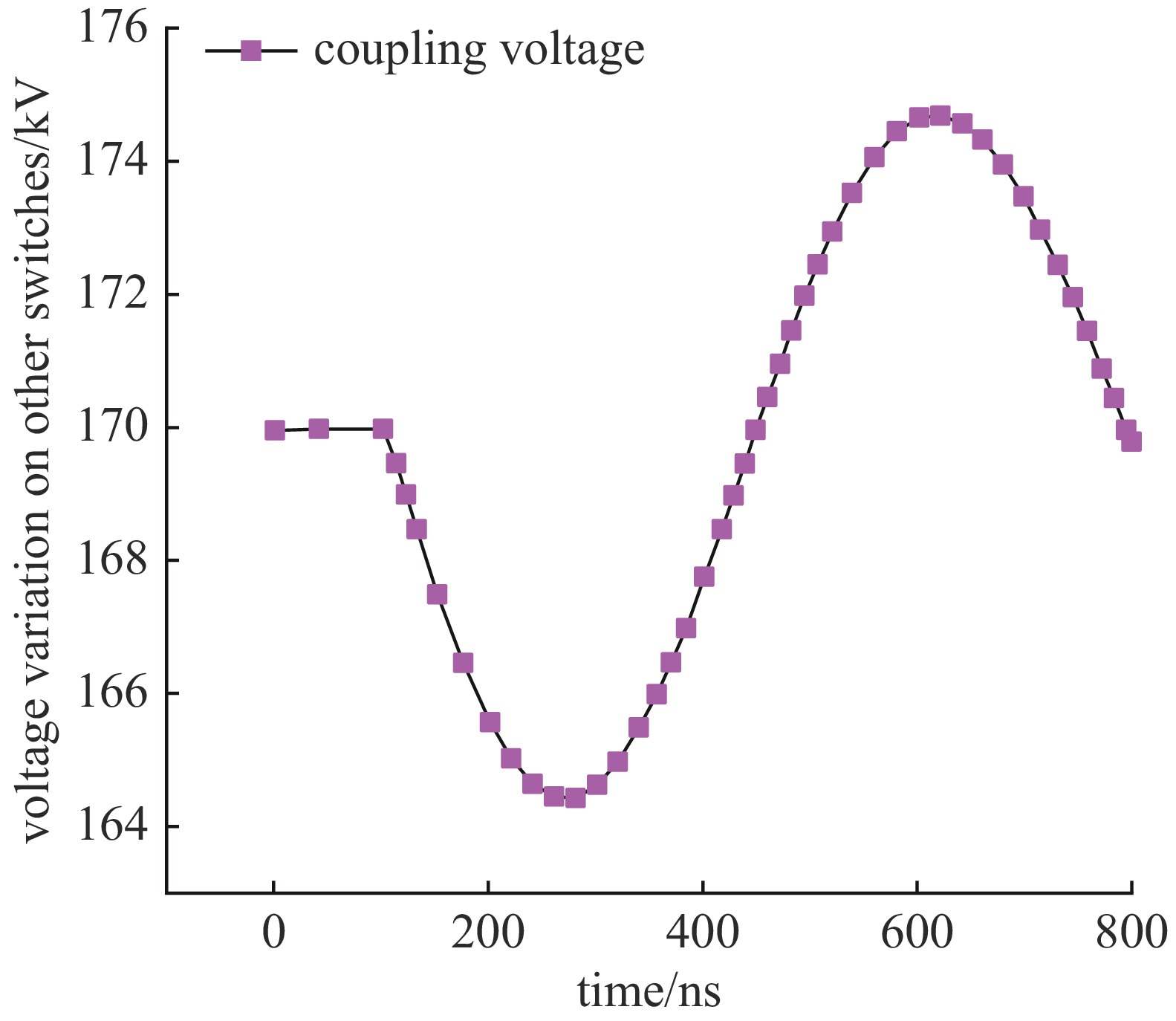

The results indicate that when the allowable number of faults in both the LTD cavity layer and the branch layer is greater than one—and neglecting special cases such as simultaneous nanosecond-scale switch failures (extremely low probability) and multiple adjacent cavity failures—the system reliability does not exceed the product of the reliability of the IVA secondary and the fault-isolation switch. A single unintended switch discharge coupling voltage nearly doubles the failure probability of other switches within the same cavity, while its impact on switches in other cavities is on the order of 10⁻⁴ and on capacitors about 10⁻⁶. This coupling effect can be ignored in system reliability calculations only when the allowable number of faults in both the cavity and branch layers exceeds one. As component reliability improves, enhancing switch reliability below 0.9996 significantly affects system reliability, whereas improving capacitor reliability only noticeably influences the system when switch reliability is relatively low.
Conclusions
The proposed hierarchical reliability modeling and Monte Carlo simulation approach provides a systematic framework for evaluating ultra-large-scale LTD systems in Z-pinch devices. The findings highlight the conditional negligible effects of coupling voltages and offer guidance for prioritizing component reliability improvements in engineering design.
- LTD power source,
- reliability analysis,
- reliability simulation,
- fault domain,
- number of allowable faults

FullText(HTML)

References(20)

References

[1]	Conti F, Valenzuela J C, Fadeev V, et al. MA-class linear transformer driver for Z-pinch research[J]. Physical Review Accelerators and Beams, 2020, 23: 090401. doi: 10.1103/PhysRevAccelBeams.23.090401
[2]	周林. 基于LTD技术的重频Z箍缩驱动器设计[D]. 绵阳: 中国工程物理研究院, 2017 Zhou Lin. Design of repetitive frequency Z-pinch driver based on LTD technology[D]. Mianyang: China Academy of Engineering Physics, 2017
[3]	Stygar W A, Awe T J, Bailey J E, et al. Conceptual designs of two petawatt-class pulsed-power accelerators for high-energy-density-physics experiments[J]. Physical Review Special Topics - Accelerators and Beams, 2015, 18: 110401. doi: 10.1103/PhysRevSTAB.18.110401
[4]	Anderson D J, Briand D. ZR reliability and operations analysis[C]//Proceedings of the 14th IEEE International Pulsed Power Conference. 2003: 183-186.
[5]	Bartsch R R. Atlas reliability analysis[C]//Proceedings of the 10th IEEE International Pulsed Power Conference. 1995: 417-422.
[6]	Jiang Xiaofeng, Sun Fengju, Wang Zhiguo, et al. A gas-insulated mega-ampere-class linear transformer driver with pluggable bricks[J]. Review of Scientific Instruments, 2020, 91: 123303. doi: 10.1063/5.0028451
[7]	Anchordoqui L A, Ariga A, Ariga T, et al. The forward physics facility: sites, experiments, and physics potential[J]. Physics Reports, 2022, 968: 1-50. doi: 10.2172/1822323
[8]	计策, 周良骥, 焦健, 等. 大型LTD装置功率源可靠性初步分析[J]. 强激光与粒子束, 2018, 30: 045003 doi: 10.11884/HPLPB201830.170341 Ji Ce, Zhou Liangji, Jiao Jian, et al. Reliability of large LTD device analysis[J]. High Power Laser and Particle Beams, 2018, 30: 045003 doi: 10.11884/HPLPB201830.170341
[9]	王杰, 陈林, 卫兵, 等. 多级串联LTD中开关自放电故障耦合特性实验[J]. 强激光与粒子束, 2022, 34: 125002 doi: 10.11884/HPLPB202234.220128 Wang Jie, Chen Lin, Wei Bing, et al. Coupling characteristics experiment of switch prefire in multi-stage linear transformer driver[J]. High Power Laser and Particle Beams, 2022, 34: 125002 doi: 10.11884/HPLPB202234.220128
[10]	万臻博, 丁卫东. 单路直线变压器驱动源中组件自放电连锁故障影响分析[J]. 强激光与粒子束, 2024, 36: 075003 Wan Zhenbo, Ding Weidong. Influence analysis of cascading failure in linear transformer driver caused by group prefire[J]. High Power Laser and Particle Beams, 2024, 36: 075003
[11]	文振明, 王志国, 吕明辉, 等. 直线变压器驱动源模块中自放电气体火花开关绝缘恢复的研究[J]. 高电压技术, 2025, 51(2): 686-697 doi: 10.13336/j.1003-6520.hve.20240466 Wen Zhenming, Wang Zhiguo, Lv Minghui, et al. Investigation on insulation recovery of pre-fired gas spark switch in linear transformer driver modules[J]. High Voltage Engineering, 2025, 51(2): 686-697 doi: 10.13336/j.1003-6520.hve.20240466
[12]	Li Jiangtao, Zhao Zheng, Li Jianhao, et al. Experimental study on the lifetime of the all-film pulse capacitor in LTD systems[C]//Proceedings of the 1st International Conference on Electrical Materials and Power Equipment (ICEMPE). 2017: 262-265.
[13]	Leckbee J J, Maenchen J E, Johnson D L, et al. Design, simulation, and fault analysis of a 6.5-MV LTD for flash X-ray radiography[J]. IEEE Transactions on Plasma Science, 2006, 34(5): 1888-1899. doi: 10.1109/TPS.2006.879553
[14]	Ren Fuchun, Jiao Jian, Hu Yuqing, et al. Reliability evaluation for complex systems with load sharing and failure dependence: a case study on LTD[C]//Proceedings of the 2nd International Conference on Reliability Systems Engineering (ICRSE). 2017: 1-6.
[15]	王振宇, 吴坚, 姜志远, 等. 支路开关自放电对大型多路并联FLTD脉冲源可靠性的影响[J]. 中国电机工程学报, 2024, 44(12): 4986-4997 doi: 10.13334/j.0258-8013.pcsee.230247 Wang Zhenyu, Wu Jian, Jiang Zhiyuan, et al. Effect of brick switch self-discharge on the reliability of large-scale multi-branch parallel-connected FLTD machine[J]. Proceedings of the CSEE, 2024, 44(12): 4986-4997 doi: 10.13334/j.0258-8013.pcsee.230247
[16]	曾声奎, 任羿. 可靠性设计分析基础[M]. 北京: 北京航空航天大学出版社, 2015: 62-89 Zeng Shengkui, Ren Yi. Fundamentals of reliability design analysis[M]. Beijing: Beihang University Press, 2015: 62-89
[17]	Smith D L, Savage M E, Ziska G R, et al. ZR Marx capacitor vendor evaluation and lifetime test results[J]. IEEE Transactions on Plasma Science, 2005, 33(4): 1273-1281. doi: 10.1109/TPS.2005.852423
[18]	陈林, 蒋吉昊, 邹文康, 等. LTD模块串联装置中部分模块不工作时的输出性能[J]. 强激光与粒子束, 2016, 28: 045004 doi: 10.11884/HPLPB201628.045004 Chen Lin, Jiang Jihao, Zou Wenkang, et al. Performance of 10-stage LTD generator with some malfunctioning stages[J]. High Power Laser and Particle Beams, 2016, 28: 045004 doi: 10.11884/HPLPB201628.045004
[19]	Woodworth J R, Alexander J A, Gruner F R, et al. Low-inductance gas switches for linear transformer drivers[J]. Physical Review Special Topics - Accelerators and Beams, 2009, 12: 060401. doi: 10.1103/PhysRevSTAB.12.060401
[20]	Woodworth J R, Stygar W A, Bennett L F, et al. New low inductance gas switches for linear transformer drivers[J]. Physical Review Special Topics - Accelerators and Beams, 2010, 13: 080401. doi: 10.1103/PhysRevSTAB.13.080401
