Numerical simulation study on refractive index regulation characteristics and coupling transmission of all-solid anti-resonant fiber

Li Pengpeng; She Shengfei; Zhang Yan; Gao Song; Zhao Tong; Peng Han; He Miao; Zhu Zhiyu; Hou Chaoqi; Guo Haitao

doi:10.11884/HPLPB202638.250420

Article Contents

Article Navigation > High Power Laser and Particle Beams > 2026 > Accepted Manuscript

Li Pengpeng, She Shengfei, Zhang Yan, et al. Numerical simulation study on refractive index regulation characteristics and coupling transmission of all-solid anti-resonant fiber[J]. High Power Laser and Particle Beams. doi: 10.11884/HPLPB202638.250420

Citation:

Li Pengpeng, She Shengfei, Zhang Yan, et al. Numerical simulation study on refractive index regulation characteristics and coupling transmission of all-solid anti-resonant fiber[J]. High Power Laser and Particle Beams. doi: 10.11884/HPLPB202638.250420

Citation:

Li Pengpeng, She Shengfei, Zhang Yan, et al. Numerical simulation study on refractive index regulation characteristics and coupling transmission of all-solid anti-resonant fiber[J]. High Power Laser and Particle Beams. doi: 10.11884/HPLPB202638.250420

PDF( 17041 KB)

Numerical simulation study on refractive index regulation characteristics and coupling transmission of all-solid anti-resonant fiber

doi: 10.11884/HPLPB202638.250420

Li Pengpeng^{1, 2, 3
,},
She Shengfei^{1, 2, 3},
Zhang Yan^{1, 3},
Gao Song^{1, 3},
Zhao Tong^{1, 2, 3},
Peng Han^{1, 2, 3},
He Miao^{1, 3},
Zhu Zhiyu^{1, 2, 3},
Hou Chaoqi^{1, 2, 3},
Guo Haitao^{1, 2, 3}

1.
State Key Laboratory of Ultrafast Optics Science and Technology, Xi’an Institute of Optics and Precision Mechanics, Chinese Academy of Sciences (CAS), Xi’an 710119, China
2.
Centre for Materials Science and Optoelectronics Engineering, University of Chinese Academy of Sciences (UCAS), Beijing 100049, China
3.
Photonics Functional Materials and Devices Research Laboratory, Xi’an Institute of Optics and Precision Mechanics, Chinese Academy of Sciences (CAS), Xi’an 710119, China

Received Date: 2025-11-26
Accepted Date: 2026-01-05
Rev Recd Date: 2026-01-10

Available Online: 2026-02-06

Abstract

Abstract

Background

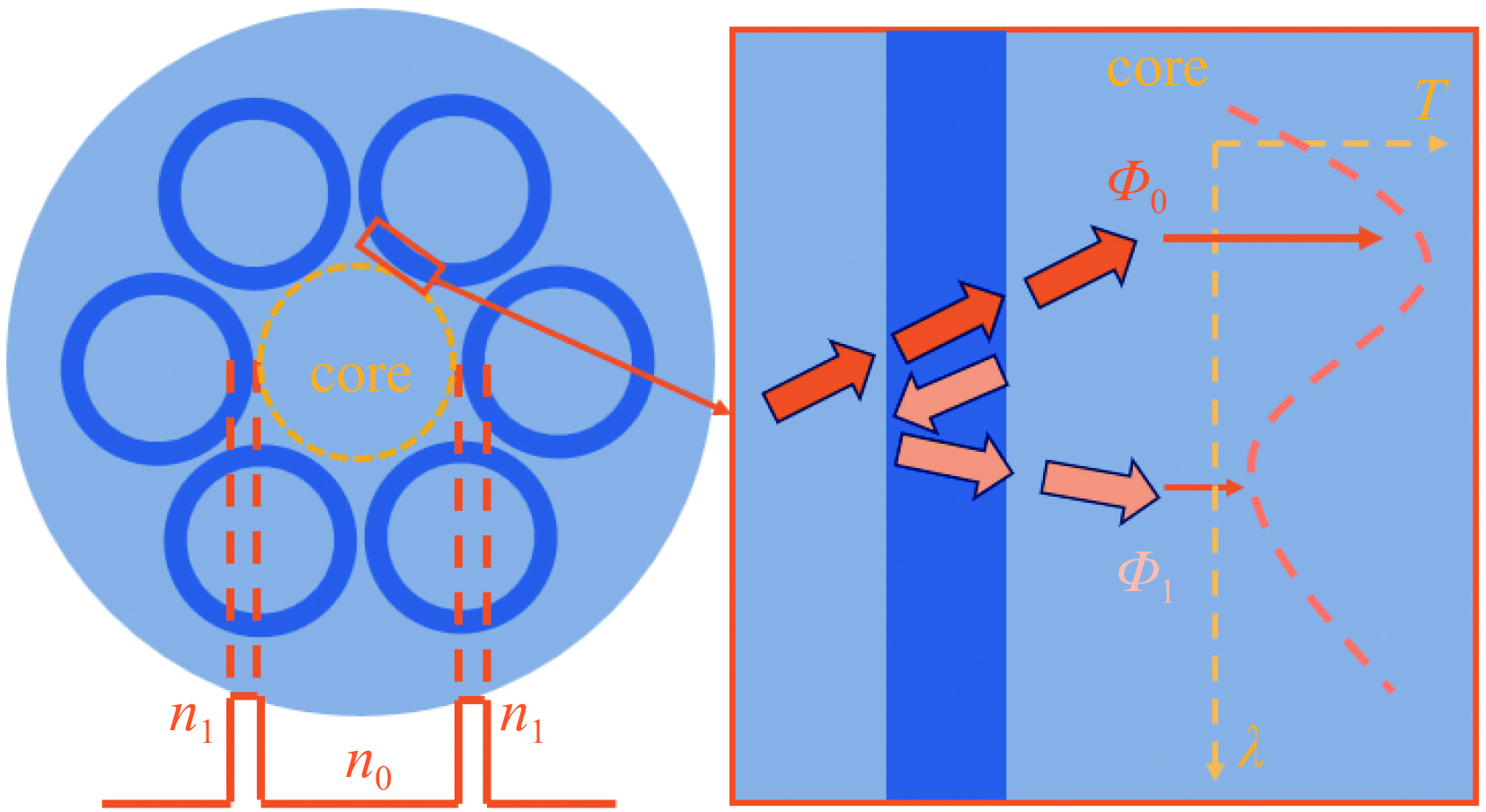

High-power Yb-doped fiber lasers operating in the 1 μm band have been widely applied in fields such as laser processing, biomedicine, and national defense security. However, with the continuous increase in output power, traditional large-core fibers are susceptible to transverse mode instability (TMI) and stimulated Raman scattering (SRS), among other nonlinear effects. Based on their unique anti-resonant light-guiding mechanism, all-solid anti-resonant silica fibers (AS-ARFs) can realize ultra-large mode area (LMA) propagation while suppressing higher-order modes (HOMs), thus providing an innovative technical approach for balancing high power and high beam quality. Nevertheless, for active Yb-doped AS-ARFs targeting high-power gain applications, the influence mechanism of core refractive index fluctuations on mode characteristics and the fusion-splicing transmission characteristics of “step-index fiber - AS-ARF” structures have not been systematically investigated, which restricts their practical application process.
Purpose
To address the above problems, this study aims to clarify the critical value of refractive index variation for maintaining the original light-guiding mechanism of AS-ARFs, verify their capabilities of low loss, large mode area and beam quality maintenance, explore the fusion-splicing coupling transmission laws between SIFs and AS-ARFs, quantify the core control parameters of active AS-ARFs, and provide theoretical support for their fabrication process optimization and coupling scheme design.
Methods

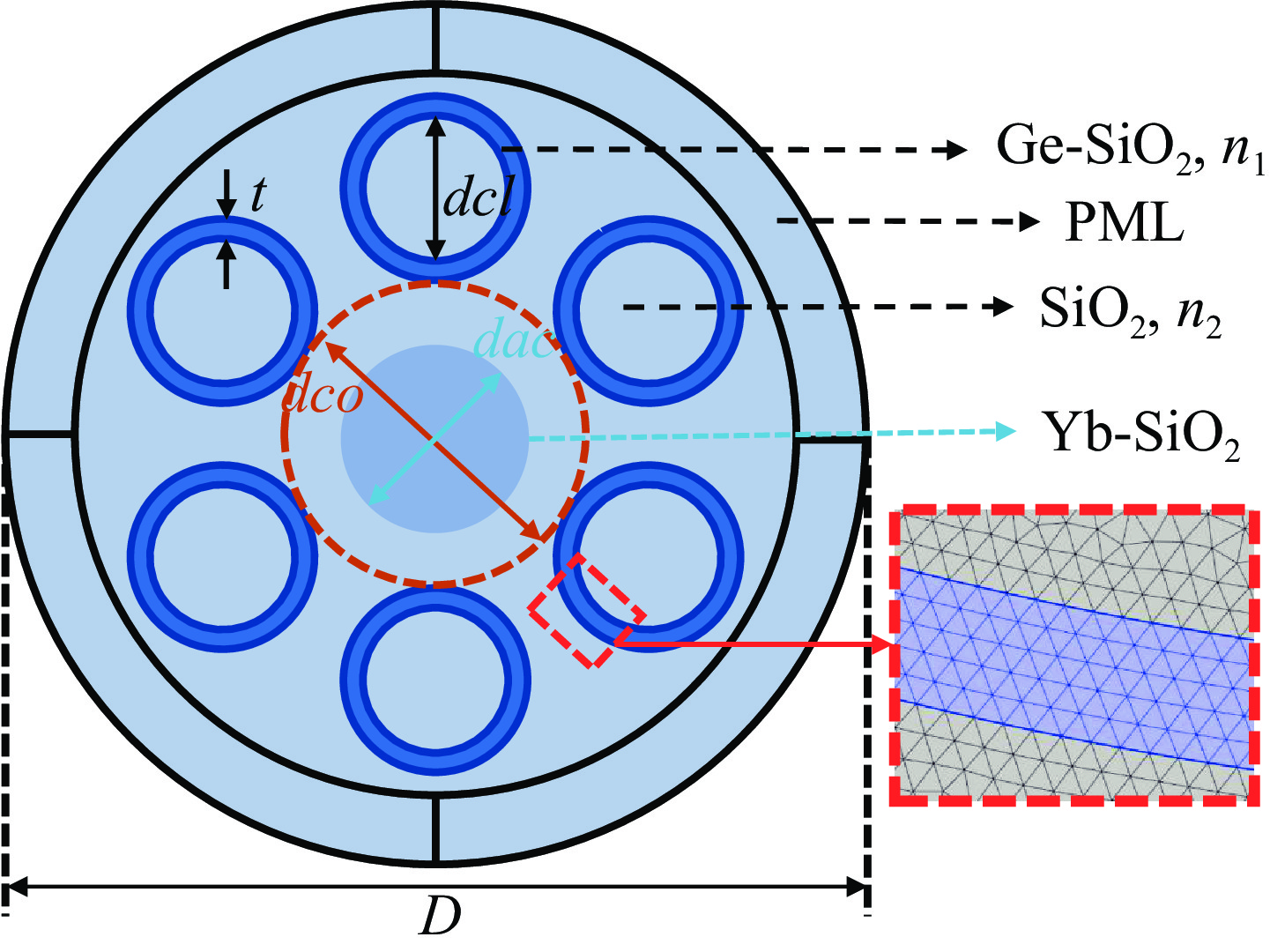

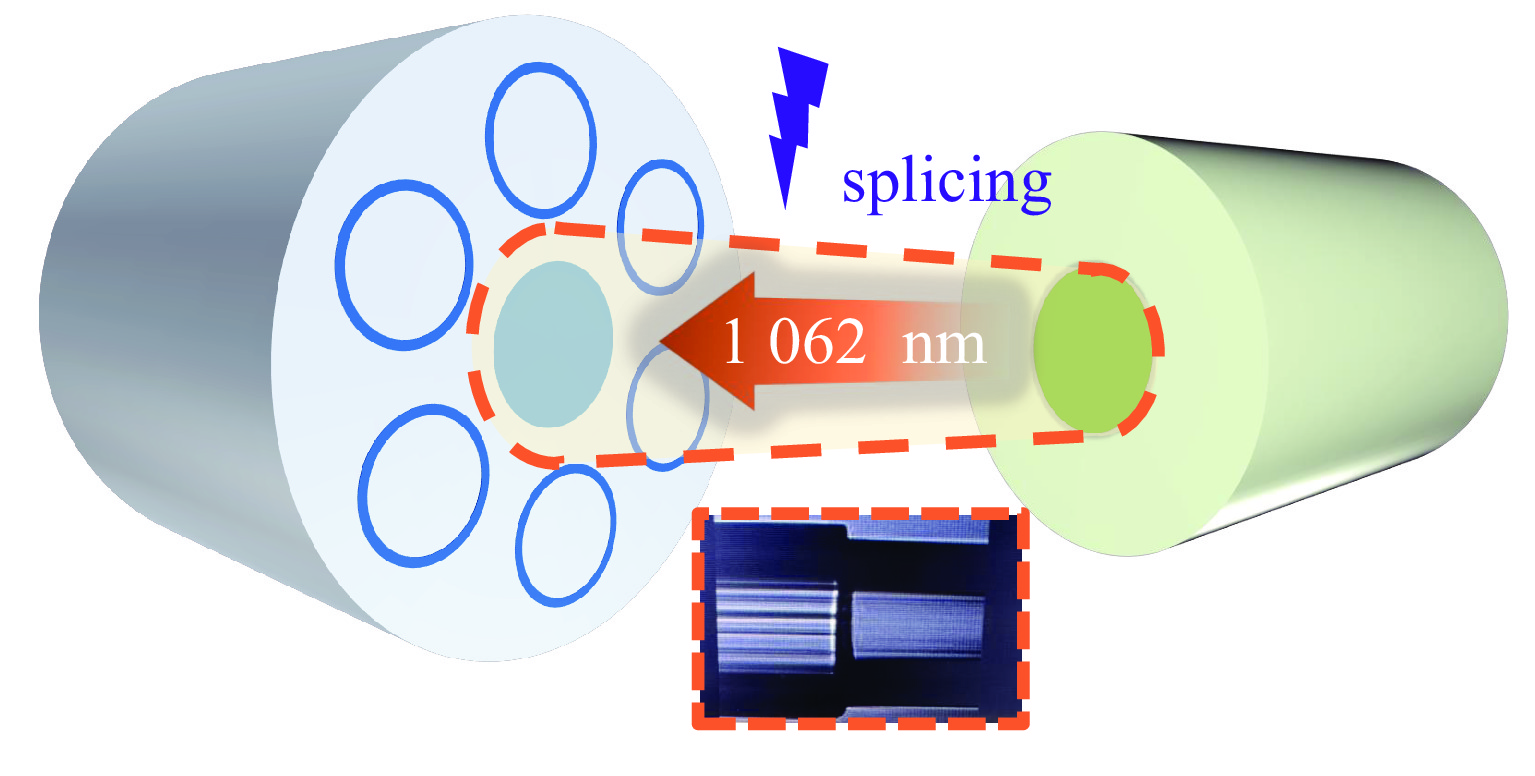

A six-ring AS-ARF theoretical model was constructed, combined with theoretical derivation and numerical simulation: Comsol Multiphysics was used to analyze the mode characteristics and the influence of refractive index fluctuations, and the Rsoft-BeamPROP module (based on the beam propagation method) was adopted to simulate the light transmission laws in the fusion-splicing coupling scenario.
Results

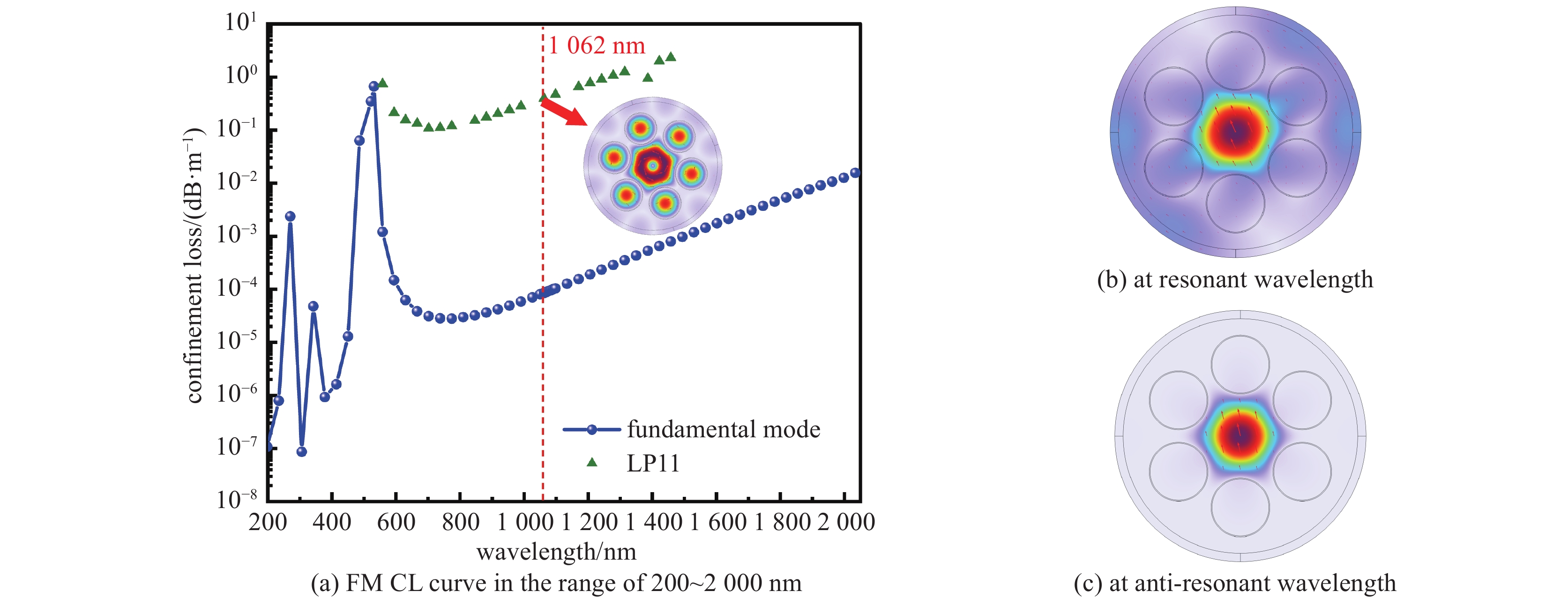

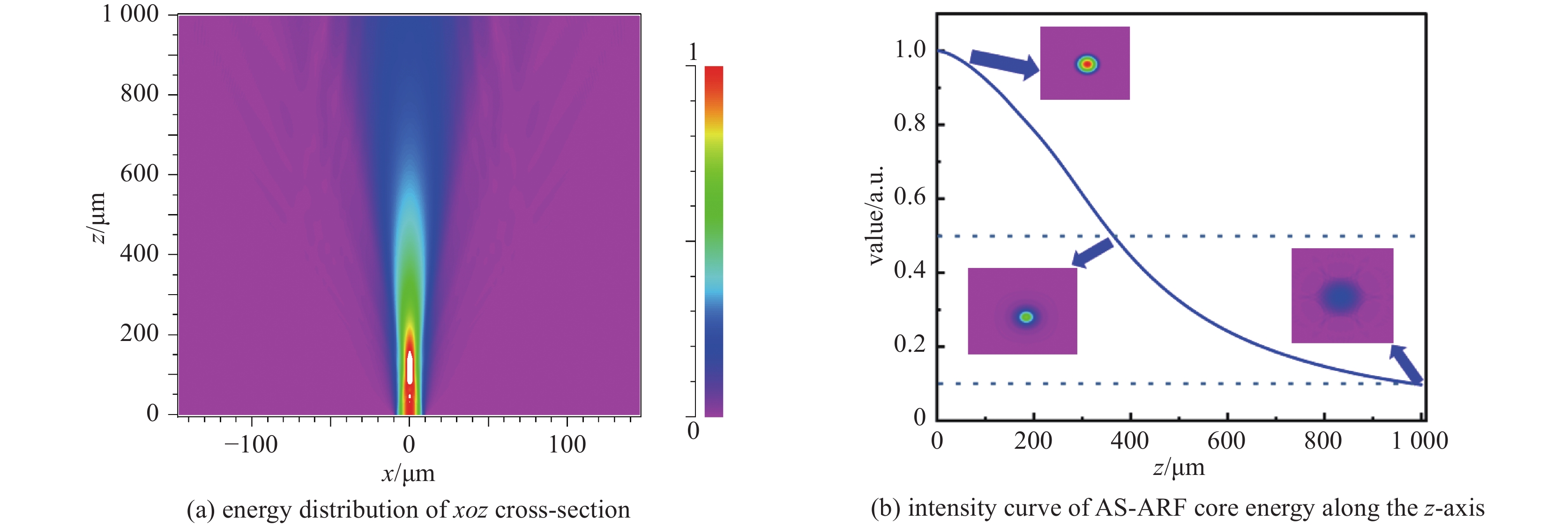

The critical value of refractive index variation was clarified; the designed AS-ARFs were verified to have the characteristics of low loss, large mode area and excellent beam quality at the target wavelength; the fusion-splicing coupling transmission laws were revealed, and the transmitted energy attenuation was less than 2% when the incident beam diameter matched the core diameter of AS-ARFs.
Conclusions
This study realizes the quantification of core control parameters for active AS-ARFs, laying an important theoretical foundation for the fabrication process optimization of Yb³⁺-doped AS-ARFs (with a focus on refractive index uniformity control) and the design of practical coupling schemes.
- all-solid anti-resonant fiber (AS-ARF),
- refractive index regulation,
- mode characteristics,
- fusion splicing transmission,
- mode field matching

FullText(HTML)

References(19)

References

[1]	Nilsson J, Payne D N. High-power fiber lasers[J]. Science, 2011, 332(6032): 921-922. doi: 10.1126/science.1194863
[2]	Jackson S D, Sabella A, Lancaster D G. Application and development of high-power and highly efficient silica-based fiber lasers operating at 2 μm[J]. IEEE Journal of Selected Topics in Quantum Electronics, 2007, 13(3): 567-572. doi: 10.1109/JSTQE.2007.896087
[3]	杨春平, 李伟, 董海燕, 等. 高功率全光纤激光器特性[J]. 强激光与粒子束, 2012, 24(6): 1287-1289 doi: 10.3788/HPLPB20122406.1287 Yang Chunping, Li Wei, Dong Haiyan, et al. Characteristics of high-power all-fiber laser[J]. High Power Laser and Particle Beams, 2012, 24(6): 1287-1289 doi: 10.3788/HPLPB20122406.1287
[4]	Wang Yuying, Gao Cong, Tang Xuan, et al. 30/900 Yb-doped aluminophosphosilicate fiber presenting 6.85-kW laser output pumped with commercial 976-nm laser diodes[J]. Journal of Lightwave Technology, 2018, 36(16): 3396-3402. doi: 10.1109/JLT.2018.2823504
[5]	张万儒, 粟荣涛, 李灿, 等. 窄线宽光纤激光振荡器研究进展(特邀)[J]. 红外与激光工程, 2022, 51: 20210879 doi: 10.3788/IRLA20210879 Zhang Wanru, Su Rongtao, Li Can, et al. Research progress of narrow linewidth fiber laser oscillator (Invited)[J]. Infrared and Laser Engineering, 2022, 51: 20210879 doi: 10.3788/IRLA20210879
[6]	来文昌, 马鹏飞, 肖虎, 等. 高功率窄线宽光纤激光技术[J]. 强激光与粒子束, 2020, 32: 121001 Lai Wenchang, Ma Pengfei, Xiao Hu, et al. High-power narrow-linewidth fiber laser technology[J]. High Power Laser and Particle Beams, 2020, 32: 121001
[7]	Hu Man, Ke Weiwei, Yang Yifeng, et al. Low threshold Raman effect in high power narrowband fiber amplifier[J]. Chinese Optics Letters, 2016, 14: 011901. doi: 10.3788/COL201614.011901
[8]	Richardson D J, Nilsson J, Clarkson W A. High power fiber lasers: current status and future perspectives [Invited][J]. Journal of the Optical Society of America B, 2010, 27(11): B63-B92. doi: 10.1364/JOSAB.27.000B63
[9]	Zhang Chun, Tao Rumao, Li Min, et al. Theoretical analysis of the mode distortion induced by stimulated Raman scattering effect in large-mode area passive fibers[J]. Journal of Lightwave Technology, 2023, 41(2): 671-677. doi: 10.1109/JLT.2022.3215659
[10]	Habib S, Antonio-Lopez J E, Markos C, et al. Single-mode, low loss hollow-core anti-resonant fiber designs[J]. Optics Express, 2019, 27(4): 3824-3836. doi: 10.1364/OE.27.003824
[11]	Xing Zhen, Wang Xin, Lou Shuqin, et al. Large-mode-area all-solid anti-resonant fiber with single-mode operation for high-power fiber lasers[J]. Optics Letters, 2021, 46(8): 1908-1911. doi: 10.1364/OL.423241
[12]	He Lelu, Liang Yachen, Guan Yongnian, et al. Large mode-area all-solid anti-resonant fiber based on chalcogenide glass for mid-infrared transmission[J]. Optics Express, 2023, 31(5): 8975-8986. doi: 10.1364/OE.480504
[13]	Tian Hao, Fu Shijie, Xu Haichen, et al. Solid-core anti-resonant fiber based on silicate glass[J]. Optics & Laser Technology, 2024, 171: 110443. doi: 10.1016/j.optlastec.2023.110443
[14]	Cheng Yue, Yang Qiubai, Zhu Yiming, et al. Design and fabrication of all-solid anti-resonant silicate fibers for Yb ASE suppression in Er/Yb fiber amplifier[J]. Optics Express, 2024, 32(19): 33962-33973. doi: 10.1364/OE.527717
[15]	Li Mingjun, Hayashi T. Advances in low-loss, large-area, and multicore fibers - ScienceDirect[J]. Optical Fiber Telecommunications VII, 2020: 3-50.
[16]	Li Pengpeng, She Shengfei, Zhang Yan, et al. Design and fabrication of large-mode-area silica all-solid anti-resonant fiber[J]. Optics Express, 2025, 33(17): 36086-36099. doi: 10.1364/OE.567473
[17]	Duguay M A, Kokubun Y, Koch T L, et al. Antiresonant reflecting optical waveguides in SiO₂-Si multilayer structures[J]. Applied Physics Letters, 1986, 49(1): 13-15. doi: 10.1063/1.97085
[18]	Marcatili E A J, Schmeltzer R A. Hollow metallic and dielectric waveguides for long distance optical transmission and lasers[J]. The Bell System Technical Journal, 1964, 43(4): 1783-1809. doi: 10.1002/j.1538-7305.1964.tb04108.x
[19]	Uebel P, Günendi M C, Frosz M H, et al. Broadband robustly single-mode hollow-core PCF by resonant filtering of higher-order modes[J]. Optics Letters, 2016, 41(9): 1961-1964. doi: 10.1364/OL.41.001961
