Development of the magnetically saturated transformer pulse source based on DSRD

Wang Shengyu; Sun lejia; Guo Jingkai; Zhou Yu; Tang Xiaoyan; Zhang Yuming; Song Qingwen

doi:10.11884/HPLPB202638.250445

Article Contents

Article Navigation > High Power Laser and Particle Beams > 2026 > Accepted Manuscript

Wang Shengyu, Sun lejia, Guo Jingkai, et al. Development of the magnetically saturated transformer pulse source based on DSRD[J]. High Power Laser and Particle Beams. doi: 10.11884/HPLPB202638.250445

Citation:

Wang Shengyu, Sun lejia, Guo Jingkai, et al. Development of the magnetically saturated transformer pulse source based on DSRD[J]. High Power Laser and Particle Beams. doi: 10.11884/HPLPB202638.250445

Wang Shengyu, Sun lejia, Guo Jingkai, et al. Development of the magnetically saturated transformer pulse source based on DSRD[J]. High Power Laser and Particle Beams. doi: 10.11884/HPLPB202638.250445

Citation:

PDF( 2934 KB)

Development of the magnetically saturated transformer pulse source based on DSRD

doi: 10.11884/HPLPB202638.250445

Xidian University, Faculty of Integrated Circuit, Xi’an 710071, China

Received Date: 2025-12-09
Accepted Date: 2026-02-02
Rev Recd Date: 2025-02-14

Available Online: 2026-03-28

Abstract

Abstract

Background
Drift step recovery diodes are widely applied as high power semiconductor opening switches due to their fast recovery behavior and stable operation. When combined with magnetically saturated transformers, they provide an effective solution for generating high voltage nanosecond pulses. However, the pulse formation process is jointly influenced by magnetic saturation, resonant behavior, and circuit parameters, which increases the difficulty of parameter selection and compact implementation.
Purpose
This study aims to investigate a DSRD based magnetically saturated transformer pulse source and to clarify the role of key parameters in the pulse formation process. The objective is to establish a practical parameter design approach that supports compact structure, high repetition operation, and stable output performance.
Methods

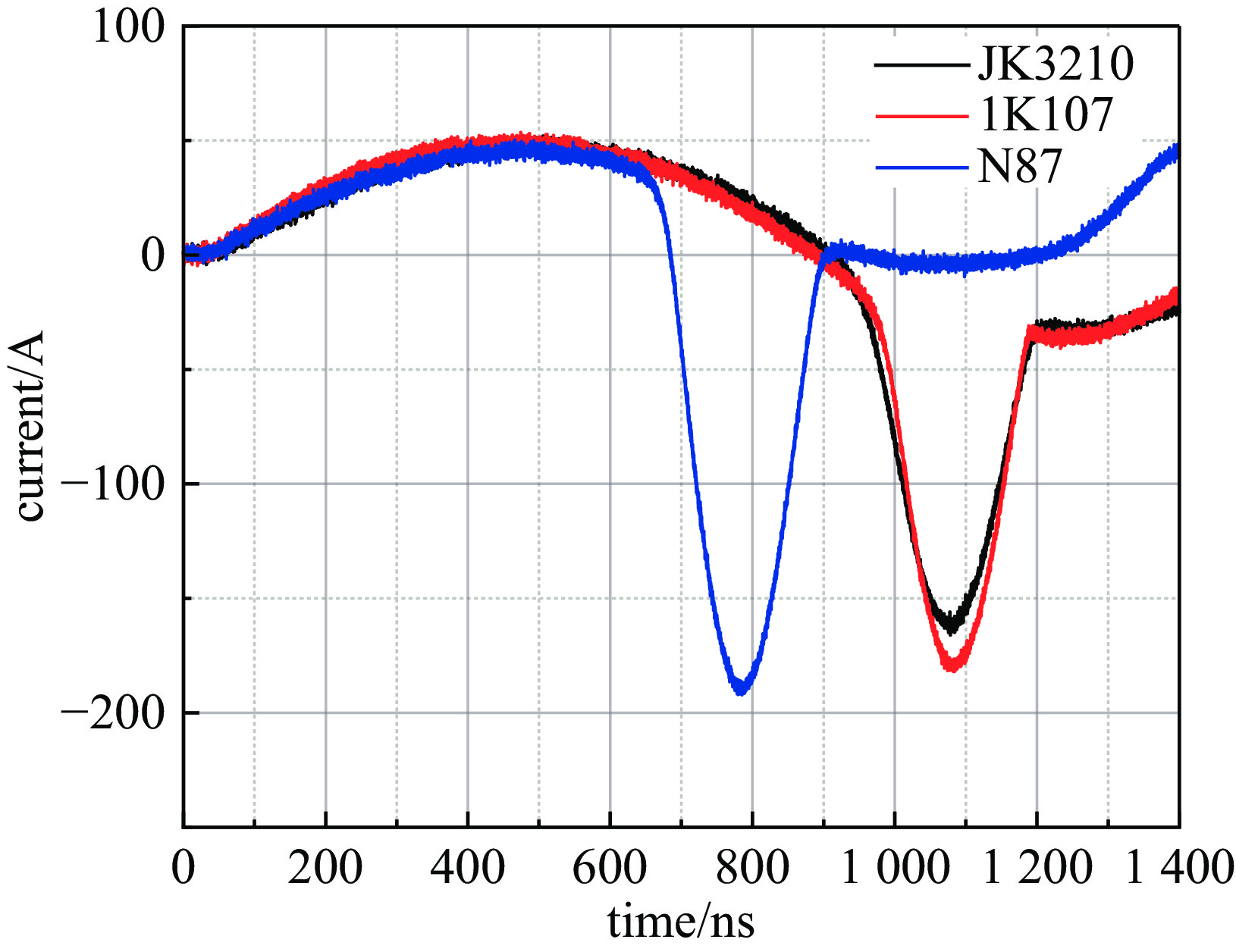

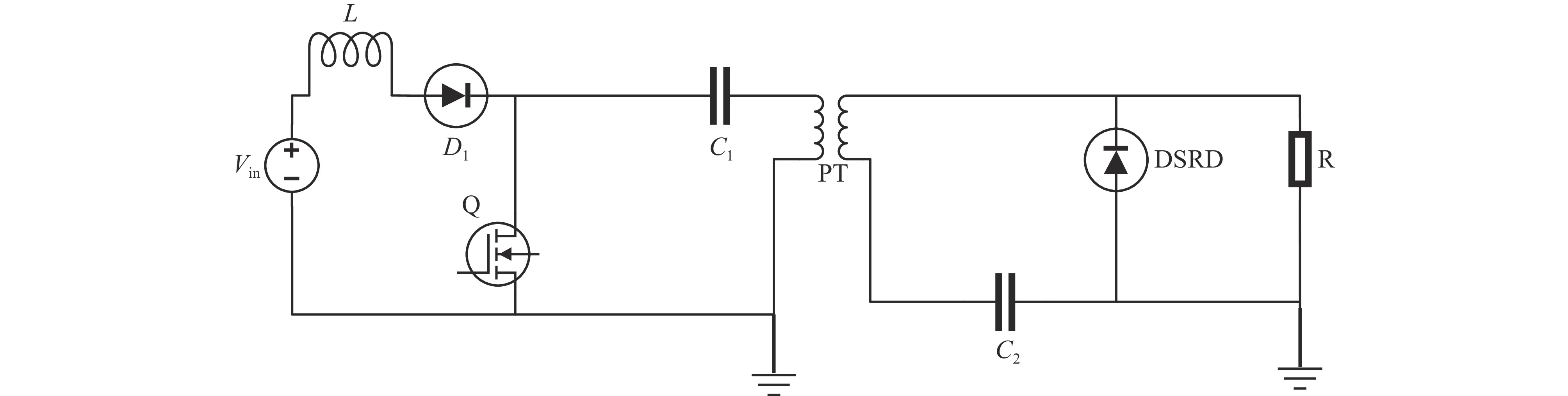

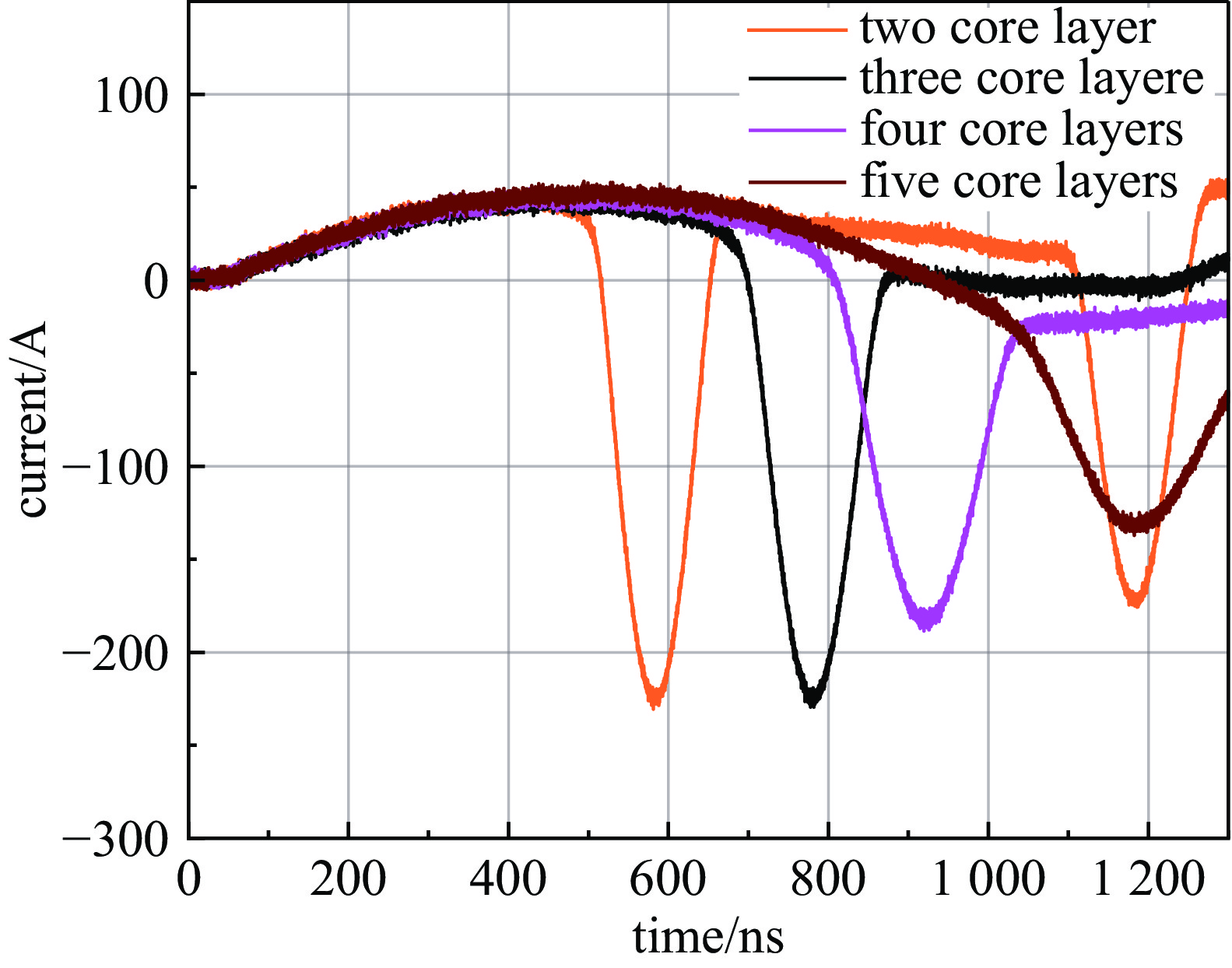

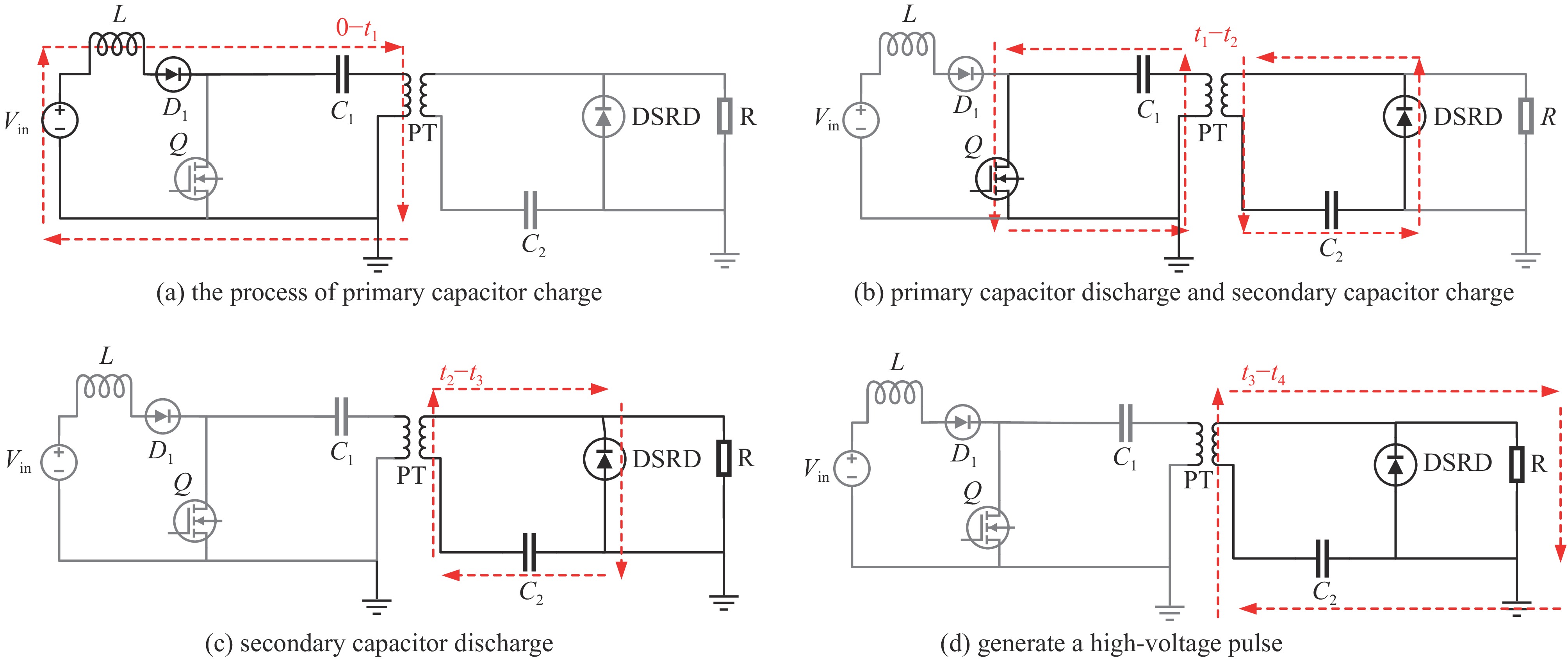

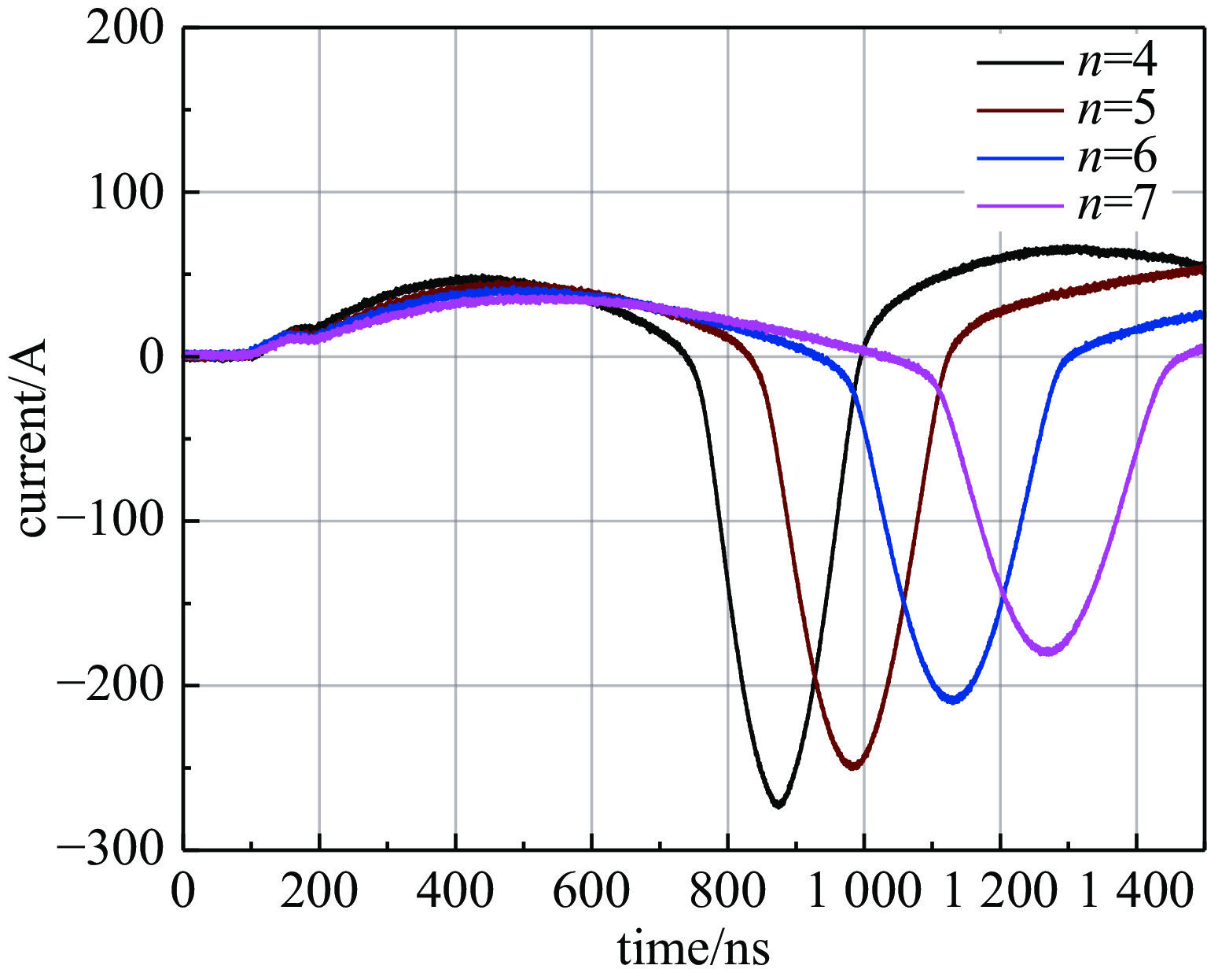

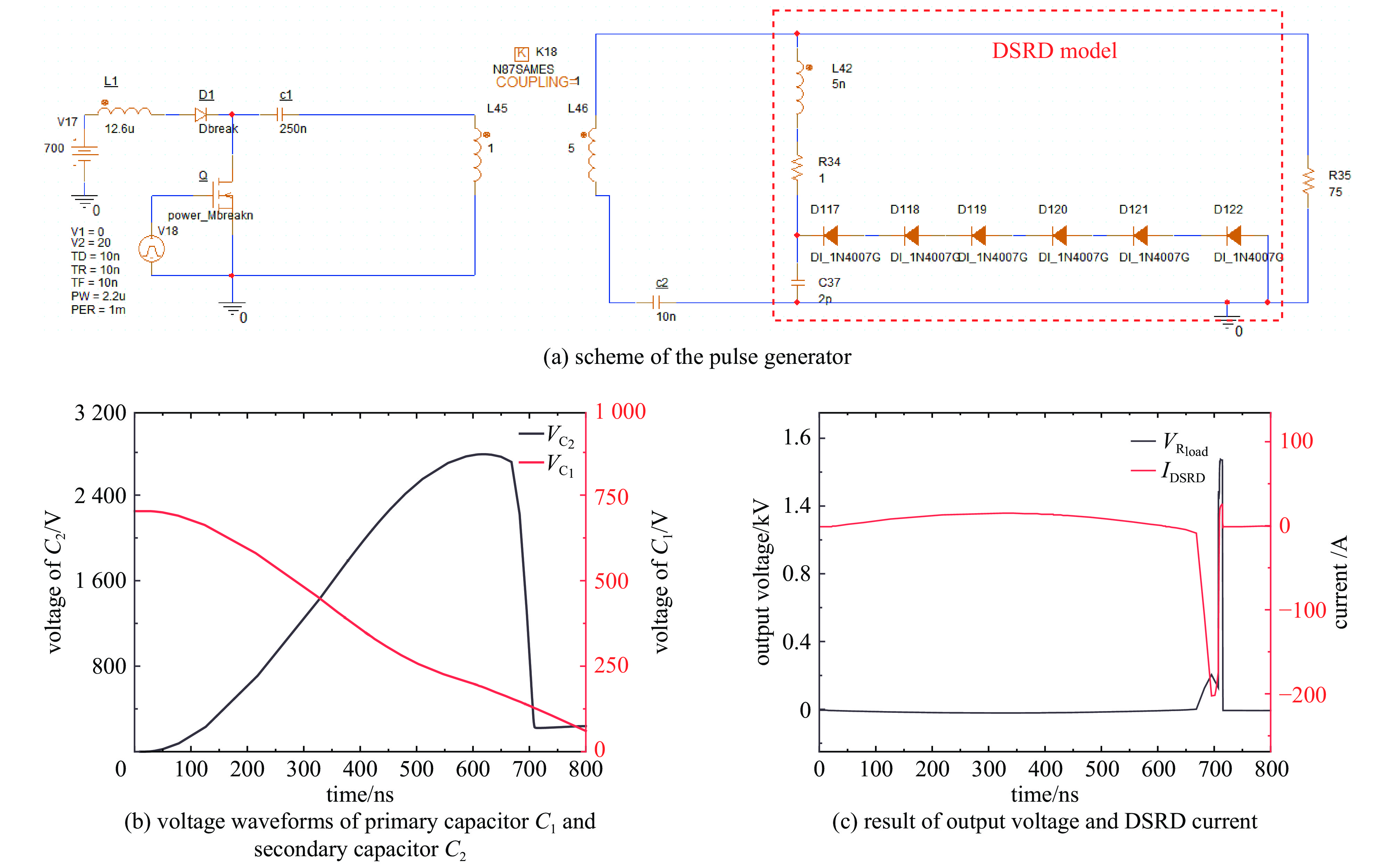

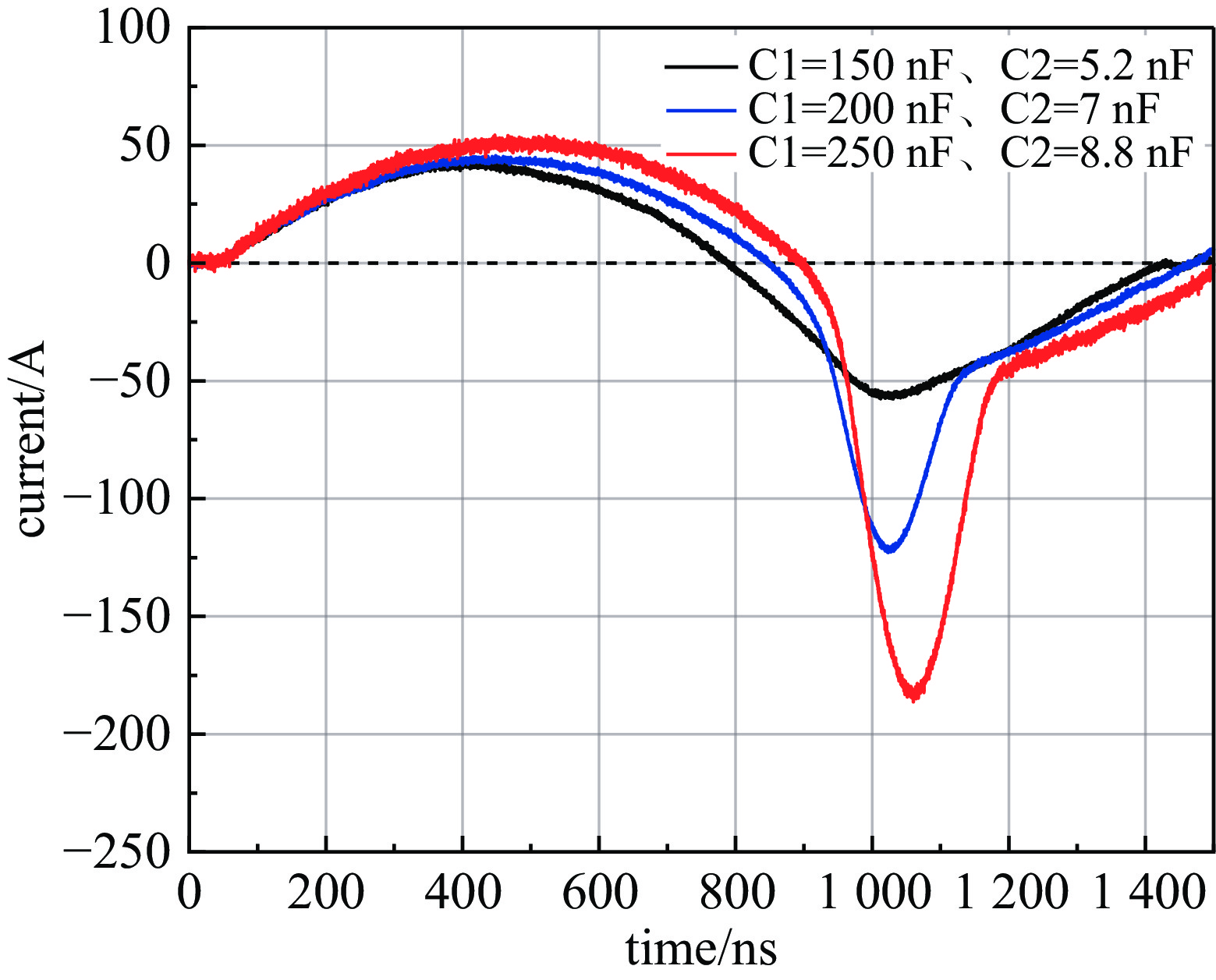

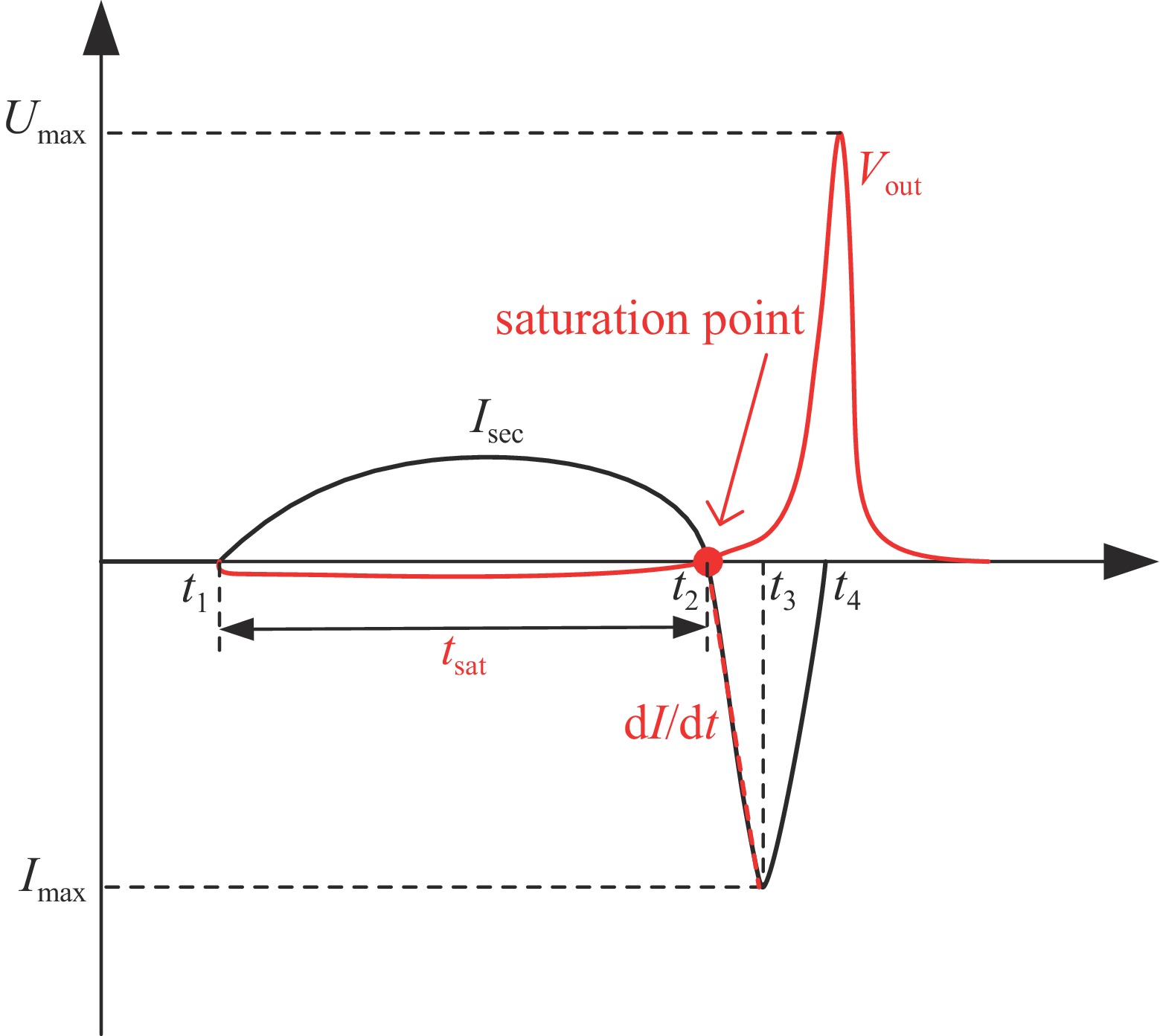

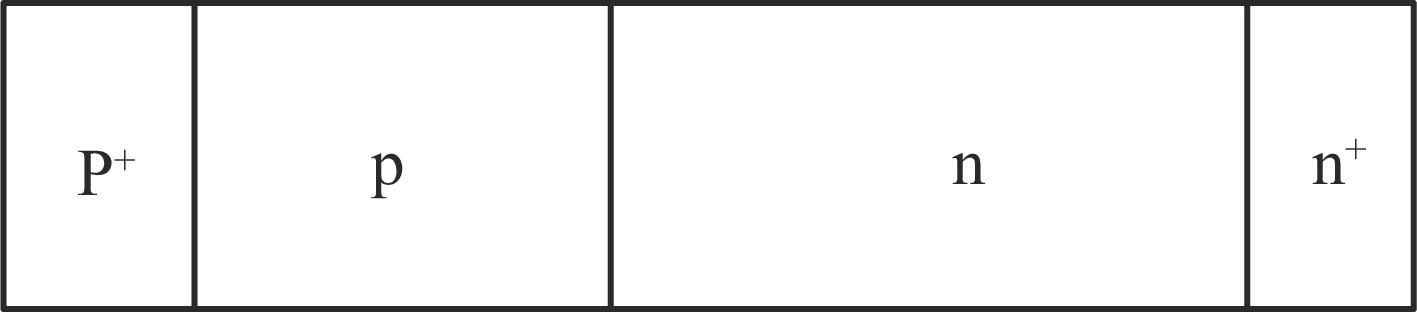

The operating principle of the DSRD is first analyzed, and a pumping circuit is designed by combining the device characteristics with the boosting and magnetic saturation properties of the transformer. Based on classical models of magnetically saturated transformers and LC resonance, the relationships among saturation time, secondary current rise rate, and peak current are analyzed qualitatively and calculated quantitatively. These calculations are used to determine the parameter range of the experimental prototype. Circuit simulations are carried out under a repetition frequency of 1 kHz to verify the feasibility of the proposed topology and parameter configuration. Experimental investigations are then conducted to study the influence of transformer turns ratio, core cross sectional area, primary and secondary capacitances, and core material on the pulse output characteristics.
Results

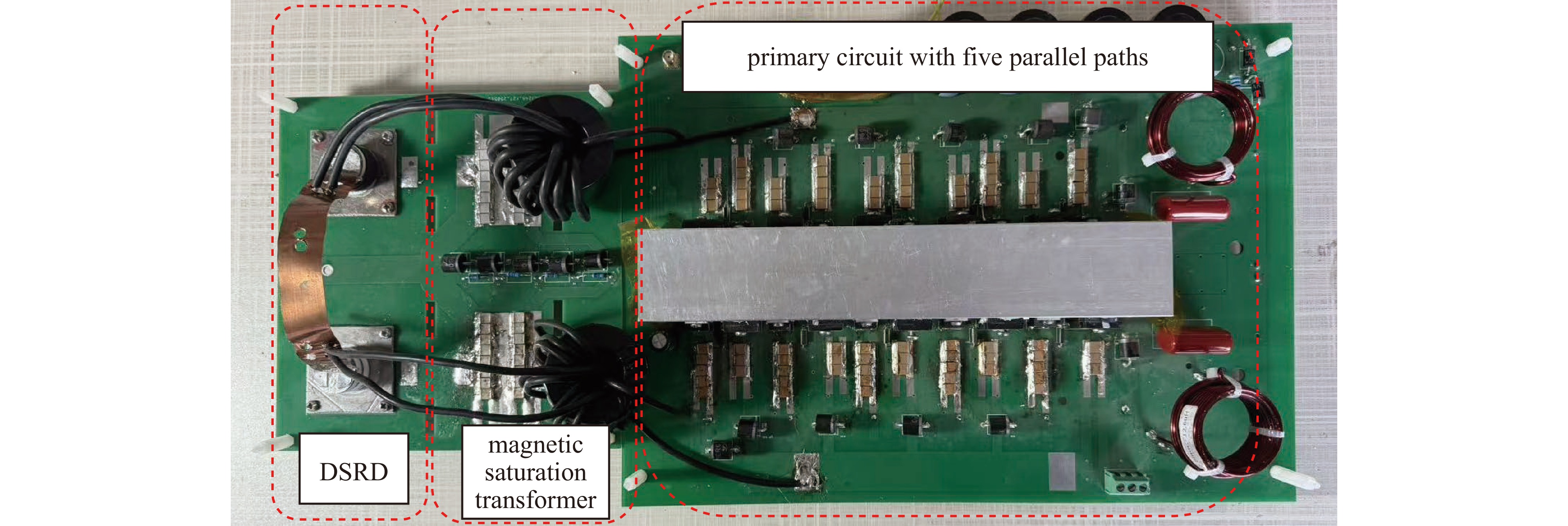

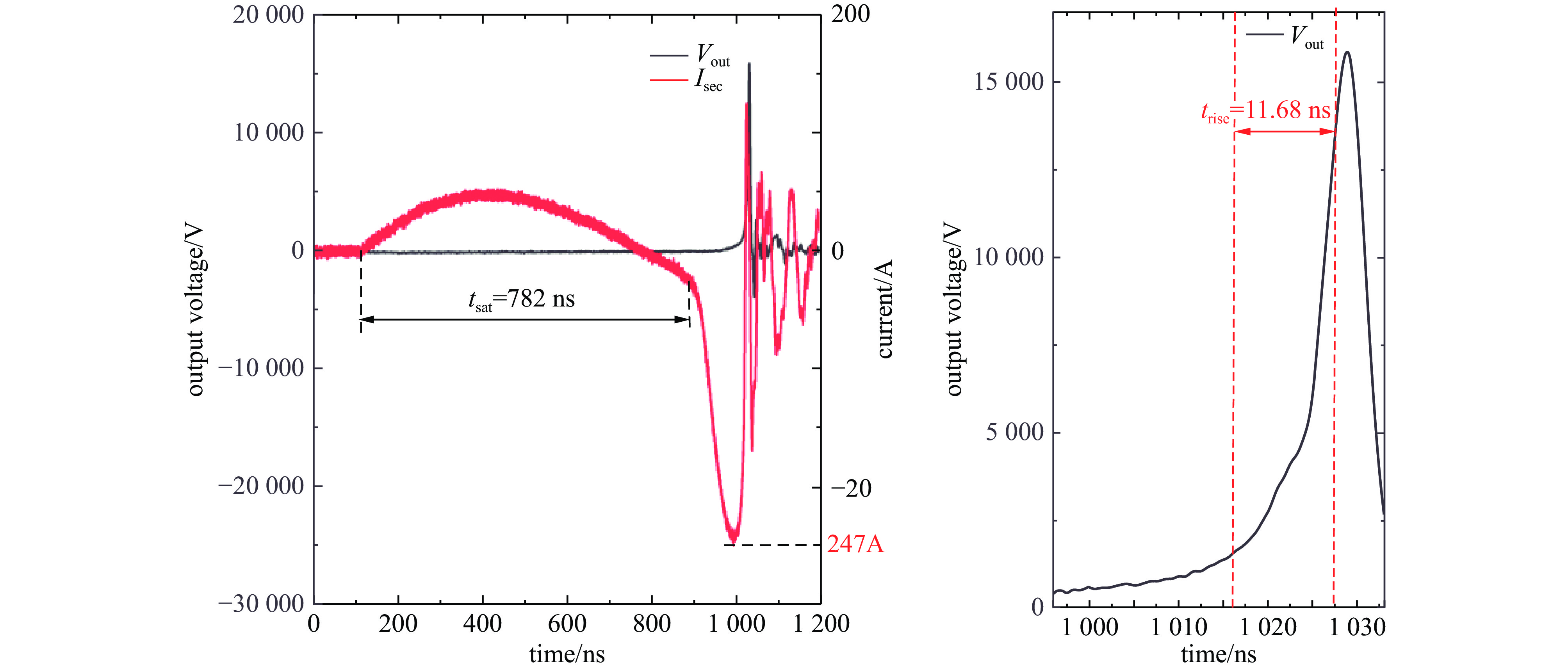

The experimental results show that, with a charging voltage of 700 V, the developed pulse source generates a high voltage pulse with an amplitude of approximately 15.9 kV and a rise time of about 11.7 ns across a 75 Ω resistive load. Stable operation is achieved at a repetition frequency of 1 kHz. The experimental observations are consistent with theoretical analysis and simulation results.
Conclusions
The proposed analysis and design approach provides practical guidance for parameter selection in DSRD based magnetically saturated transformer pulse sources. The results support compact implementation and reliable operation under high repetition conditions, and offer reference for further optimization of high voltage nanosecond pulse systems.
- drift step recovery diode,
- magnetic saturation transformer,
- pulse generator,
- repeat frequency,
- magnetic switch

FullText(HTML)

References(15)

References

[1]	陈锦晖, 王磊, 施华, 等. HEPS在轴注入冲击器系统及快脉冲电源样机研制[J]. 强激光与粒子束, 2019, 31: 040017 doi: 10.11884/HPLPB201931.190007 Chen Jinhui, Wang Lei, Shi Hua, et al. Application of fast pulsed power supply to high energy photon source[J]. High Power Laser and Particle Beams, 2019, 31: 040017 doi: 10.11884/HPLPB201931.190007
[2]	段鑫沛, 朱云娇, 殷亚楠, 等. 电磁脉冲对半导体器件影响机制研究概述[J]. 中国集成电路, 2025, 34(3): 43-49 doi: 10.3969/j.issn.1681-5289.2025.03.007 Duan Xinpei, Zhu Yunjiao, Yin Ya’nan, et al. An overview of the influence mechanism of electromagnetic pulse on semiconductor devices[J]. China Integrated Circuit, 2025, 34(3): 43-49 doi: 10.3969/j.issn.1681-5289.2025.03.007
[3]	Prokhorenko V, Ivashchuk V, Korsun S. Drift step recovery devices utilization for electromagnetic pulse radiation[C]//Proceedings of the 10th International Conference on Grounds Penetrating Radar, 2004. GPR 2004. 2005: 195-198.
[4]	Korotkov S V, Aristov Y V, Zhmodikov A L, et al. A modular drift step-recovery diode generator for nanosecond pulse technologies[J]. Instruments and Experimental Techniques, 2016, 59(3): 356-361. doi: 10.1134/S0020441216020226
[5]	Sugai T, Liu Wei, Tokuchi A, et al. Influence of a circuit parameter for plasma water treatment by an inductive energy storage circuit using semiconductor opening switch[J]. IEEE Transactions on Plasma Science, 2013, 41(4): 967-974. doi: 10.1109/TPS.2013.2251359
[6]	Kardo-Sysoev A F, Efanov V M, Chashnikov I G. Fast power switches from picosecond to nanosecond time scale and their application to pulsed power[C]//Proceedings of the Digest of Technical Papers. 10th IEEE International Pulsed Power Conference. 1995: 342-347.
[7]	吴佳霖, 刘英坤. 高功率半导体开关器件DSRD的研究进展[J]. 微纳电子技术, 2015, 52(4): 211-215,250 doi: 10.13250/j.cnki.wndz.2015.04.002 Wu Jialin, Liu Yingkun. Research development of the high power semiconductor switching device DSRD[J]. Micronanoelectronic Technology, 2015, 52(4): 211-215,250 doi: 10.13250/j.cnki.wndz.2015.04.002
[8]	梁琳, 余岳辉. 半导体脉冲功率开关发展综述[J]. 电力电子技术, 2012, 46(12): 42-45 Liang Lin, Yu Yuehui. Review on development of semiconductor pulsed power switches[J]. Power Electronics, 2012, 46(12): 42-45
[9]	Benwell A, Burkhart C, Krasnykh A, et al. A 5kV, 3MHz solid-state modulator based on the DSRD switch for an ultra-fast beam kicker[C]//Proceedings of 2012 IEEE International Power Modulator and High Voltage Conference. 2013: 328-331.
[10]	Min B D, Kim J H, Pavlov E, et al. A compact pulse generator using diode opening switch for engine gas treatment application[C]//Proceedings of the 31st Annual Conference of IEEE Industrial Electronics Society, 2005. IECON 2005. 2005: 3 pp. -.
[11]	赖雨辰, 谢彦召, 王海洋, 等. 基于DSRD的高重频固态脉冲源的研制[J]. 强激光与粒子束, 2020, 32: 105002 doi: 10.11884/HPLPB202032.200102 Lai Yuchen, Xie Yanzhao, Wang Haiyang, et al. Development of the high repetitive frequency solid-state pulse generator based on DSRD[J]. High Power Laser and Particle Beams, 2020, 32: 105002 doi: 10.11884/HPLPB202032.200102
[12]	史晓蕾, 陈锦晖, 王冠文, 等. 一种基于磁饱和变压器的DSRD脉冲电源设计[J]. 强激光与粒子束, 2020, 32: 025020 doi: 10.11884/HPLPB202032.190387 Shi Xiaolei, Chen Jinhui, Wang Guanwen, et al. Design of drift step recovery diode pulse power generator based on magnetic saturation transformer[J]. High Power Laser and Particle Beams, 2020, 32: 025020 doi: 10.11884/HPLPB202032.190387
[13]	余岳辉, 梁琳. 脉冲功率器件及其应用[M]. 北京: 机械工业出版社, 2010: 212-217 Yu Yuehui, Liang Lin. Pulsed power device and its applications[M]. Beijing: China Machine Press, 2010: 212-217
[14]	Grekhov I V, Mesyats G A. Physical basis for high-power semiconductor nanosecond opening switches[J]. IEEE Transactions on Plasma Science, 2000, 28(5): 1540-1544. doi: 10.1109/27.901229
[15]	Brylevsky V I, Efanov V M, Kardo-Sysyev A F, et al. Power nanosecond semiconductor opening plasma switches[C]//Proceedings of 1996 International Power Modulator Symposium. 1996: 51-54.
