Computational ghost imaging based on recursive cross sorting of hadamard basis

Zhao Shuai; Wu Yi; Feng Guoying

doi:10.11884/HPLPB202638.250467

Article Contents

Article Navigation > High Power Laser and Particle Beams > 2026 > Accepted Manuscript

Zhao Shuai, Wu Yi, Feng Guoying. Computational ghost imaging based on recursive cross sorting of hadamard basis[J]. High Power Laser and Particle Beams. doi: 10.11884/HPLPB202638.250467

Citation:

Zhao Shuai, Wu Yi, Feng Guoying. Computational ghost imaging based on recursive cross sorting of hadamard basis[J]. High Power Laser and Particle Beams. doi: 10.11884/HPLPB202638.250467

Zhao Shuai, Wu Yi, Feng Guoying. Computational ghost imaging based on recursive cross sorting of hadamard basis[J]. High Power Laser and Particle Beams. doi: 10.11884/HPLPB202638.250467

Citation:

Zhao Shuai, Wu Yi, Feng Guoying. Computational ghost imaging based on recursive cross sorting of hadamard basis[J]. High Power Laser and Particle Beams. doi: 10.11884/HPLPB202638.250467

PDF( 3812 KB)

Computational ghost imaging based on recursive cross sorting of hadamard basis

doi: 10.11884/HPLPB202638.250467

Institute of Laser and Micro/Nano Engineering, College of Electronics and Information Engineering, Sichuan University, Chengdu 610065, China

Received Date: 2025-12-19
Accepted Date: 2026-01-08
Rev Recd Date: 2026-01-22

Available Online: 2026-03-02

Abstract

Abstract

Background
The projection sequence of Hadamard speckle patterns directly influences the image reconstruction quality and efficiency of Computational Ghost Imaging under undersampled conditions. Optimizing the speckle sorting strategy is an effective approach to achieving high-quality imaging at low sampling rates.
Purpose
This study aims to address the oscillation of quality metrics observed during the sampling process of traditional sorting strategies and to further enhance the signal-to-noise ratio and convergence stability within the low-sampling-rate regime.
Methods

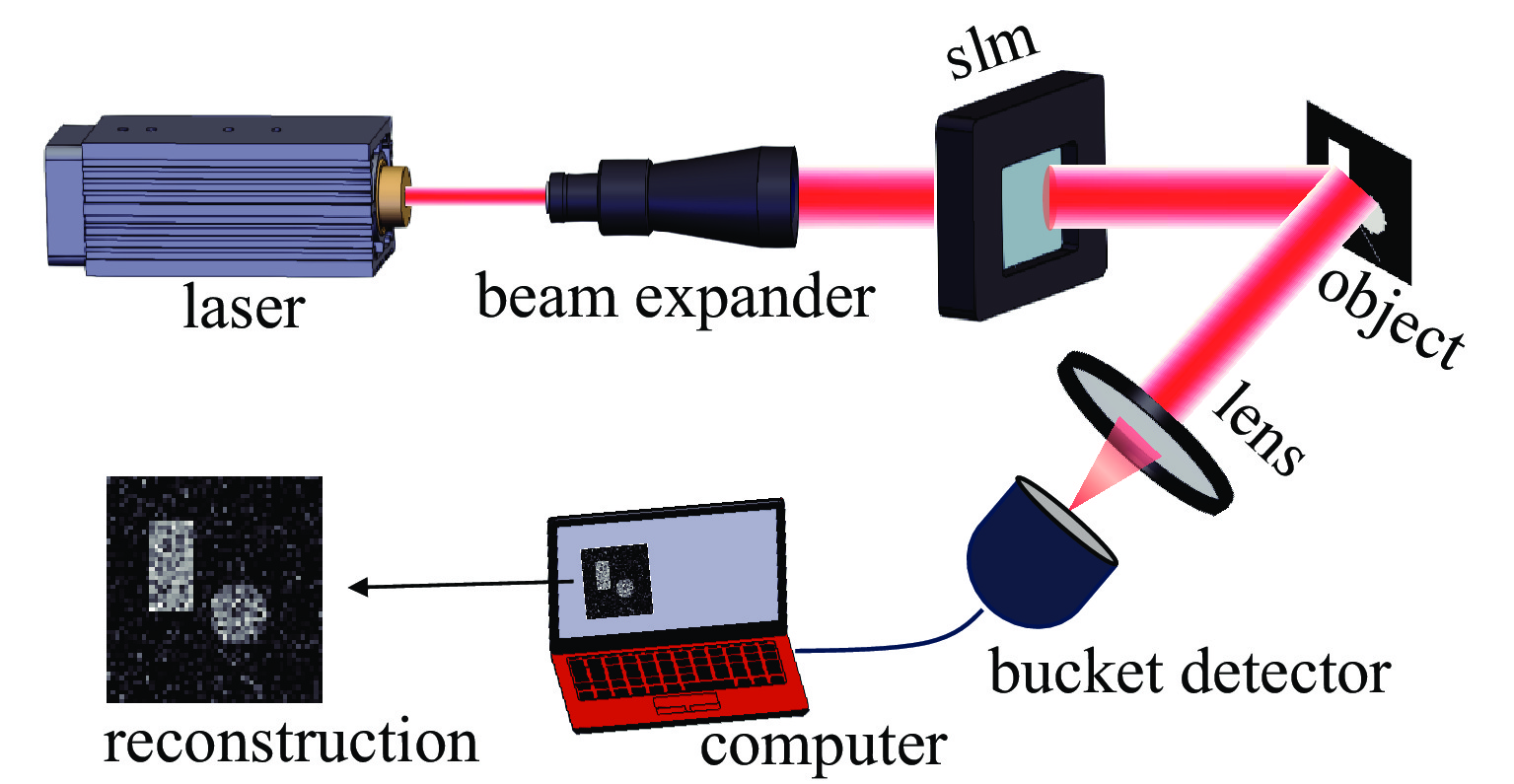

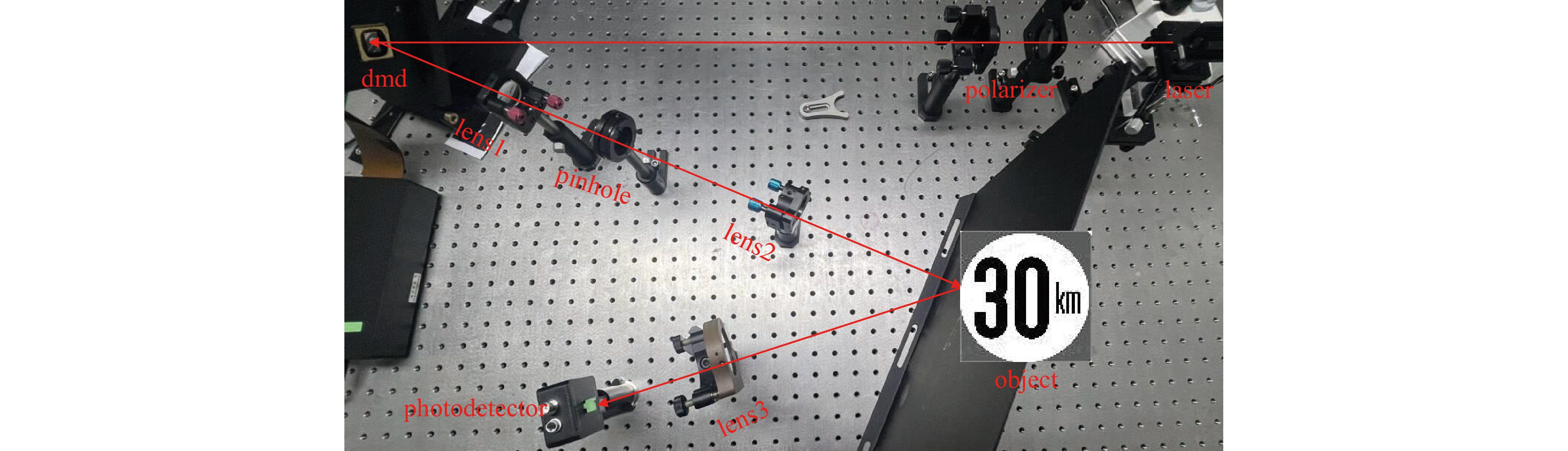

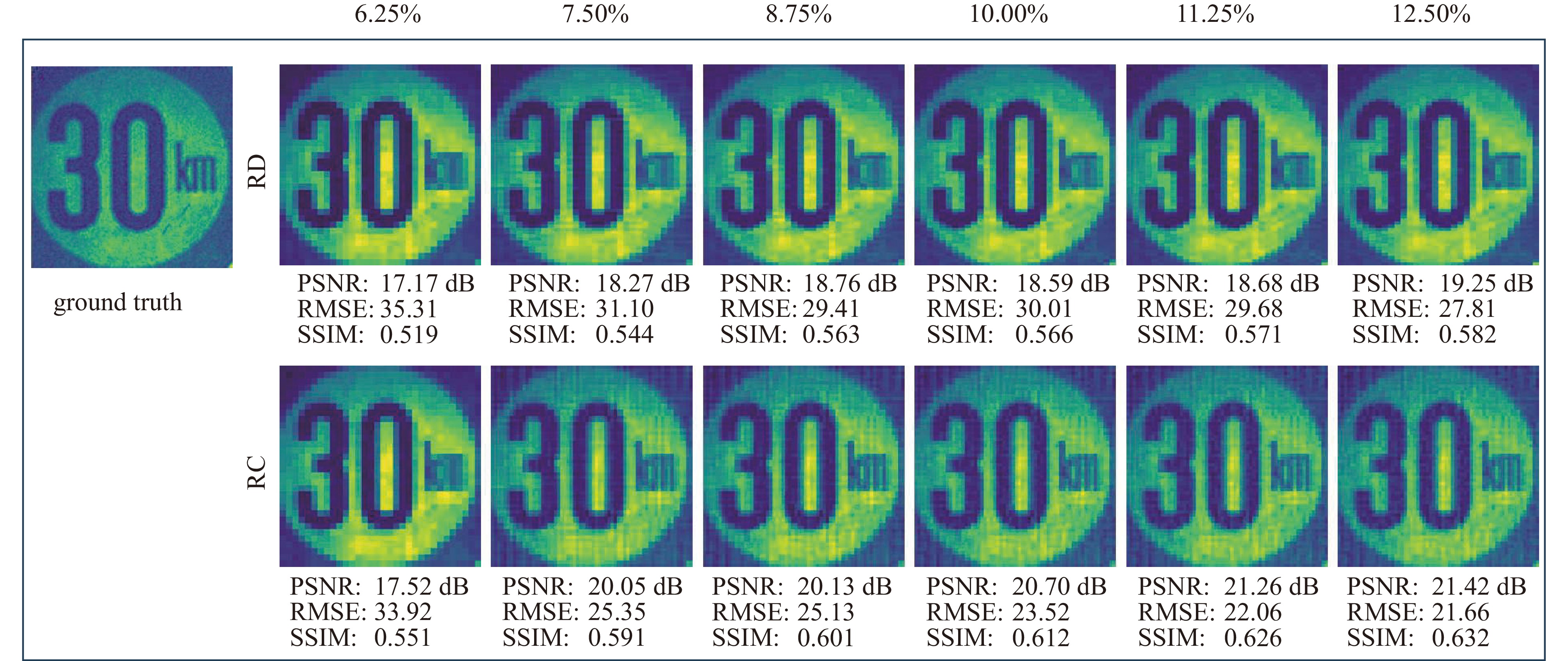

A Recursive Cross (RC) sorting strategy based on the Hadamard basis is proposed. By inversely deconstructing hierarchical subspaces and utilizing an even-index mapping mechanism, this method interleaves and reorganizes speckles with orthogonal texture features, thereby disrupting the continuous accumulation of unidirectional features in the sampling sequence. Numerical simulations under both ideal and gaussian noise environments, along with optical experiments, were conducted to validate the proposed method.
Results

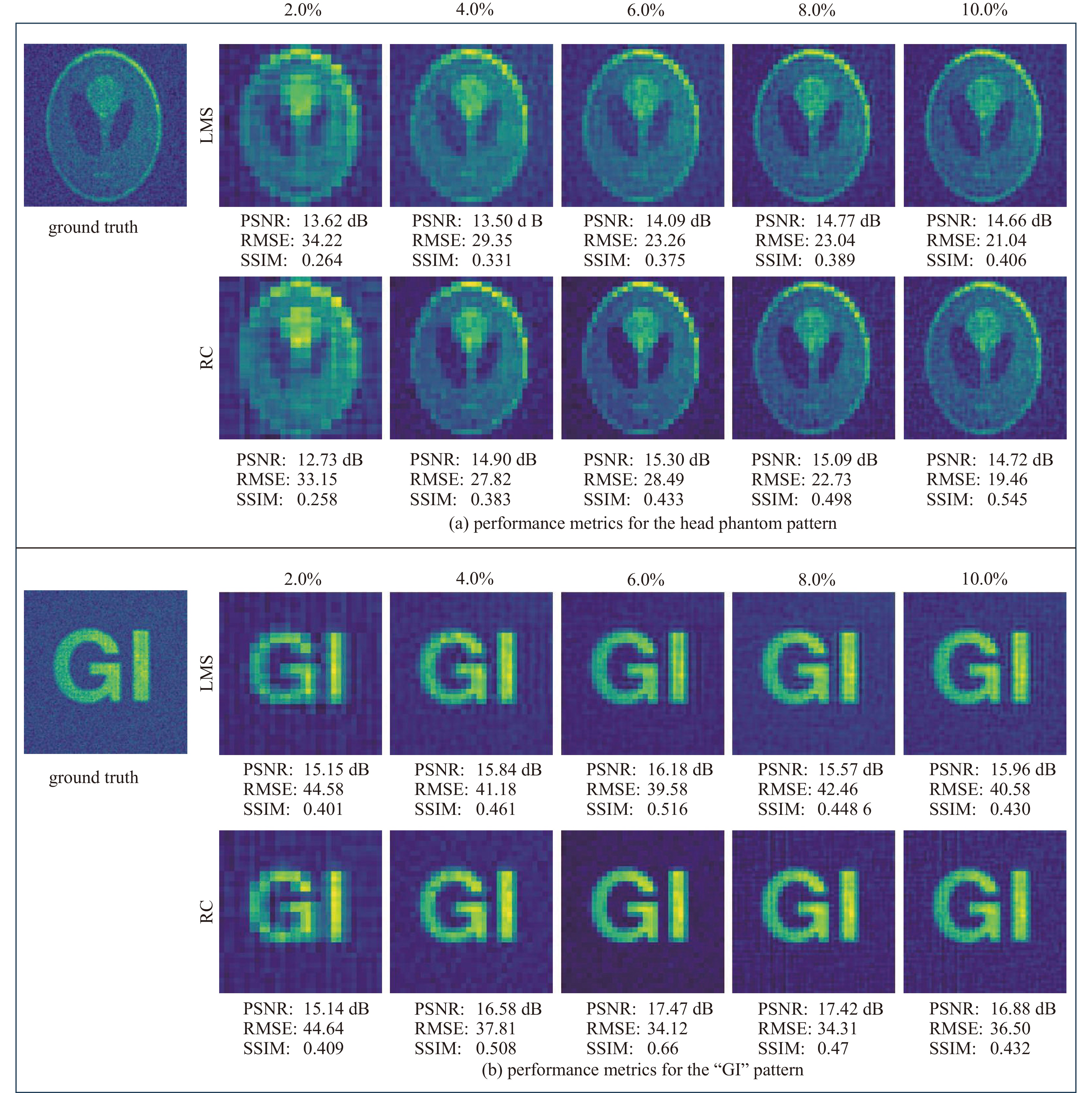

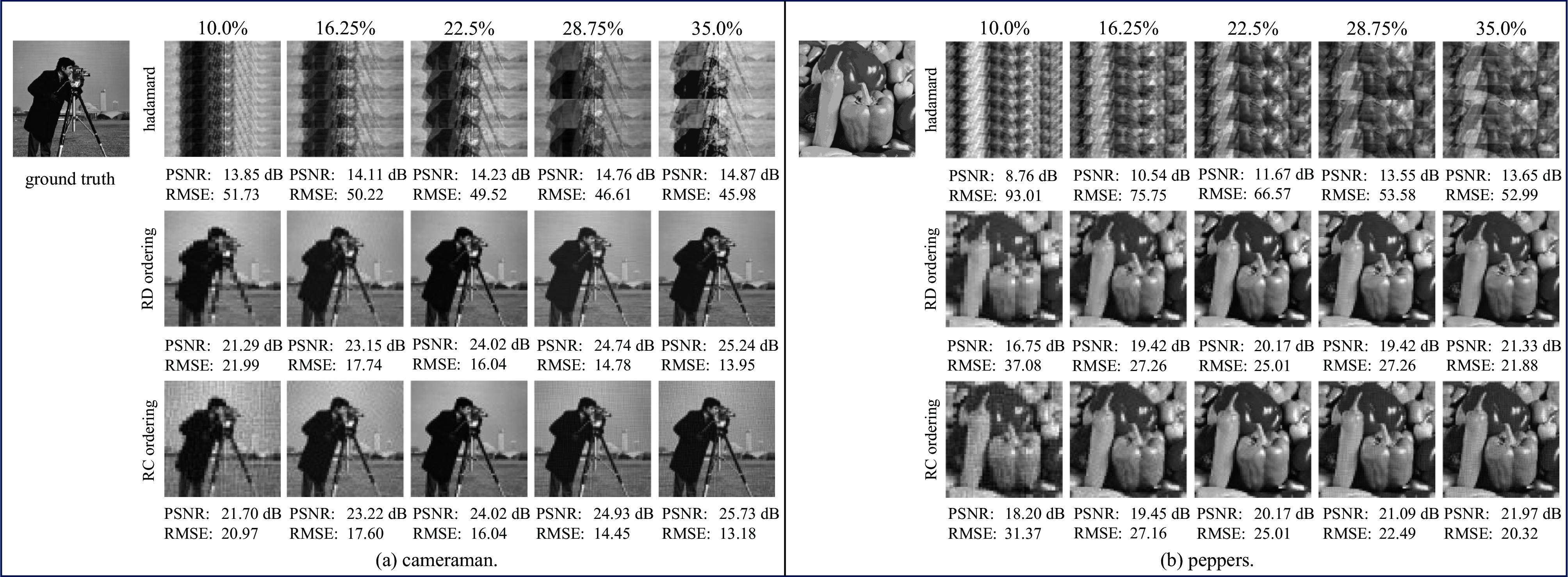

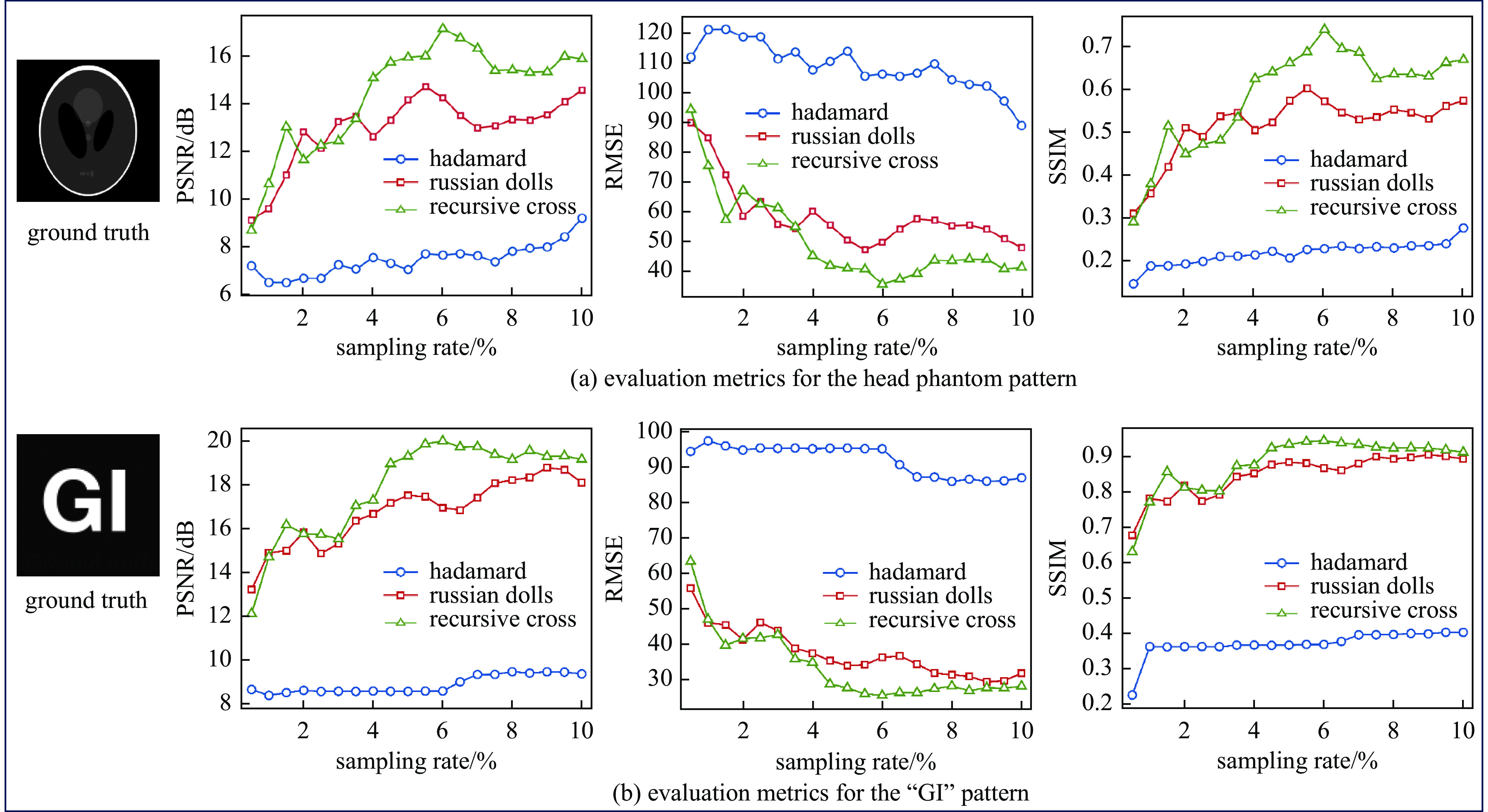

Simulation results demonstrate that the RC strategy effectively eliminates the oscillation of evaluation metrics observed in Russian Dolls sorting as the sampling rate increases across the full 0–100% range, achieving a smooth evolution and robust convergence of imaging quality. Particularly in the low-sampling-rate range of 0–10%, the Peak Signal-to-Noise Ratio of the reconstructed images shows a maximum improvement of approximately 101.7% compared to Hadamard natural sorting and 11.4% compared to Laser Model Speckle sorting, with a maximum gain of about 3.4 dB.
Conclusions
By optimizing the sampling path of spectral energy, the RC sorting strategy improves the data acquisition efficiency of ghost imaging, potentially offering an effective technical pathway for realizing rapid and real-time ghost imaging applications.
- computational ghost imaging,
- hadamard basis sorting,
- recursive cross,
- sub-nyquist sampling,
- digital micromirror device

FullText(HTML)

References(27)

References

[1]	Erkmen B I, Shapiro J H. Ghost imaging: from quantum to classical to computational[J]. Advances in Optics and Photonics, 2010, 2(4): 405-450. doi: 10.1364/AOP.2.000405
[2]	Moreau P A, Toninelli E, Gregory T, et al. Ghost imaging using optical correlations[J]. Laser & Photonics Reviews, 2018, 12: 1700143. doi: 10.1002/lpor.201700143
[3]	Strekalov D V, Sergienko A V, Klyshko D N, et al. Observation of two-photon “ghost” interference and diffraction[J]. Physical Review Letters, 1995, 74(18): 3600-3603. doi: 10.1103/PhysRevLett.74.3600
[4]	Edgar M P, Gibson G M, Bowman R W, et al. Simultaneous real-time visible and infrared video with single-pixel detectors[J]. Scientific Reports, 2015, 5: 10669. doi: 10.1038/srep10669
[5]	Wu Han, Hu Bo, Chen Lu, et al. Mid-infrared computational temporal ghost imaging[J]. Light: Science & Applications, 2024, 13: 124.
[6]	Liu Hongchao, Zhang Shuang. Computational ghost imaging of hot objects in long-wave infrared range[J]. Applied Physics Letters, 2017, 111: 031110. doi: 10.1063/1.4994662
[7]	Yang Xu, Yu Zhongyang, Xu Lu, et al. Underwater ghost imaging based on generative adversarial networks with high imaging quality[J]. Optics Express, 2021, 29(18): 28388-28405. doi: 10.1364/OE.435276
[8]	Li Yuliang, Chen Mingliang, Qi Jinquan, et al. Underwater ghost imaging with detection distance up to 9.3 attenuation lengths[J]. Optics Express, 2023, 31(23): 38457-38474. doi: 10.1364/OE.499186
[9]	Wang Tao, Chen Meiyun, Wu Heng, et al. Underwater compressive computational ghost imaging with wavelet enhancement[J]. Applied Optics, 2021, 60(23): 6950-6957. doi: 10.1364/AO.431712
[10]	Yin Manqian, Wang Le, Zhao Shengmei. Experimental demonstration of influence of underwater turbulence on ghost imaging[J]. Chinese Physics B, 2019, 28: 094201. doi: 10.1088/1674-1056/ab33ee
[11]	Clemente P, Durán V, Torres-Company V, et al. Optical encryption based on computational ghost imaging[J]. Optics Letters, 2010, 35(14): 2391-2393. doi: 10.1364/OL.35.002391
[12]	Zhao Shengmei, Wang Le, Liang Wenqiang, et al. High performance optical encryption based on computational ghost imaging with QR code and compressive sensing technique[J]. Optics Communications, 2015, 353: 90-95. doi: 10.1016/j.optcom.2015.04.063
[13]	Guo Zhe, Chen Suhua, Zhou Ling, et al. Optical image encryption and authentication scheme with computational ghost imaging[J]. Applied Mathematical Modelling, 2024, 131: 49-66. doi: 10.1016/j.apm.2024.04.012
[14]	Zhang Leihong, Xiong Rui, Chen Jian, et al. Optical image compression and encryption transmission-based ondeep learning and ghost imaging[J]. Applied Physics B, 2020, 126: 18. doi: 10.1007/s00340-020-7379-5
[15]	张航宇, 吴仪, 赵帅, 等. 采用卷积神经网络提高鬼成像的边缘质量[J]. 强激光与粒子束, 2024, 36: 079002 doi: 10.11884/HPLPB202436.240030 Zhang Hangyu, Wu Yi, Zhao Shuai, et al. Edge quality improvement of ghost imaging based on convolutional neural network[J]. High Power Laser and Particle Beams, 2024, 36: 079002 doi: 10.11884/HPLPB202436.240030
[16]	Belinsky A V, Gostev P P, Magnitskiy S A, et al. Ghost fiber optic 3D endoscopy[J]. JETP Letters, 2023, 117(3): 202-206. doi: 10.1134/S0021364022602718
[17]	Eshun A, Davenport D, Demory B, et al. 3D quantum ghost imaging microscope[J]. Optica, 2025, 12(7): 1109-1112. doi: 10.1364/OPTICA.565248
[18]	Tong Zhishen, Hu Chenyu, Wang Jian, et al. Single-shot super-resolution imaging via discernibility in the high-dimensional light-field space based on ghost imaging[J]. Photonics Research, 2025, 13(6): 1709-1725. doi: 10.1364/PRJ.554680
[19]	Katkovnik V, Astola J. Compressive sensing computational ghost imaging[J]. Journal of the Optical Society of America A, 2012, 29(8): 1556-1567. doi: 10.1364/JOSAA.29.001556
[20]	Katz O, Bromberg Y, Silberberg Y. Compressive ghost imaging[J]. Applied Physics Letters, 2009, 95: 131110. doi: 10.1063/1.3238296
[21]	Zhao Shengmei, Zhuang Peng. Correspondence normalized ghost imaging on compressive sensing[J]. Chinese Physics B, 2014, 23: 054203. doi: 10.1088/1674-1056/23/5/054203
[22]	Mizutani Y, Shibuya K, Taguchi H, et al. Single-pixel imaging by Hadamard transform and its application for hyperspectral imaging[C]//Proceedings of SPIE 10021, Optical Design and Testing VII. 2016: 100210B.
[23]	Wang Le, Zhao Shengmei. Fast reconstructed and high-quality ghost imaging with fast Walsh–Hadamard transform[J]. Photonics Research, 2016, 4(6): 240-244. doi: 10.1364/PRJ.4.000240
[24]	Yuan Xiao, Zhang Leihong, Chen Jian, et al. Multiple-image encryption scheme based on ghost imaging of Hadamard matrix and spatial multiplexing[J]. Applied Physics B, 2019, 125: 174. doi: 10.1007/s00340-019-7286-9
[25]	Gao Zhujun, Yin Jianhua, Bai Yanfeng, et al. Imaging quality improvement of ghost imaging in scattering medium based on Hadamard modulated light field[J]. Applied Optics, 2020, 59(27): 8472-8477. doi: 10.1364/AO.400280
[26]	Sun Mingjie, Meng Lingtong, Edgar M P, et al. A Russian Dolls ordering of the Hadamard basis for compressive single-pixel imaging[J]. Scientific Reports, 2017, 7: 3464. doi: 10.1038/s41598-017-03725-6
[27]	Yang Mochou, Wang Peng, Wu Yi, et al. A ghost imaging framework based on laser mode speckle pattern for underwater environments[J]. Communications Engineering, 2024, 3: 52. doi: 10.1038/s44172-024-00200-9
