一种用于波导中传动轴的级联宽带扼流装置

董涛; 王秀芳; 倪泰来; 王皓; 王邦继; 刘庆想

doi:10.11884/HPLPB202436.230401

一种用于波导中传动轴的级联宽带扼流装置

doi: 10.11884/HPLPB202436.230401

西南交通大学物理科学与技术学院，成都 610031

基金项目: 中央高校基本科研业务费专项（2682024GF013）

详细信息

作者简介:
董　涛，dongtao@my.swjtu.edu.cn

通讯作者:
王秀芳，xwang66880@163.com。

中图分类号: TN628
计量
- 文章访问数: 25
- HTML全文浏览量: 12
- PDF下载量: 2
- 被引次数: 0
出版历程
- 收稿日期: 2023-11-14
- 修回日期: 2024-04-24
- 录用日期: 2023-12-21
- 网络出版日期: 2024-04-30

A cascaded broadband choke device for the transmission shaft in the waveguide

School of Physical Science and Technology, Southwest Jiaotong University, Chengdu 610031, China

摘要

摘要: 为了抑制波导中引入传动轴导致的微波泄露，保障系统的正常运行，提出了一种级联宽带扼流装置。利用阻抗变换原理分析了级联宽带扼流装置的带宽特性，通过增加介质片的数量提升扼流装置的频带宽度。根据等效波长原理，提高介质片介电常数可缩小扼流装置的体积。通过电磁仿真软件构建扼流装置模型，并分析了介质片数量、介电常数和尺寸对扼流装置性能的影响。仿真结果表明：工作频率为10 GHz时，双层扼流装置的泄露损耗在9.70～10.82 GHz带宽范围内小于−40 dB，相对带宽达到8.2%。最后，采用简化仿真模型进行了实物加工和测试，测试结果证实仿真结果的正确性，同时验证了该扼流装置的低损耗和宽频带特性。
- 扼流装置 /
- 宽带 /
- 级联 /
- 传动轴 /
- 波导
Abstract: In this paper, a cascaded broadband choke device is presented, which can prevent microwave leakage by a transmission shaft in the waveguide. Utilizing the principle of impedance transformation, the bandwidth attributes of the cascaded broadband choke device are examined. It is discerned that augmenting the quantity of dielectric slices can enhance the bandwidth of the choke device. Furthermore, based on the principle of equivalent wavelength, escalating the dielectric constant of the dielectric slice can effectively reduce the choke device’s volume. An electromagnetic simulation software is employed to establish a model of a double-layer choke structure. This model is then used to simulate and analyze the impact of variables such as the number of dielectric slices, dielectric constant, and size on the choke structure’s performance. The simulation outcomes indicate that at a working frequency of 10 GHz, the leakage loss of the double-layer choke structure is less than −40 dB within a bandwidth range of 9.70 GHz-10.82 GHz, achieving a relative bandwidth of 8.2%. A simplified simulation model is subsequently utilized for physical fabrication and testing. The experimental findings not only corroborate the accuracy of the simulation results but also affirm the low-loss and wide-bandwidth characteristics of the proposed choke structure.
- choke device /
- broadband /
- cascade /
- transmission shaft /
- waveguide

HTML全文

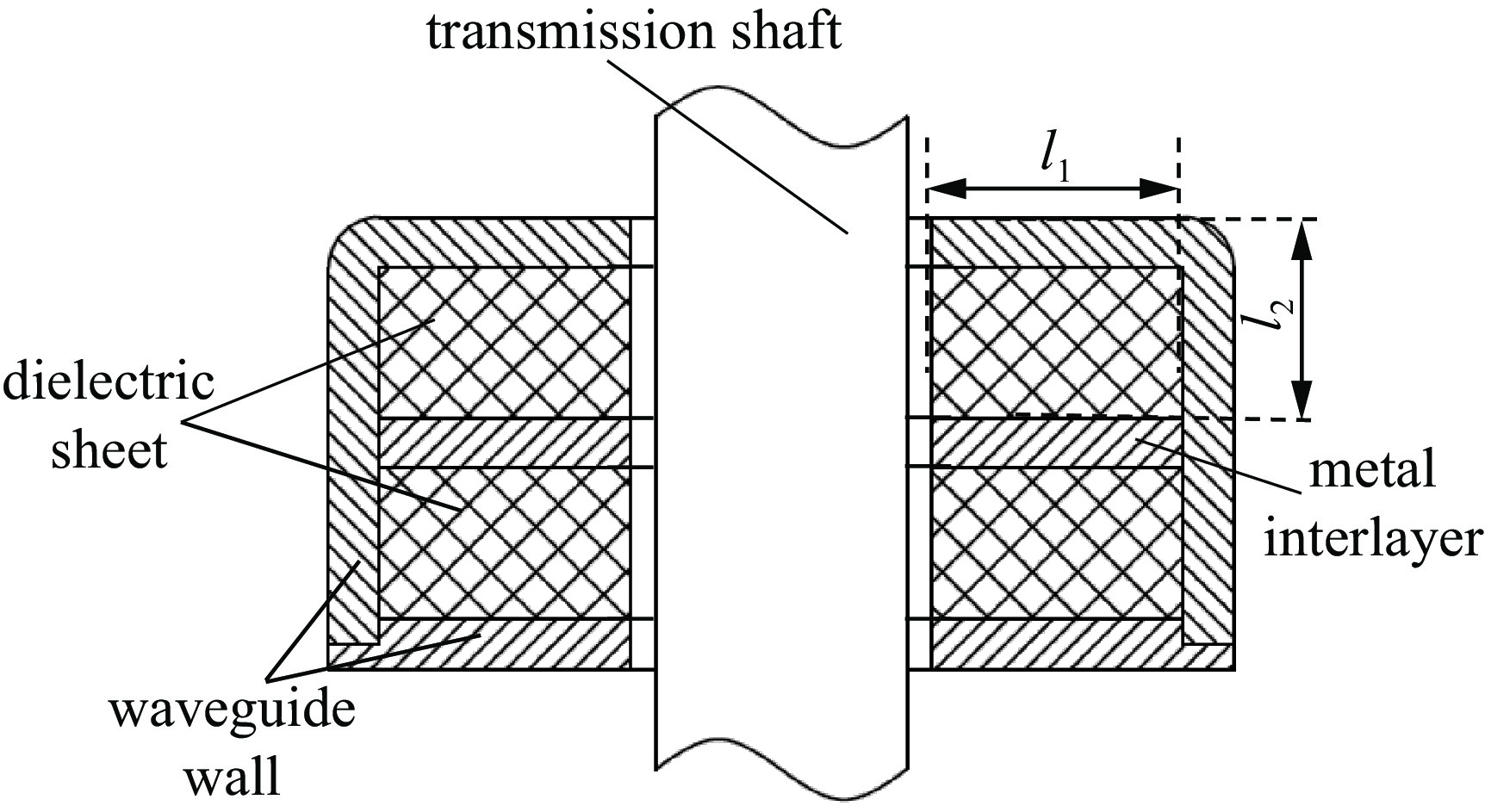

图 1 结构剖面示意图

Figure 1. Structural profile of the choke device

下载: 全尺寸图片幻灯片

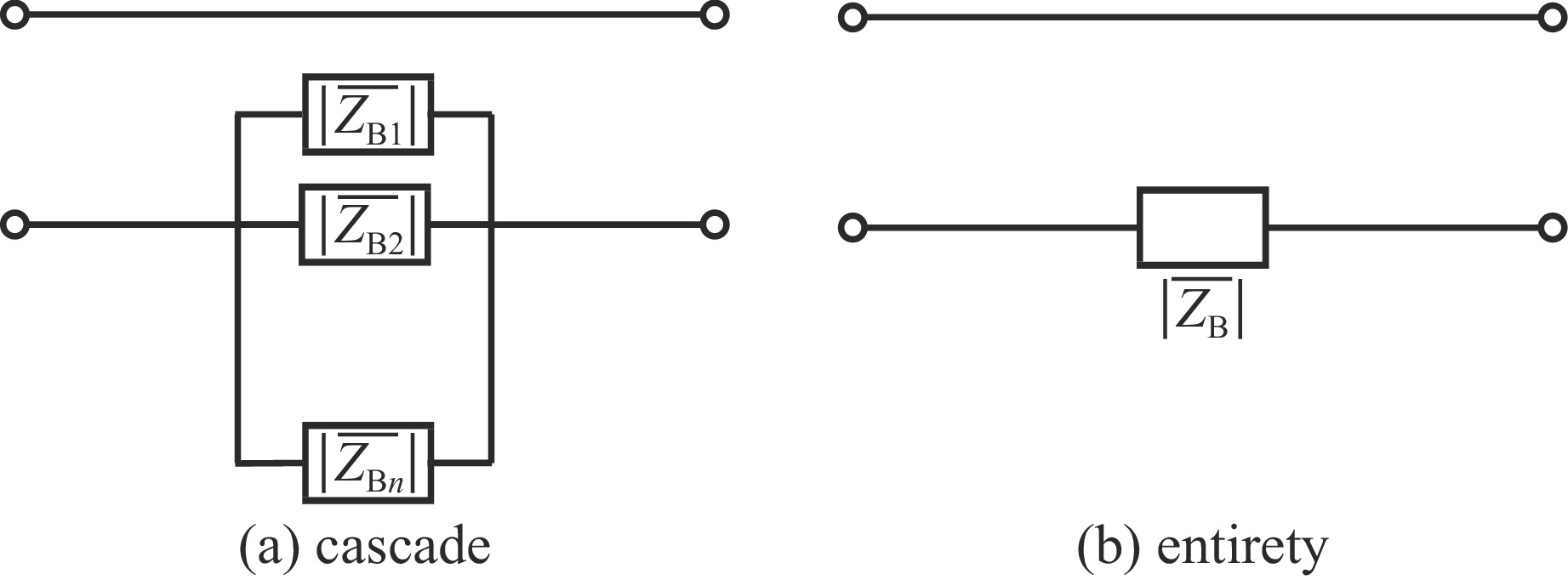

图 2 等效电路图

Figure 2. Equivalent circuit diagram

下载: 全尺寸图片幻灯片

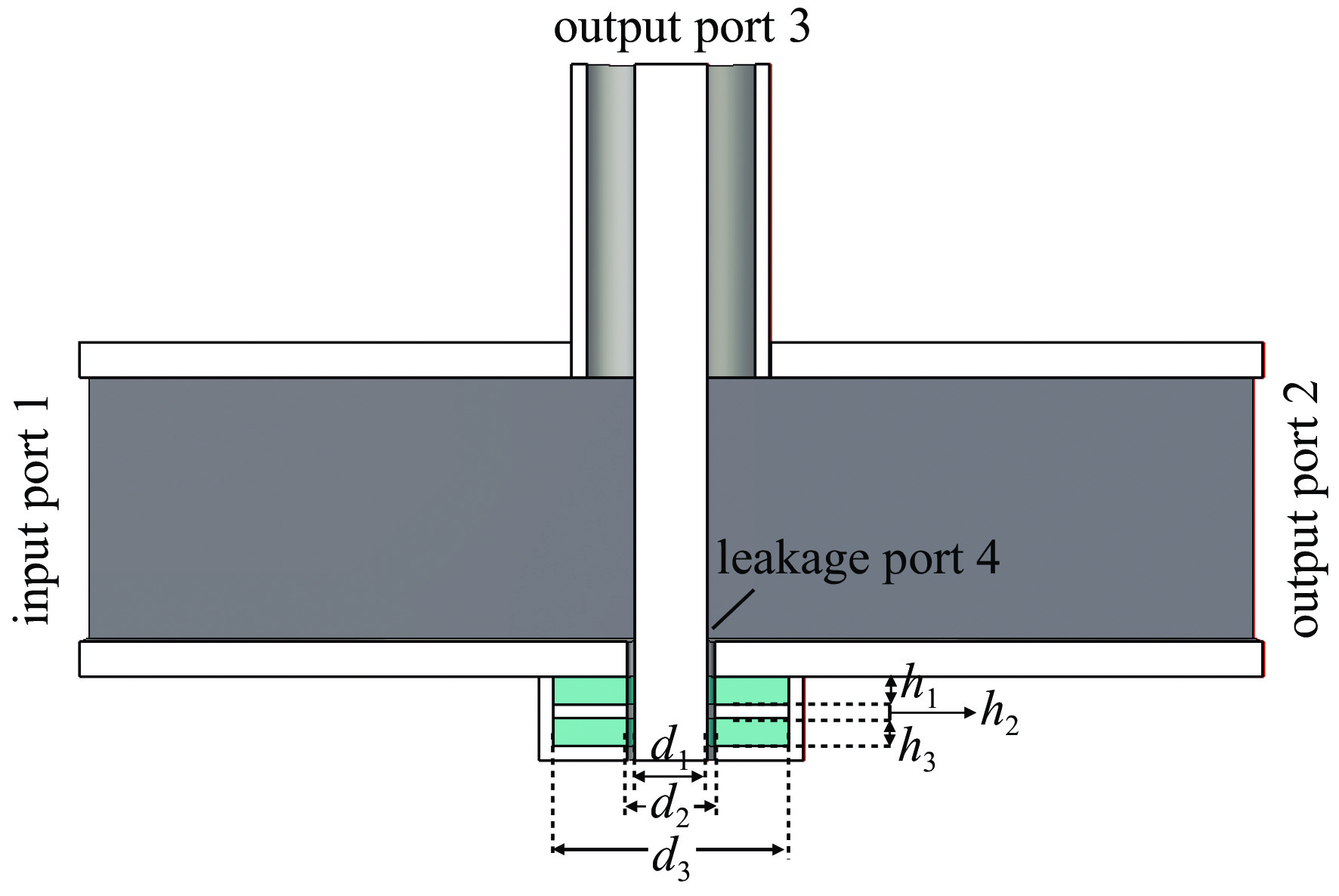

图 3 仿真模型结构剖面图

Figure 3. Structural profile of the simulation model

下载: 全尺寸图片幻灯片

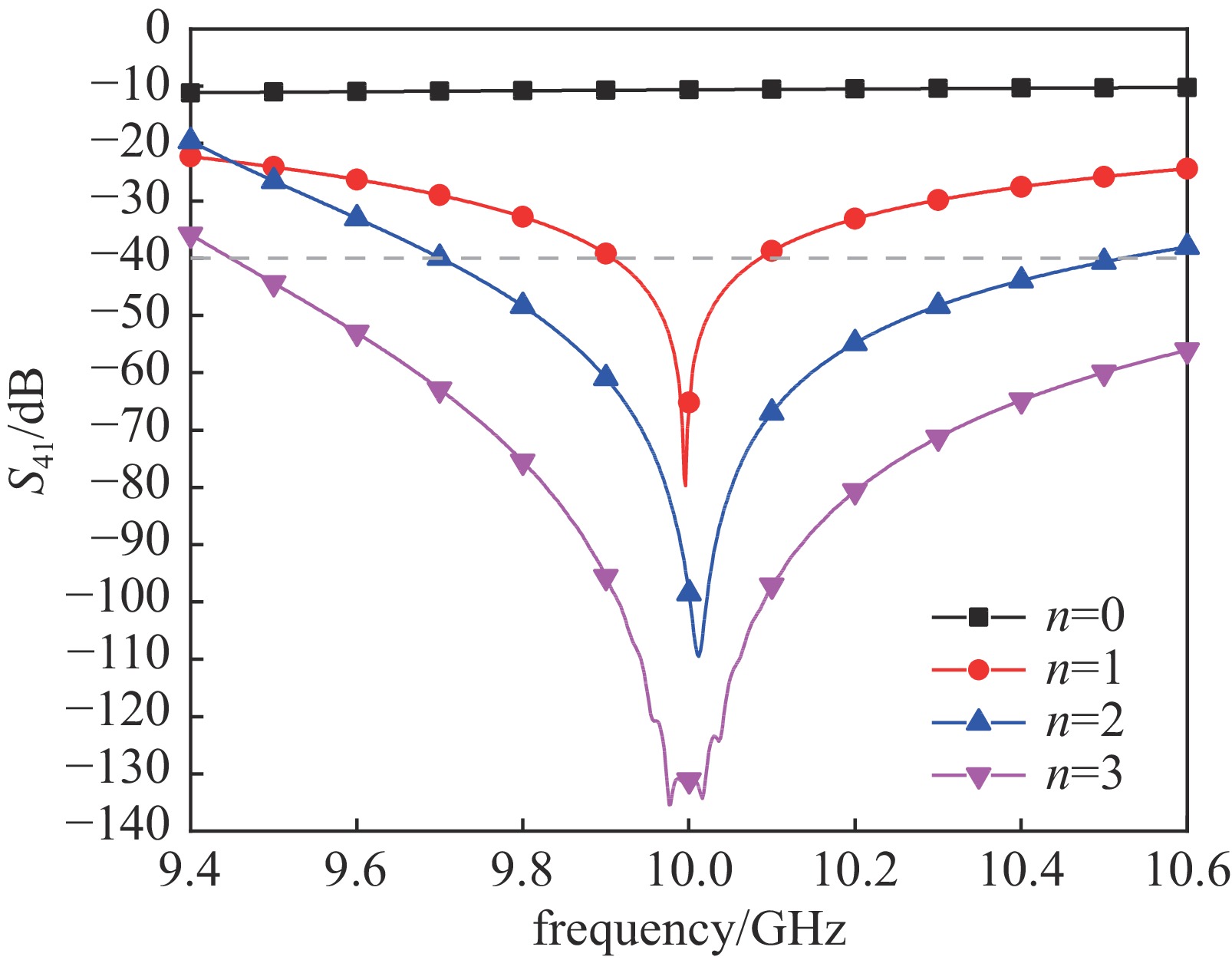

图 4 n变化时扼流装置的泄露损耗

Figure 4. Leakage loss of the choke device when n changes

下载: 全尺寸图片幻灯片

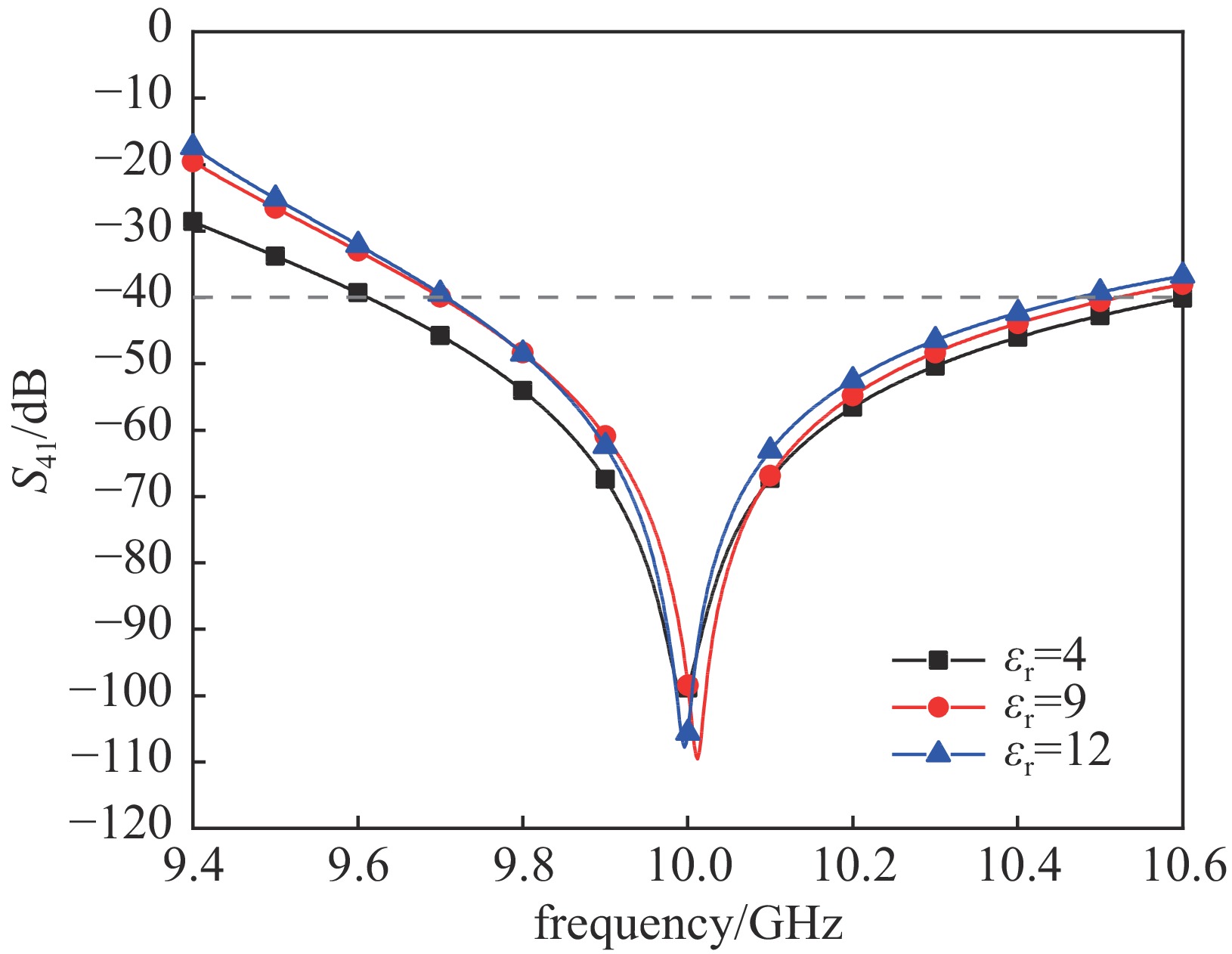

图 5 介电常数${\varepsilon _r}$变化时的泄露损耗

Figure 5. Leakage loss of the choke device when ${\varepsilon _r}$ changes

下载: 全尺寸图片幻灯片

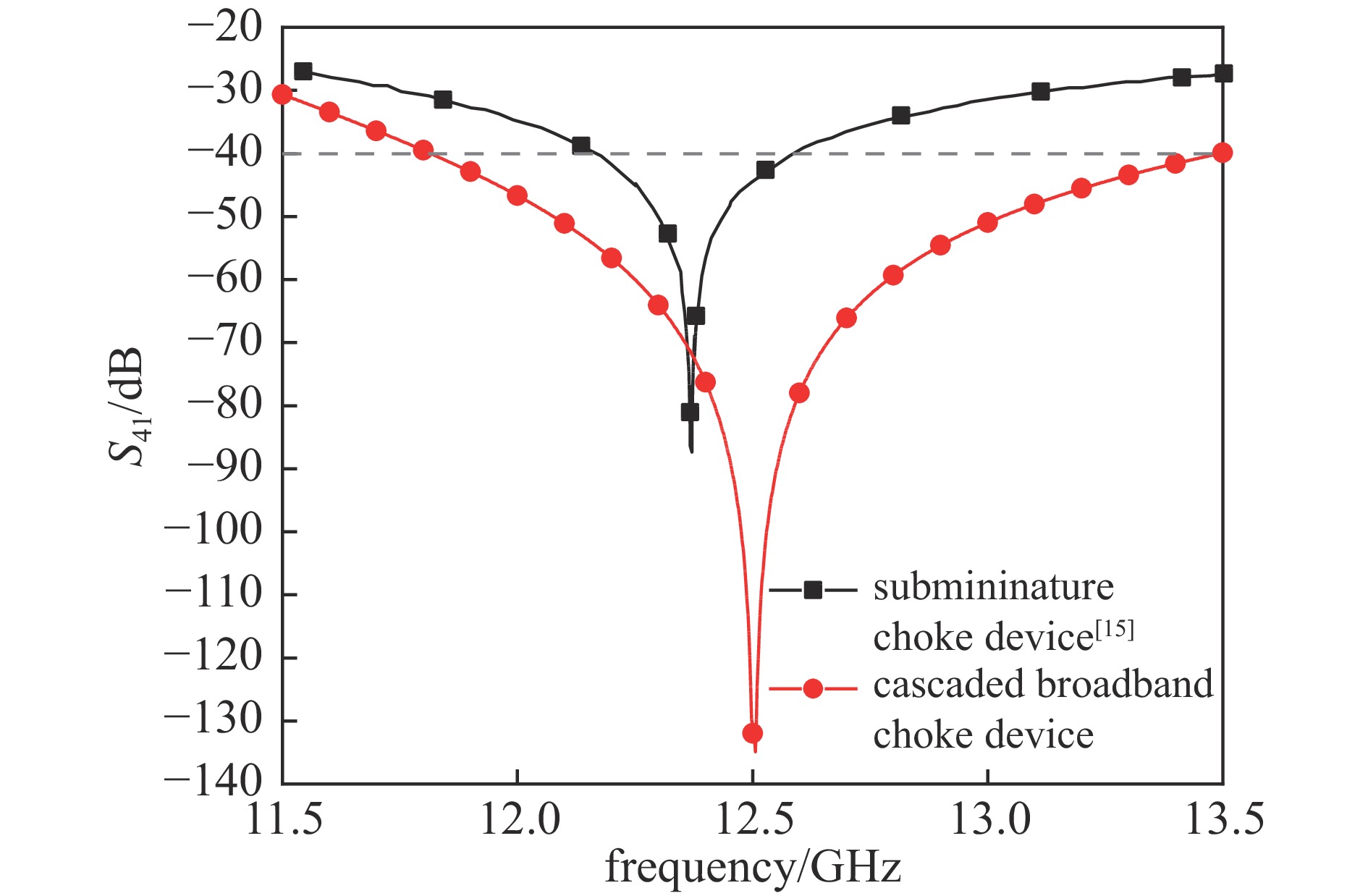

图 6 12.5 GHz时的泄露损耗

Figure 6. Leakage loss of the choke device working at 12.5 GHz

下载: 全尺寸图片幻灯片

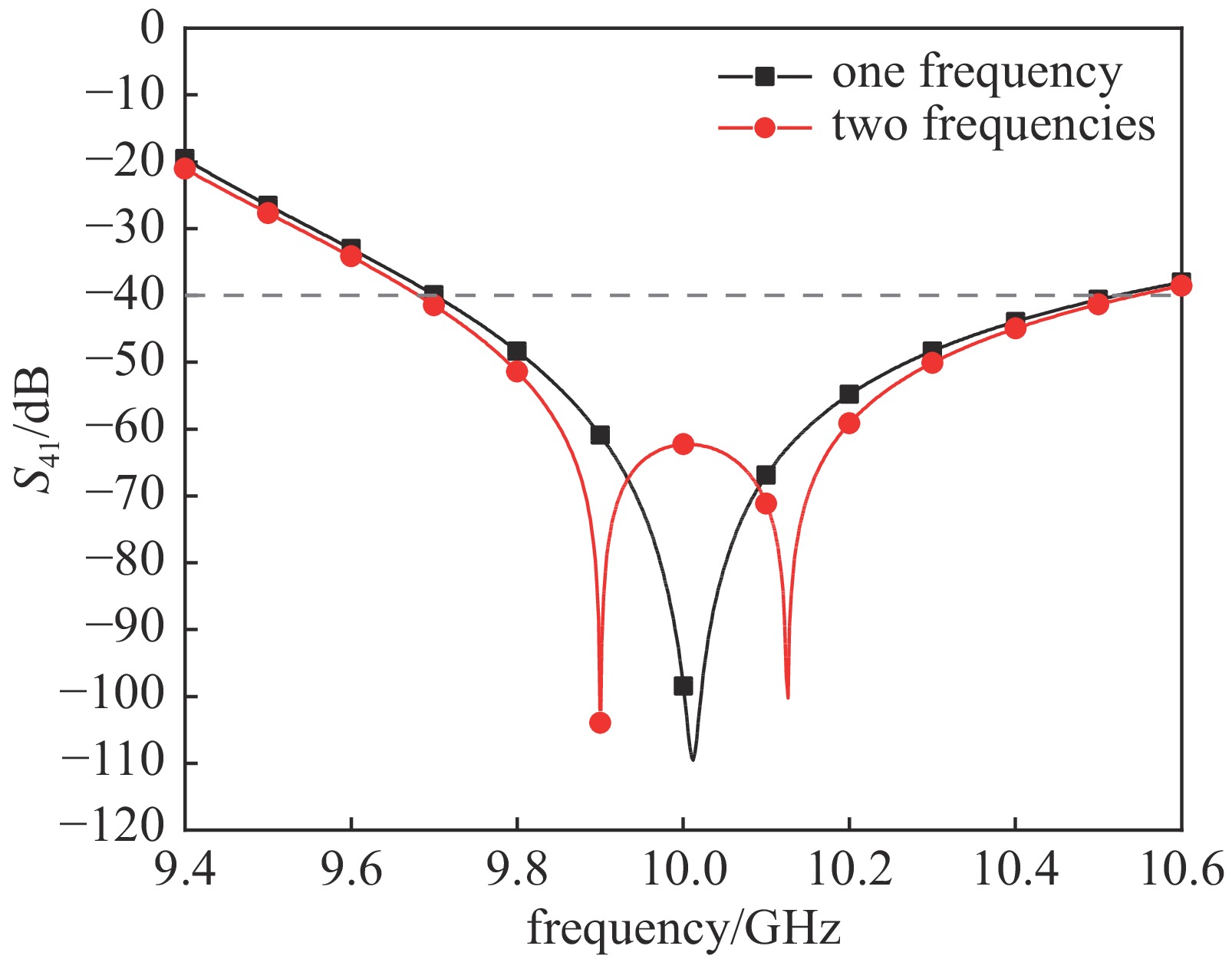

图 7 双频点扼流装置的泄露损耗

Figure 7. Leakage loss of the choke device with two frequencies

下载: 全尺寸图片幻灯片

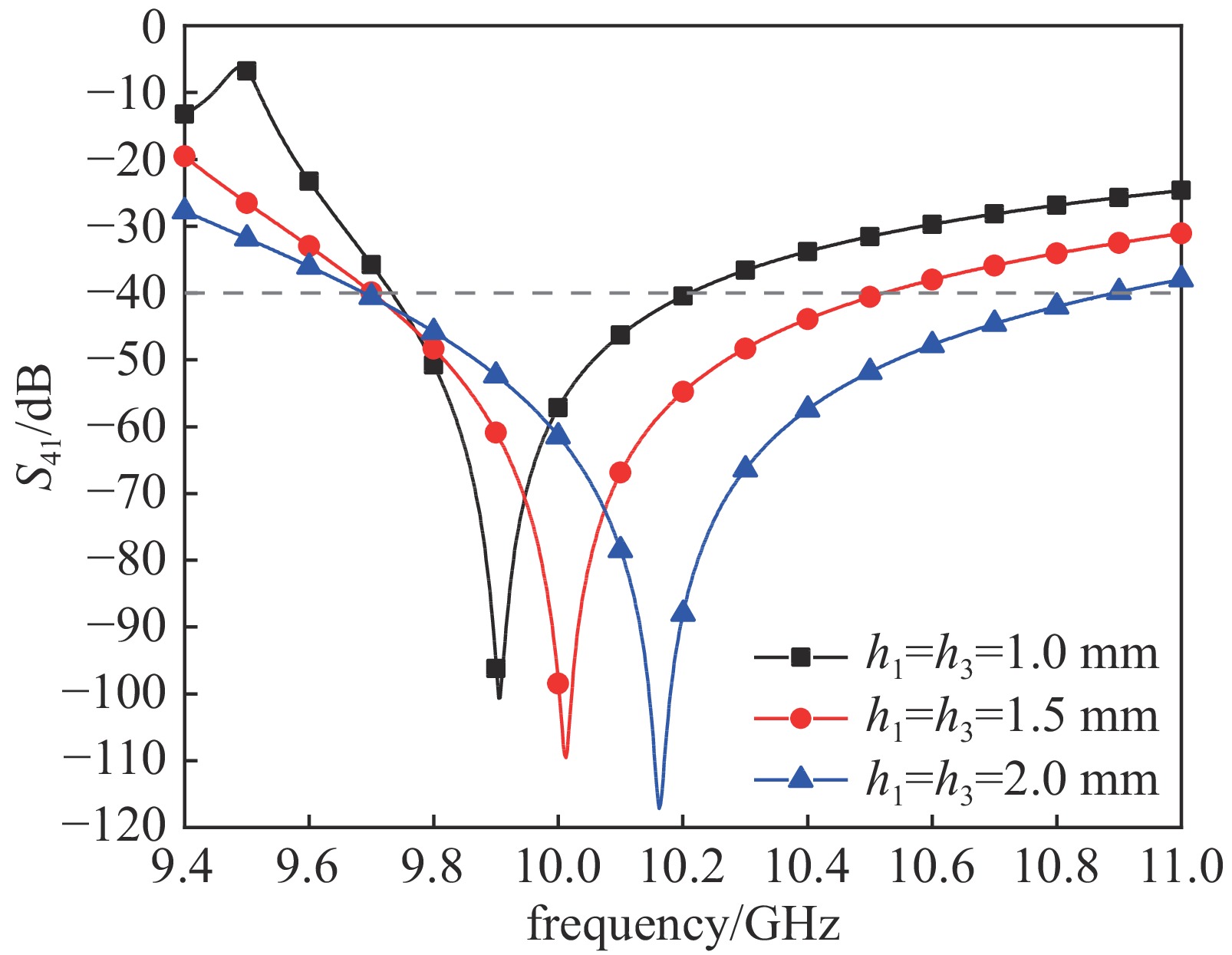

图 8 介质片厚度h₁变化时的泄露损耗

Figure 8. Leakage loss of the choke device when h1 changes

下载: 全尺寸图片幻灯片

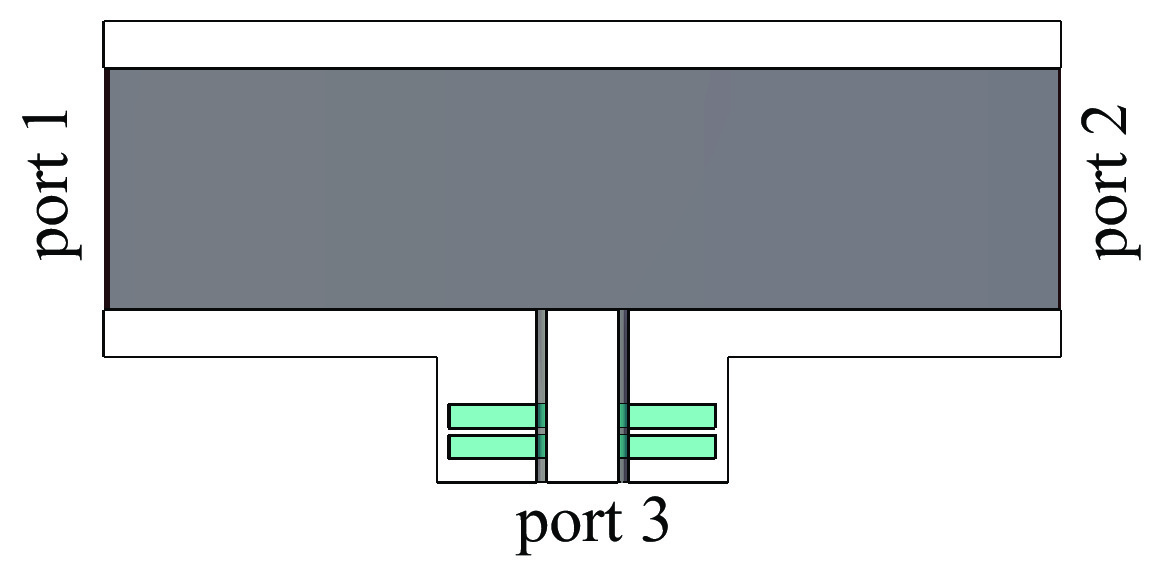

图 9 三端口结构剖面图

Figure 9. Structural profile of the simulation model with 3 端口s

下载: 全尺寸图片幻灯片

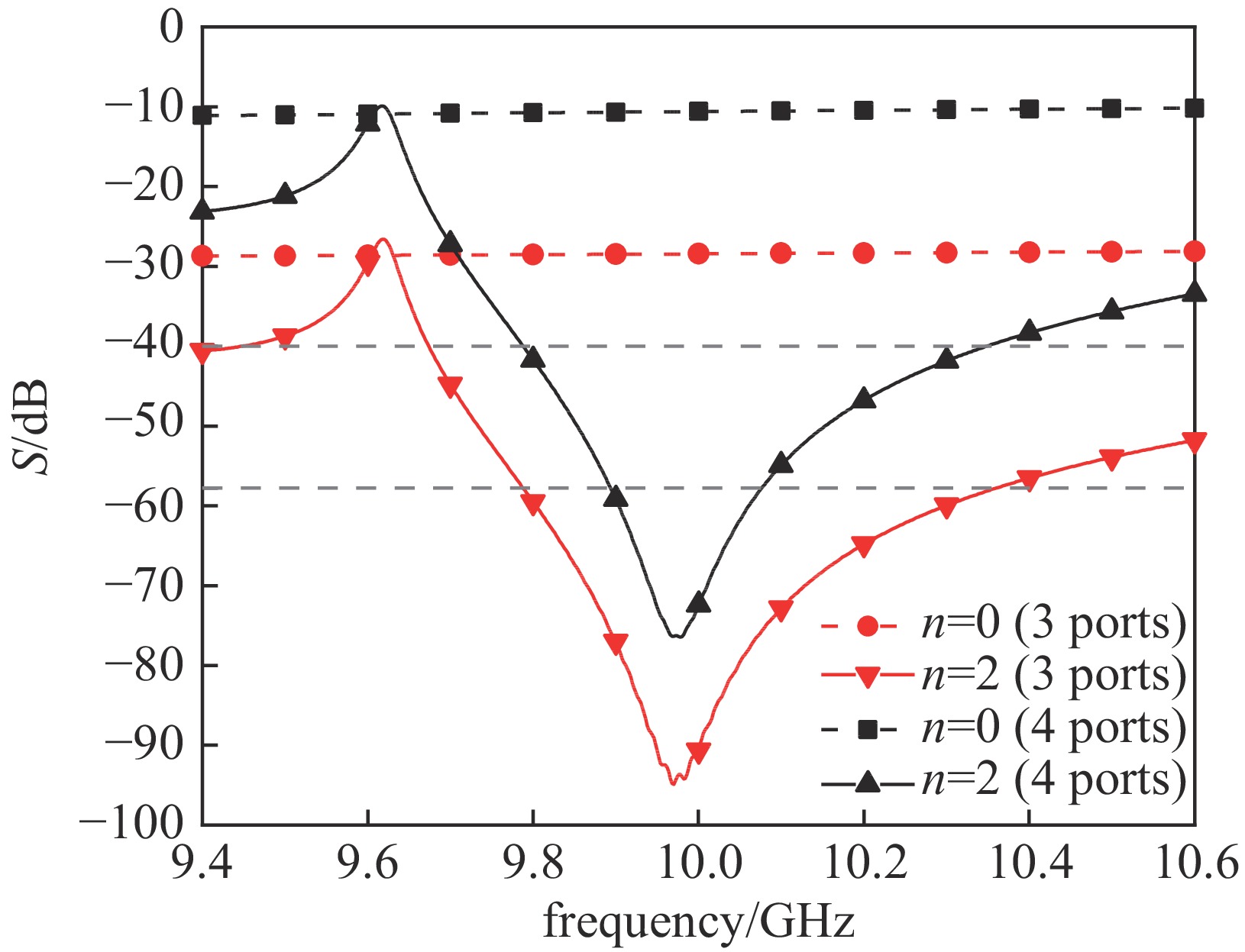

图 10 四端口与三端口的泄露损耗

Figure 10. Leakage loss of 4 端口s and 3 端口s

下载: 全尺寸图片幻灯片

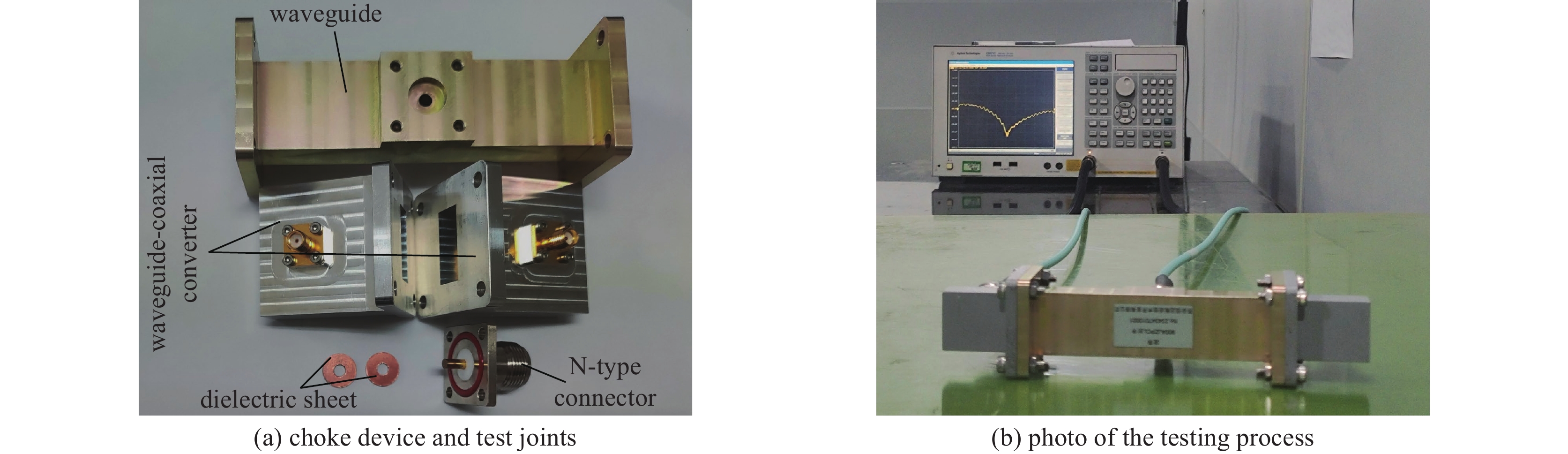

图 11 实物及测试过程

Figure 11. Pictures of the objects and the testing process

下载: 全尺寸图片幻灯片

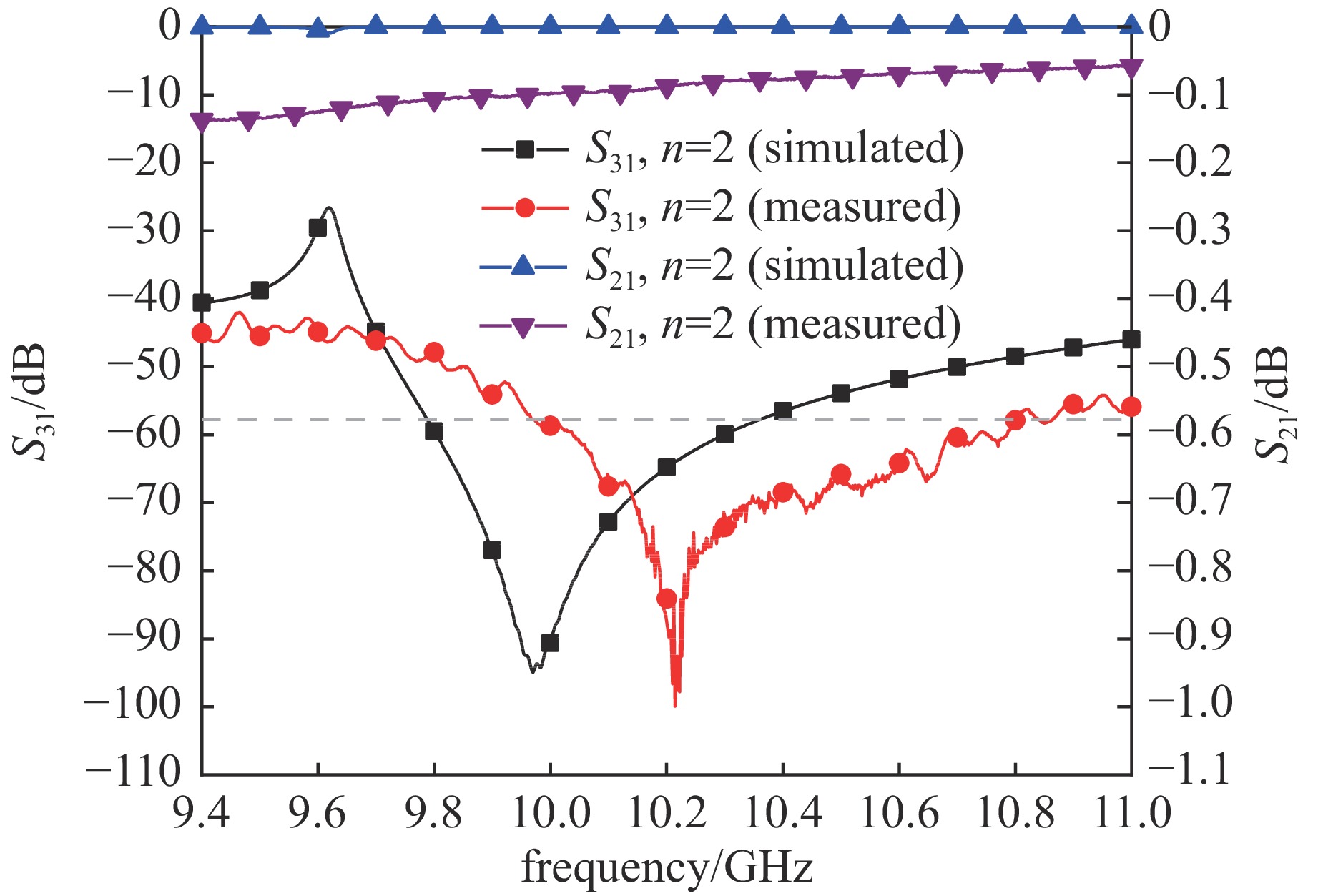

图 12 传输系数（S₂₁）与泄露损耗（S₃₁）

Figure 12. Transmission coefficient (S₂₁) and leakage loss (S₃₁)

下载: 全尺寸图片幻灯片

表 1 介电常数不同时介质片的结构参数表

Table 1. Structural parameters of choke device with different permittivity Unit: mm

${\varepsilon _r}$	${d_1}$	${d_2}$	${d_3}$	${h_1}$	${h_2}$	${h_3}$
4.0	3.00	3.80	13.30	1.50	0.50	1.50
9.0	3.00	3.80	9.84	1.50	0.50	1.50
12.0	3.00	3.80	8.95	1.50	0.50	1.50

下载: 导出CSV

表 2 扼流装置性能对比

Table 2. Comparison of choke device performance

reference	center frequency/ GHz	relative bandwidth (leakage loss $ \leqslant $−40 dB)	relative bandwidth (leakage loss $ \leqslant $−60 dB)
in Ref.[15]	12.5	3.6%	0.4%
this work	12.5	13.4%	4.3%
this work	10.0	8.2%	2.5%

下载: 导出CSV
